Isuzu Giga 6*4 10wheels Fire Fighting Truck
ISUZU giga 6*4 10wheels fire fighting truckProduct ParametersGeneralModelCLW5410GXFBrandCLWOverall DimensionApprox. 12000×2540×3720mmGVW31000kgKerb Weight17300kgRated Payload13550kgMax Speed85km/hSuperstructureWater TankVolume12000LMaterialhigh quality carbon steel plate,anti-rus......
Send Inquiry
Product Description

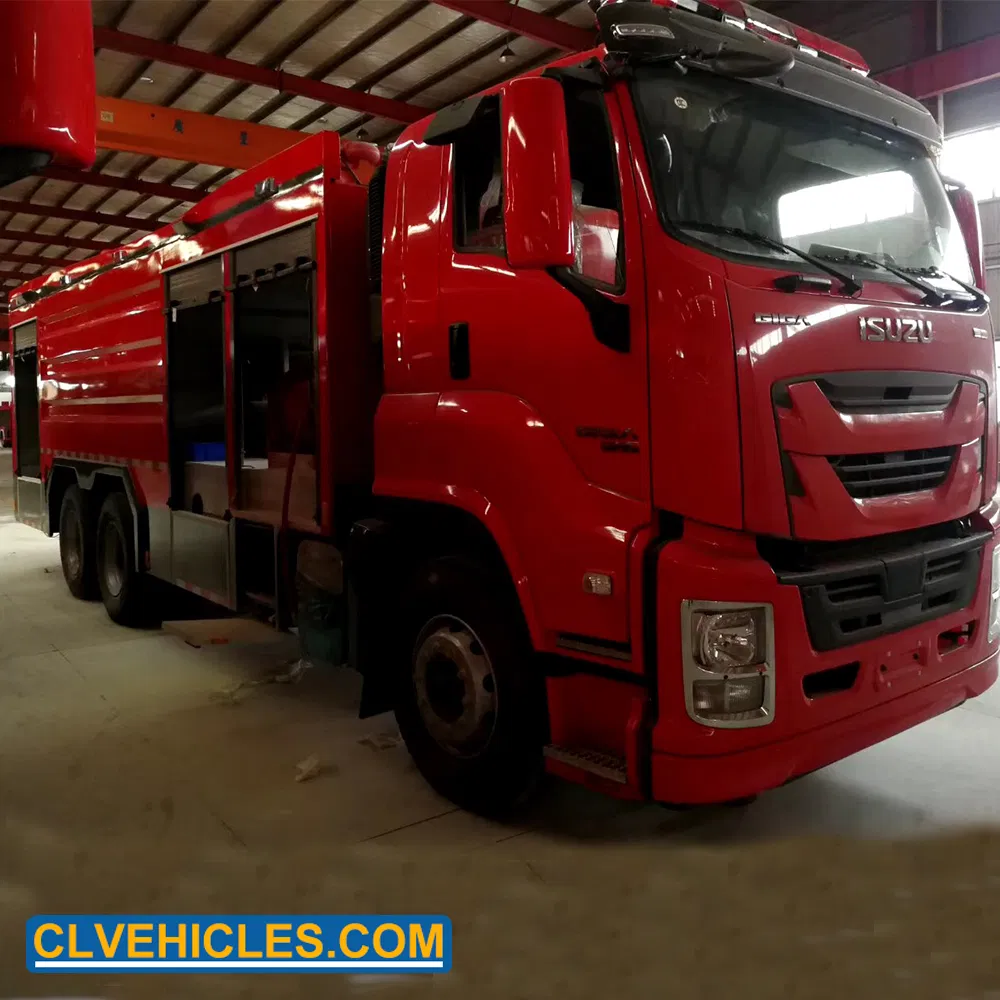

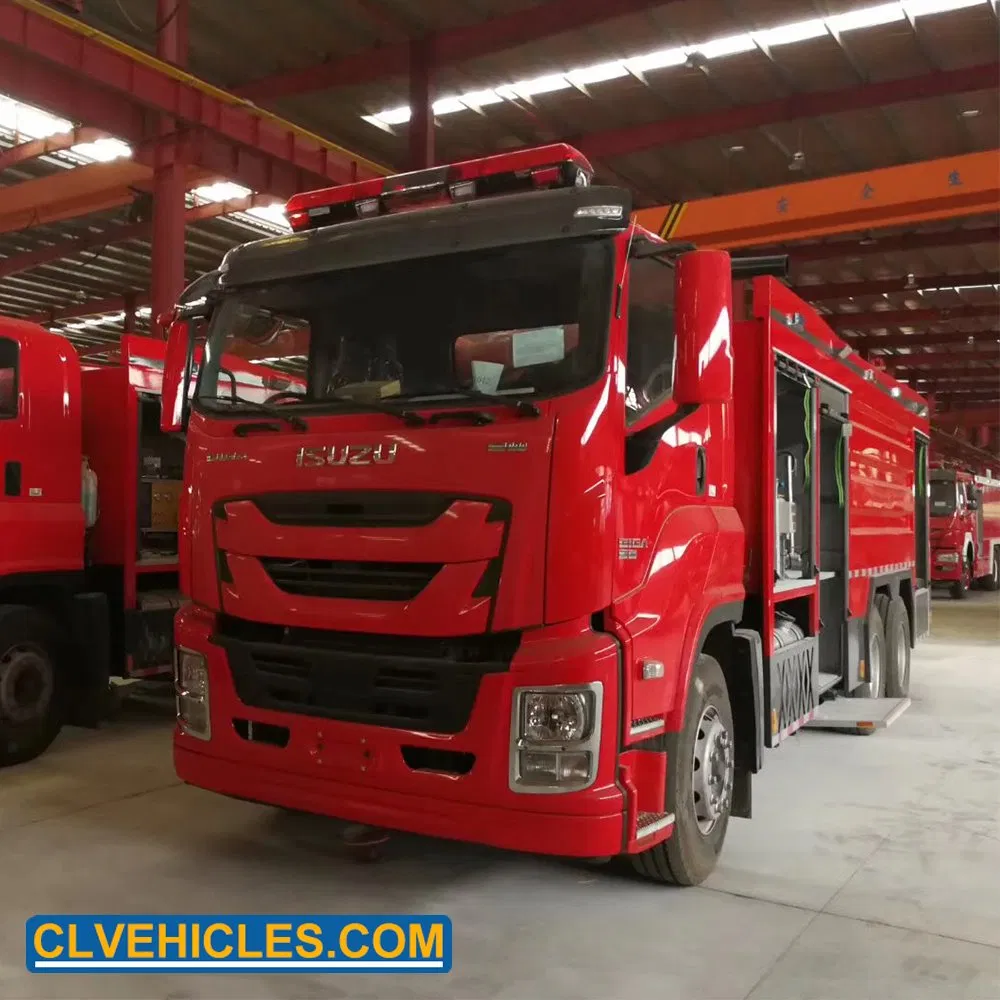

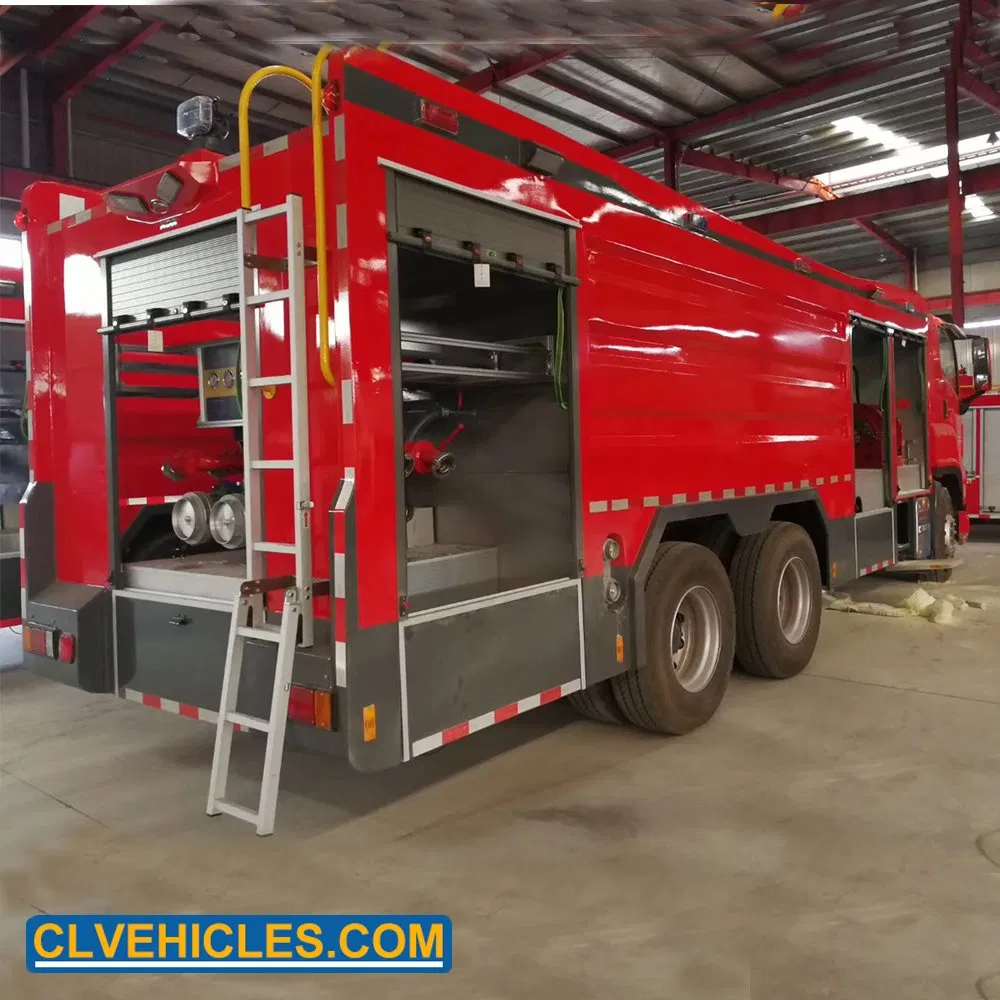

ISUZU giga 6*4 10wheels fire fighting truck
Product Parameters
| General | Model | CLW5410GXF | |
| Brand | CLW | ||
| Overall Dimension | Approx. 12000×2540×3720mm | ||
| GVW | 31000kg | ||
| Kerb Weight | 17300kg | ||
| Rated Payload | 13550kg | ||
| Max Speed | 85km/h | ||
| Superstructure | Water Tank | Volume | 12000L |
| Material | high quality carbon steel plate, anti-rust treatment inside. | ||
| Foam Tank | Volume | 3000L | |
| Material | high quality carbon steel plate, anti-rust treatment inside. | ||
| Dry Power Tank | Volume | 2000kg | |
| Material | Q345R | ||
| Reel hose | 30m | ||
| Fire pump | Type | Normal pressure fire pump | |
| Model | CB10/120 | ||
| Pressure: | 1.0Mpa | ||
| Flow: | 120L/s, 7200L/h | ||
| Suction depth | ≥ 7m | ||
| Rated Shift power | ≥ 140kw | ||
| Fire monitor | Type | Water & Foam | |
| Model: | PL100 | ||
| Flow | 100L/S | ||
| Working pressure: | <=0.9Mpa | ||
| Range: | ≥ 85m | ||
| Rotation angle | 360o | ||

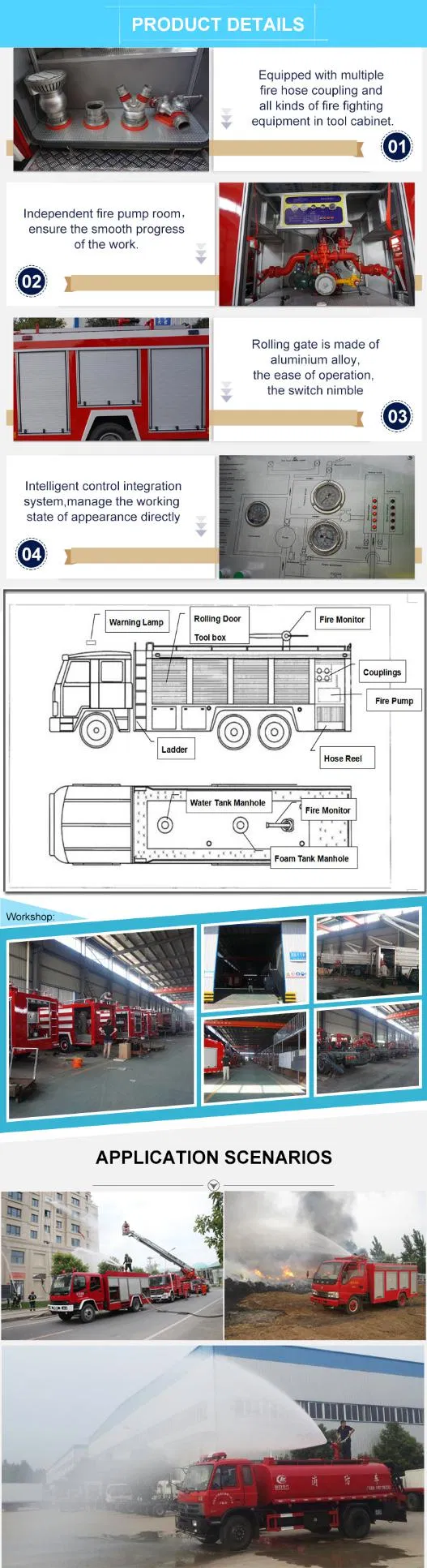

Product Details
