New China Design 7000 Litres 7000L 65m Spraying Height Fire Truck with British Couplings
Product Description

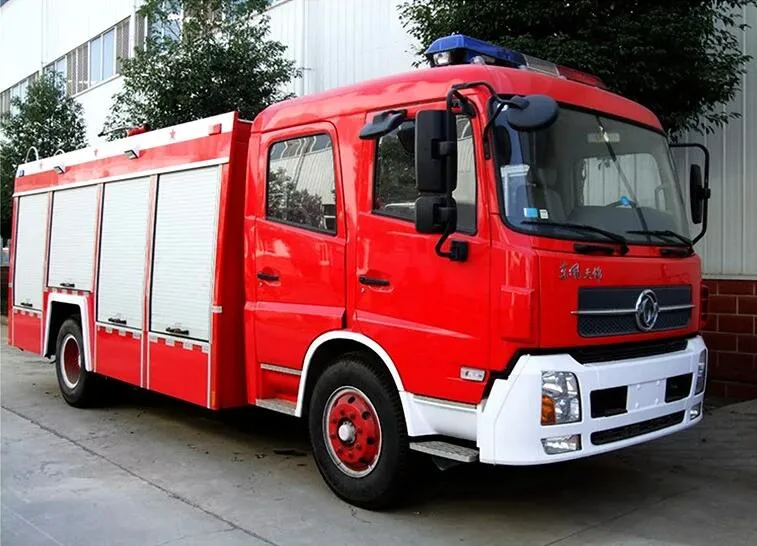

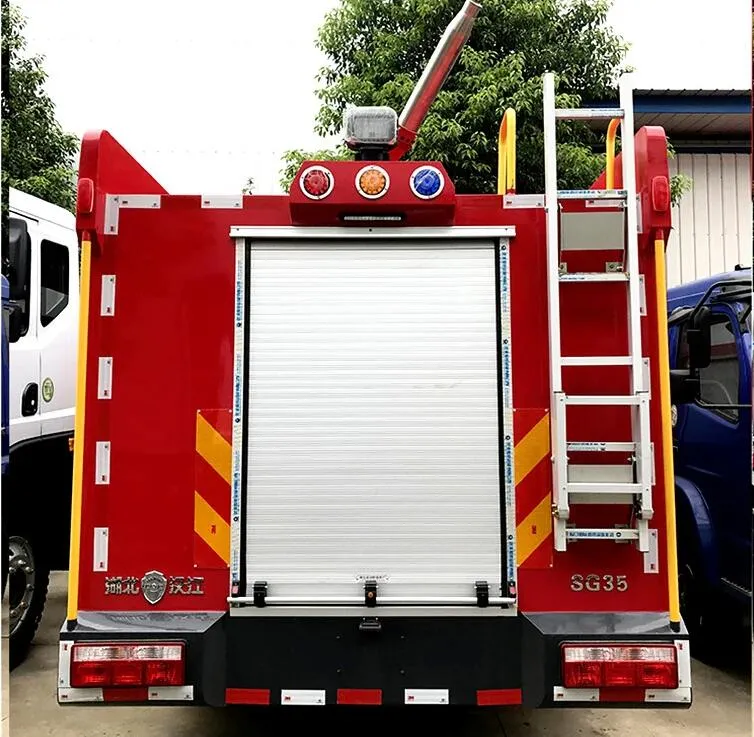

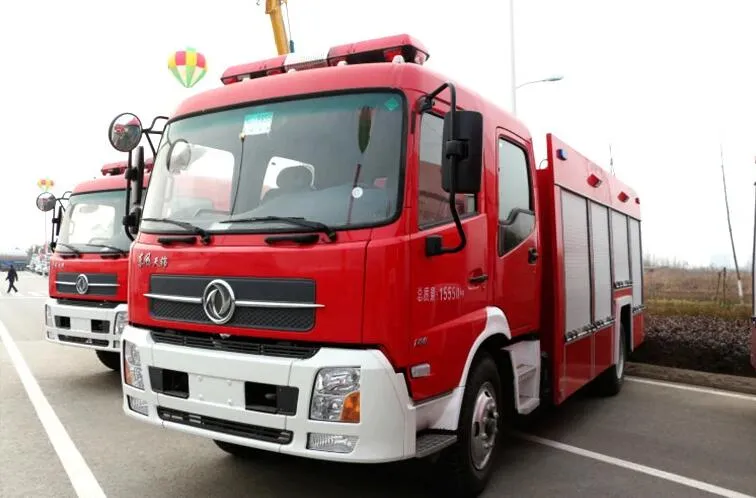

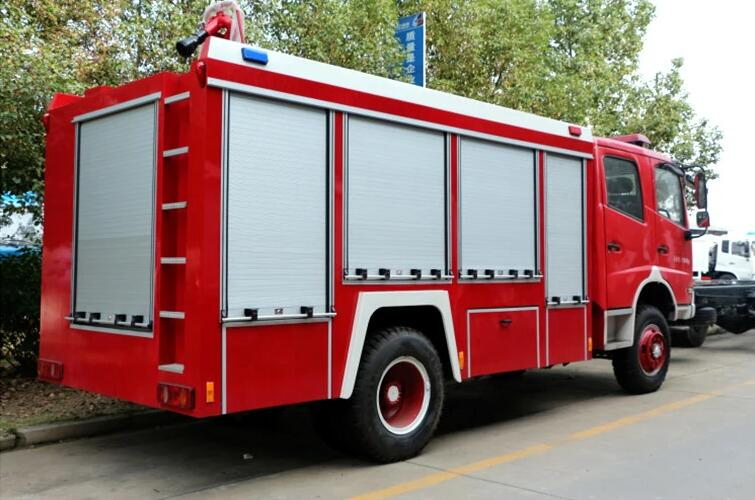

1.Dongfeng 4X2 fire fighting truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.
2) To ensure good performance of fire trucks,howo fire truck is equipped with middle and low pressure fire pump CB20.10/30.6o with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).
3) Fire trucks are widely used in factory,terminal,oil&gas depot to insure emergency fire cases.
Specifications of Dongfeng 4X2 fire fighting truck
| Model | Parameters | others |
| Overall Dimension | 7660×2500×3460 | |
| GVW | 15560kg | |
| Engine Model | Cummins | |
| Engine Power | 177kW | |
| Wheelbase | 4500mm | |
| Driving Type | 4X2 | |
| Max.speed | 90km/h | |
| Emission Standard | 7790 ml | Euro4 |
| Passengers | 1+1+4 | |
| Fire pump rated flow | 60L/[email protected];30L/[email protected] | Vacuum pump |
| water monitor rated flow | 48-64L/s | Adjustable |
| Water monitor range | Water range≥60m,foam≥55m | |
| Approach angle | ≥16° | |
| Departure angle | ≥23° |
| Item Parameters | Parameters | others | |||||
| 1 | Water tank capacity | water | 3000 | Built-in type | |||
| Foam tank capacity | foam | 2000 | |||||
| 2 | Fire pump model | CB20·10/30·60 | Shanghai rongshen | ||||
| 3 | Fire pump performance | condition | Pressure1:1.0Mpa flow:60L/S Pressure2:2.0Mpa flow:30L/S | Use vacuum pump to priming water | |||
| 4 | the installation site of fire pump | rear | |||||
| 5 | The quantity of fire pump water outlet | 6 | |||||
| 6 | Pressure gauge | 0-1.6 Mpa, 0-2.5 MPa | 2.6 level | ||||
| 7 | Vacuum gauge | -0.1- -1 MPa | 2.6 level | ||||
| 8 | Water monitor (PL48-64YZ) | water | Flow: 48- 64L/S | Range:60m | Shandong zhangqiu | ||
| foam | Range:55m | ||||||
| Depression/Elevation angle | -30-+70° | ||||||
| Turning angle 360° | |||||||
| 9 | PTO Model | YTQ590K type full power sandwich , pneumatic | |||||
