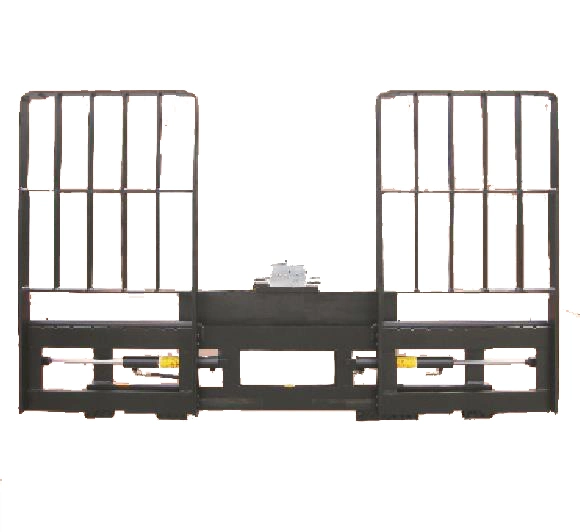

Forklift Attachment Bilateral shift shifter Double wide Sideshifters Forklift Part for 3ton to 4.5ton ForkliftModelBearing capacity @load center (Kg@mm)Adaptive forklift truckOuter end spacing(mm)Unilateral stroke(mm)Width of form fork carrier(mm)Maximum distance between two pallets (mm)Vertical cen......

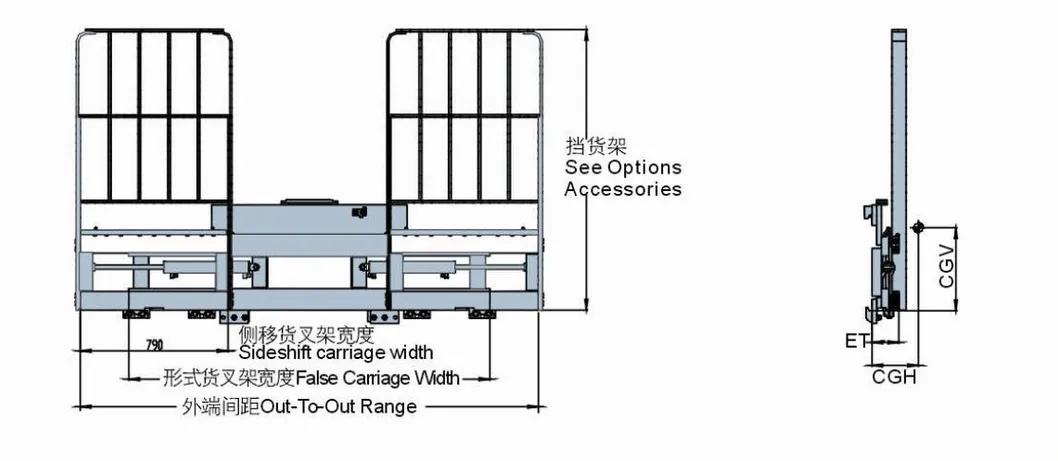

| Model | Bearing capacity @ load center
(Kg@mm) | Adaptive forklift truck | Outer end spacing (mm) | Unilateral stroke (mm) | Width of form fork carrier (mm) | Maximum distance between two pallets
(mm) | Vertical center of gravity
CGV (mm) | Horizontal center of gravity CGH (mm) | Lost load distance ET (mm) | Dead weight (Kg) |
| SC30D-B1 | 3000@600 | 3-4.5t | 1805-2490 | 345 | 1930 | 685 | 290 | 53 | 119 | 341 |
| SC30D-B2 | 3000@600 | 3-4.5t | 1805-2490 | 302 | 1620 | 604 | 380 | 90 | 143 | 328 |
Note:
1,The actual comprehensive bearing capacity of forklift / accessories shall be obtained from the forklift manufacturer.
2,It is required to add 2 sets of additional oil circuits to match the accessories.
3,It is required that the minimum width of forklift frame is 955mm.
4,Optional shelf, without fork.
| Model | Pressure value(Bar) | Flow value(L/min) | |||
| Maximum | Minimum | Recommend | Maximum | ||
| SC D | 210 | 4 | 8 | 11 | |
Hydraulic system: all seals are imported products, and high-pressure rubber hose is imported rubber hose with cone sealing performance.
Structural parts: the fork frame is welded with high-performance alloy steel plate.
Mechanical properties: the two side moving frames can move separately (separate, close, move left, move right), with good vision.
Scope of application: it is suitable for carrying all kinds of box shaped and scattered goods, making forklift move two pallets of goods respectively and make them close, or separating two pallets of goods, so as to significantly improve the handling efficiency.
