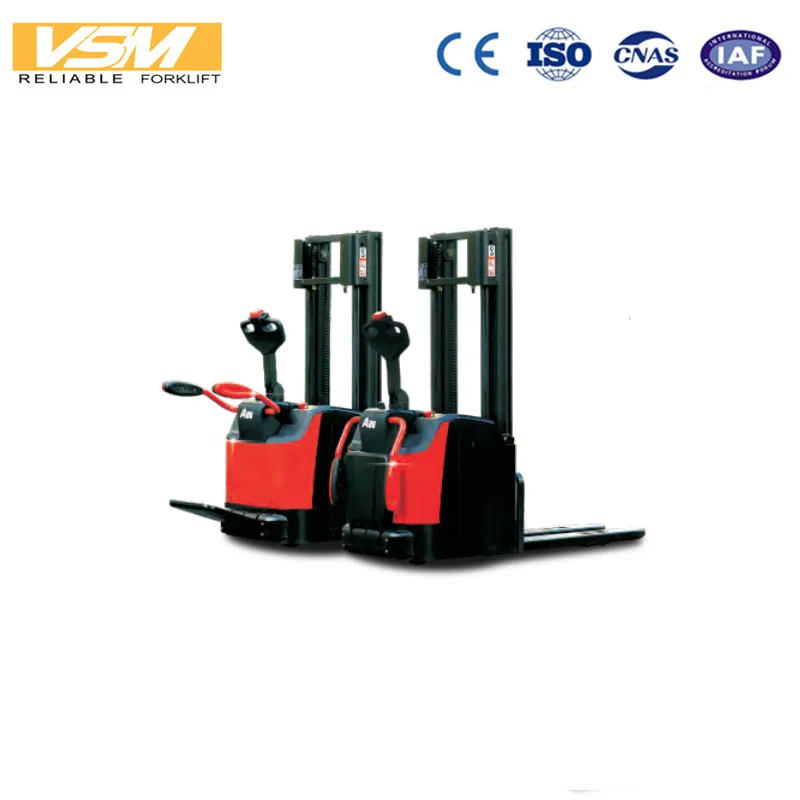

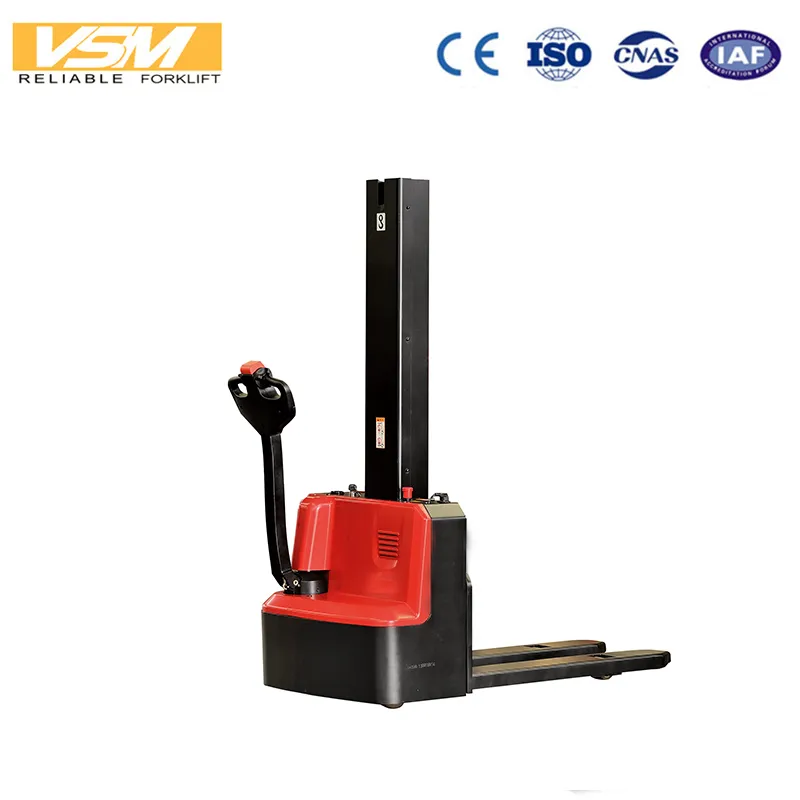

Hangcha Material Handling 1t 1.5t Electric Pallet Stacker Truck
VSM is committed to be the reliable and trusted material handling expert.combining research, manufacturing, sales and service.High Performance:1. AC travelling motor applied to provide excellent acceleration, good gradeability, low heat, no carbon brush and maintenance free.2. The lastest CURTIS AC......
Send Inquiry
Product Description
VSM is committed to be the reliable and trusted material handling expert.combining research, manufacturing, sales and service.
High Performance:
1. AC travelling motor applied to provide excellent acceleration, good gradeability, low heat, no carbon brush and maintenance free.
2. The lastest CURTIS AC control system provides accurate and stable control to work more efficient.
3. The applied CANBUS structure to offer more reliable and faster command access.
4. Regenerative brake and slope anti-slide function are offered by this truck.
Standard specification:
1. Horn
2. Pedal(only for Stand-on)
3. AC drive motor
4. PU drive motor
5. Tandem wheels
6. 2.7m duplex mast
7. Soft landing system
8. CURTIS AC controller
9. 1150mm fork length
10. Hydraulic power unit
11. 570mm outside fork width
12. Emergency disconnect switch
13. Multi-function battery indicator
14. CAN-bus system multi-function tiller
15. Sensitive lowering
Options:
1. 240Ah battery
2. Load backrest
3. Side access battery
4. Mast protection
5. 680mm outside fork width
6. Different mast lifting heights (2m-4.5m)
7. Cold store protection(-30°C)
8. Different length of forks(1220mm, 1400mm, 1600mm)
9. Handrail
10. Overhead guard
11. Straddle leg
Specifications are suitable for single-deck pallets:
(If the stacker is also for operating double-deck pallet, please choose another model or remark this requirement in your inquiry)
High Performance:
1. AC travelling motor applied to provide excellent acceleration, good gradeability, low heat, no carbon brush and maintenance free.
2. The lastest CURTIS AC control system provides accurate and stable control to work more efficient.
3. The applied CANBUS structure to offer more reliable and faster command access.
4. Regenerative brake and slope anti-slide function are offered by this truck.
Standard specification:
1. Horn
2. Pedal(only for Stand-on)
3. AC drive motor
4. PU drive motor
5. Tandem wheels
6. 2.7m duplex mast
7. Soft landing system
8. CURTIS AC controller
9. 1150mm fork length
10. Hydraulic power unit
11. 570mm outside fork width
12. Emergency disconnect switch
13. Multi-function battery indicator
14. CAN-bus system multi-function tiller
15. Sensitive lowering
Options:
1. 240Ah battery
2. Load backrest
3. Side access battery
4. Mast protection
5. 680mm outside fork width
6. Different mast lifting heights (2m-4.5m)
7. Cold store protection(-30°C)
8. Different length of forks(1220mm, 1400mm, 1600mm)
9. Handrail
10. Overhead guard
11. Straddle leg
Specifications are suitable for single-deck pallets:
(If the stacker is also for operating double-deck pallet, please choose another model or remark this requirement in your inquiry)
| A series pallet stacker truck Basic Range Specification: | |||||||||
| Distinguishing mark | 1.1 | Manufacturer | VSM | VSM | VSM | VSM | VSM | VSM | |
| 1.2 | Manufacturer's type designation | CDD12-AEC1S | CDD12-AEC1 | CDD14-AEC1S | CDD14-AEC1 | CDD16-AEC1S | CDD16-AEC1 | ||
| 1.4 | Operator type: hand, pedestrian, standing, seated, order-picker | Standing | Pedestrian | Standing | Pedestrian | Standing | Pedestrian | ||
| 1.5 | Rated capacity/rated load | Q (kg) | 1200 | 1200 | 1400 | 1400 | 1600 | 1600 | |
| 1.6 | Load centre distance | c (mm) | 600 | 600 | 600 | 600 | 600 | 600 | |
| 1.9 | Wheelbase | y (mm) | 13781) | 13781) | 13781) | 13781) | 13781) | 13781) | |
| Weight | 2.1 | Service Weight | kg | 1030 | 990 | 1040 | 1000 | 1060 | 1020 |
| Tyres, chassis | 3.1 | Tyres: solid rubber, superelastic, pneumatic, polyurethane | PU | PU | PU | PU | PU | PU | |
| 3.2 | Tyre size, front | Ф250×80 | Ф250×80 | Ф250×80 | Ф250×80 | Ф250×80 | Ф250×80 | ||
| 3.3 | Tyre size, rear | Ф85×70 | Ф85×70 | Ф85×70 | Ф85×70 | Ф85×70 | Ф85×70 | ||
| 3.4 | Additional wheel (dimensions) | Ф125×50 | Ф125×50 | Ф125×50 | Ф125×50 | Ф125×50 | Ф125×50 | ||
| 3.5 | Wheels, number front / rear (x = driven wheels) | 1x+2/4 | 1x+2/4 | 1x+2/4 | 1x+2/4 | 1x+2/4 | 1x+2/4 | ||
| 3.6 | Tread, front | b10 (mm) | 620 | 620 | 620 | 620 | 620 | 620 | |
| 3.7 | Tread, rear | b11 (mm) | 385 | 385 | 385 | 385 | 385 | 385 | |
| Dimensions | 4.4 | Lift | h3 (mm) | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| 4.15 | Fork height,lowered | h13 (mm) | 90 | 90 | 90 | 90 | 90 | 90 | |
| 4.19 | Overall length | l1 (mm) | 20632)(24952)) | 20132) | 20632)(24952)) | 20132) | 20632)(24952)) | 20132) | |
| 4.21 | Overall width | b1(mm) | 860 | 860 | 860 | 860 | 860 | 860 | |
| 4.22 | Fork dimensions ISO 2331 | s/e/l (mm) | 60x185x1150 | 60x185x1150 | 60x185x1150 | 60x185x1150 | 60x185x1150 | 60x185x1150 | |
| 4.25 | Distance between fork-arms | b5 (mm) | 570/680 | 570/680 | 570/680 | 570/680 | 570/680 | 570/680 | |
| 4.32 | Ground clearance, centre of wheelbase | m2 (mm) | 30 | 30 | 30 | 30 | 30 | 30 | |
| 4.34.1 | Aisle width for pallets 1000 x 1200 crossways | Ast (mm) | 22802) | 22202) | 22802) | 22202) | 22802) | 22202) | |
| 4.34.2 | Aisle width for pallets 800 x 1200 crossways | Ast (mm) | 23302) | 22702) | 23302) | 22702) | 23302) | 22702) | |
| 4.35 | Turning radius | Wa (mm) | 16301) | 15701) | 16301) | 15701) | 16301) | 15701) | |
| Performance data | 5.1 | Travel speed,laden/unladen | km/h | 5/5 | 5/5 | 5/5 | 5/5 | 5/5 | 5/5 |
| 5.2 | Lift speed,laden/unladen | m/s | 0.100/0.160 | 0.100/0.160 | 0.100/0.160 | 0.100/0.160 | 0.120/0.180 | 0.120/0.180 | |
| 5.3 | Lowering speed,laden/unladen | m/s | 0.130/0.140 | 0.130/0.140 | 0.130/0.140 | 0.130/0.140 | 0.140/0.150 | 0.140/0.150 | |
| 5.8 | Max Gradeability,laden/unladen | % | 6/10 | 6/10 | 6/10 | 6/10 | 6/10 | 6/10 | |
| 5.10 | Service brake | Eletromagnetic | Eletromagnetic | Eletromagnetic | Eletromagnetic | Eletromagnetic | Eletromagnetic | ||
| Electric Engine | 6.1 | Drive motor rating S2 60 min | kW | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| 6.2 | Lift motor rating at S3 15% | kW | 2.2 | 2.2 | 2.2/31) | 2.2/31) | 3 | 3 | |
| 6.4 | Battery voltage,rated capacity | V/Ah | 24/210 | 24/210 | 24/210 | 24/210 | 24/240 | 24/240 | |
| 8.1 | Type of drive control | AC | AC | AC | AC | AC | AC | ||
| 9.1 | Manufacturer | CURTIS | CURTIS | CURTIS | CURTIS | CURTIS | CURTIS | ||
