China Isuzu Vc61 8*4 460HP 14 Cubic Mini Concrete Tank Truck
China Isuzu VC61 8*4 460HP 14 Cubic mini concrete tank truckCHINA ISUZU GIGA-SERIES DROPSIDE CARGO TRUCK CHASSIS IS EQUAL TO JAPAN ISUZU SAME SERIES LIGHT TRUCK AND TOTALLY COMPATIBLE WITH JANPAN ISUZU SERIES IN BOTH SPARE PARTS AND AFTER SALES SERVICE, MORE COMPETITIVE PRICE AND EXCELLENT PERFORMAN......
Send Inquiry
Product Description

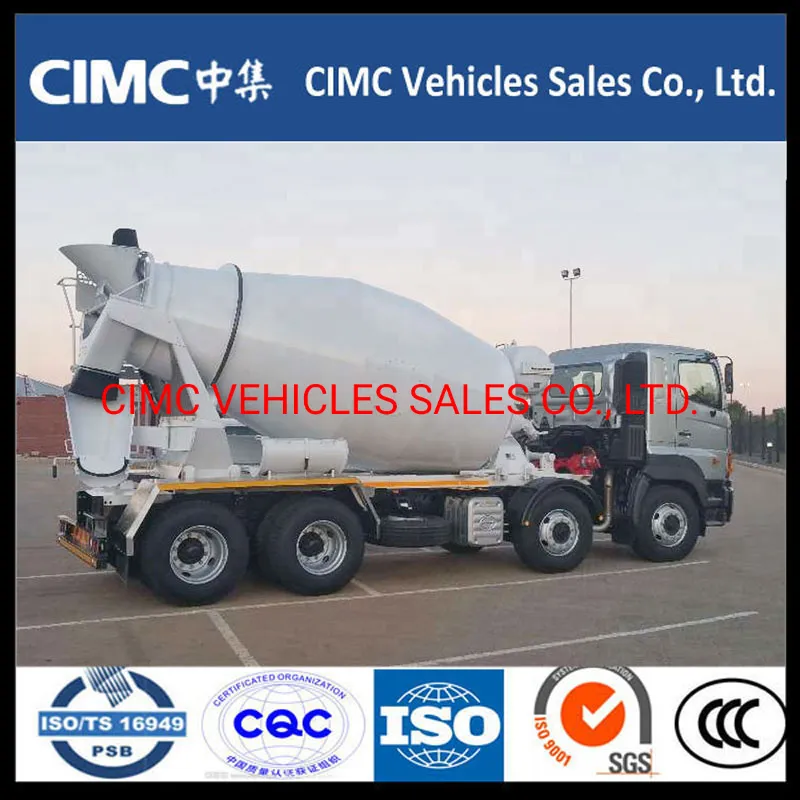

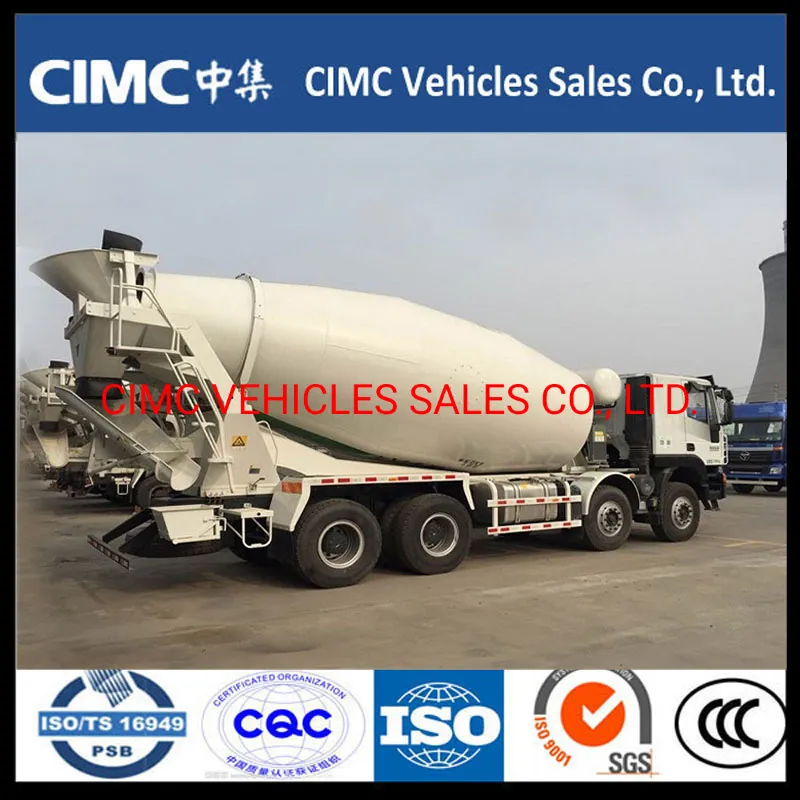

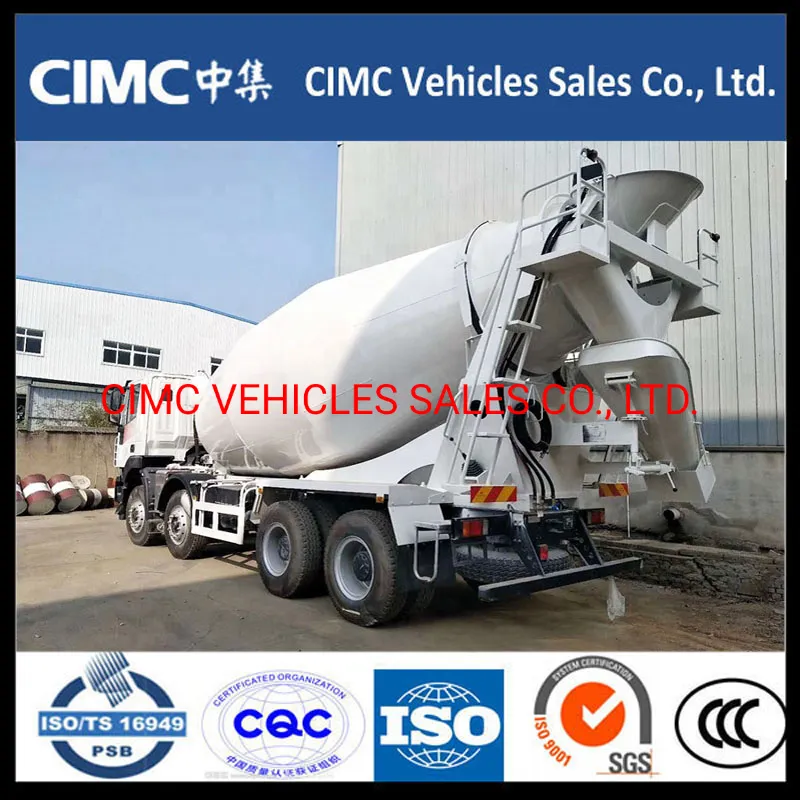

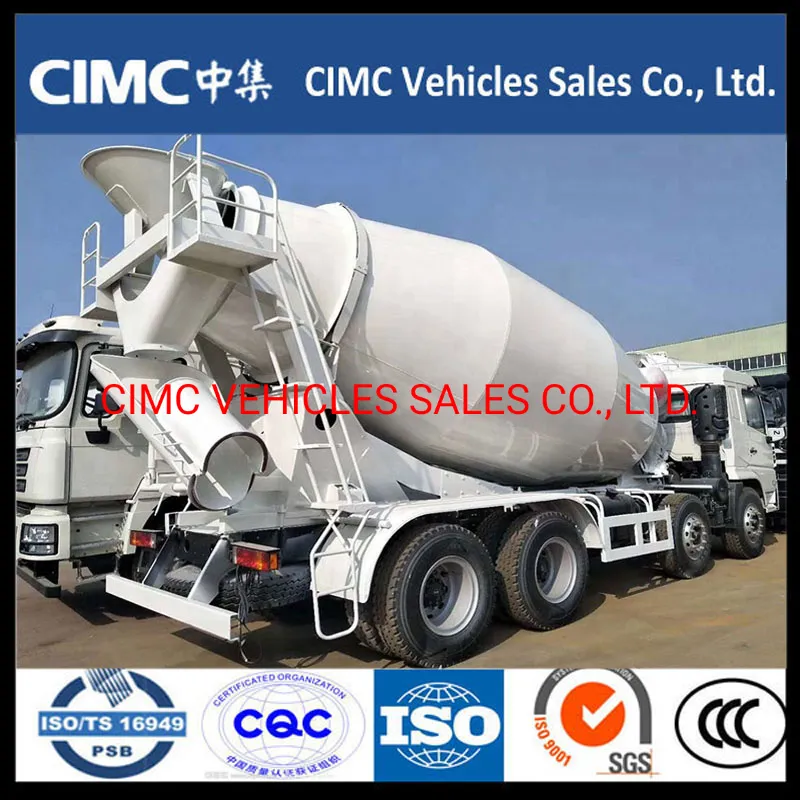

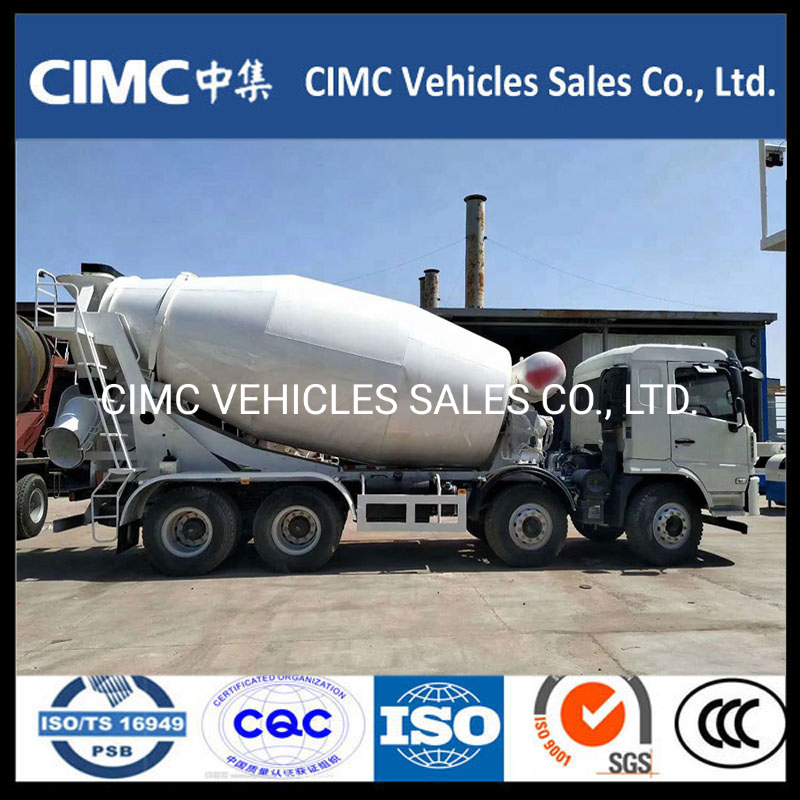

China Isuzu VC61 8*4 460HP 14 Cubic mini concrete tank truck
CHINA ISUZU GIGA-SERIES DROPSIDE CARGO TRUCK CHASSIS IS EQUAL TO JAPAN ISUZU SAME SERIES LIGHT TRUCK AND TOTALLY COMPATIBLE WITH JANPAN ISUZU SERIES IN BOTH SPARE PARTS AND AFTER SALES SERVICE, MORE COMPETITIVE PRICE AND EXCELLENT PERFORMANCE;
NEW ISUZU GIGA SERIES HEAVY TRACTOR TRUCK STARTED PRODUCTION SINCE THE YEAR 2017 IN CHINA,IT IS EQUAL TO JAPAN ISUZU GIGA SERIES HEAVY TRUCK AND TOTALLY COMPATIBLE WITH JANPAN ISUZU GIGA SERIES IN BOTH SPARE PARTS AND AFTER SALES SERVICE, WIHT THE MOST COMPETITIVE PRICE AND EXCELLENT PERFORMANCE.
1.Brand :ISUZU
2.Manufacturer :Qingling Motors(Group)
3.Available China ISUZU commercial vehicle for sale
Light Truck (100P,600P) ,Medium Truck(700P) ,Heavy Truck(FTR,FVR,FVZ,VC46),Pickup ,SUV ,KV100,KV600 and Special Vehicle
4.Export way :CBU/CKD/SKD/KD ONE-STOP solution providing
Contact
Mr. Allen
Contact
Mr. Allen
Contact
Mr. Allen
Company information
CIMC VEHICLES SALES CO., LTD.
CIMC VECHICLE was founded by CIMC group, which fixes the mission to be customers' partner for modern transportation. CIMC is dedicated to manufacturing and supplying CIMC trucks, CIMC truck body assembly, trailers, tank equipment. Currently, CIMC owns USD 8.8 billion total assets, USD 2.6 billion net assets, USD 8.4 billion annual sales and USD 0.6 billion net profits in 2010, having over 150 subsidiaries and 63, 000 staff across China, North America, Europe, Asia and Australia.
Vehicles: CIMC has over 1000 lines of products in 11 series, including container chassis, flatbed trailer, bulk lorry, tanker, self-dumper, reefer trailer, van, curtain side trailer, mixer, pump truck, car carrier vehicle, fire engine, sanitation vehicle, etc. With the annual output capacity of over 200 thousand units, it now takes the leading position in the world. Up to today, the Group has established 22 production bases.
Heavy Truck: Have its own production C & C brand truck. Other heavy truck CIMC produces the truck body, more than 2, 000 kinds of truck body for different transportation purpose. The truck chassis cooperates with FAW, DONGFENG DFAC, SHACMAN, SINOTRUK, FOTON, BEI BEN, JAC, CAMC, SI CHUAN HYUNDAI, SAIC-Iveco and so on, include all truck chassis brand production in China.
Welcome global heavy truck dealer to take a sight seeing of trucks, to taste values of "considerate service, benefits share"! Will bring you cost-saving solutions and eye-catching returns!
Address: 8floor, Cimc Plaza, No. 10 West Wenchang Rd, Yangzhou, Jiangsu, China
Website: yzcimc.en.made-in-china.com
CHINA ISUZU GIGA-SERIES DROPSIDE CARGO TRUCK CHASSIS IS EQUAL TO JAPAN ISUZU SAME SERIES LIGHT TRUCK AND TOTALLY COMPATIBLE WITH JANPAN ISUZU SERIES IN BOTH SPARE PARTS AND AFTER SALES SERVICE, MORE COMPETITIVE PRICE AND EXCELLENT PERFORMANCE;
NEW ISUZU GIGA SERIES HEAVY TRACTOR TRUCK STARTED PRODUCTION SINCE THE YEAR 2017 IN CHINA,IT IS EQUAL TO JAPAN ISUZU GIGA SERIES HEAVY TRUCK AND TOTALLY COMPATIBLE WITH JANPAN ISUZU GIGA SERIES IN BOTH SPARE PARTS AND AFTER SALES SERVICE, WIHT THE MOST COMPETITIVE PRICE AND EXCELLENT PERFORMANCE.
1.Brand :ISUZU
2.Manufacturer :Qingling Motors(Group)
3.Available China ISUZU commercial vehicle for sale
Light Truck (100P,600P) ,Medium Truck(700P) ,Heavy Truck(FTR,FVR,FVZ,VC46),Pickup ,SUV ,KV100,KV600 and Special Vehicle
4.Export way :CBU/CKD/SKD/KD ONE-STOP solution providing
Contact
Mr. Allen
Contact
Mr. Allen
| Vehicle Parameters | Overall Dimension(L x W x H) | 11285×2540×3055mm |
| Curb Weight: | 10650Kg | |
| GVW: | 42000Kg | |
| Wheelbase: | 1850+4575+1370mm | |
| Drive Type: | 8x4 | |
| Engine | Engine Model: | 6WG1-TCG51 |
| Engine Power: | 338Kw | |
| Delivery Capacity: | 15681(ml) | |
| Horsepower: | 460PS | |
| Transmission | Transmission: | ZF8S2230TO |
| Forword Gear: | 8 Speed Gear | |
| Backward Gear: | 1 Speed Gear | |
| Seats | Front Seat: | 2 |
| Chassis | Front Wheel Distance: | 2060/2060mm |
| Rear Wheel Distance: | 1855/1855mm | |
| Axle Loads: | Four Axles | |
| Rear Axle Ratio: | 5.571 | |
| Tires: | 13(Including Spare Tire) | |
| Tire Model: | 315/80R22.5 20PR | |
| Configuration | 1 | Power Steering |
| 2 | AC | |
| 3 | Retro-reflective Marking | |
| 4 | Tubeless Tire | |
| 5 | ABS | |
| 6 | Free Maintenance Battery | |
| Mixer Body specs | Valid Mixer Tank Volume (m3) | 14 |
| Barrel Wall Thickness | 5mm | |
| Mixing Blades thickness | 4mm | |
| Loading Speed (m3/min): | ≥ 3.2 | |
| Discharging Speed(m3/min) | ≥ 2.2 | |
| Rest rate (%) | ≤ 1 | |
| Mixer Speed (rpm) | 0-16 | |
| Mixer Tank angle | 13° | |
| Speed Reduction System | PMP PMB7.5 | |
| Pump | FK P110 | |
| Motor Model | FK M107 |
