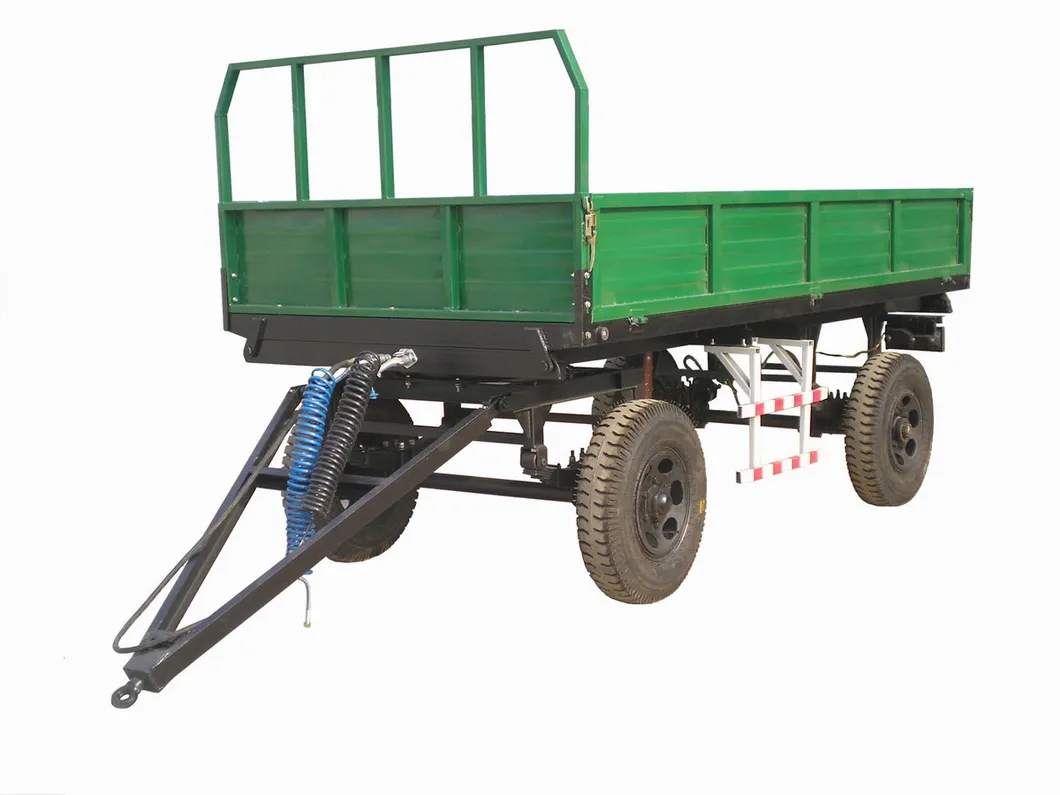

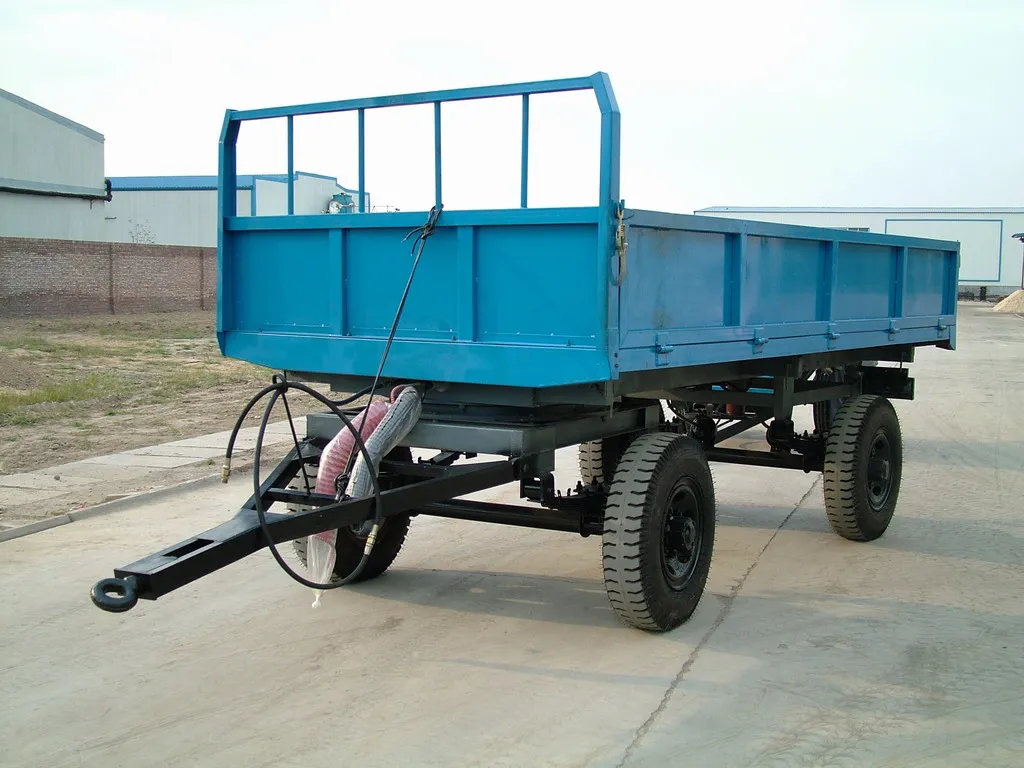

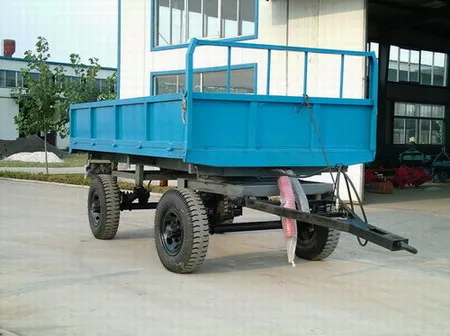

7c -3.0 Series Tractor Timber Trailer

Product Description

Product description:
7C series trailer is suitable to be used for plain area,mountain area,swamp and hills,farmland and highway transportation etc, different area environment,trailers of different forms match the tractors of different types.On basis of fundamental type,we have developed the hydraulic pressure self-discharging trailer,improved efficiency.The trailers that our company produced are composed of steel entirely,the appearance is exquisitely,artistic and unaffected,the structure is rational and compacted,sturdy and durable,be able to adjust the height,the machines are advantageous and reliable,they are good assistant of mountain area friends.
Specifications:

TECHNICAL SPECIFICATIONS FOR TRAILERS
Type	7CB-0.5	7CB-0.8	7CB-1.5	7CB-2.0	7CB-2.0A	7CB-2.5	7CB-3.0	7C-3.0	7C-4.0	7C-5.0	7C-6.0	7C-7.0	7C-9.0	7C-10	7C-12
Fixed load (kg)	500	800	1500	2000	2000	2500	3000	3000	4000	5000	6000	7000	9000	10000	12000
Matched power (kw)	Walking tractor 8.8-11	Walking tractor 8.8-11	four-wheel 8.8-18.4	four-wheel 8.8-22	four-wheel 8.8-22	four-wheel 11-22	four-wheel 14.7-25.7	four-wheel 18.3-36.7	four-wheel 22-36.7	four-wheel 36.7-53	four-wheel 36.7-59	four-wheel 36.7-59	four-wheel 36.7-66	four-wheel 36.7-66	four-wheel 47.7-88
Overall Dimension L×W×H ()	316×120×125	338×125×130	358×168×158	310×168×158	330×178×158	388×158×168	418×168×208	468×178×208	530×200×210	550×210×228	600×210×228	650×210×228	720×220×238	760×225×240	800×230×252
Weight (kg)	160	190	320	360	430	530	580	980	1150	1500	1600	1950	2150	2500	2800
Carriage size (l×w×h)()	1600×900×320	1800×900×320	2000×1000×450	2000×1000×500	2200×1200×500	2500×1500×450	3000×1600×450	3400×1700×450	3800×1700×450	3900×2100×500	4500×2150×500	4900×2150×550	5600×2150×550	6000×2150×600	6500×2150×650
Volume (L)	460	520	900	1000	1000	1875	2160	2600	2900	4100	4830	5800	7220	7740	9100
Height of loading (mm)	-	-	820	950	1320	950	1030	1030	1200	1300	1200	1200	1200	1200	1300
Height of traction (mm)	350	350	480	480	480	660	660	660	750	750	750	820	820	820	820
of tyre	2	2	2	2	2	2	2	4	4	4	4	4	4	8	8
Distance between wheel (mm)	1260	1260	1370	1370	1480	1380	1380	1380	1380	1680	1680	1680	1680	1650	1650
Distance between axis (mm)	-	-	-	-	-	-	-	1830	2200	2440	2880	3200	3600	4000	4500
Specification of tyre	5.50-16	6.00-16	6.50-16	7.50-16	7.50-16	8.25-16	8.25-16	6.50-16	7.50-16	8.25-16	9.00-16	9.00-20	9.00-20	8.25-16	8.25-16
Form of braking	mechanical or hydraulic braking							air or hydraulic braking		air braking or air cutting braking
