Product Description

Features:

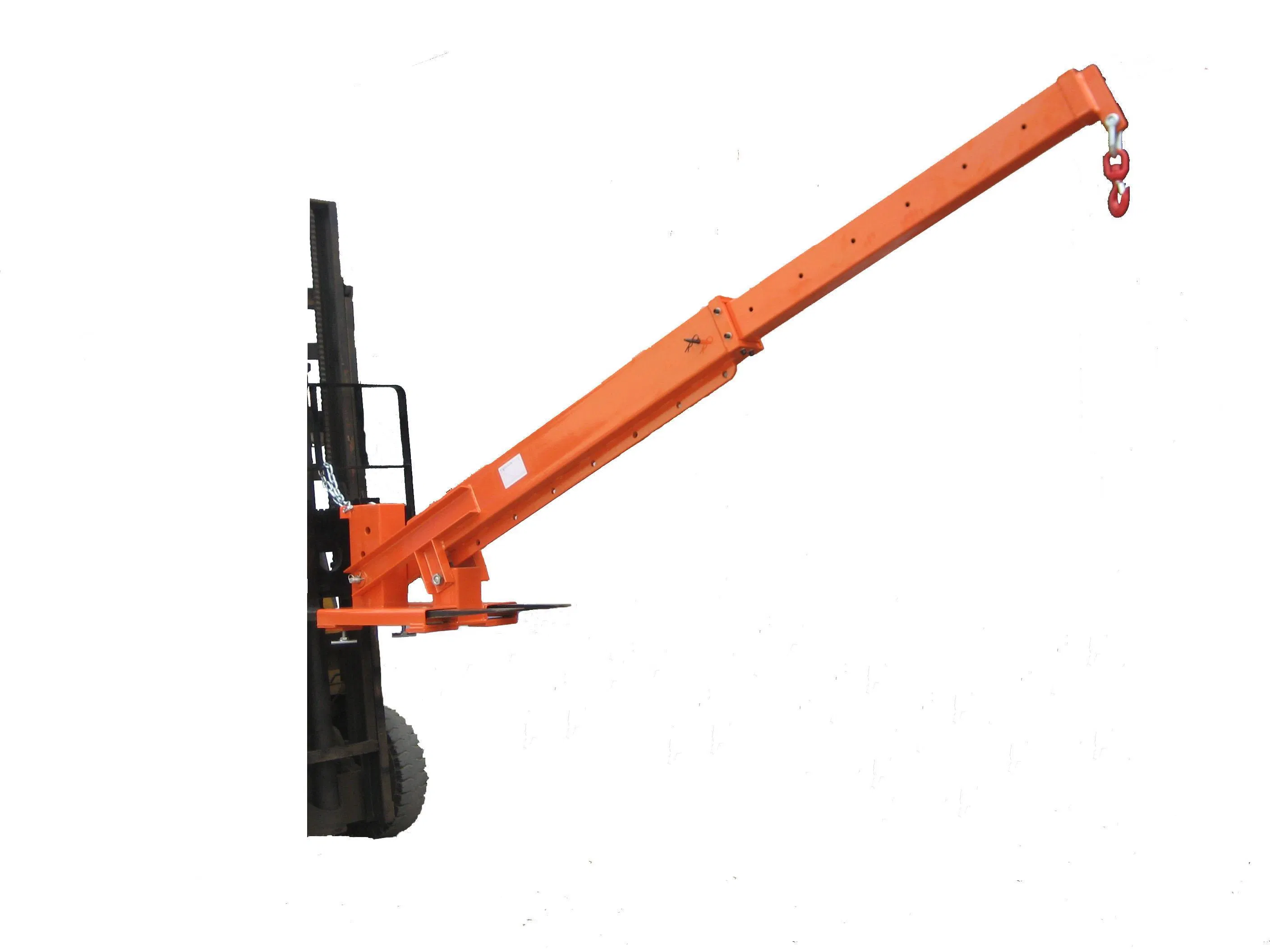

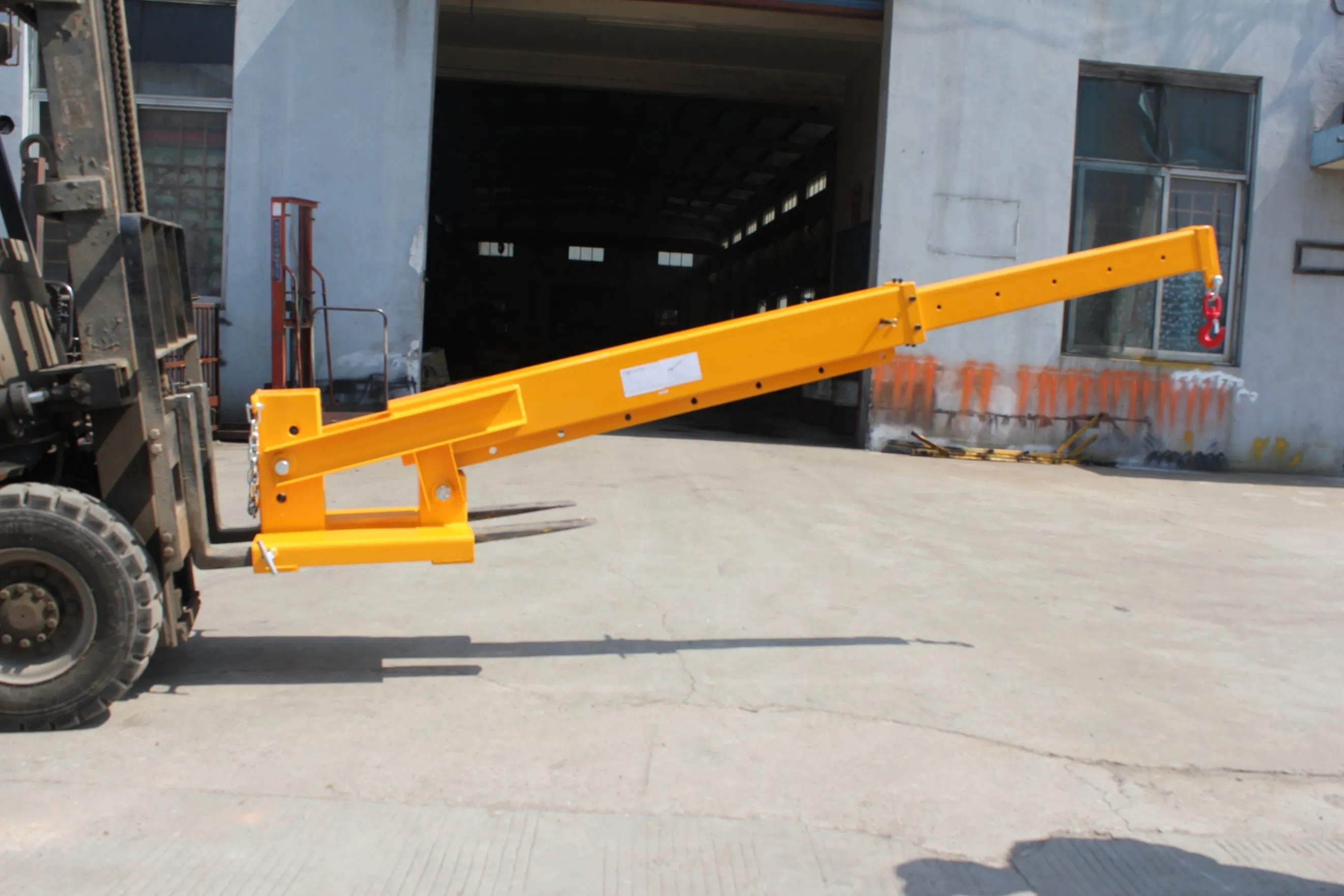

Convert a forklift truck into a mobile crane to reach and transport long and awkward loads from inaccessible location.

Vertify load center of forklift truck.

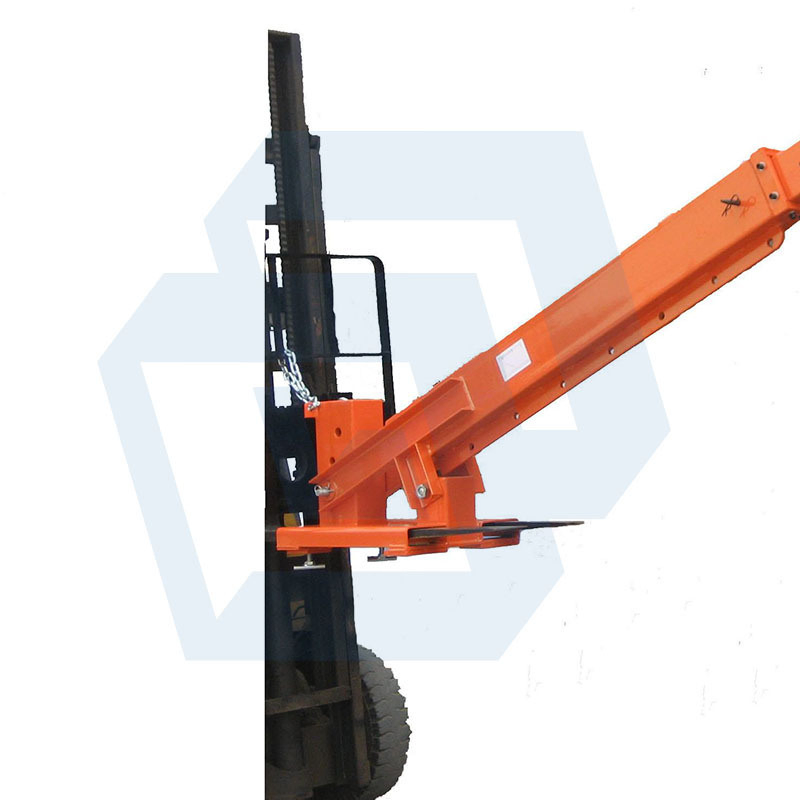

Safety chain weldeel to boom has grab hools for anchoring jib boom to forlift truck.

Zinc plated fork heels pin for safe forklift attachment.

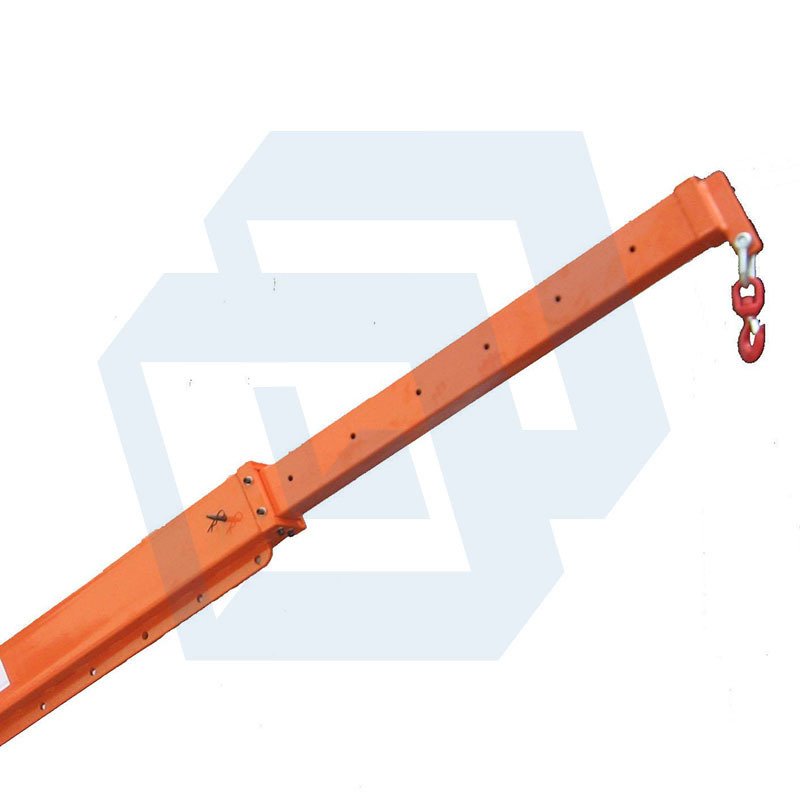

Supplied complete with one safety swivel hook with bow shackle and one rigid hook.

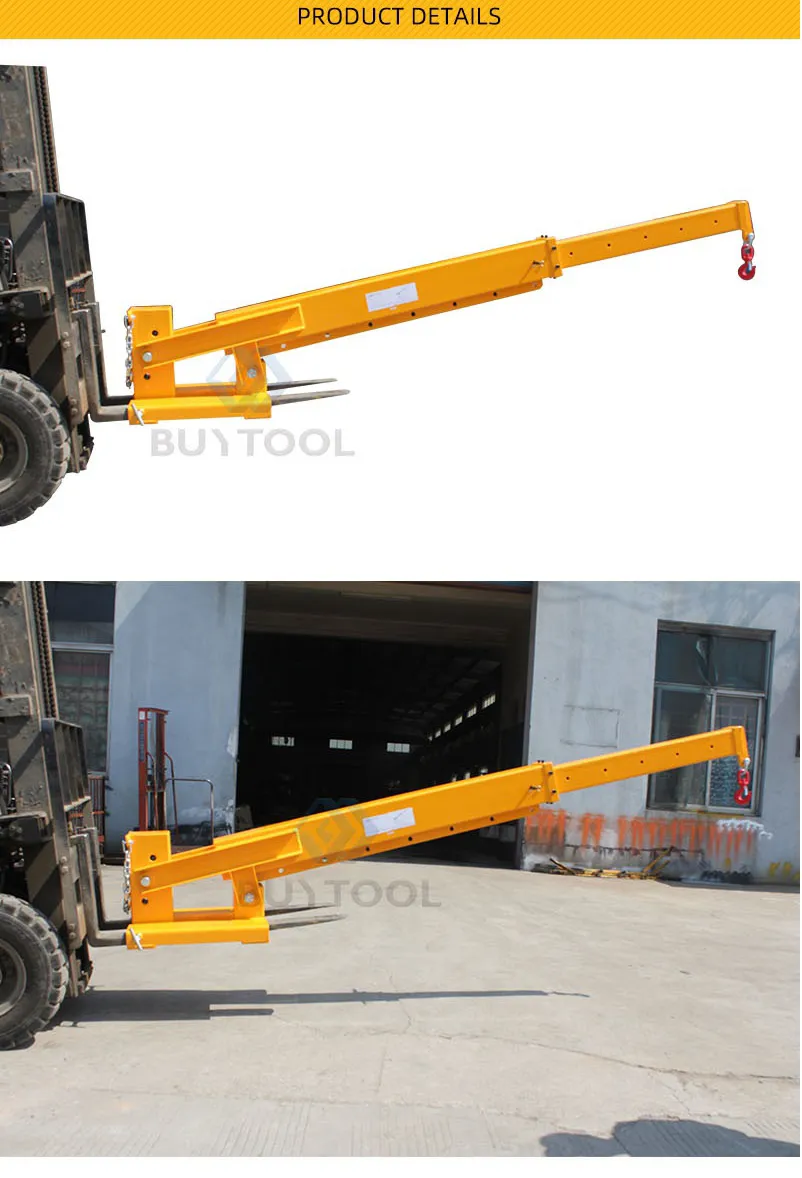

Adjustable Hoist Forklift Jib Boom Crane - 6000 Lb. Lift Capacity Truss

Adjustable Hoist Forklift Jib Boom Crane - 6000 Lb. Lift Capacity Truss

Model	TLB03
Length Positions(mm)	755	985	1215	1445	1675	1905	2125	2355	2580	2810	3040	3270	3500
Capacity (kg)	3000	2300	1865	1570	1355	1190	1065	960	875	805	745	690	640
Model		TLB01
Positions		A	B	C	D	E	F	G	H	I	J	K	L	M	N
0°	Capacity	740(mm)	969	1190	1427	1656	1885	2114	1352	2581	2810	3039	3268	3497	3726
0°		3000(kg)	2291	1853	1556	1341	1178	1050	944	860	790	730	679	635	596
13°		718(mm)	942	1165	1389	1612	1836	2060	2292	2516	2739	2963	3186	3410	3633
13°		3092(kg)	2357	1906	1598	1377	1209	1078	969	882	811	749	697	651	611
26°		690(mm)	897	1105	1312	1520	1727	1935	2150	2358	2566	2772	2980	3188	3305
26°		3217(kg)	2475	2009	1692	1460	1285	1147	1032	941	865	801	745	696	654
Fork Opening	(mm)	346
Fork Pockets	(mm)	180x74
Overall Size	(mm)	2322x542x512
Packing Size	(mm)	2340x560x630
Net Weight	(kg)	240
