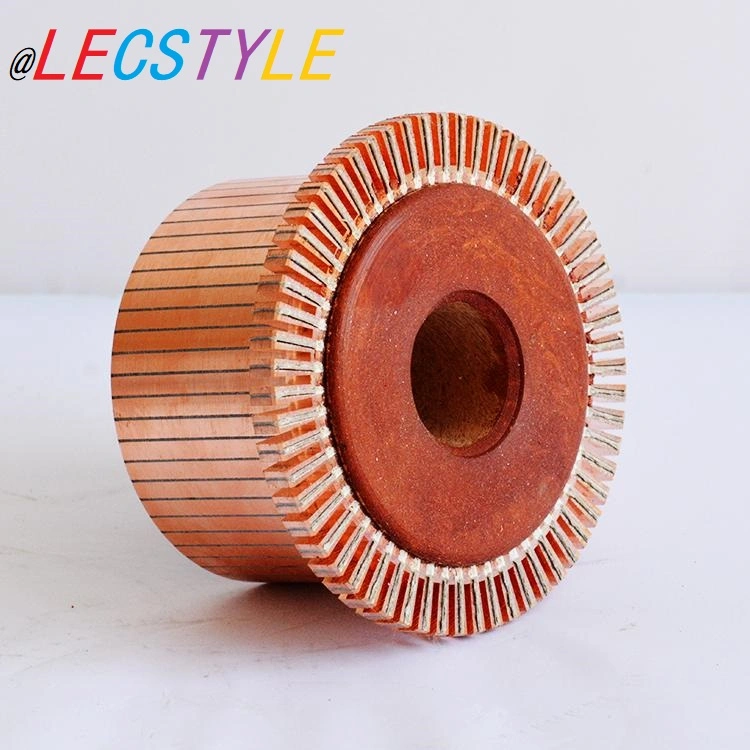

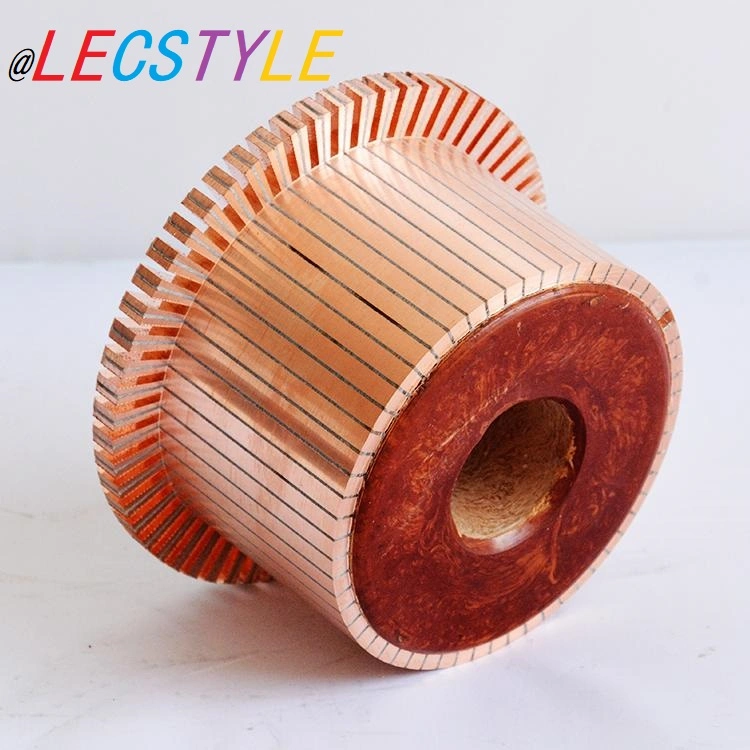

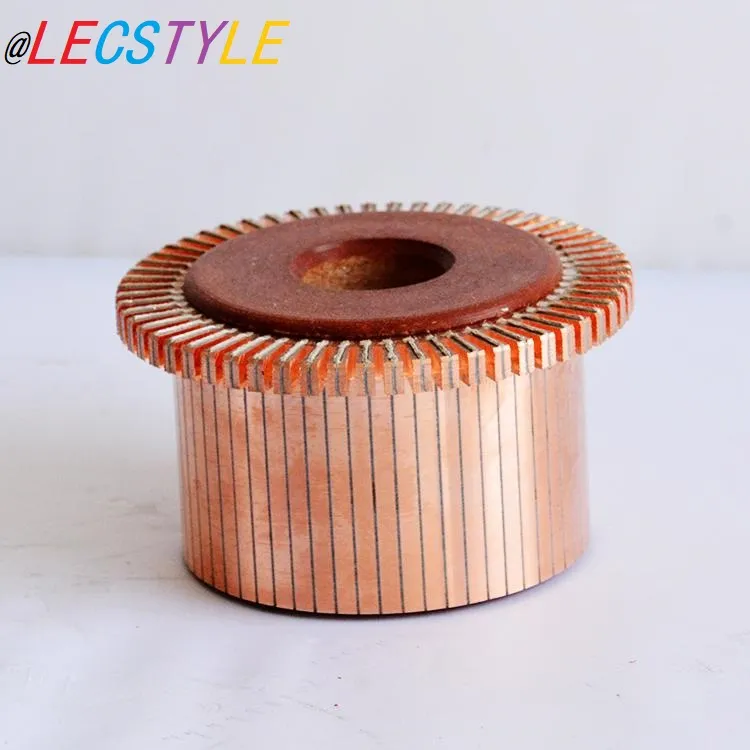

China Od82* ID30*H39-46 Bars DC Motor Commutator for Linde Forklift High Quality

Product Description

1. Effectively improve mechanical strength and overspeed performance.
2. A copper bush is embedded in the upper cylindrical inner hole of the plastic base of the slotted commutator,
3. The inner side of the reversing copper plate is provided with an upper hook foot implanted in the plastic matrix at the upper position, and the top of the upper hook foot is bent toward the center of the commutator to form an inner hook.
4. The inner surface of the reversing copper sheet is provided with a lower hook foot implanted in the plastic matrix at the lower position, a reinforcing ring groove is formed between the lower hook foot and the inner surface of the groove-type reversing copper sheet, and a reinforcing ring is arranged in the reinforcing ring groove;
5. A dovetail groove structure is formed between the bottom of the upper hook and the top of the lower hook.

Od82* ID30*H39-46 Bars DC Motor Commutator for Linde Forklift High Quality

Bars No.	Step outer diameter	Working outside diameter	Bore diameter	Copper bar height	Total height
69	109	83	33.5	63	70
69	109	83	33.5	51.5	58.5
69	109	83	33.5	46.7	53
69	109	83	30	53	57
69	135	107	33	57.5	65.5
46	109	83	33.5	51.5	58.5
46	109	83	33.5	46.7	53
57	80	64.5	18	39.5	47.5
49	70	51.5	18	39.5	47.5
49	82	62.5	25	48	51
27	109	83	33.5	61.5	64.5
27	109	83	30	47	54
47	94	71	23	40.5	47.5
53	98	67.5	30	47	50
71	85	55.5	20	34	37
71	85	58	20	34	37
41	58	50.5	18	41.5	43.5
87	110.5	80.5	30	55	63
93	133	106.5	35	58	66
29	134	106.5	32	51.5	54.5
39	97	73.5	23	83	89

Od82* ID30*H39-46 Bars DC Motor Commutator for Linde Forklift High Quality

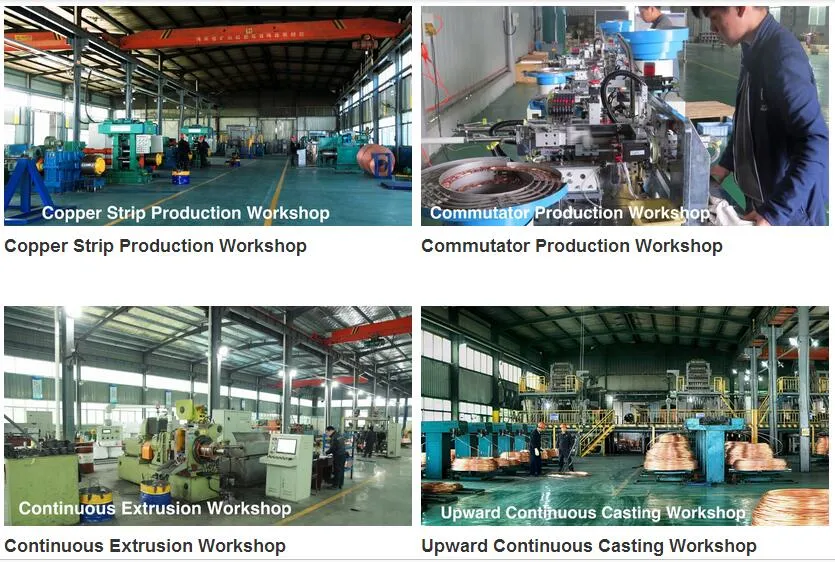

Od82* ID30*H39-46 Bars DC Motor Commutator for Linde Forklift High Quality Our four copper-silver alloy automotive production lines are equipped with advanced copper processing equipment and mold processing and production equipment.

Our full production process strictly adhered to the ISO9001 quality control system, our higher quality , advanced equipment and technology ensure a guarantee in leakage-proof , retention and duration !
Your OEM orders are also warmly welcomed, it is our commitment to satisfy your requirement, please turst that we will be your reliable business partner for our good reputation,good quality and competitive price !
