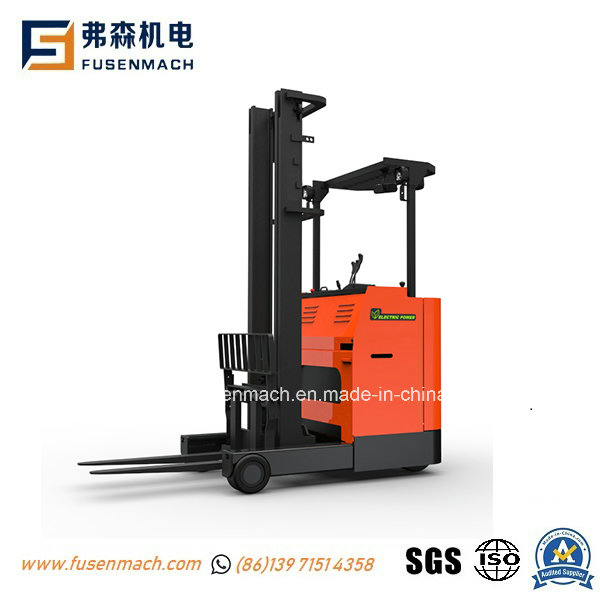

1.5tons Electric Reach Truck Cqd15 for Narrow Aisle Width Warehouse Use
Electrical Reach Truck CQD15 Imported front drive axle from ItalySingle steering wheel with hydraulic steering redirector.The lever was designed near the seat which brings comfortable operation feeling.Italy ZAPI controller and electrical parts.High combination meter position.Equipped with emergency......
Send Inquiry
Product Description
Electrical Reach Truck CQD15
Imported front drive axle from Italy
Single steering wheel with hydraulic steering redirector.
The lever was designed near the seat which brings comfortable operation feeling.
Italy ZAPI controller and electrical parts.
High combination meter position.
Equipped with emergency stop button.
Technical Specification:
We are a professional warehouse equipment supplier, product cover:
Imported front drive axle from Italy
Single steering wheel with hydraulic steering redirector.
The lever was designed near the seat which brings comfortable operation feeling.
Italy ZAPI controller and electrical parts.
High combination meter position.
Equipped with emergency stop button.
Technical Specification:
| Model | CQD15 | |||||
| Operator type | Stand-up Type | |||||
| Load capacity | kg | 1500 | ||||
| Load center | mm | 500 | ||||
| Standard mast lifting height | mm | 3100 | ||||
| Free hoisting height | mm | 140 | ||||
| Overall height (upper frame protection) | mm | 2250 | ||||
| Full length (without pallet fork) | mm | 1687 | ||||
| Full width | mm | 1093 | ||||
| Forward distance | mm | 520 | ||||
| Wheelbase | mm | 1356 | ||||
| The minimum clearance from the ground | mm | 50 | ||||
| The minimum bending radius | mm | 1630 | ||||
| Right Angle stacking the minimum channel width of the tray (1000 * 1000) mm | mm | 2580 | ||||
| Pallet fork length * width * thickness | mm | 920*100*45 | ||||
| The door frame Angle(before/after) | deg. | 3/5 | ||||
| Tire type | Polyurethane | |||||
| Maximum speed (full/empty) | km/h | 9.5/10 | ||||
| Maximum gradeability (full/empty) | % | 10/12.5 | ||||
| Hoisting speed (full/empty) | mm/s | 260/410 | ||||
| Battery voltage/capacity (5 hours to put battery) | V/Ah | 48/320 | ||||
| The total battery (reservation) | kg | 2650 | ||||

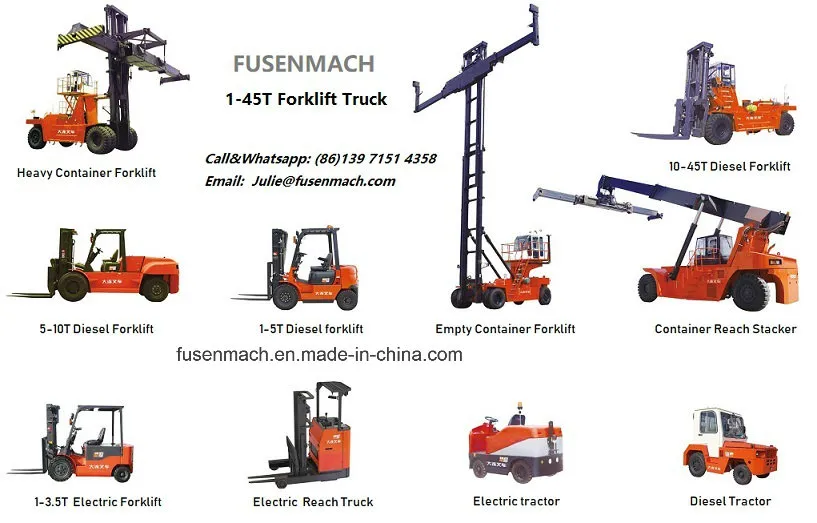

We are a professional warehouse equipment supplier, product cover:
1. 1-45t Diesel Forklift Trucks
2. 1-3.5t Electric Forklift Trucks
3. 1-3.5t Gasoline Forklift Trucks
4. 1-3.5t LPG GAS Forklift Trucks
5. Empty Container Stackers
6. Heavy Container Stackers
7. Container Reach stackers
8. Electric Reach Trucks
9. Special Forklifts
10. Forklift Attachments
11. Aerial work platforms
12. Pallet trucks
13. Stackers
14. Components and Spare Parts
Excellent quality, competitive price and careful service! Welcome your inquiry!
