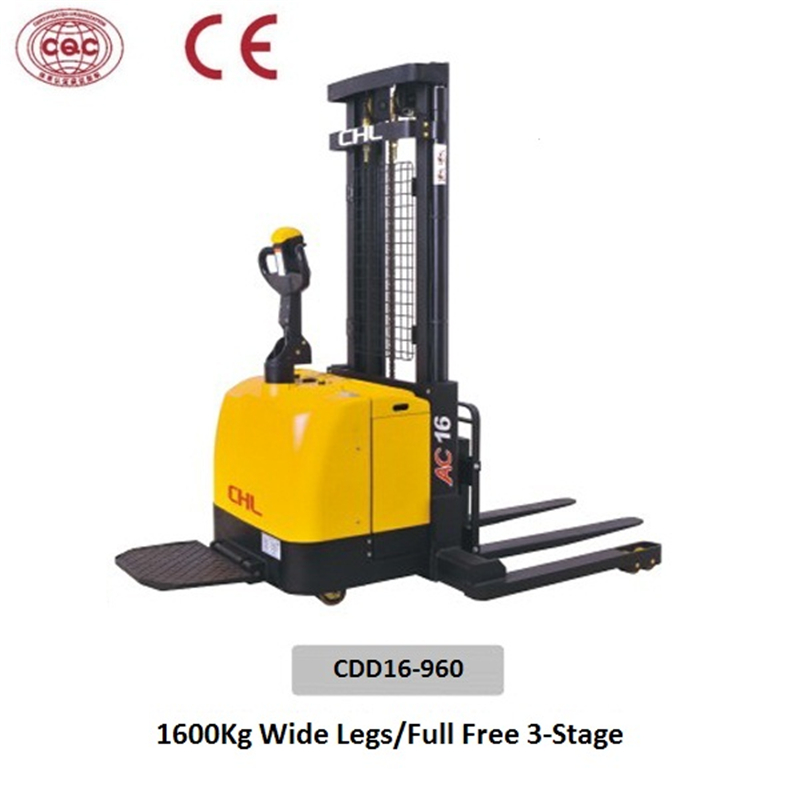

1.6 Ton Lifting Equipment Full Electric Stacker with CE (CDD16-960)
1.6 ton full electric stacker, with full free 3-stage mast, optional lifting height, wide legs,equipped with advanced EPS and AC drive system, reliable, comfortable and high secure.Powerful1. Capacity 1.6T, meeting demands in goods transit and lift.2. AC drive system offers quick response, accurate ......
Send Inquiry
Product Description
with full free 3-stage mast,
optional lifting height,
wide legs,
equipped with advanced EPS and AC drive system,
reliable, comfortable and high secure.
Powerful
1. Capacity 1.6T, meeting demands in goods transit and lift.
2. AC drive system offers quick response, accurate control and longer service time.
3. Easy-touch emergency plug mounted at up-right side in case of emergency happens.
4. Anti-roll back available as standard to prevent uncontrolled travel speed or roll back on ramps happening in working.
5. The stacker can handling two pallets one time, efficient.
Delicacy
1. Brief, Elegant design of appearance, with colors optional.
2. Delicacy inner and outer structure design with excellent arrangement.
3. World-class hydraulic power pack, with low noise, few vibration and excellent leak tightness.
4. Special design of fork, with stiffener, be more firm.
5. Sideway battery design for easy battery replacement.
Our Stacker Series
1000kg, Lifting Height 1600/2500/3000mm
2. Semi-electric Stacker
1000kg/1500kg/2000kg
3. Full Electric Stacker
1200kg, Lifting Height 2500/2700/3000/3300/3600mm
1400kg, Lifting Height 2500/2700/3000/3300/3600/4000mm
1600kg, Lifting Height 2500/2700/3000/3300/3600/4000mm
New Model: 1600kg, Full-free Triplex Mast 4500/4700/5000mm
Our Services
At Shintool Machinery, we supply ONE-STOP-SHOP solution service for warehouse equipments and forklift parts of Chinese and Japanese brand forklifts.
Depending on 7 years' service in warehouse equipments market, we have gained enough experience to give you the perfect solution. All our equipments are with reliable quality and good price.
Welcome your contact any time!

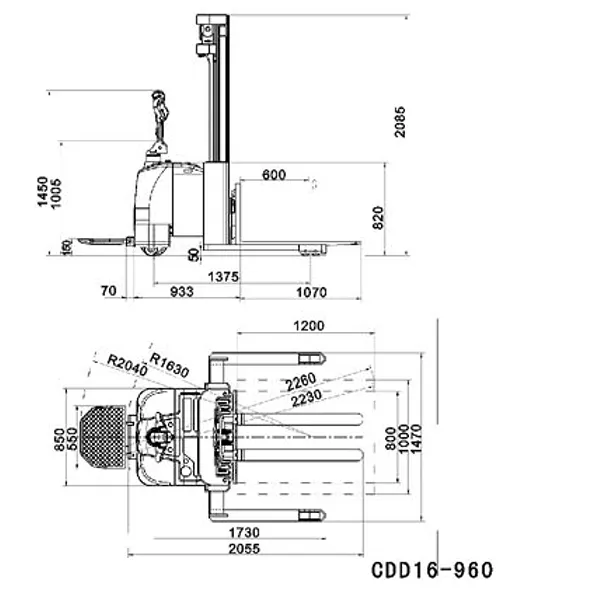

| Feature | ||
| Model | CDD16 | |
| Configuration No. | 960 | |
| Type | Wide legs | |
| Mast type | Full free 2-stage | |
| Load capacity | kg | 1600 |
| Load center | mm | 600 |
| Wheel base | mm | 1375 |
| Operating type | Rider / Pedestrian | |
| Wheel type | PU | |
| Wheel quantity | Driving wheel1/Balance wheel2/Load wheel4 | |
| Standard lift height | mm | 4500 |
| Lowered fork height | mm | 55 |
| Fork size(Length/width/thickness) | mm | 1070/100/40 |
| Overall length | mm | 2073/2493 |
| Overall width | mm | 1470 |
| Max. extend height | mm | 5000 |
| Mast lowered height | mm | 2085 |
| Min. Turning redius | mm | 1630/2040 |
| Min. Aisle width for pallets 800x1200 | mm | 2230/2625 |
| Min. Asile width for pallets 1000x1200 | mm | 2260/2650 |
| Min. ground clearance | mm | 50 |
| Travel Speed,laden/unladen | km/h | 5/5 |
| Lift speed,laden/unladen | mm/s | 130/230 |
| Travd speed,laden/unladen | mm/s | 130/230 |
| Gradeability,laden/unladen | % | 5/7 |
| Motor | KW | Drive motor AC 1.5 / Lift motor DC3 / Steering motor DC 0.15 |
| Battery voltage | V | 24 |
| Battery capacity | Ah | 280 |
| Brake | Electromagnetic / Regenetative | |
| Controller | CURTIS 1230 | |
| Battery weight | Kg | 235 |
| Service weight with Battery | Kg | 1648 |
