1ton Electric Forklift with Curtis Electric Controller
1ton small/mini electric forklift, battery for electric forklift priceProduct Advantages:1. Durable and rigid frame construction ensure the stackers to handle heavy loads.2. Hourmeter and BDI(Battery Discharge Indicator)o......
Send Inquiry
Product Description
1ton small/mini electric forklift, battery for electric forklift price
Product Advantages:
1. Durable and rigid frame construction ensure the stackers to handle heavy loads.
2. Hourmeter and BDI(Battery Discharge Indicator)on time informs the operator of recharge requirements.

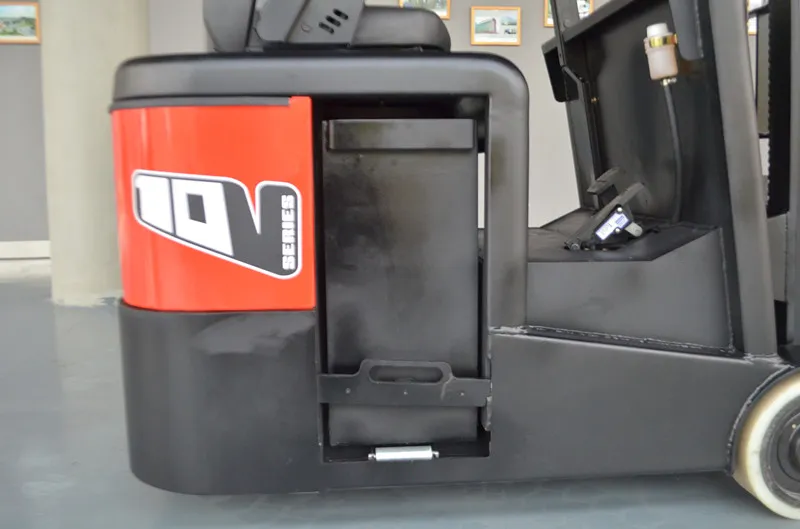

3. Sideway battery exchange to reduce intervals, ensure working efficiency and productivity.
4. A wide choice of battery capacity and size enable the truck to be correctly configurated to match application needs.
5. Tilter head ergonomically designed for maximum opertor comfortable, and control buttons positioned to allow operation with either hand.
6. Limit switch mounted on top of mast to precisely set the max. Lifting height, avoid any risk of lifting motor overload.
7. Robust and rigid mast configuration optimize stackers lifting stability and safety.
8. Safe Grid covered on the mast to protect operator from any injured risk.
9. Equipped with world- class hydraulic power pack, transmission case and electric control system, the vehicle is with quick response, accurate control, and excellent power efficiency.
10. The innovative and maintenance- free AC system ensures a longer battery service life.
11. Imported AC electronic control steering system makes operation comfortable and with low noise.
12. ZAPI walking motor controller and Bucher oil pump motor guarantees the stability and maneuverability when lifting, lowering and walking.

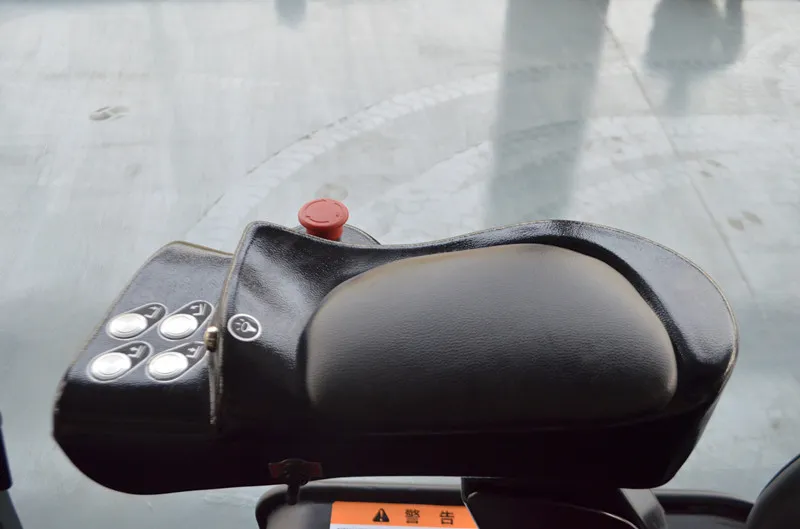

13Comfortable and safe seat reduces the strain on the operator.

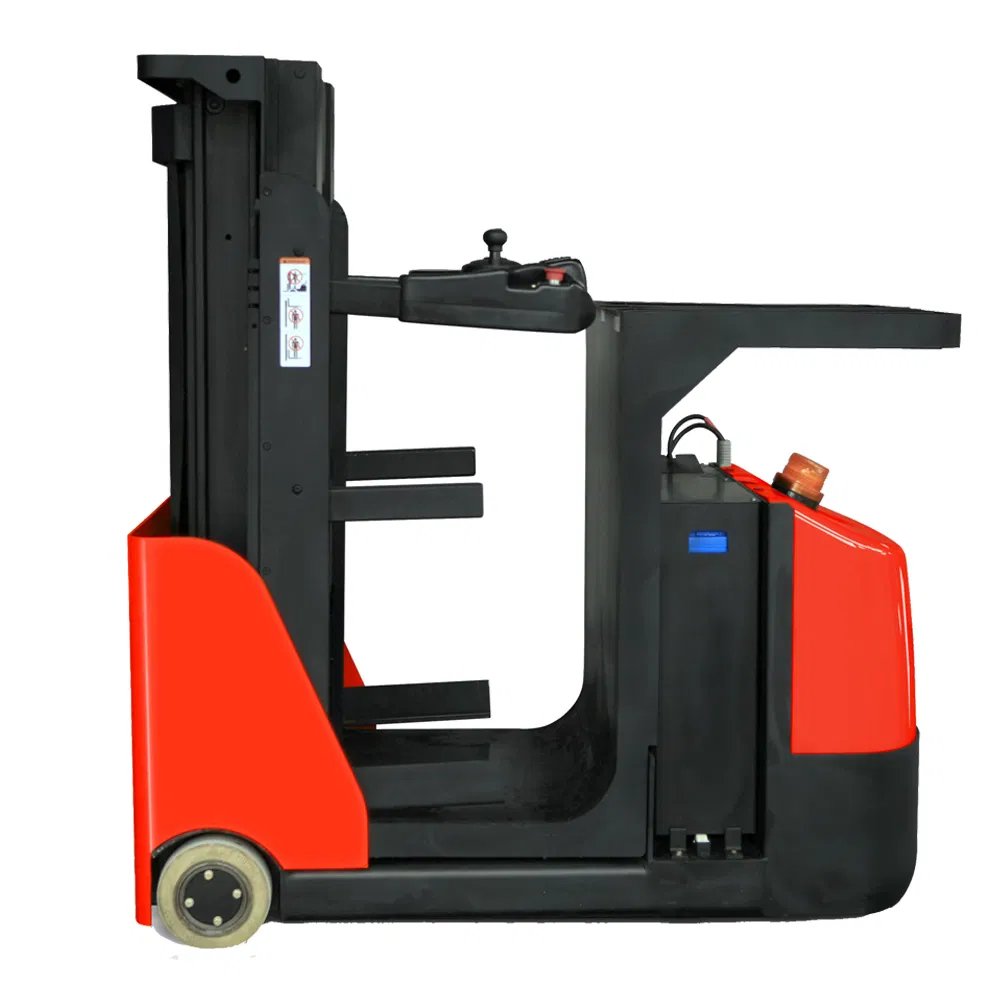

Product Photo of CPD10ET:
Product Advantages:
1. Durable and rigid frame construction ensure the stackers to handle heavy loads.
2. Hourmeter and BDI(Battery Discharge Indicator)on time informs the operator of recharge requirements.
3. Sideway battery exchange to reduce intervals, ensure working efficiency and productivity.
4. A wide choice of battery capacity and size enable the truck to be correctly configurated to match application needs.
5. Tilter head ergonomically designed for maximum opertor comfortable, and control buttons positioned to allow operation with either hand.
6. Limit switch mounted on top of mast to precisely set the max. Lifting height, avoid any risk of lifting motor overload.
7. Robust and rigid mast configuration optimize stackers lifting stability and safety.
8. Safe Grid covered on the mast to protect operator from any injured risk.
9. Equipped with world- class hydraulic power pack, transmission case and electric control system, the vehicle is with quick response, accurate control, and excellent power efficiency.
10. The innovative and maintenance- free AC system ensures a longer battery service life.
11. Imported AC electronic control steering system makes operation comfortable and with low noise.
12. ZAPI walking motor controller and Bucher oil pump motor guarantees the stability and maneuverability when lifting, lowering and walking.
13Comfortable and safe seat reduces the strain on the operator.
Product Photo of CPD10ET:
| Characteristics | ||||
| 1.1 | Manufacturer | HYTGER | HYTGER | |
| 1.2 | Model designation | CPD10ET | CPD12ET | |
| 1.3 | Drive unit | Battery | Battery | |
| 1.4 | Operator type | Rider seated | Rider seated | |
| 1.5 | Load capacity | Q (kg) | 1000 | 1200 |
| 1.6 | Load center | c (mm) | 400 | 500 |
| 1.8 | Wheelbase | x (mm) | 225 | 225 |
| 1.9 | Load distance | y (mm) | 1150 | 1150 |
| Weights | ||||
| 2.1 | Service weight (Incl. battery) | kg | 1830 | 1940 |
| 2.2 | Axle loading, loaded front/ rear | kg | 2470/360 | 2670/470 |
| 2.3 | Axle loading, unloaded front/ rear | kg | 800/1030 | 800/1140 |
| Wheels, Chassis | ||||
| 3.1 | Tyre type | PU | PU | |
| 3.2 | Tyre size, operator side | 285/108 | 285/108 | |
| 3.3 | Tyre size, load side | 230/75 | 230/75 | |
| 3.5 | Wheels, number front/ rear (x=drive wheels) | 2/1 | 2/1 | |
| 3.6 | Tread, front | b10 (mm) | 830 | 830 |
| 3.7 | Tread, rear | b11 (mm) | __ | __ |
| Dimensions | ||||
| 4.1 | Mast/ fork carriage tilt, forward/ backward | α/ β (°) | 2°/2° | 2°/ 2° |
| 4.2 | Height, mast lowered | h1 (mm) | 1980 | 1980 |
| 4.3 | Free lift | h2 (mm) | 120 | 120 |
| 4.4 | Lift height | h3 (mm) | 2930 | 2930 |
| 4.5 | Height, mast extended | h4 (mm) | 3885 | 3885 |
| 4.7 | Height of overhead guard (cabin) | h6 (mm) | 1985 | 1985 |
| 4.8 | Seat height | h7 (mm) | 970 | 970 |
| 4.12 | Tow coupling height | h10 (mm) | __ | __ |
| 4.19 | Overall length | l1 (mm) | 2530 | 2530 |
| 4.2 | Length to face of forks | l2 (mm) | 1610 | 1610 |
| 4.21 | Overall width | b1/ b2 (mm) | 948 | 948 |
| 4.22 | Fork dimensions | s/ e/ l (mm) | 920×100×35 | 920×100×35 |
| 4.23 | Fork carriage type | 2A | 2A | |
| 4.24 | Fork carriage width | b3 (mm) | 800 | 800 |
| 4.31 | Ground clearance, loaded, below mast | m1 (mm) | 85 | 85 |
| 4.32 | Ground clearance, center of wheelbase | m2 (mm) | 95 | 95 |
| 4.33 | Aisle width, 1000×1200 pallet crossways | Ast (mm) | 3100 | 3160 |
| 4.34 | Aisle width, 800×1200 pallet lengthways | Ast (mm) | 2850 | 3000 |
| 4.35 | Outer turning radius | Wa (mm) | 1450 | 1450 |
| Performance | ||||
| 5.1 | Travel speed, loaded/ unloaded | km/ h | 6/6.5 | 6/6.5 |
| 5.2 | Lifting speed, loaded/ unloaded | m/ s | 0.13/0.2 | 0.12/0.2 |
| 5.3 | Reach speed , loaded/ unloaded | m/ s | 0.14/0.125 | 0.14/0.125 |
| 5.5 | Drawbar pull(loaded/unloaded) | N | __ | __ |
| 5.6 | Maximum drawbar pull, loaded S2 5 min. | N | __ | __ |
| 5.7 | Gradeability ( loaded/unloaded ) | % | 6/8 | 6/8 |
| 5.8 | Maximum gradeability, loaded/ unloaded S2 5 min. | % | __ | __ |
| 5.9 | accelerating time, loaded/unloaded | s | __ | __ |
| 5.1 | Service brake | Hydraulic/mechanical | Hydraulic/mechanical | |
| Drive | ||||
| 6.1 | Drive motor rating S2 60 min. | kW | 1.5 | 1.5 |
| 6.2 | Lift motor rating at S3 15% | kW | 3 | 3 |
| 6.3 | Battery standard | __ | __ | |
| 6.4 | Battery voltage/ rated capacity | V/ Ah | 24/ 360 | 24/ 360 |
| 6.5 | Battery weight | kg | 360 | 360 |
| Battery dimensions l/ w/ h | mm | __ | __ | |
| 6.6 | Energy consumption | Kw/ h | __ | __ |
| Others | ||||
| 8.1 | Type of drive control | AC | AC | |
| 8.2 | Operating pressure for attachment | bar | __ | __ |
| 8.3 | Hydraulic oil volume of attachments | l/ min | __ | __ |
| 8.4 | Sound level at operator's ear | dB (A) | 70 | 70 |
| 8.5 | Tow bolt | __ | __ | |
