2000kg Electric Reach Forklift Truck with 4.5meters Three Stage Mast
PRODUCT DESCREPTIONElectric Reach Forklift, high lift forklift, standing up forklift trucks Feature48V Electric Reach Track TF series1, Narrow Chassis suit for narrow asiles.2, 7.2M lifting height is no problem. 3, Wide vision mast, soft and comfortable design.TF Series with AC driving motor, Rated ......
Send Inquiry
Product Description
Electric Reach Forklift, high lift forklift, standing up forklift trucks Feature
48V Electric Reach Track TF series
1, Narrow Chassis suit for narrow asiles.
2, 7.2M lifting height is no problem.
3, Wide vision mast, soft and comfortable design.
TF Series with AC driving motor, Rated load capacity:1500- 2500kg, lift height: 7200mm, it's popular in every
industries;
1. Safety Device for neutral position to increase the safety of forklift;
2. High Strength frame to protect the operator;
3. Oil-way stop Valve,to protect the operator and goods;
4. AC electric controller with multiple automatic safety protection settings, to reduce the operation accident by
misoperation;
5. Inching capacity, the forklift can finish the extremely adjustment during moving;

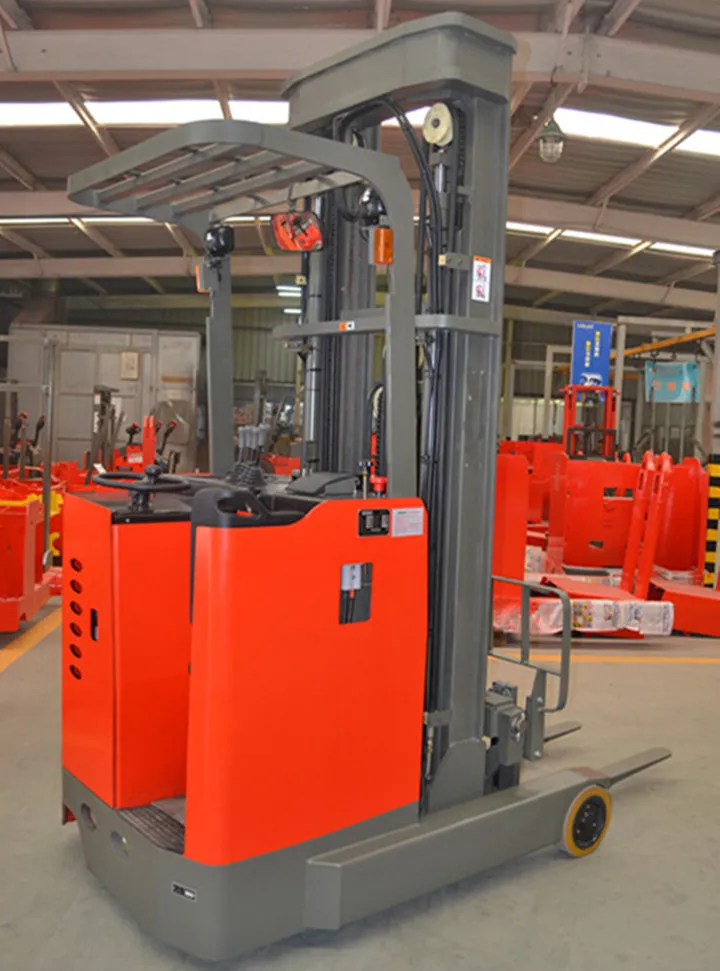

DETAILED IMAGES
| Description | Electric reach truck-TF(48V) | ||
| Model | TF15-30 | TF20-30 | TF25-30 |
| Load capacity Kg | 1500 | 2000 | 2500 |
| Load center mm | 500 | 500 | 500 |
| Max. lifting height mm | 3000 | 3000 | 3000 |
| Wheel type | Polyurethane solid tire | ||
| Fork size(LxWxT)mm | 1070x100x35 | 1070x122x40 | 1070x122x40 |
| Overall length(with forks) mm | 2240 | 2450 | 2450 |
| Overall width mm | 1098 | 1258 | 1258 |
| Overall height mast closed mm | 2100 | 2100 | 2100 |
| Overall height fork raised(with backrest)mm | 3900 | 3900 | 3900 |
| Overhead guard height mm | 2320 | 2320 | 2320 |
| Outside turning radius mm | 1615 | 1965 | 1965 |
| Total weight( with battery) Kg | 2300 | 2600 | 2600 |
| Battery V/Ah | 48/300 | 48/400 | 48/400 |
| Charger V/A | 48/40 | 48/50 | 48/50 |
| Driving motor Kw | 5.5(AC) | 5.5(AC) | 5.5(AC) |
| Lifting motor Kw | 6.3 | 7.5 | 7.5 |
CERTIFICATIONS
FQA
Q1. What is your terms of packing?
A: Generally, we pack our goods in International packing standard way with additional special fixed. If you
have legally registered patent, we can pack the goods in your branded boxes after getting your
authorization letters.
Q2. What's your warranty?
Key parts for 12 months. Easily damaged parts are not in the range of the warranty. During the warranty
term, key parts are damaged (not caused by improper operation), seller will compensate buyer with the
replacement parts free of charge. Buyer will show seller clear picture to verify they are damaged indeed.
If necessary, seller can ask buyer to return the damaged parts.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages
before you pay the balance.
Q4. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
