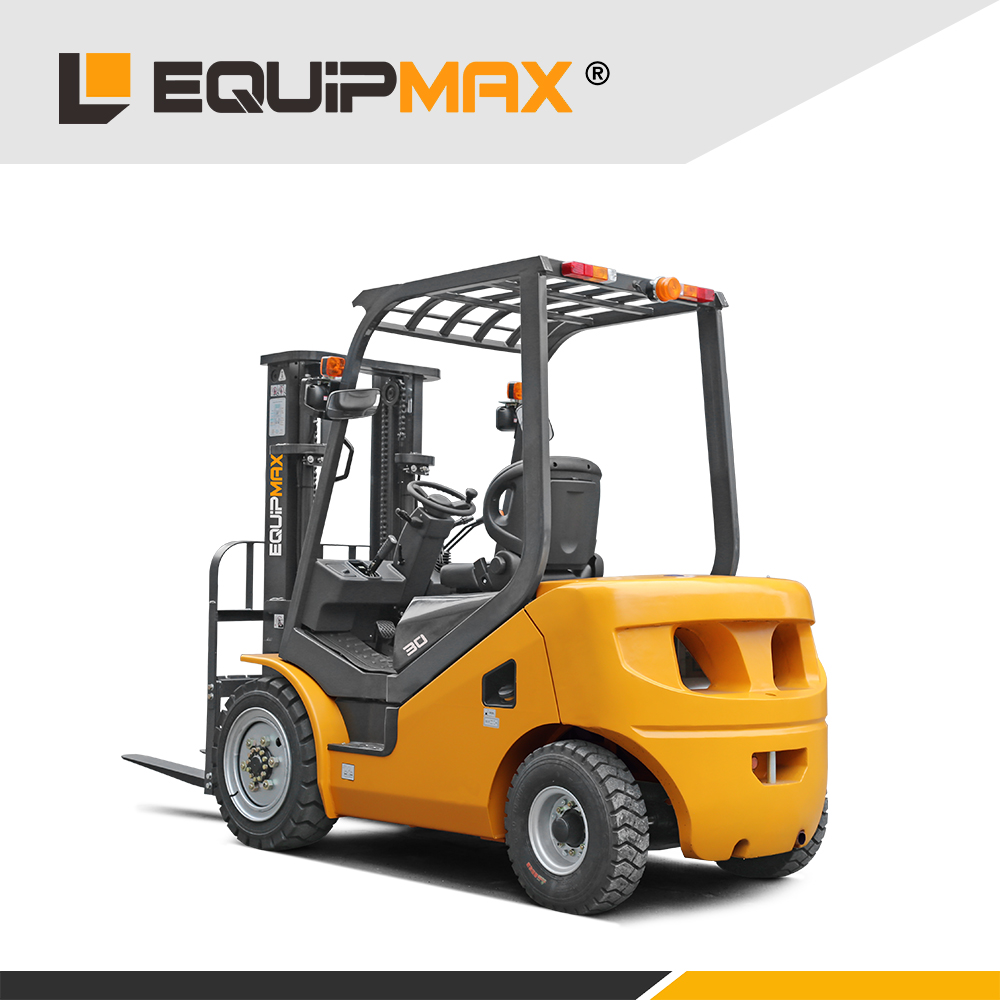

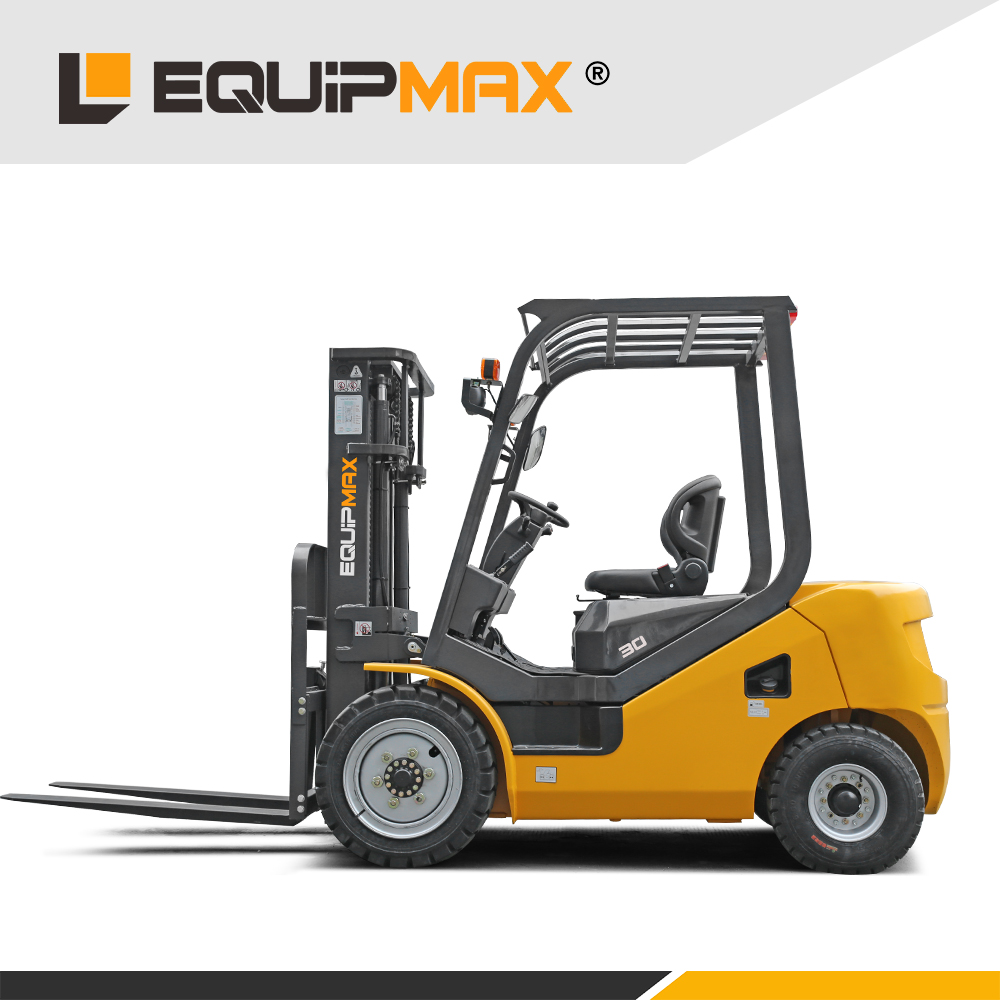

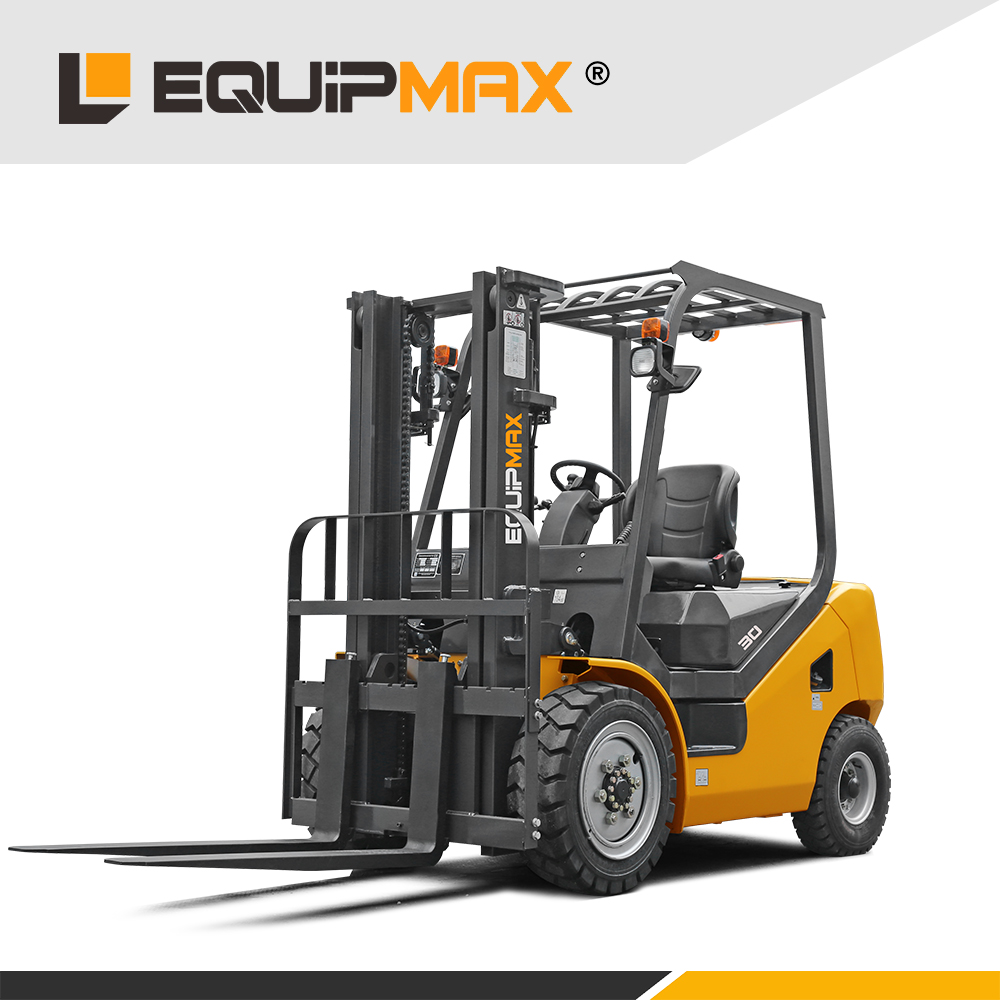

China 2021 New Equipmax 2.5-3.0t Forklift Truck with Isuzu, Yanmar, Mitsubishi, Nissan Engines

Product Description

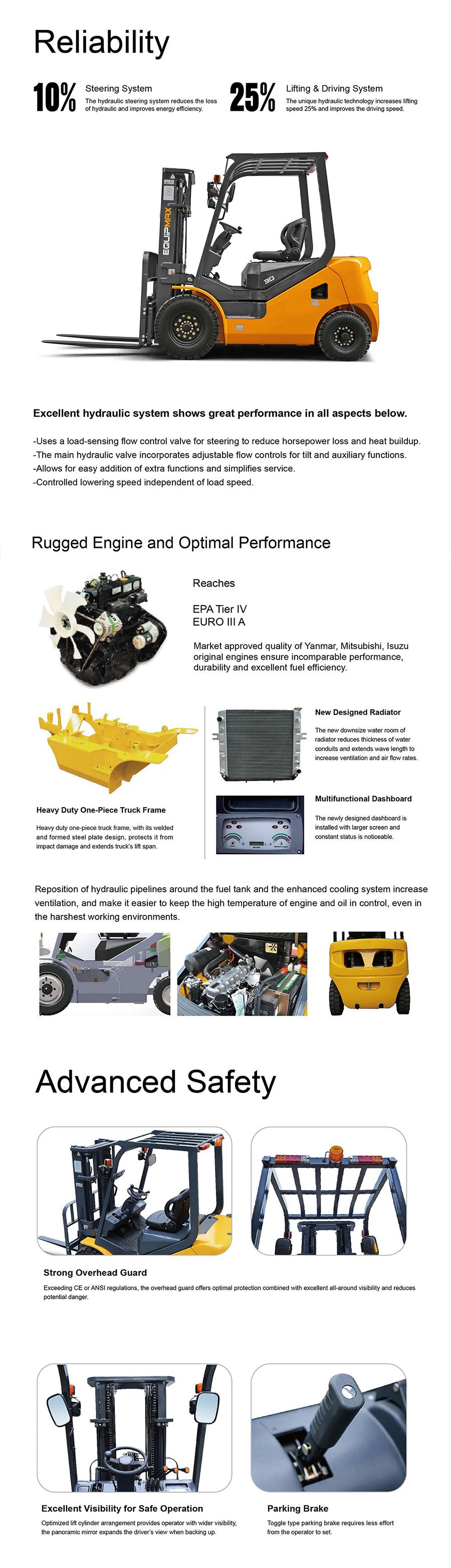

Equipmax SN series FD15T-FD35T Diesel Forklift provides you with multiple choices as per your real needs, we have different reliable engines for choice. All these engine have been tested that they can be trusted through all kinds of tough working condition and get recognition from millions of client across the worldwide.
These engines are specifically designed for the forklift use,with low fuel consumption,less noise and vibration,all these features improve the whole performance of the forklift.

High efficiency is also delivered through the performance of the axles,the excellent brake system make sure the forklift operate with safety,the steering axle provides prompt and precise feedback to the driver when steering.

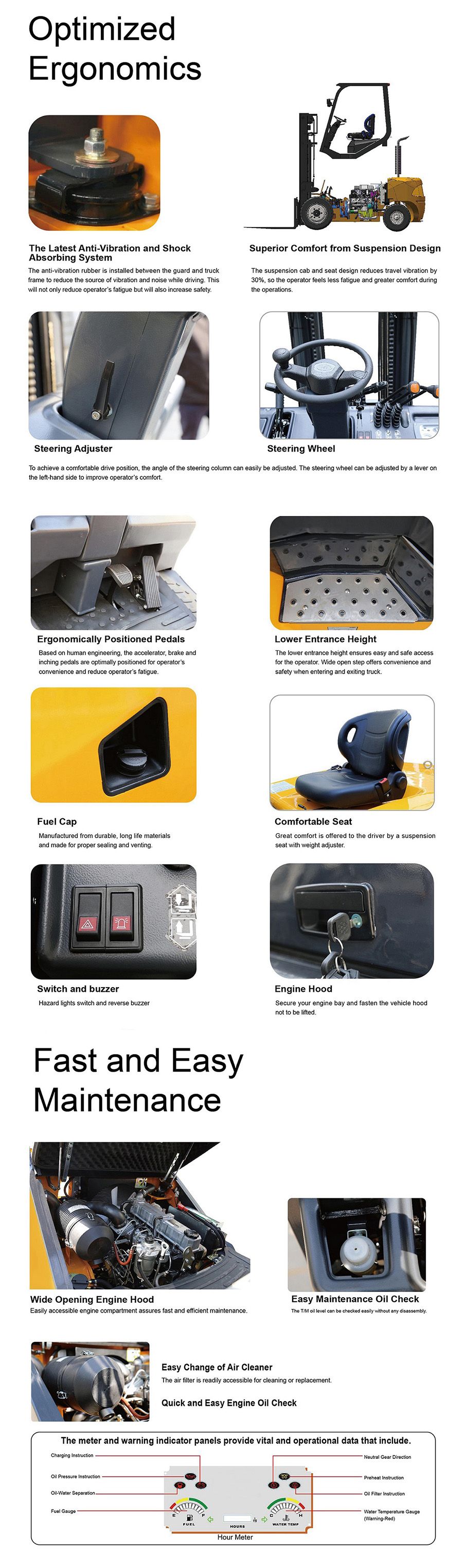

The operator cabin is reasonable-designed considering its space,layout of the steering column and instrument displayer,file storage and suspension seat.The wide-view mast provides the operator with a wide visibility which improves the efficiency and guarantee the safety.

All these features guarantee the stability and driving safety of the forklift.

2021 New Equipmax 2.5-3.0t Forklift Truck with Isuzu, Yanmar, Mitsubishi, Nissan Engines

General	1	Brand		EQUIPMAX
	2	Model		FD20T-FN	FD25T-FN	FD20T-JBN	FD25T-JBN
	2	Model		(FD20-F)	(FD25-F)	(FD20-JB)	(FD25-JB)
	3	Power Type		Diesel
	4	Rated Load Capacity	Q(kg)	2000	2500	2000	2500
	5	Load Centre	C(mm)	500
Characteristic & Dimension	6	Rated Lift Height	H3(mm)	3000
	7	Free Lift Height	H2(mm)	100
	8	Fork Size (L×W×T)	mm	1070×120×40
	9	Mast Tilt Angle (F/R, α°/β°)	deg	6°/12°
	10	Fork Overhang (Wheel Center to Fork Face)	X1(mm)	479
	11	Rear Overhang	X2(mm)	520
	12	Ground Clearance (Bottom of Mast)	H7(mm)	130
	13	Length to Face of Fork (Without Fork)	L1(mm)	2660
	14	Overall Width	B1(mm)	1150
	15	Mast Lowered Height	H1(mm)	2055
	16	Mast Extended Height (With Backrest)	H4(mm)	4070
	17	Overhead Guard Height	H5(mm)	2215
	18	Turning Radius (Outside)	Wa(mm)	2365
	19	Min.Aisle width for pallets	Ast(mm)	4120
Performance	20	Travel Speed (No Load)	km/h	19
	21	Lifting Speed (Full Load)	mm/sec	490
	22	Lowering Speed (Full Load)	mm/sec	450
	23	Max.Drawbar Pull (Full Load/No Load)	KN
	24	Max.Gradeability (Full Load)	%	20
Chassis	27	Front Tread	B2(mm)	970
	28	Rear Tread	B3(mm)	980
	29	Wheelbase	Y(mm)	1650
Power & Transmission	35	Battery	V/Ah	12/90
	36	Engine Model		C490BPG -37 (EUIII)		C240NKFC-01 (EUIII)
	37	Engine Manufacturer		XINCHAI		ISUZU
	38	Rated Output / r.p.m.	kw	36.8/2650		34.5/2500
	39	Rated Torque / r.p.m.	N·m	156/1800		139/1800
	40	No.of Cylinder		4
	41	Bore x Stroke	mm	90×105		86×102
	42	Displacement	cc	2670		2369
	43	Fuel Tank Capacity	L	50
	44	Transmission Type		Powershift ( Manual)
	45	Transmission Stage (FWD/RVS)		1/1(2/2)
	46	Operating Pressure (For Attachments)	Mpa	17.5
