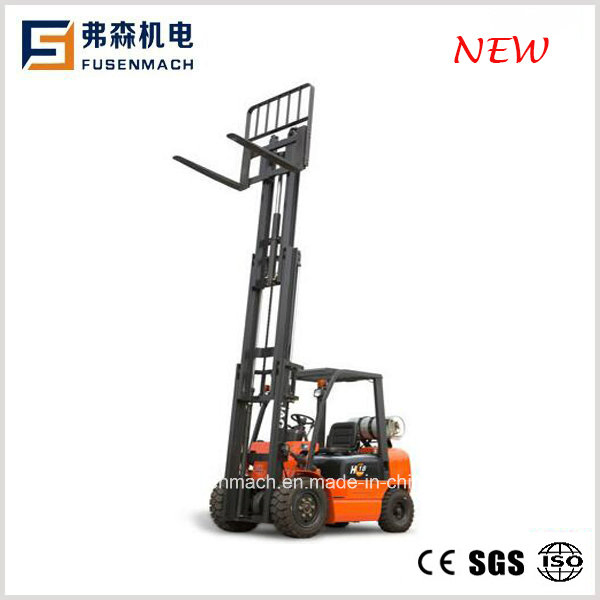

2021 New Mini Gasoline and LPG Forklift Cpqd10

Product Description

2018 NEW Mini Gasoline and LPG Forklift CPQD10

Model CPQD10
Load capacity: 1000kg
Standard mast: 2-stage
Max. lifting height: 3m
Engine: Chinese CQ-4Y(Nissan K21 for options)
Certificate: ISO,CE

Model			Unit	CPQD10H	CPQD15H	CPQD18H
Load Capacity			Kg	1000	1500	1800
Load Center			mm	500	500	500
Mast Lifting height			mm	3000	3000	3000
Mast Free Lift			mm	155	155	155
Mast Lifting Speed (With Load)			mm/s	550	550	550
Mast Tilting Angle (Front/Rear )				6°/ 12°	6°/ 12°	6°/ 12°
Driving Speed			km/h	14	14	14
Turning Radius			mm	1880	1955	1985
Ground Clearance			mm	115	115	115
External Dimension		Length to face of forks	mm	2231	2274	2171
		Overall width	mm	1080	1080	1080
		Height of overhead guard (cabin)	mm	2060	2060	2060
		Height of mast, extended	mm	3930	3930	3930
Wheelbase			mm	1400	1400	1400
Tread		Front	mm	891	891	891
Tread		Rear	mm	920	920	920
Overhang (front)			mm	407	407	407
Fork			mm	1070	1070	1070
Service Weight			kg	2430	2790	2890
Engine	Model			Chinese engine	NISSAN K21
	Rated Output		KW	36.5	31.2
	Rated power speed		rpm	2500	2250
