20t Container Forklift with Original Cummins Engine Fd200
20t Container Forklift with Original Cummins Engine FD200Product DescriptionModel FD200 Load capacity: 20000kg Standard mast: 2-stage Max. lifting height: 4m Engine: Cummins QSB6.7-C240 Rated power: 179kw Certificate: ISO Specification Load capacitykg20000Load centermm1250Power type DieselTire type......
Send Inquiry
Product Description

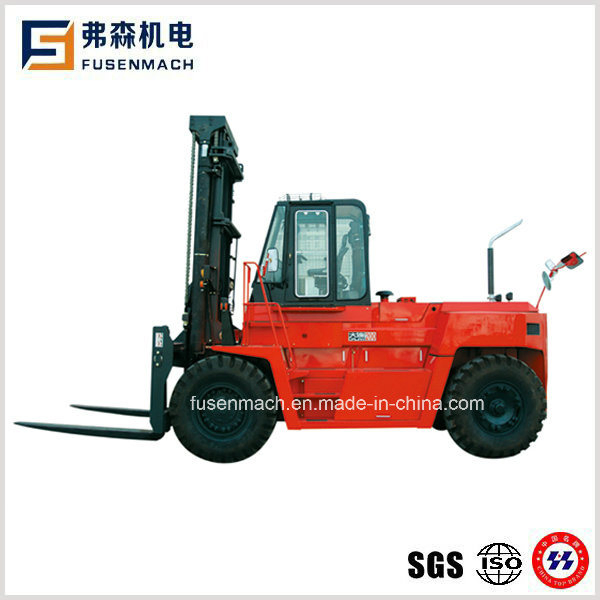

20t Container Forklift with Original Cummins Engine FD200
Product Description
Model FD200 Load capacity: 20000kg
Standard mast: 2-stage
Max. lifting height: 4m
Engine: Cummins QSB6.7-C240
Rated power: 179kw
Certificate: ISO
Specification | ||
Load capacity | kg | 20000 |
Load center | mm | 1250 |
Power type | Diesel | |
Tire type | Pneumatic | |
Lifting speed (with load / without load) | mm/s | 310/320 |
Lowering speed (with load / without load) | mm/s | <=600/>=300 |
Max. driving speed | km/h | 28/30 |
Max. gradeability | % | >=15 |
Brake distance | mm | <=7 |
Wheels (front / rear) | pcs | 4x/2 |
Tire specification (front / rear) | 14.00-24-24PR | |
Battery voltage / capacity | V/Ah | 2x12/150 |
Service brake | Hydraulic type | |
Parking brake | Pliers plate type | |
Engine brand | CUMMINS | |
Internal combustion engine model | QSB6.7-C240 | |
Displacement | L | 6.7 |
Rated output | Kw/rpm | 179/2500 |
Max. torque | Nm/rpm | 987/1500 |
Engine fuel tank capacity | L | 240 |
Transmission type (No. of speed Fwd/Rvs) | Electric-shift | |
Total weight | Kgs | 29980 |
