China 2t 2000kg Lifting 4500mm Mini Material Handing Electric Battery Counter-Balanced Lift Pallet Forklift Parts

Product Description

Product Application Technology Characteristics

1,imported handle assembly,stable and flexible operation;

2,imported door frame channel steel,safe and beautiful,sturdy and durable;

3,the fork can enter the bottom of cargo with a small ground clearance ,it is convenient to enter any yard to lift the cargo;

4,compact structure ,high performance ,regenerative braking and easy maintenance;

5,the large capacity battery pack ensures long-lasting power and convenient charging.the battery is pulled out from theside,which is beneficial to exchange and maintenance of the battery;

Technology Parameter

model	unit	CQD-B15	CQD-B20
driving mode		electric	electric
driving style		standing	standing
rated load	q(kg)	1500	2000
load center distance	c(mm)	500	500
track	y(mm)	1680	1680
weight(with battery)		1500-1700	1750-1880
wheel		PU wheel	PU wheel
wheel size,front wheel	mm	φ250*80	φ250*80
wheel size, rear wheel	mm	φ200*80	φ200*80
number of wheels(*driving wheels)		1*/2	1*/2
rear wheel track	b11(mm)	780	780
lifting height	h3(mm)	1600/2000/2500/3000/3500/4500/5000	1600/2000/2500/3000/3500/4500/5000
height of gantry lowered	h1(mm)	2090/1590/1840/2090/2340/2090/2257	2090/1590/1840/2090/2340/2090/2257
maximum height of the stacker	h4(mm)	2090/2590/3090/3590/4090/5090/5590	2090/2590/3090/3590/4090/5090/5590
reduced height	h13(mm)	35	35
overall length	l1(mm)	3100	3100
body width	b1(mm)	1000	1000
fork size	s/e/l(mm)	120/35/1070	120/35/1070
outer fork width	b5(mm)	200-660	200-660
minimum ground clearance	m2(mm)	50-110	50-110
channel width(1000*1200mm tray)	ast(mm)	3300	3300
channel width (800*1200mm tray)	ast(mm)	3280	3280
turning radius	wa(mm)	1600	1600
driving speed,full load/ no load	km/h	4.5/5.2	4.5/5.2
lifting speed ,full load/no load	m/s	0.085/0.11	0.085/0.11
failing speed ,full load/no load	m/s	0.12/0.08	0.12/0.08
brake		regenerative braking	regenerative braking
drive motor power	kw	1.5(AC)	1.5(AC)
lift motor power	kw	2.3(DC)	2.3(DC)
battery capacity	v/ah	24/210	24/210
battery weight	kg	180	180
steering mode		mechanical steering	mechanical steering
noise level according to DIN 12053	db(A)	<70	<70

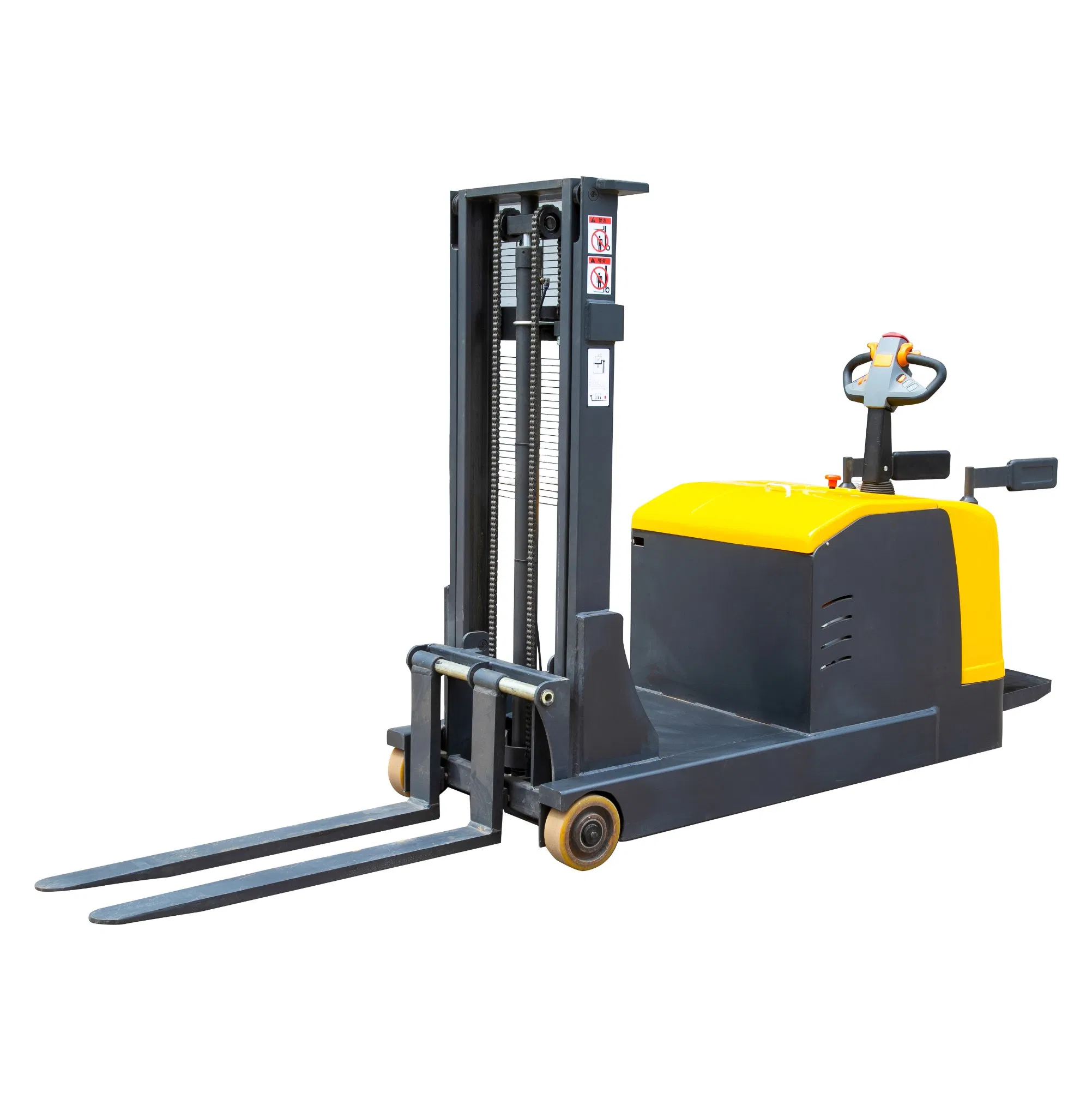

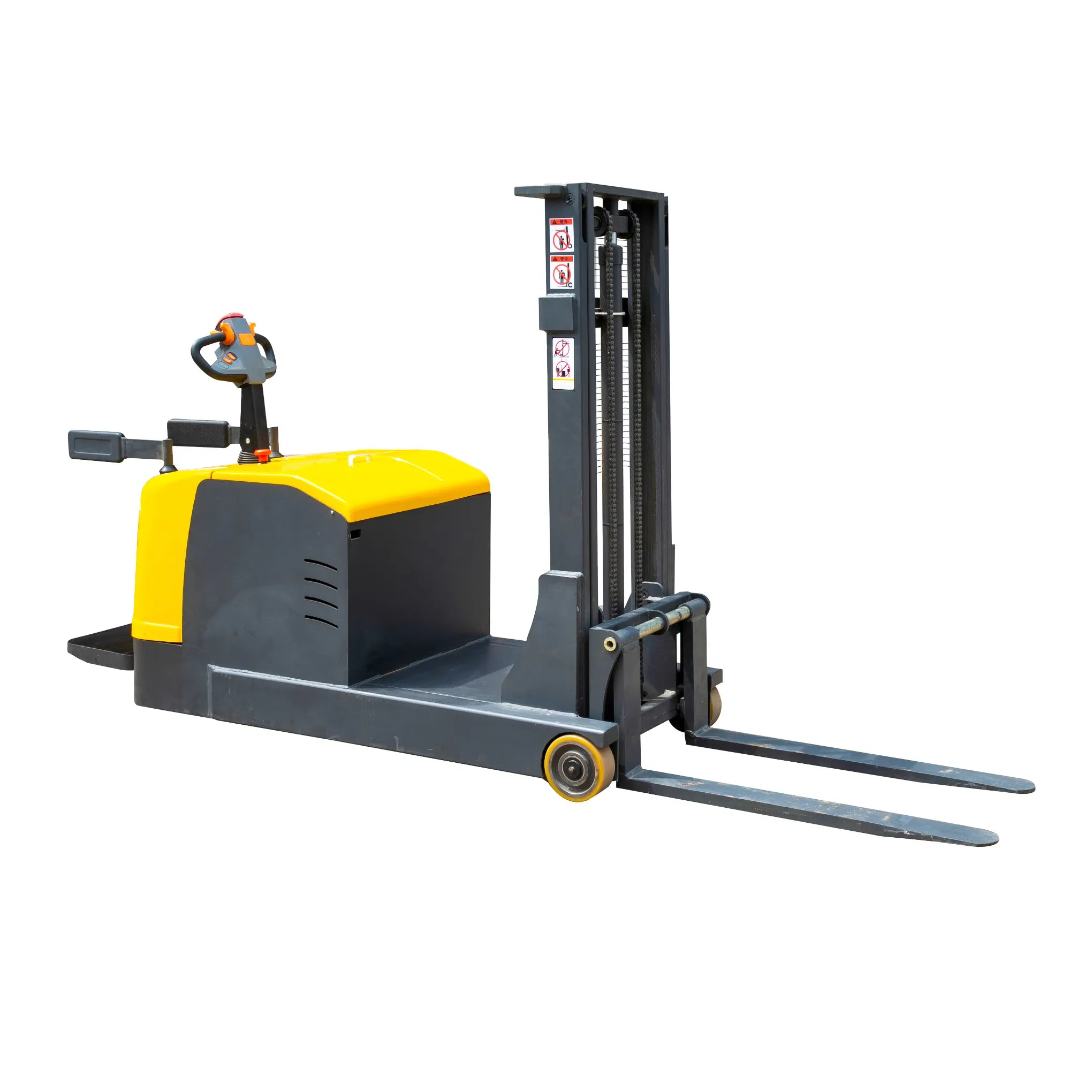

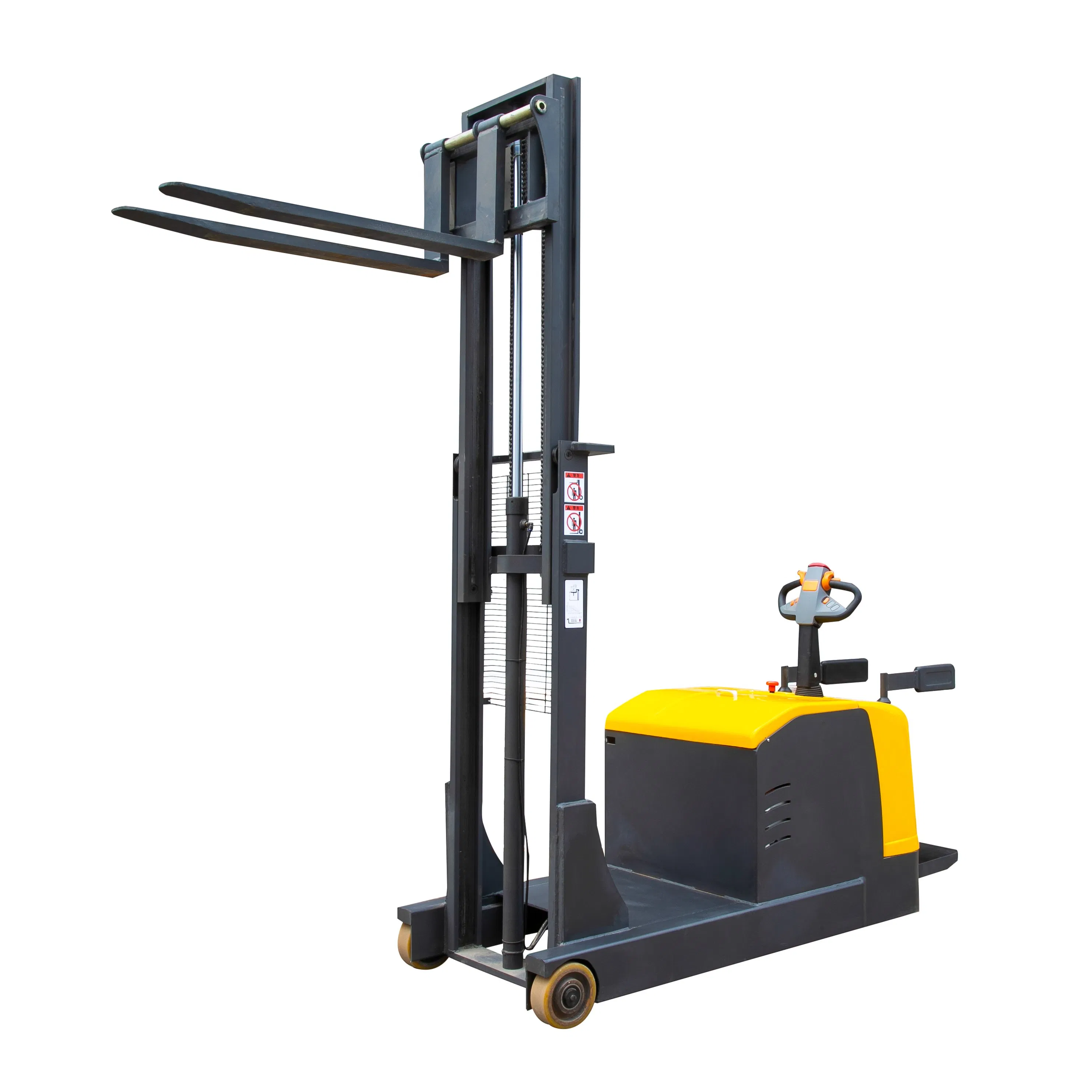

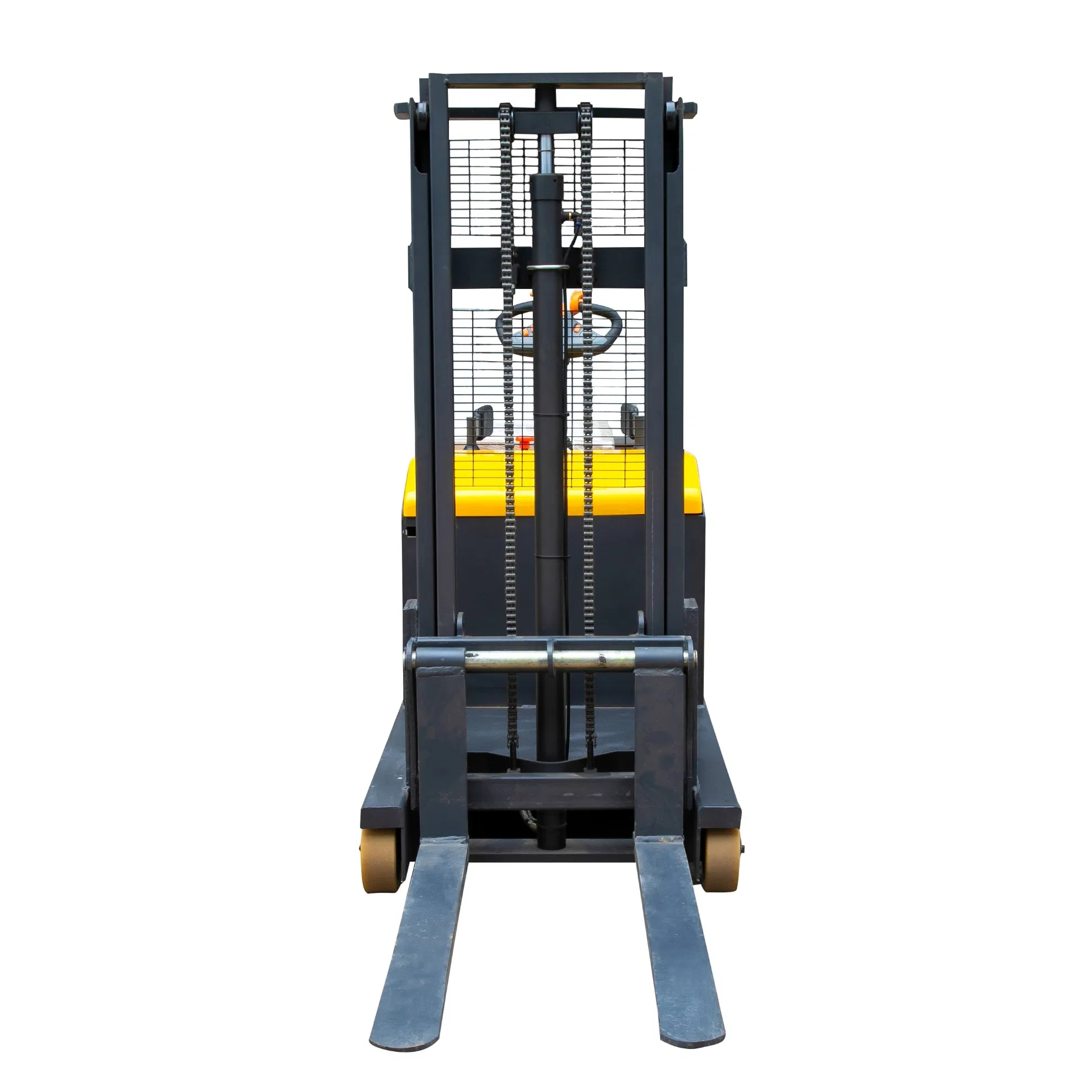

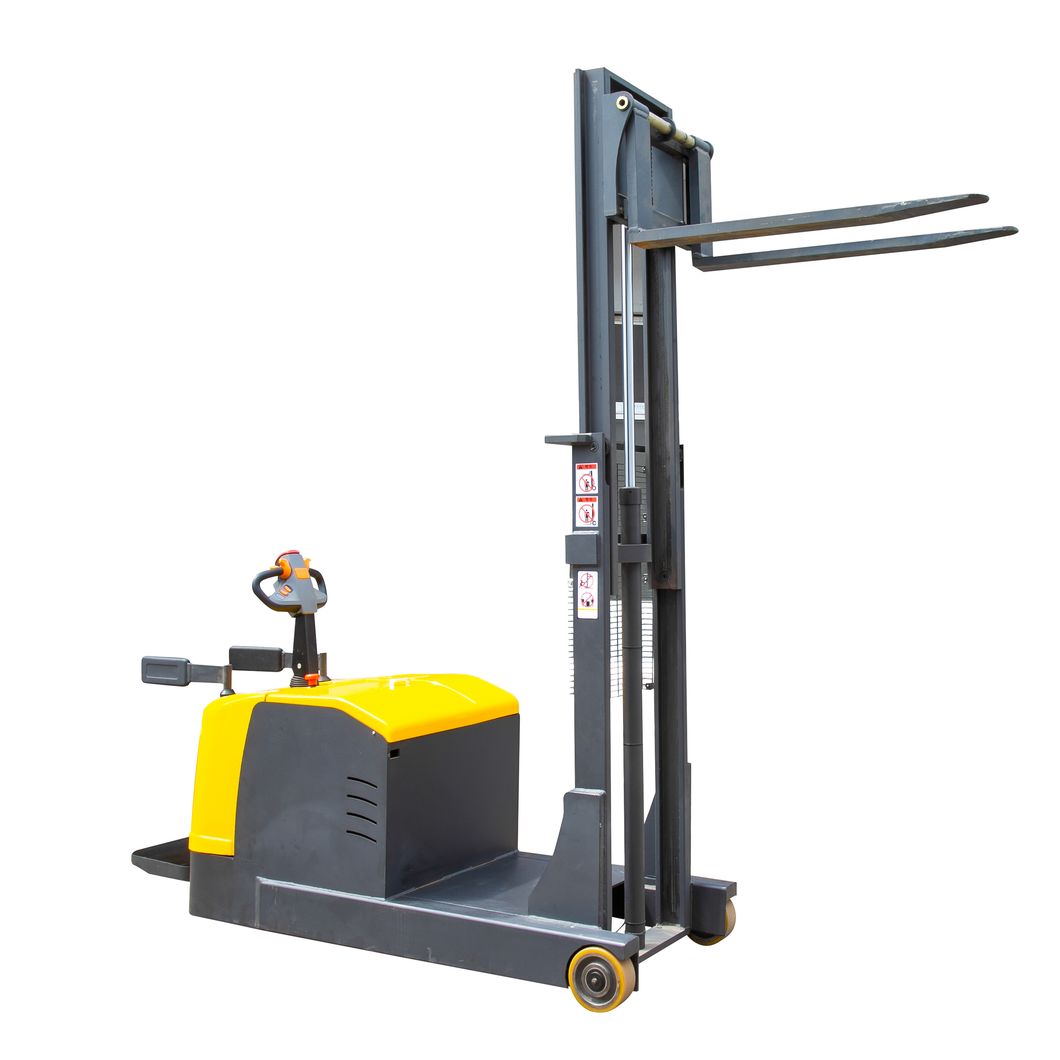

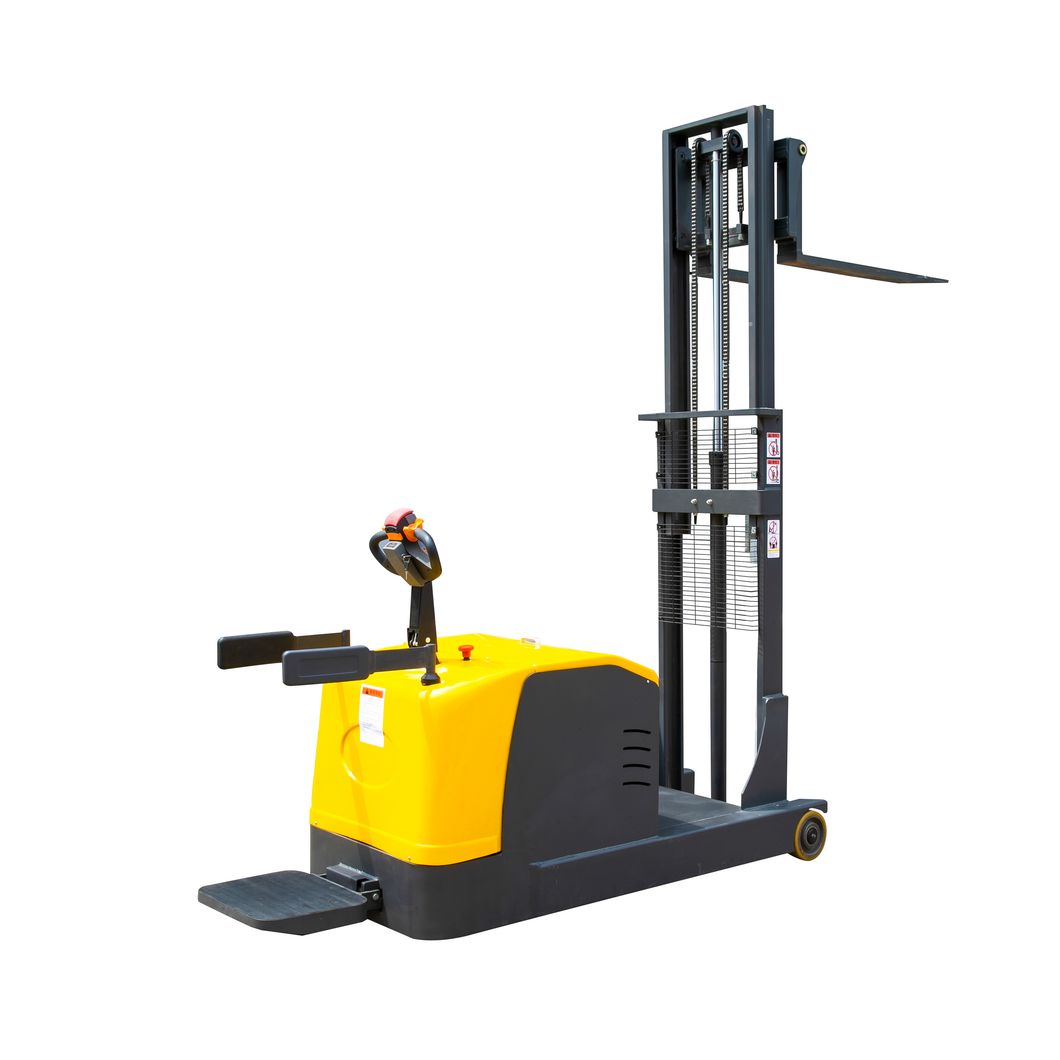

Product images

2t 2000kg Lifting 4500mm Mini Material Handing Electric Battery Counter-Balanced Lift Pallet Forklift Parts

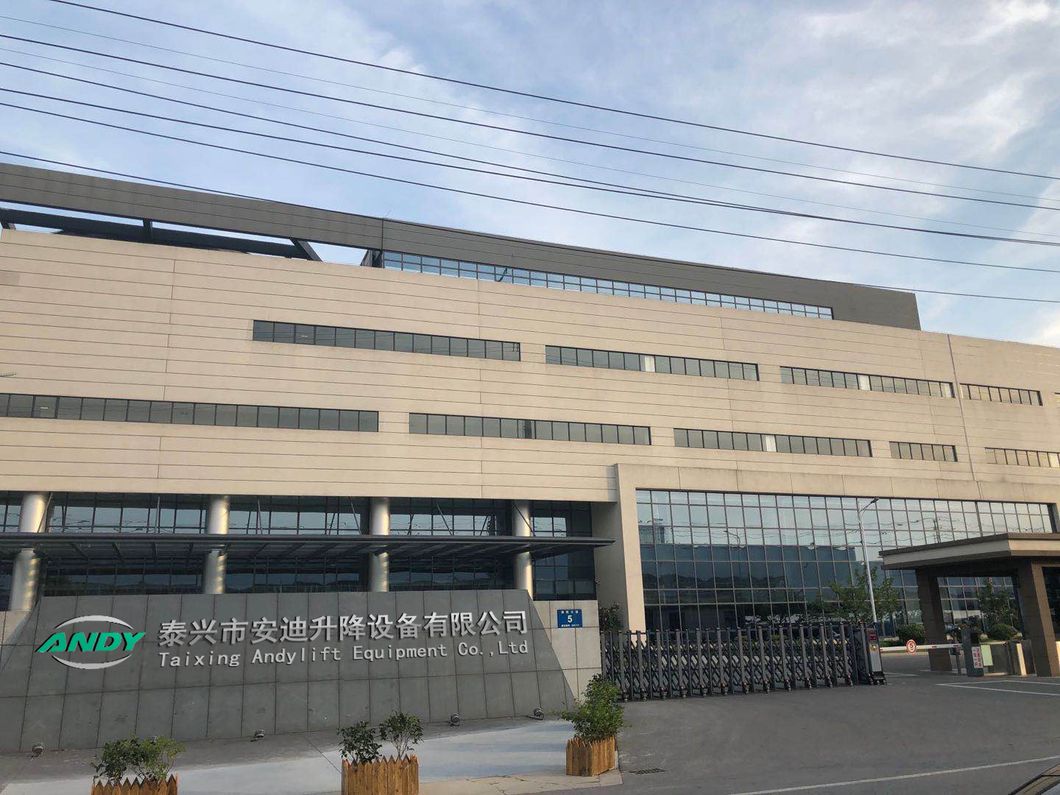

Our Factory

Taixing Andylift Equipment Co.,Ltd. was founded in 2009, we have powerful R&D ability and advanced production technology that make sure of product quality. We have accumulated abundant experience of production and marketing for hand stacker,semi-electric stacker ,electric stacker, manual pallet truck ,semi-electric pallet truck,electric pallet truck etc,our factory also accept customization.So many years of experience makes us professional in the field. We provide the most comprehensive range of products with stable quality, first class after-sale service, technical and parts supports by the professional and high efficiency team working behind. We have already exported various kinds of products to overseas countries and regions such as Indonesia, Vietnam, Myanmar, Korea, Malaysia, South African etc.
Our advantage includes:

Stocking for standard models, delivery timely;
Various customized products;
Response quickly for inquiry and complain;
Reliable quality and the competitive price;

Any request, any details,as long as you want to know,please feel free to contact us,we will warmly welcome!

FAQ

1, Q: How long is the warranty of your products?
      A:Equipment max provide 12 months or 2000 working hours warranty as standard ,whichever comes first.

2,Q:What payment terms do you accept?
      A:Our standard payment term is 30% in advance and 70% in balance by TT before delivery
or original B/L copy.

3,Q:How long can I get my order finished?
      A:15-20 days for classic forklift ,pallet truck,stacker and attached, 5-10 days for spare parts.

4,Q:Can you customize the configuration/logo/lable/color according to our requirements?
      A:Yes.

5.   Q:Do you accept small order?
      A:Yes,the MOQ is 1 unit for most of the products,for very small handing equipment,we can check case by case.
