2t Diesel Forklift Material Handling Equipment Fd20
2T Diesel Forklift Material Handling Equipment FD20 Main Features for SNSC forklift FD20 2.0t diesel forklift truck1) Adopt powerful Chinese XINCHAI 490 or original JAPAN ISUZU/MITSUBISHI Japan NISSAN K25 engine; 2) FD20 with automatic electric hydraulic transmission by finger with TCM technology, ......
Send Inquiry
Product Description

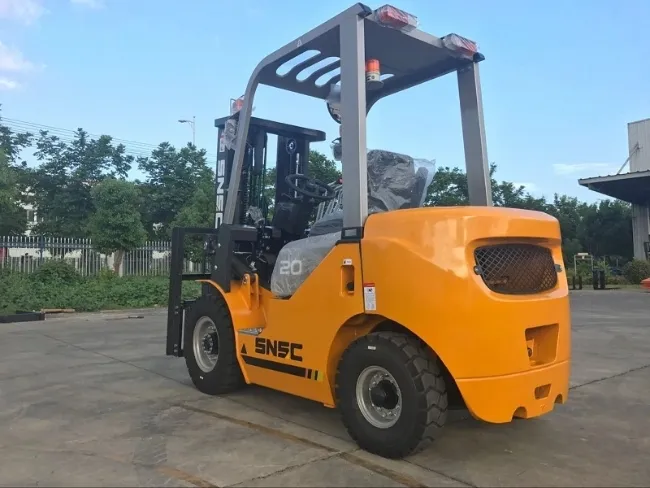

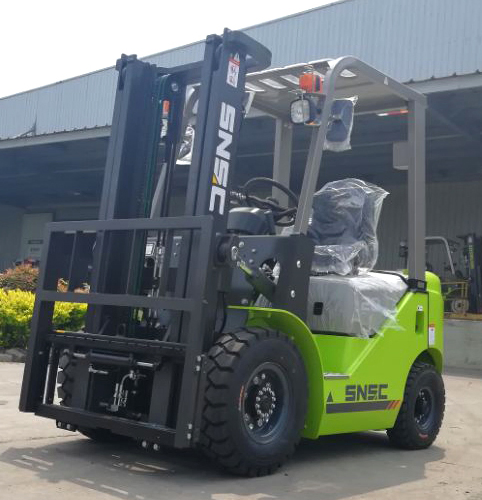

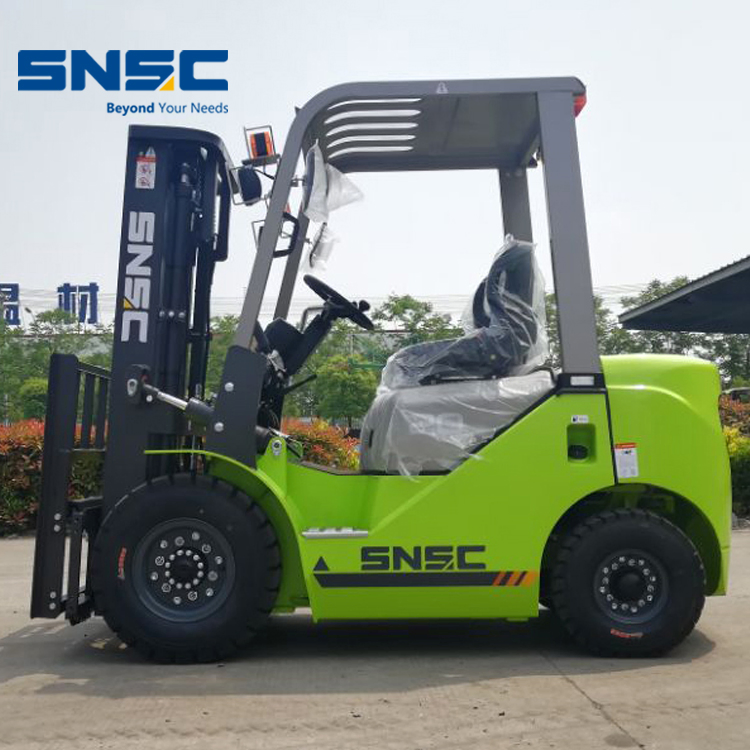

2T Diesel Forklift Material Handling Equipment FD20
Main Features for SNSC forklift FD20 2.0t diesel forklift truck
1) Adopt powerful Chinese XINCHAI 490 or original JAPAN ISUZU/MITSUBISHI Japan NISSAN K25 engine;
2) FD20 with automatic electric hydraulic transmission by finger with TCM technology, just use your finger can achieve the forklift's forward/backward;
3) Japanese SHIMADZU hydraulic system, pump and valves;
4) SNSC Forklift has CE, ISO, GHOST certificates, quality is definitely guaranteed;
5) With tool box and free spare parts, like air filter, hydraulic filter, engine oil filter, mast maintenance kit;
6) USA EATON brand steering gear, which makes our snsc forklift have longer working life;
7) SNSC 2t forklift diesel truck can install different attachments to help your work, like paper roll clamp, side shifter, full free container mast, bale clamp, button clamp, block clamp, cabin.
Specifications of SNSC forklift 2ton diesel forklift truck
This is our standard 2ton diesel forklift techincal specifications.
We also can customized the fork lifter according to our customer's working conditions.

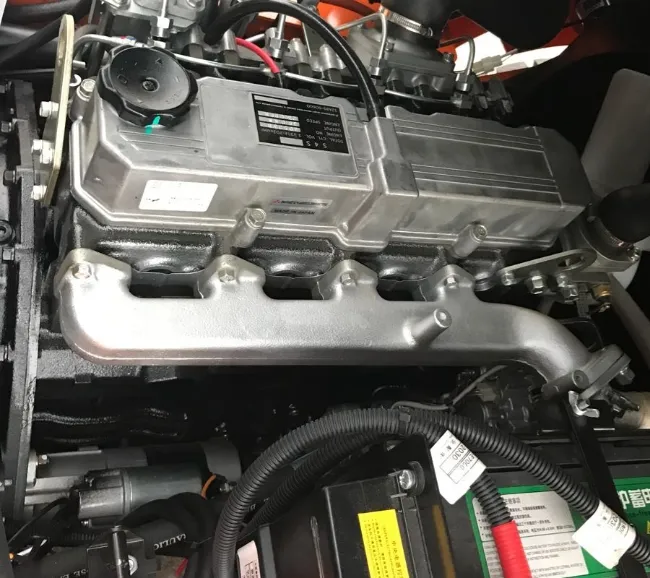

Options Original MITSUBISHI S4S Diesel Engine
Options Triplex Full Free 4.5 Meters Lifting Height Mast

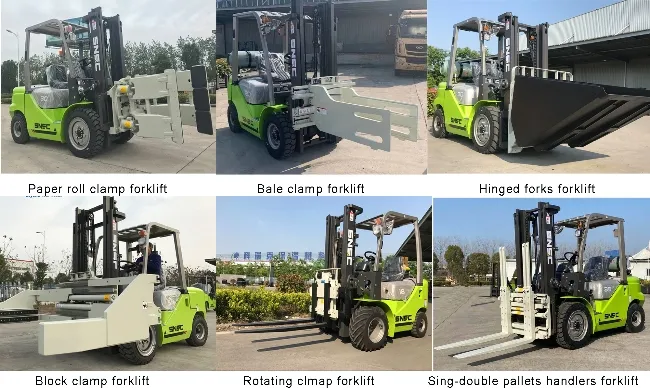

Attachment /Clamps /Accessories

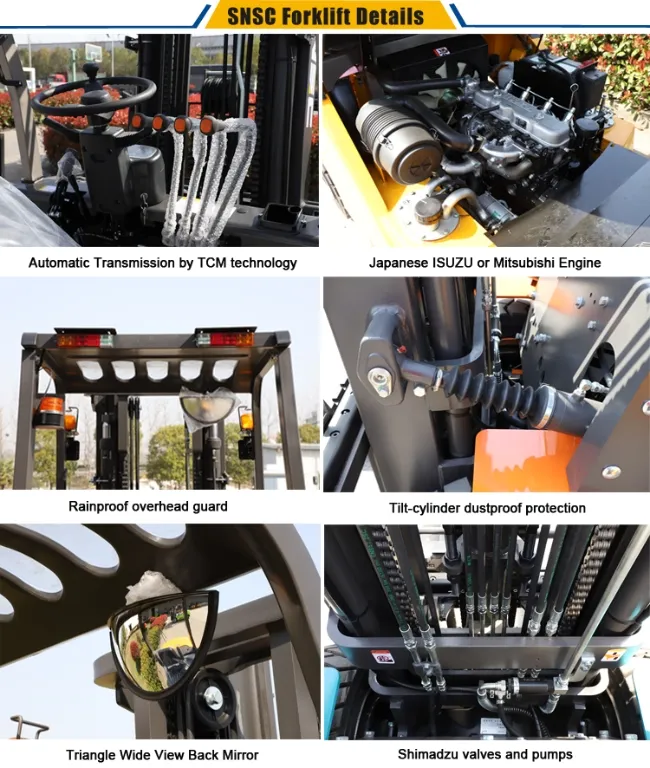

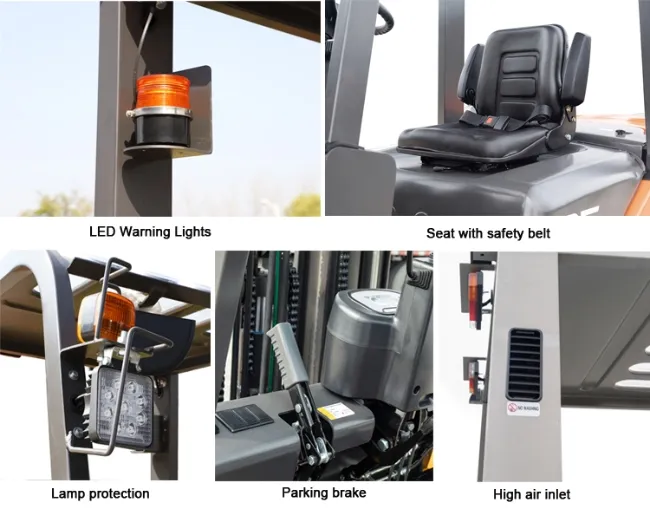

Detailed on SNSC Forklift

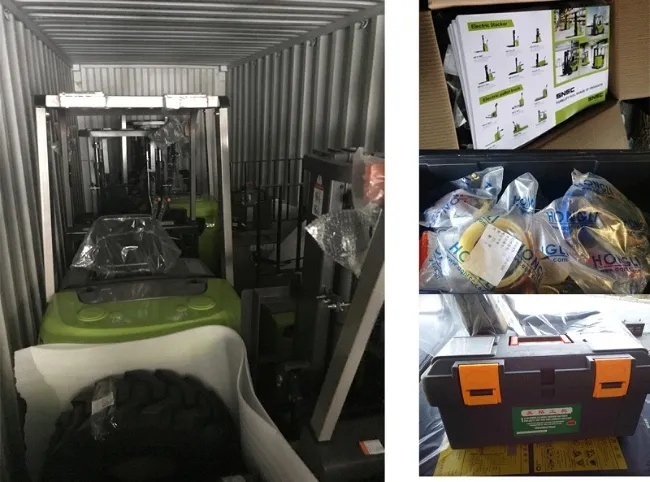

Package and Delivery of diesel forklift 2 ton FD20
Our 2ton DIESEL forklift can be delivered by container or ro-ro shipment.
One 20'GP containr can hold 3 units 2tons diesel forklifts;
one 40'GP container can hold 6 units 2ton diesel engine forklift trucks.

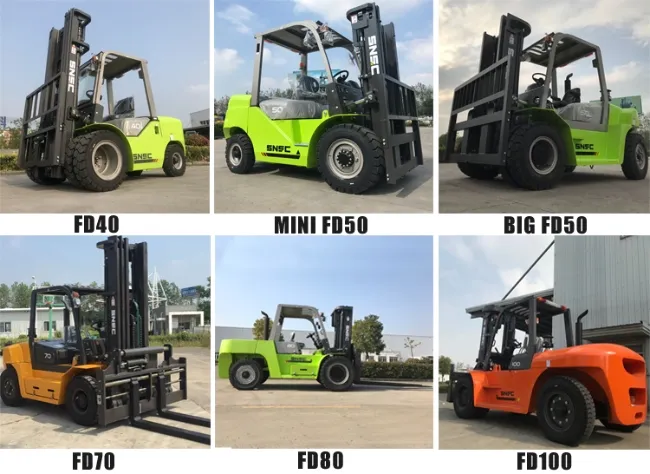

3Ton Forklift, 3.5 Ton Diesel Forklift, 4t Forklift, 5 Ton Diesel Forklift, 10ton Forklift Truck
China SNSC Forklift is a professional Forklift manufacture, has been in forklift industry for 10 years.

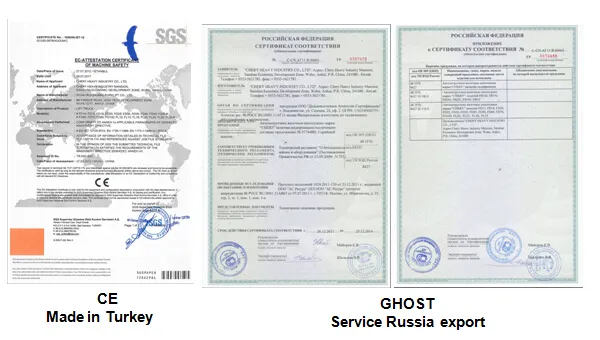

Certifications of 2t Chariot Elevateur
SNSC FORKLIFT Product Range:
1. Counter Balanced Diesel powered forklift truck range from 1.5 to 10ton;(FD30,FD35,FD40,FD45,FD50,FD60,FD70)
2. Battery powered electric forklift truck range from 1.5 to 3.5ton;
(FB15, FB20, FB25, FB30, FB35)
3. Counter Balanced LPG and gasoline powered dual fuel forklift trucks range from 1.5 to 3.5 ton;
(FL15, FL18, FL20, FL25, FL30, FL35)
4. Warehouse equipments, like electric pallet truck, electric reach truck, electric stacker & electric trailer, scissor lift, double deep electric reach truck, racks.
Main Features for SNSC forklift FD20 2.0t diesel forklift truck
1) Adopt powerful Chinese XINCHAI 490 or original JAPAN ISUZU/MITSUBISHI Japan NISSAN K25 engine;
2) FD20 with automatic electric hydraulic transmission by finger with TCM technology, just use your finger can achieve the forklift's forward/backward;
3) Japanese SHIMADZU hydraulic system, pump and valves;
4) SNSC Forklift has CE, ISO, GHOST certificates, quality is definitely guaranteed;
5) With tool box and free spare parts, like air filter, hydraulic filter, engine oil filter, mast maintenance kit;
6) USA EATON brand steering gear, which makes our snsc forklift have longer working life;
7) SNSC 2t forklift diesel truck can install different attachments to help your work, like paper roll clamp, side shifter, full free container mast, bale clamp, button clamp, block clamp, cabin.
Specifications of SNSC forklift 2ton diesel forklift truck
This is our standard 2ton diesel forklift techincal specifications.
We also can customized the fork lifter according to our customer's working conditions.
| FD20 FORKLIFT SPECIFICATIONS | |||||
| Specifications | Unit | FD20 | |||
| 1 | Characteristics | Power | diesel | ||
| 2 | Rated Capacity | kg | 2000 | ||
| 3 | Center of load | mm | 500 | ||
| 4 | Lifting height | mm | 3000 | ||
| 5 | Free lifting height | mm | 135 | ||
| 6 | Forks L×W×H | mm | 1070x122x40 | ||
| 7 | Tilt Forward/Backward | . | 6/12 | ||
| 8 | Min.turning radius | mm | 2240 | ||
| 9 | Min.ground clearance(Mast) | mm | 110 | ||
| 10 | Overhead guard height | mm | 2120 | ||
| 11 | Height from seat to overhead guard | mm | 943 | ||
| 12 | Front overhang | mm | 473 | ||
| 13 | Perf | Max.traveling speed(loaded) | km/h | 19 | |
| 14 | Max.lifting speed(loaded/empty) | mm/s | 470/510 | ||
| 15 | Drawbar pull/Gradeability | kN/% | 17/20 | ||
| 16 | Dimensions | Overall length (without fork) | mm | 2570 | |
| 17 | Overall width | mm | 1175 | ||
| 18 | Mast lowered height | mm | 1990 | ||
| 19 | Mast extended height | mm | 4000 | ||
| 20 | Chassis | Tire | Front | 7.00-12-12PR | |
| 21 | Rear | 6.00-9-10PR | |||
| 22 | Wheelbase | mm | 1600 | ||
| 23 | Tread width | Front/Rear | mm | 970/970 | |
| 24 | Curb weight | None-load | kg | 3350 | |
| 25 | Powertrain | Battery | Voltage/Capacity | V/Ah | 12/90 |
| 26 | Engine | Model | XC490BPG | ||
| 27 | Rated power | kw/r.p.m | 37/2650 | ||
| 28 | Rated torque | Nm/r.p.m | 148/2000 | ||
| 29 | Cylinder amount | 4 | |||
| 30 | Bore×Stroke | mm | 90x100 | ||
| 31 | Displacement | 2.54 | |||
| 32 | Fuel tank | L | 60 | ||
| 33 | Transmission | 1/1 automatic transmission | |||
| 34 | Working pressure | MPa | 17.5 | ||
Options Original MITSUBISHI S4S Diesel Engine
Options Triplex Full Free 4.5 Meters Lifting Height Mast
Attachment /Clamps /Accessories
Detailed on SNSC Forklift
Package and Delivery of diesel forklift 2 ton FD20
Our 2ton DIESEL forklift can be delivered by container or ro-ro shipment.
One 20'GP containr can hold 3 units 2tons diesel forklifts;
one 40'GP container can hold 6 units 2ton diesel engine forklift trucks.
3Ton Forklift, 3.5 Ton Diesel Forklift, 4t Forklift, 5 Ton Diesel Forklift, 10ton Forklift Truck
China SNSC Forklift is a professional Forklift manufacture, has been in forklift industry for 10 years.
Certifications of 2t Chariot Elevateur
SNSC FORKLIFT Product Range:
1. Counter Balanced Diesel powered forklift truck range from 1.5 to 10ton;(FD30,FD35,FD40,FD45,FD50,FD60,FD70)
2. Battery powered electric forklift truck range from 1.5 to 3.5ton;
(FB15, FB20, FB25, FB30, FB35)
3. Counter Balanced LPG and gasoline powered dual fuel forklift trucks range from 1.5 to 3.5 ton;
(FL15, FL18, FL20, FL25, FL30, FL35)
4. Warehouse equipments, like electric pallet truck, electric reach truck, electric stacker & electric trailer, scissor lift, double deep electric reach truck, racks.
