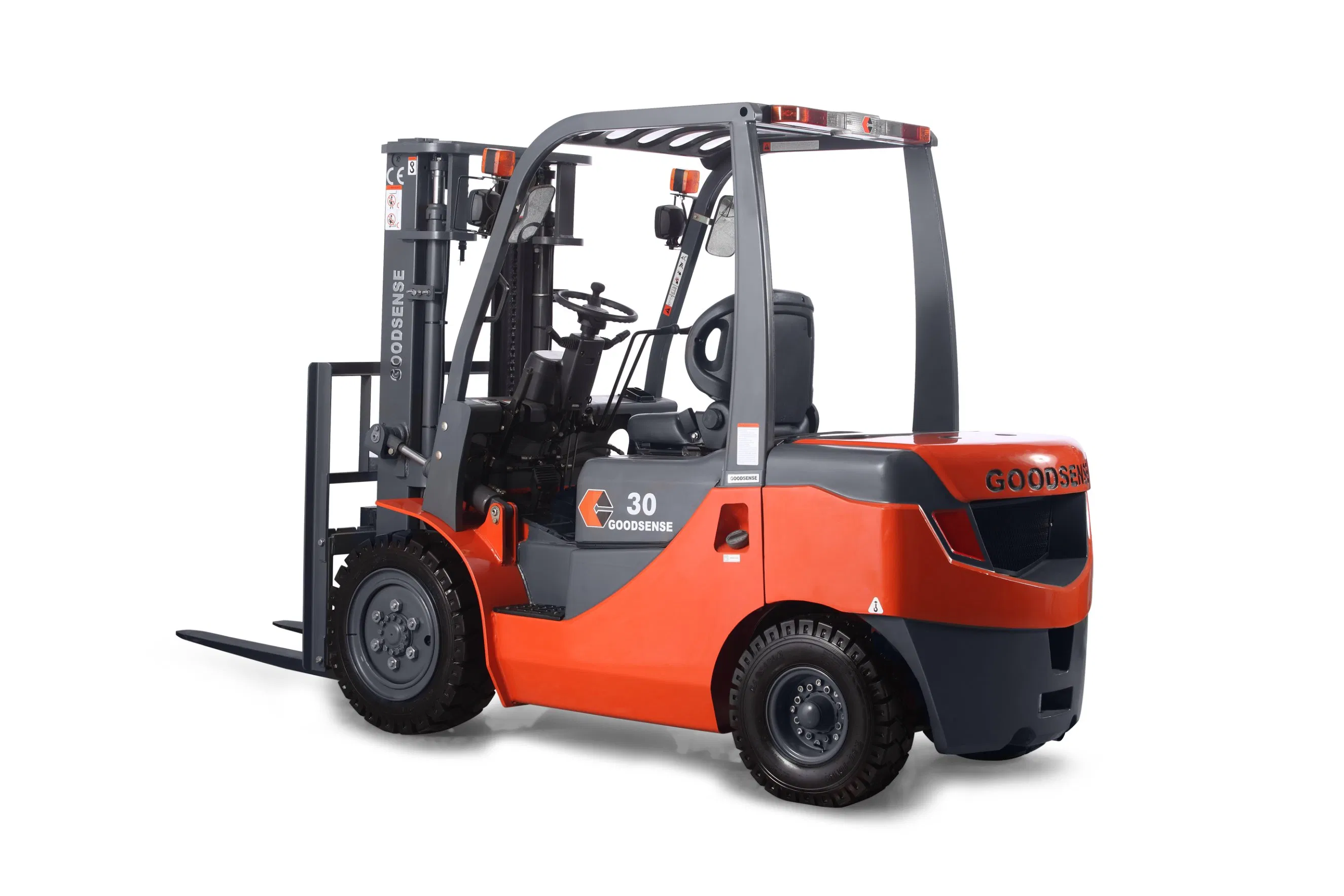

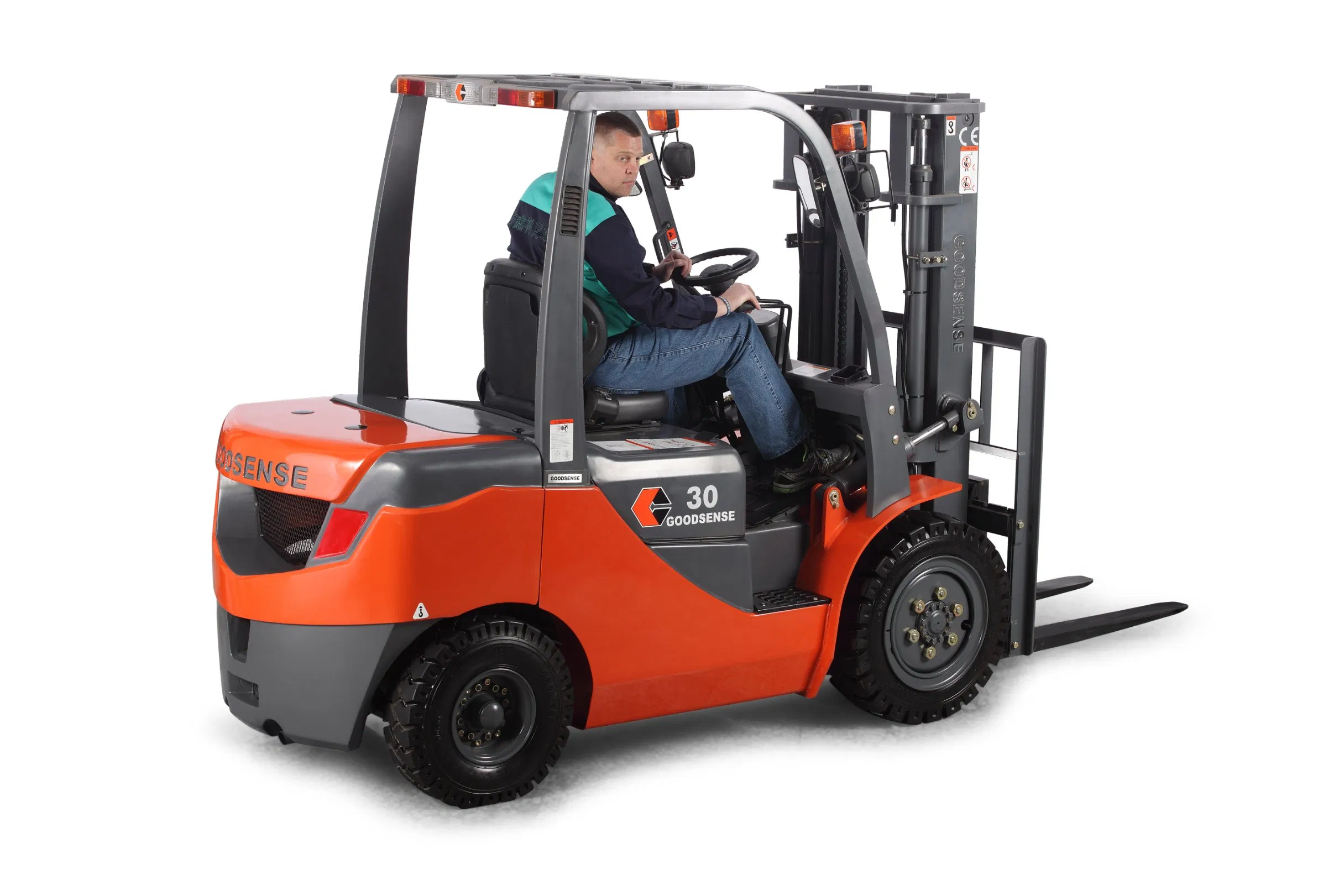

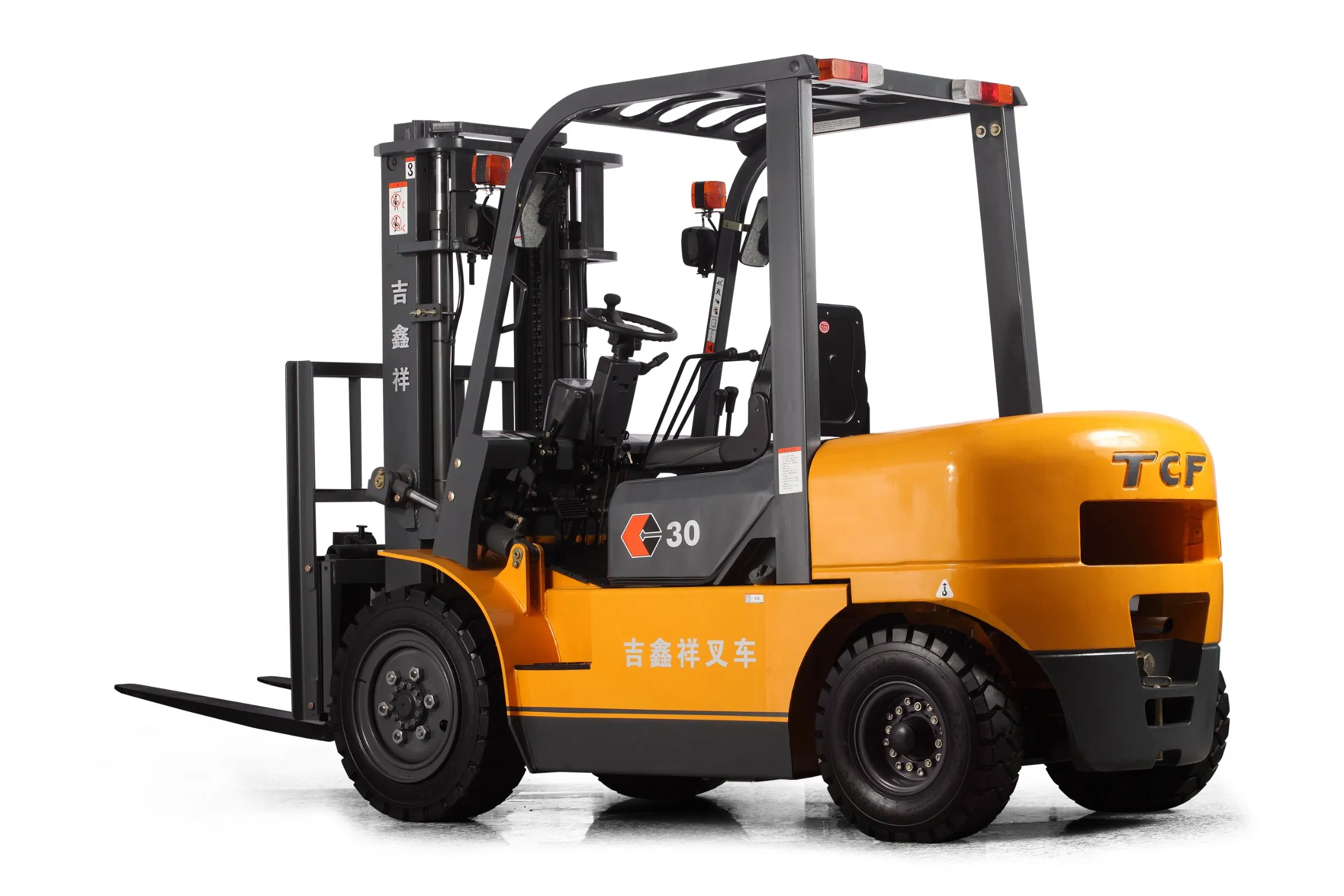

3.0t Diesel Forklift with Isuzu C240 Engine

Product Description

Capacity: 3000KG
Engine: ISUZU C240 diesel engine
Transmission: Automatic
Tyre: Pneumatic
Wide-view mast, solid overhead guard,
Ergonomic adjustable steering wheel and seat.

General	1	Model				FD30
	2	Power Type				Diesel
	3	Rated Capacity			kg	3000
	4	Load Centre			mm	500
Characteristic& Dimension	5	Lift Height			mm	3000
	6	Free lift height			mm	125
	7	Fork Size		L× W× T	mm	1070× 125× 45
	8	Mast Tilt Angle		F/R	Deg	6° /12°
	9	Front Overhang (Wheel center to fork face)			mm	487
	10	Rear overhang			mm	448
	11	Ground Clearance Bottom of mast			mm	140
	12	Overall Dimension		Length to face of fork(Without fork)	mm	2730
	13			Overall Width	mm	1225
	14			Mast Lowered Height	mm	2115
	15			Mast Extended Height(With backrest)	mm	4160
	16			Overhead Guard Height	mm	2090
	17	Turning Radius (outside)			mm	2440
	18	Min. right angle asisle width			mm	2490
Performance	19	Speed		Travel (No load)	km/h	19
	20			Lifting (Full load)	mm/s	550
	21			Lowering(Full load)	mm/s	400
	22	Max. Drawbar Pull(Full load)			kn	13
	23	Max. Gradeability (No load/Full load)			%	20
Chassis	24	Tire		Front	mm	28× 9-15-12PR
	25			Rear	mm	6.50-10-10PR
	26	Tread		Front	mm	1000
	27			Rear	mm	980
	28	Wheelbase			mm	1700
	29	Service weight			kg	4300
Power& Transmission	30	Battery	Voltage/Capacity		V/Ah	12/80
	31	Engine	Model			C240 PKJ
	32		Manufacture			ISUZU
	33		Rated output/r. p. m.		kw	35.4/2500
	34		Rated torque/r. p. m.		N· m	139/1800
	35		No. of Cylinder			4
	36		Bore× Stroke		mm	86× 102
	37		Displacement		cc	2369
	38		Fuel Tank Capacity		L	60
	39	Transmission	Type			Hydraulic
	40		Stage	FWD/RVS		1/1
