Product Description

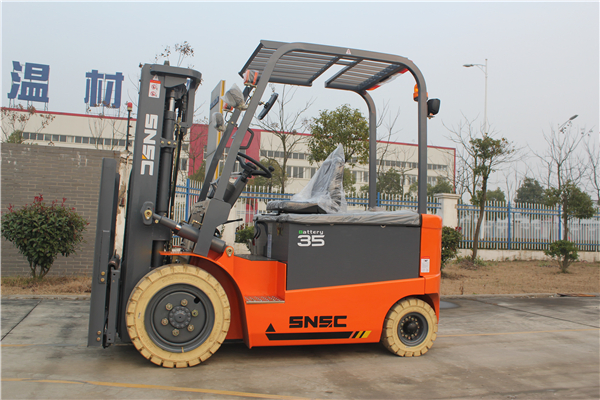

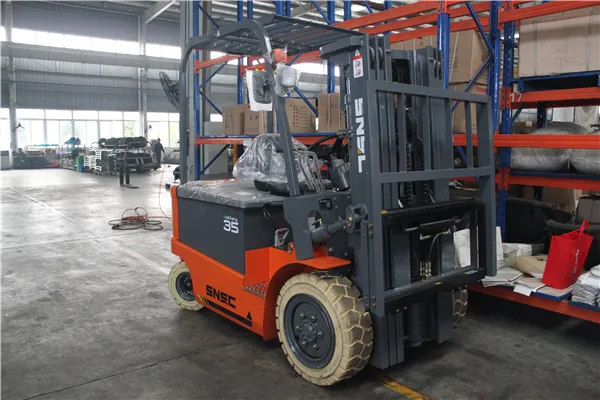

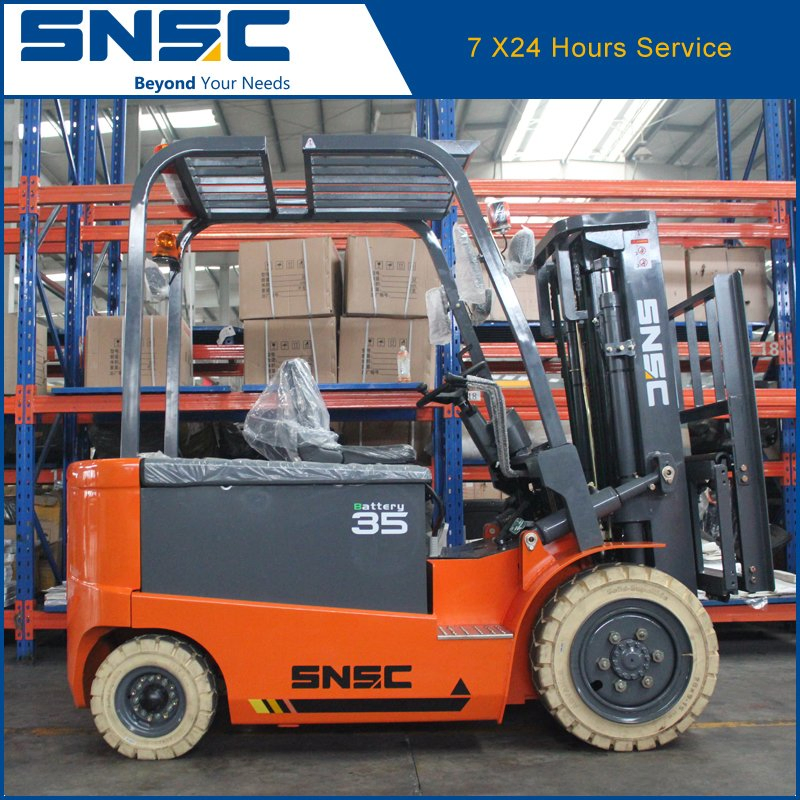

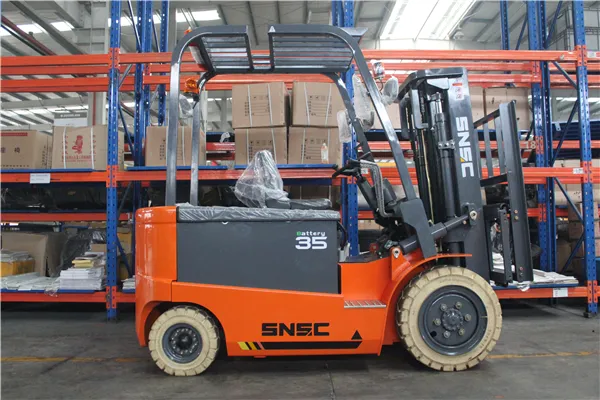

3 ton electr battery forklift SNSC

Quality Charger

Description:

(1)AC motor makes forklift have longer working life and easy to maintenance;

(2)Auto electric hydraulic transmission by TCM technology,just use your finger can achieve the forklift's forward and backward;
(3)Japan hydraulic system, by using Shimadzu brand Valve and Pump;
(4)USA Eaton steering gear;
(5)The controller is USA CURTIS imported controller, more reliable and enjoy global after-sale service.
(6)Intelligent charger is included;
(7)Red/yellow/green colors for your reference.

Common Optionals:
German HOPPECKE battery,Side shifter,Solid tire,fork extension,Fork positioner.

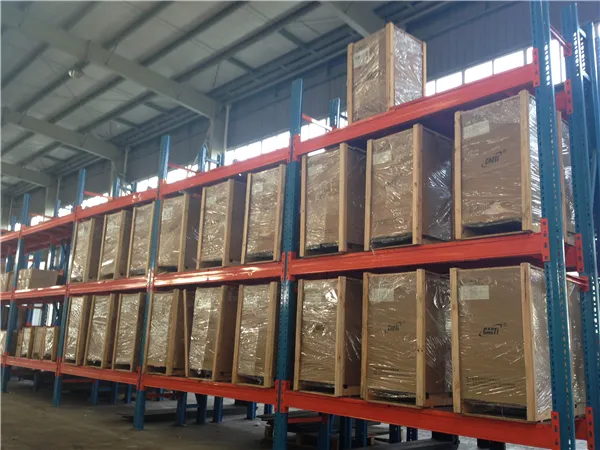

Container Package Method:
3-3.5 ton electric forklift package:20GP container can hold 2 units,40GP container can hold 5 units.

Specifications				Unit	FB30
1	Characteristics	Power		-	battery
2		Capacity		kg	3000
3		Center of load		mm	500
4		Lifting height		mm	3000
5		Free lifting height		mm	145
6		Forks L×W×H		mm	1070×125×45
7		Mast tilt angle Forward/Backward		.	6/12
8		Min.turning radius		mm	2245
9		Min. right angle stacking width		mm	3930
10		Min. right angle Aisle width		mm	2120
11		Min.ground clearance		mm	120
12		Overhead guard height		mm	2170
13		Height from seat to overhead guard		mm	1005
14		Front overhang		mm	475
15	Performance	Max.traveling speed(loaded)		km/h	13.5
16		Max.lifting speed(loaded/unload)		mm/s	280	320
17		Gradeability		%	15
18	Dimensions	Overall length (without fork)		mm	2511
19		Overall width		mm	1225
20		Mast extended height(with bracket)		mm	4264
21		Mast lowered height		mm	2055
22	Chassis	Tire	Front	-	28×9-15-12PR
23			Rear	-	18×7-8-14PR
24		Wheelbase		mm	1600
25		Tread width	Front/Rear	mm	1000/980
26		Curb weight	None-load	kg	4810
27	Powertrain	Battery	Voltage/Capacity	V/Ah	80/500
28		Motor	Traveling	KW	12
29			Lifting	KW	14
30		Controller			CURTIS
31		Control type			100%AC
32		Working pressure		Mpa	17.5

We are china Top forklift manufacture and logistic solution supplier, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.

We have established a complete sales system which is focused on producing, developing and marketing sales and after-sale service.

Quality leading the future. Our forklift quality has won highly praised from oversea clients, you will be satisfied with them when you receive, if you have any demands, welcome to inquire us freely.

If you have any demands, warmly welcome to inquire Nicole more detials.
