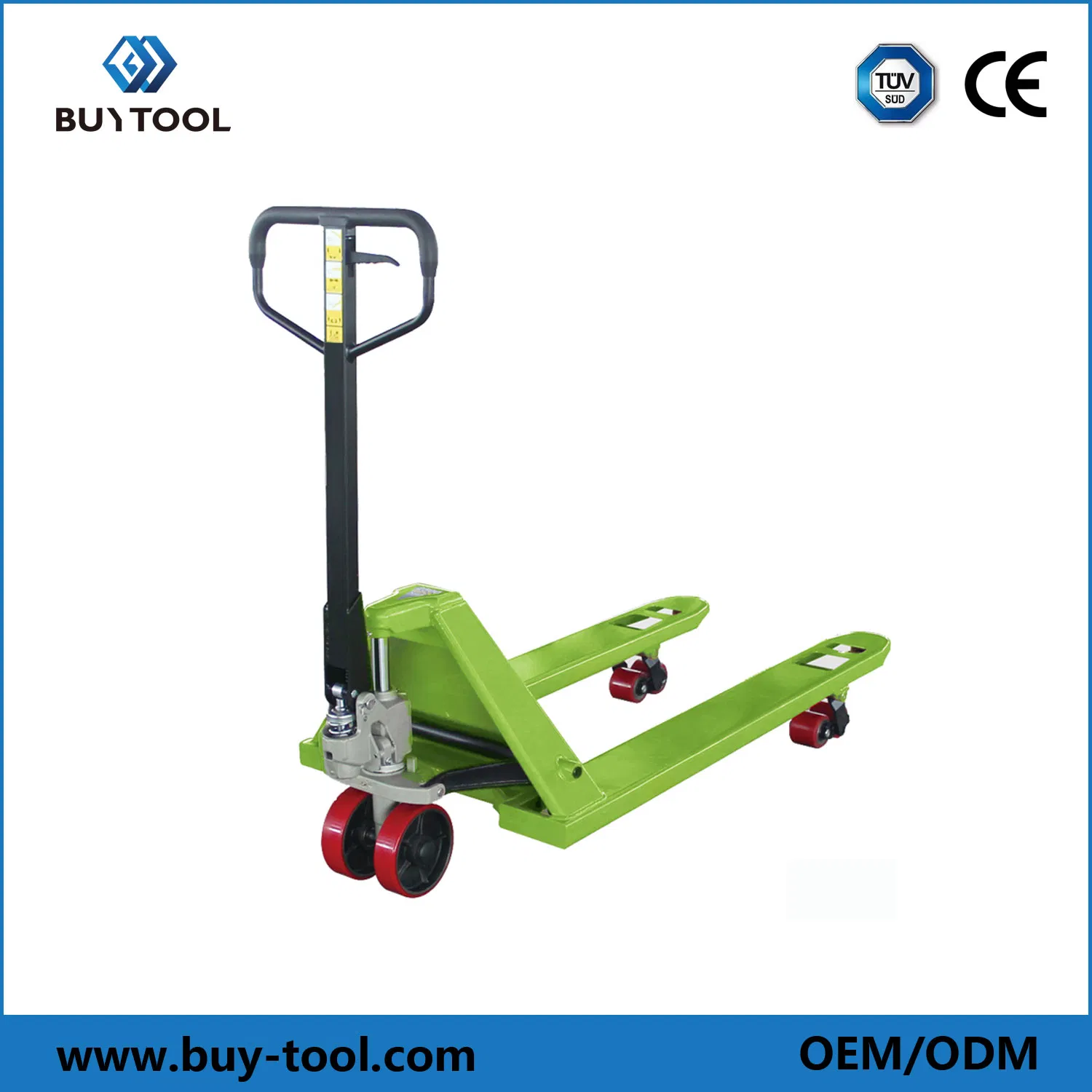

3 Tons Heavy Hydraulic Trolley Pump Hand Pallet Truck Jack

Product Description

This hydraulic hand pallet truck adopt imported high quality steel,

the vehicle design is light,the operation is simple and convenient,

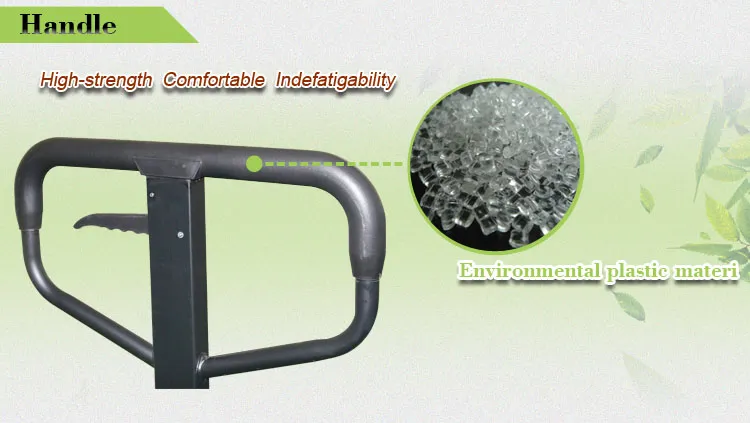

three section of plastic handle.

Optional:

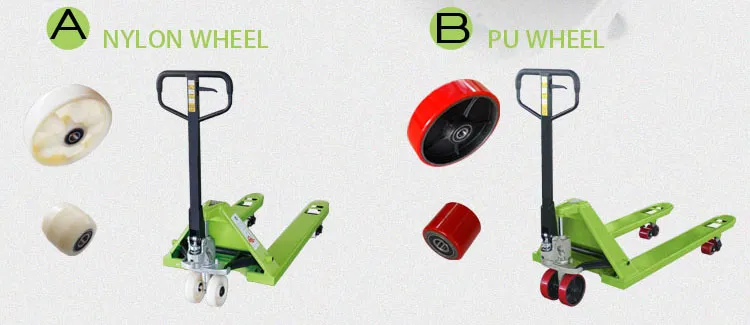

Nylon,PU,Rubber,single loading wheel,tandem loading wheel.

Fork length:500-3000mm.

Suggestion:

Nylon casters with high hardness, go up the sound, but need some smaller thrust;

Polyurethane with low hardness, go up small noise, pushing heavy items of labor.

3 Tons Heavy Hydraulic Trolley Pump Hand Pallet Truck Jack

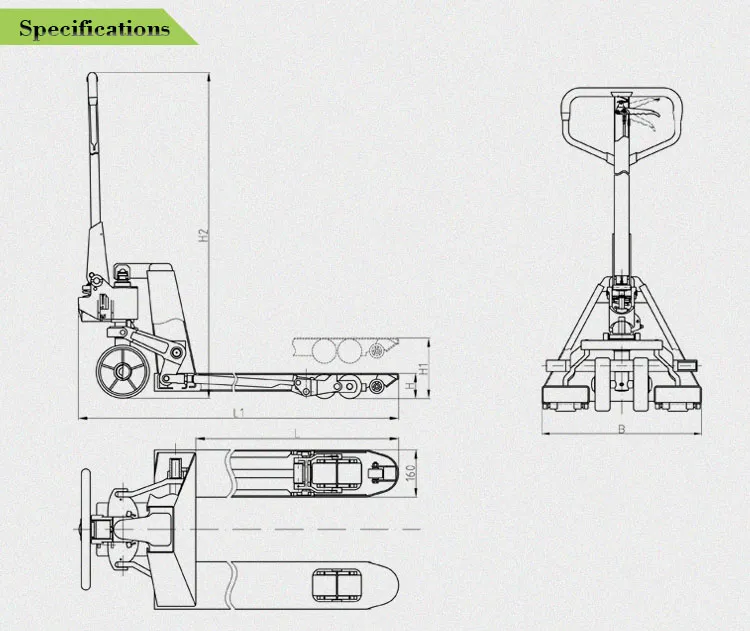

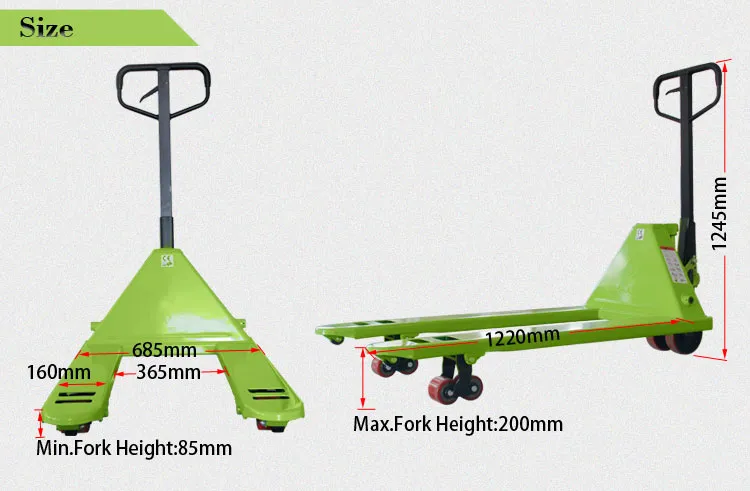

Capacity	Kg	2000	2000	2500	3000
Min. fork height	mm	52/65	75/85	75/85	75/85
Max. fork height	mm	140/160	190/200	190/200	190/200
Max. lifting height	mm	88/95	≥110	≥110	≥110
Fork outside width	mm	520/540/685	520/540/685
Fork inside width	mm	200/220/365	200/220/365
Fork length	mm	915/1100/1150/1220	915/1100/1150/1220
Single fork width	mm	160	160
Fork height	mm	37	50
Ovrerall length	mm	1315-1620	1315-1620
Overall width	mm	520/540/685	520/540/685
Overall height	mm	1225	1245

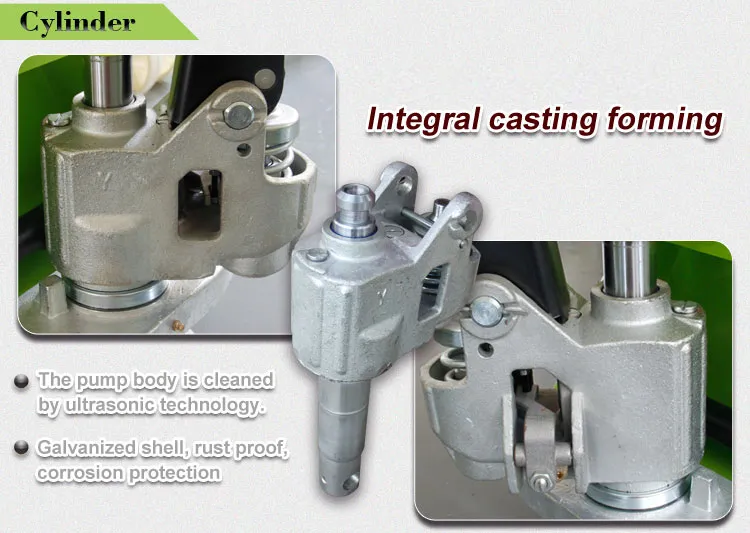

Cylinder lift rod diameter	mm	Φ35	Φ35
Single loading wheel size	mm	Φ50×93/Φ60×93	Φ74×93/Φ80×93
Tandem loading wheel size	mm	Φ50×70/Φ64×70	Φ74×70/Φ80×70
Steering wheel size	mm	Φ160×50/Φ180×50	Φ180×50
Min. turning radius	mm	1120/1300/1350/1450	1120/1300/1350/1450
Meterail of wheel		PU/Nylon/Rubber
Net weight	Kg	62-74	63-75	68-81	72-85

3 Tons Heavy Hydraulic Trolley Pump Hand Pallet Truck Jack

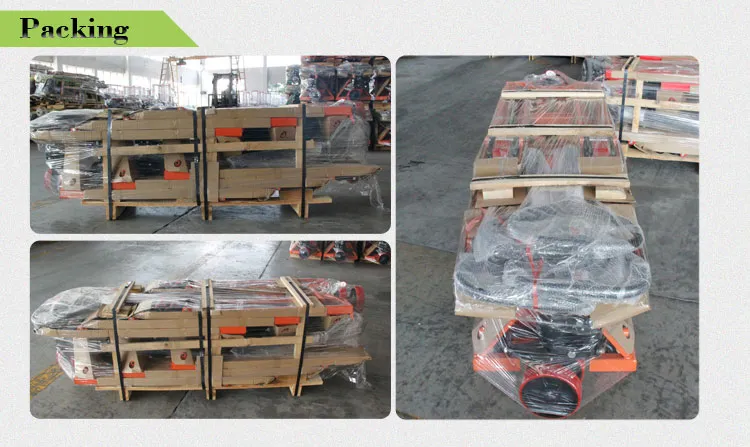

Specifications(1 Wooden pallet)	Weight(Kg)	Volume(m³)	40HQ(piece)	20GP(piece)
2.5T 540*1150 NL	426	0.88	360	180
2.5T 540*1150 PU	456	0.88	342	180
3T 540*1150 NL	432	0.88	360	180
3T 540*1150 PU	480	0.88	342	180
2.5T 685*1220 NL	456	1.02	306	144
2.5T 685*1220 PU	486	1.02	306	144
3T 685*1220 NL	486	1.02	306	144
3T 685*1220 PU	516	1.02	288	144

FAQ:

Q: What about the quality of the products?
A: Our products are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.

Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.

Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
