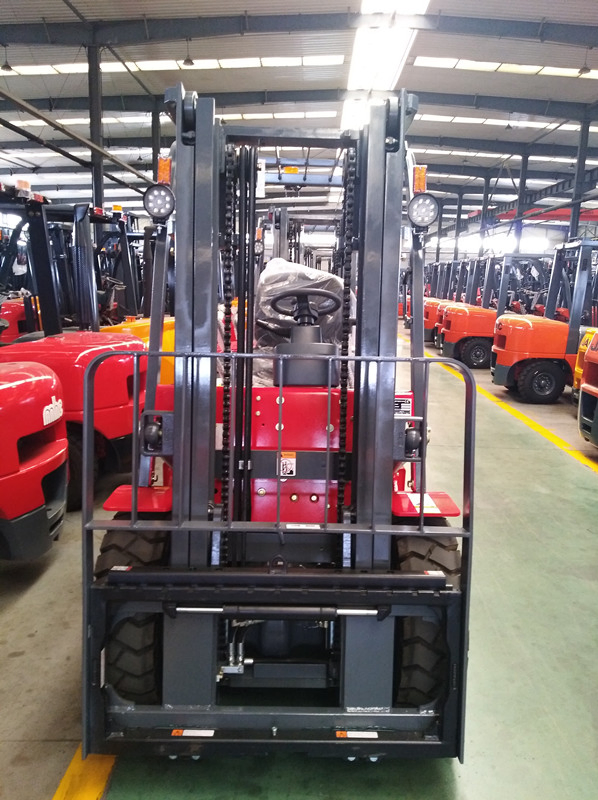

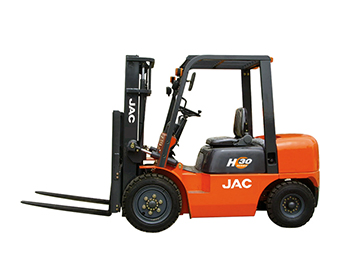

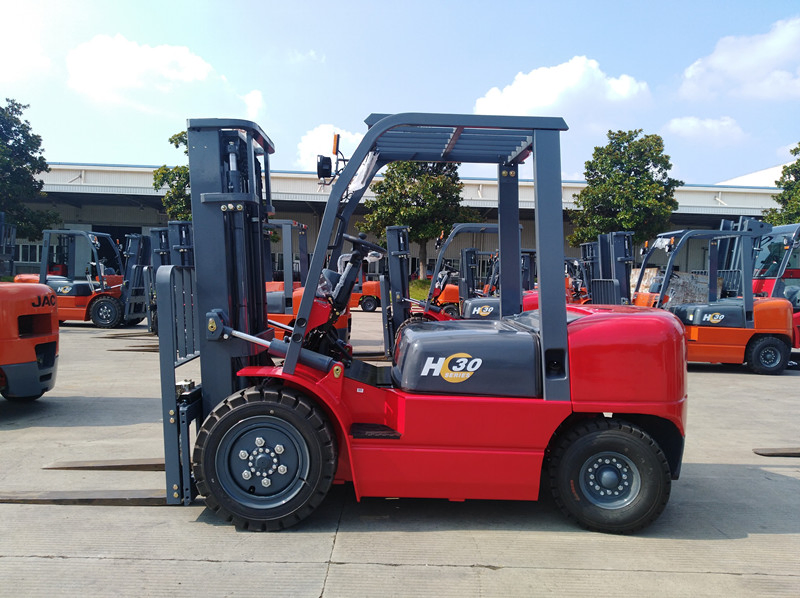

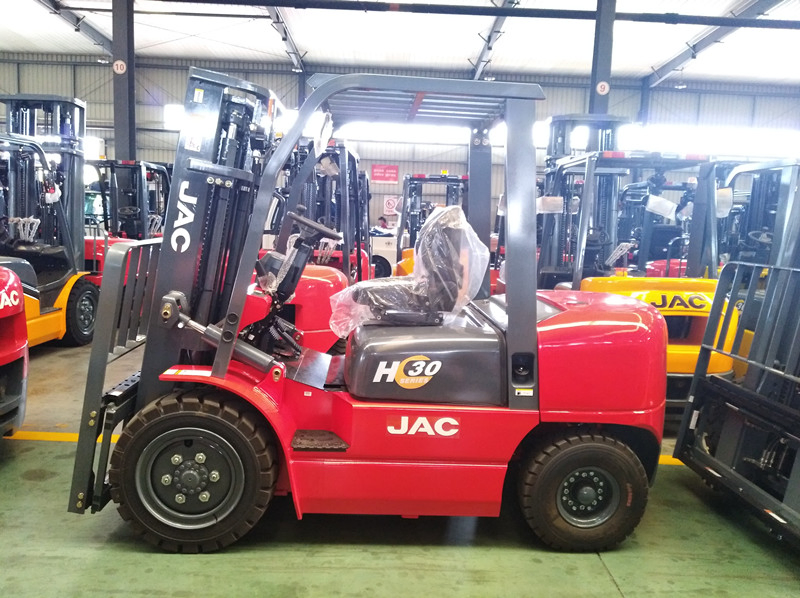

3tons Diesel Forklift with C490 Diesel Engine
Diesel Forklift: 1-10T,Tansmission: Mechanic/Auto with TCM designEngine Brand: JAC, ISUZU, MITSUBISHI, KOBOTA, VM, YANMARLPG/Gasoline Forklift: 1-3.5T,Tansmission: Mechanic/AutoEngine: Brand: Nissan, BAOFA, GMElectric Forklift: 1-3.5T, AC Curtis ControllerWarehousing Series: Stacker, Hand Pallet Tru......
Send Inquiry
Product Description
Diesel Forklift: 1-10T,
Tansmission: Mechanic/Auto with TCM design
Engine Brand: JAC, ISUZU, MITSUBISHI, KOBOTA, VM, YANMAR
LPG/Gasoline Forklift: 1-3.5T,
Tansmission: Mechanic/Auto
Engine: Brand: Nissan, BAOFA, GM
Electric Forklift: 1-3.5T, AC Curtis Controller
Warehousing Series: Stacker, Hand Pallet Truck...
JAC J FORKLIFT FEATURES:
1. Stepped-up brand-new structural design
2. Compact forklift body
3. Smaller radius of turn
4. Equiped with high performance engine
5. Advanced machine engineering design
6. Better operation field of vision
7. More convenient maintenance design
8. High performance and low cost
9. With regenerative braking function
| CHARACTERISTICS | 1.1 | Manufacturer | JAC | JAC | JAC | |||
| 1.2 | Model designation | CPCD30H | CPCD33AH | CPCD35H | ||||
| 1.3 | Power: battery, diesel, LPG, electric mains | Diesel | ||||||
| 1.4 | Operation: manual, pedestrian, stand, seat, order picker | Seat | ||||||
| 1.5 | Load capacity Q (kg) | 3000 | 3300 | 3500 | ||||
| 1.6 | Load centre c(mm) | 500 | ||||||
| 1.7 | Load distance, centre of drive axle to forks x(mm) | 474 | ||||||
| 1.8 | Wheelbase y(mm) | 1740 | ||||||
| WEIGHT | 2.1 | Service weight kg | 4200 | 4400 | 4550 | |||
| WHEELS & TYRES | 3.1 | Tyres: P= Pneumatic, V= Cushion , SE= Pneumatic Shaped Solid | P | |||||
| 3.4 | No of wheels front/rear (x = driven) | 2/2 | ||||||
| 4.2 | Height of mast, lowered h 1 (mm) | 2075 | ||||||
| 4.4 | Lift height h 3 (mm) | 3000 | ||||||
| 4.5 | Height of mast, extended h 4 (mm) | 4260 | ||||||
| 4.6 | Height of overhead guard (cabin) h 6 (mm) | 2090 | ||||||
| 4.7 | Seat height h 7 (mm) | 1055 | ||||||
| 4.8 | Towing coupling height h 10 (mm) | 220 | ||||||
| 4.9 | Overall length with standard fork l 1 (mm) | 3814 | 3824 | 3879 | ||||
| 4.1 | Length to face of forks l 2 (mm) | 2744 | 2754 | 2779 | ||||
| 4.11 | Overall width (standard/double front tyre) b 1 /b 2 (mm) | 1220/1700 | 1220/1700 | |||||
| 4.12 | Fork dimensions s/e/l (mm) | 45/125/1070 | 50/125/1070 | |||||
| MOTOR | 6.1 | Engine manufacturer / type | XC C490BPG | XC A495 | ||||
| 6.2 | Engine power according to ISO 1585kW | 40 | 42 | |||||
| 6.3 | Rated speed rpm | 2650 | 2650 | |||||
| 6.4 | Number of cylinders/displacement cm 3 | 4/2670 | 4/2670 | 4/2980 | ||||
