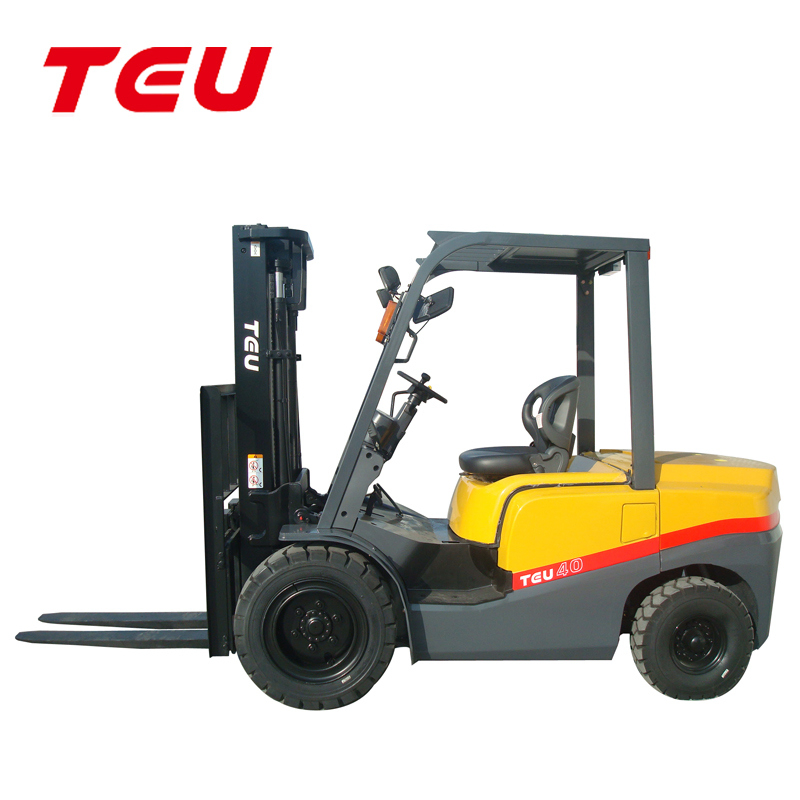

4t 4000kg Gas/LPG Forklift

Product Description

4t gasoline forklift FG40T

Standard configuration:
4t gas forklift
NISSAN K25 engine
3000m duplex mast
1070mm fork
Indicators front and back
Reverse beeper
Confortable seat with belt
Color optional

Mainly parameters:

	FG40T Technical Specifications
Features	1	Model			FG40T
	2	Load capacity		kg	4000
	3	Load center		mm	500
	4	Max. lifting height(VM300 mast)		mm	3000
	5	Free lift (VM mast)		mm	150
	6	Speed	Max Travelling full/no load	km/h	15.5/17
			Lifting full/no load	mm/s	320/450
			Lowering full/no load	mm/s	450/420
	7	Turning raduis (outsite)		mm	2560
	8	Right angle stacking aisle width(200mm clearance)		mm	3040
Dimension	9	Total length (without fork)		mm	3890
	10	Total width		mm	1345
	11	Mast height(fork lowered)		mm	2150
	12	Overall height fork raised(with backrest)		mm	4250
	13	Height to head guard		mm	2140
	14	Fork size	LWT	mm	107015050
	15	Tilt range	Mast forward/backward	deg	6/12
	16	Grounde clearence	At lowest point(mast)	mm	120
	16	Grounde clearence	Frame	mm	135
	17	Wheelbase		mm	1800
	18	Tread	front	mm	1120
	18	Tread	rear	mm	970
	19	Front face of fork to front axle		mm	485
	20	Truck weight		kg	5050
Weight	21	Full Load	Front axle	kg	7860
	21	Full Load	Rear axle	kg	1190
	22	No Load	Front axle	kg	1870
	22	No Load	Rear axle	kg	3180
Tires	23	Front axle			250-15-16PR
Tires	24	Rear axle			6.50-10-10PR
Engine	25	Model			NISSAN K25
	26	Rated power		kw-r/min	37.4/2300
	27	Rated torque		Nm- r/min	18/1600
	28	Number of cylinder			4
	29	Displacement		L	2.488

Warranty time:
All forklifts we offer one year or 2000 working hours (subject to the first) warranty time.
TEU offer professional QC to control the forklift quality before dispatch, and give fastest problem solution for after-sales service.
