China 5 Ton Mini Telehandler Socma Hnt50h Telescopic Forklift on Sale

Product Description

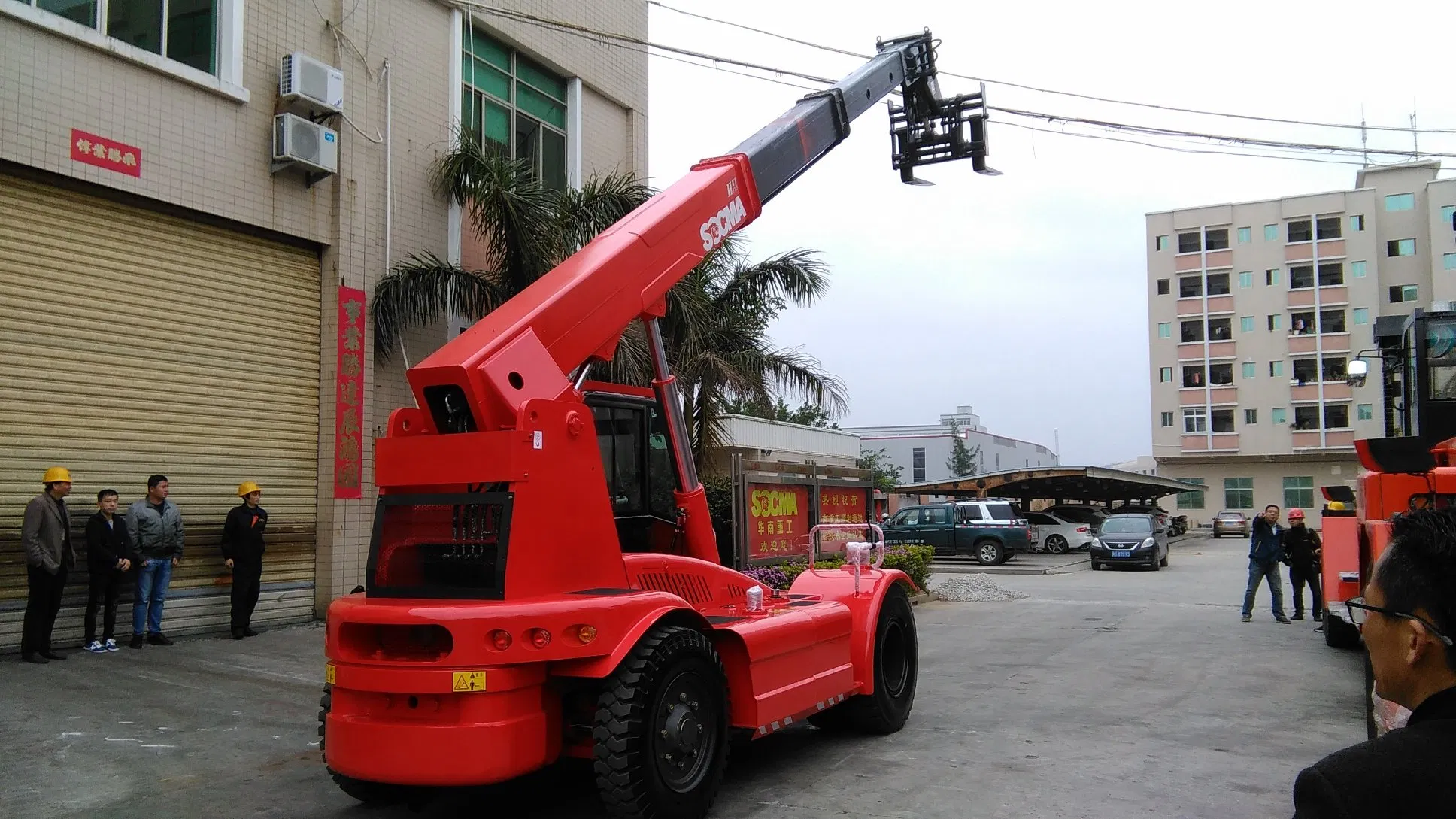

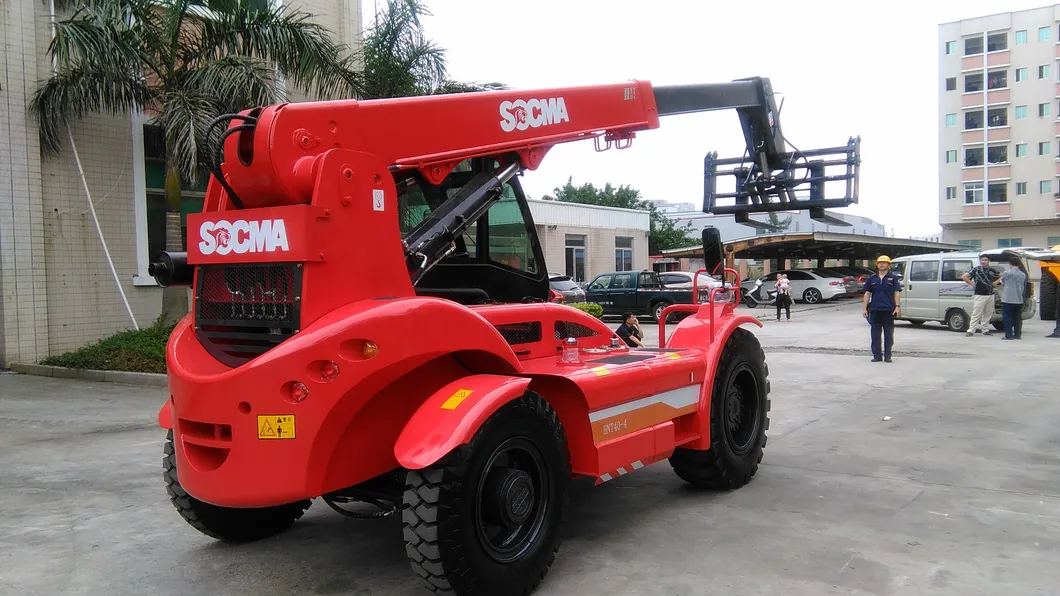

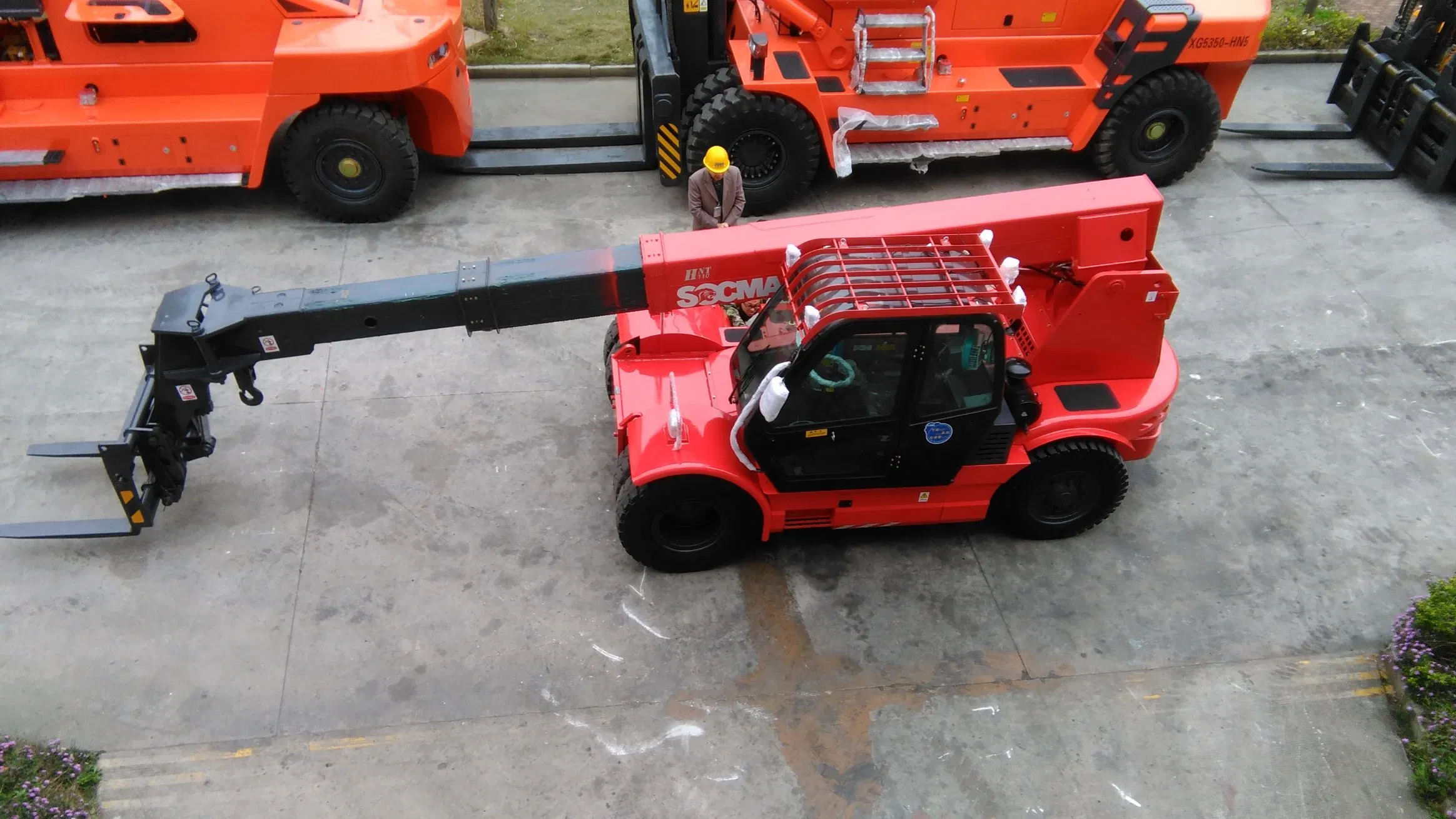

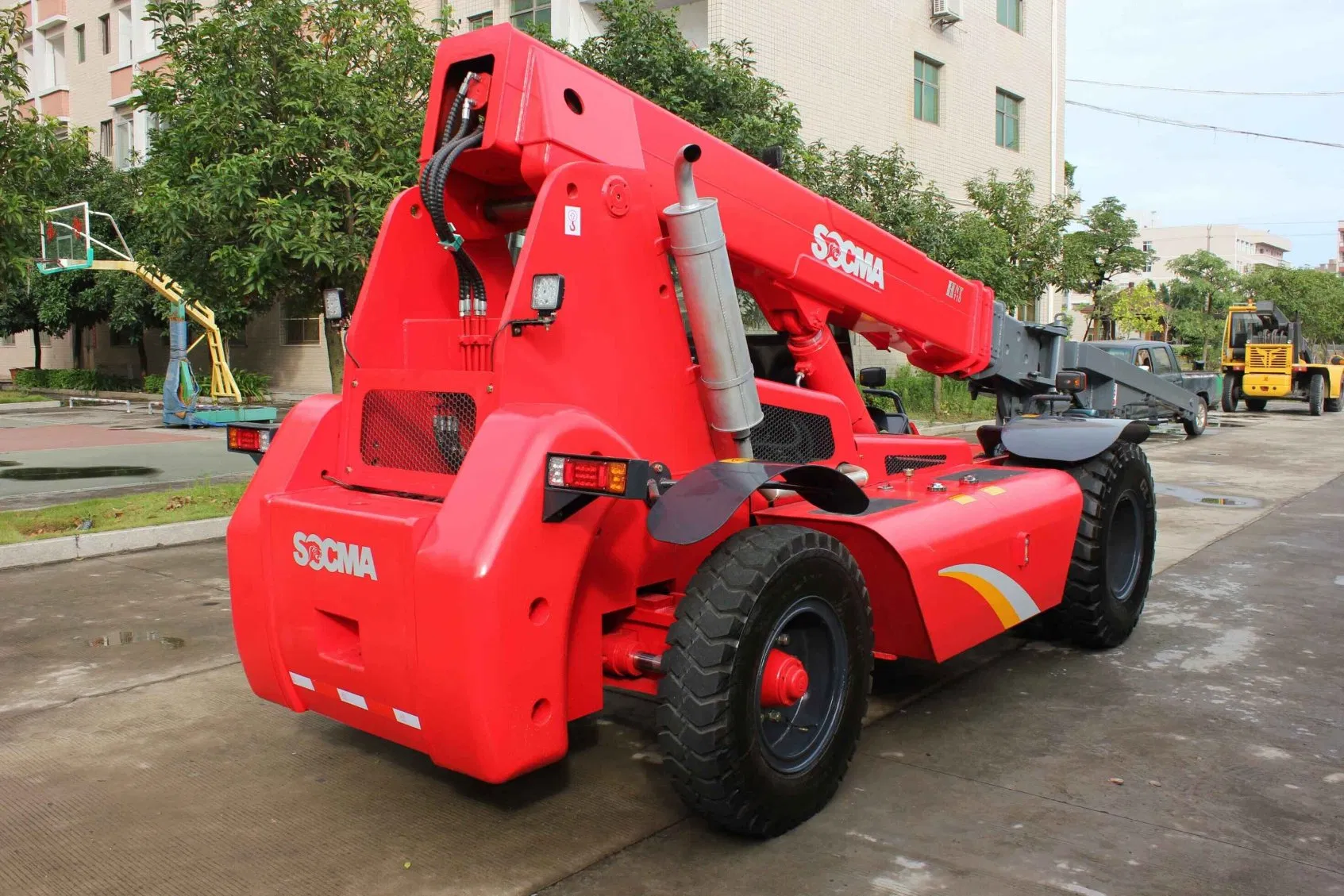

5 ton mini telehandler SOCMA HNT50H telescopic forklift on sale

Detail specifications

1, comes with four-wheeldrive and rigid suspension

2, hydraulic mechnical drive, hydraulic power steeringand hydraulic brake, rear-wheel steering

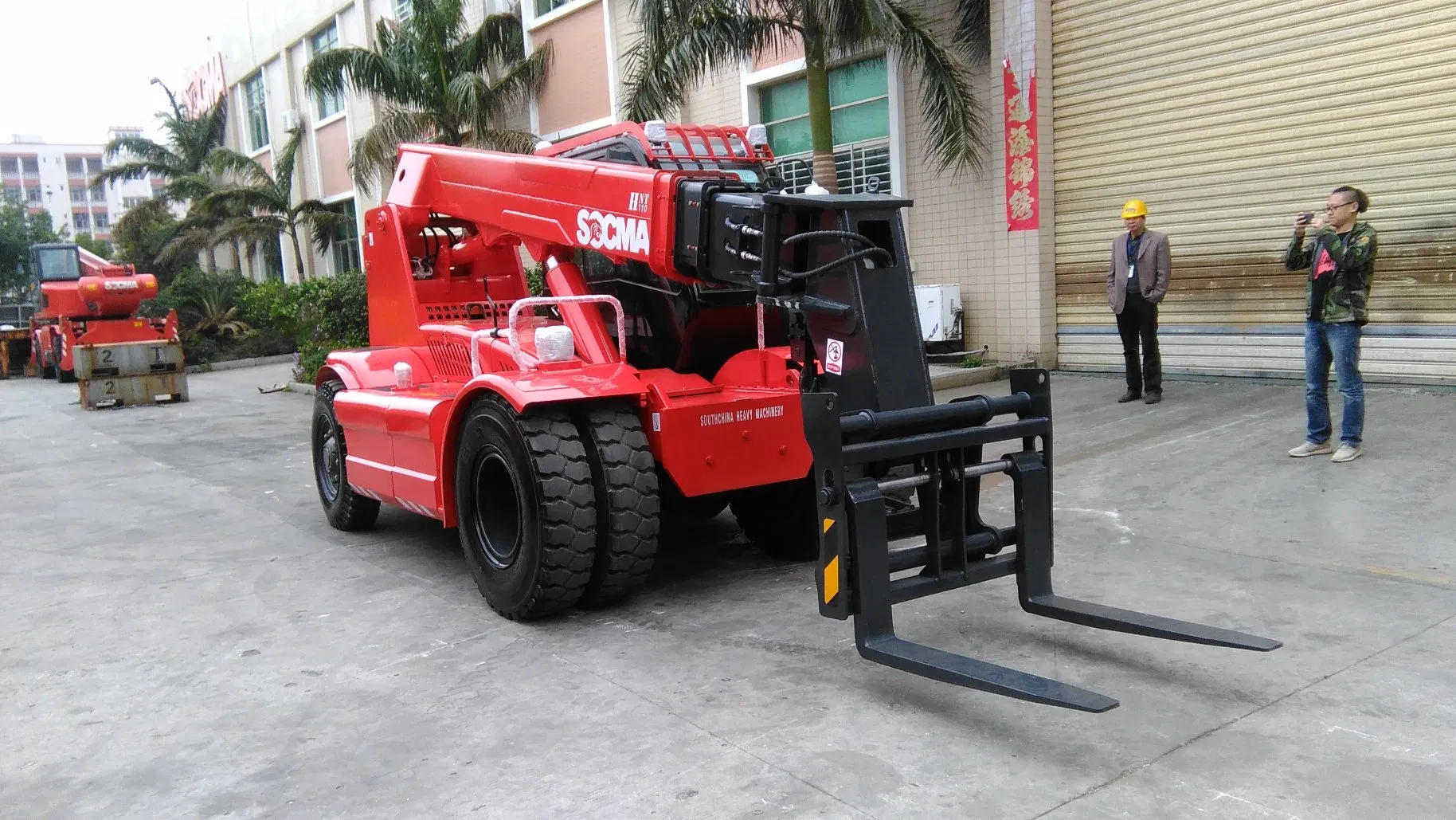

3, the two-stagequadrilateral telescopic boom serves as the working unit. A regular lift truckis equipped with a fork or a boom

4, the lift truckis applicable to the unstuffing and casing of pellatized goods in containers,as well as handling, stacking and short-distance transportation of a variety ofpackaged goods

5, suitable formany different working environments, is ideal equipment for loading andunloading, lifting, and transportation in mining, factory, architecture,building material, dock, municipal engineering industries, and more

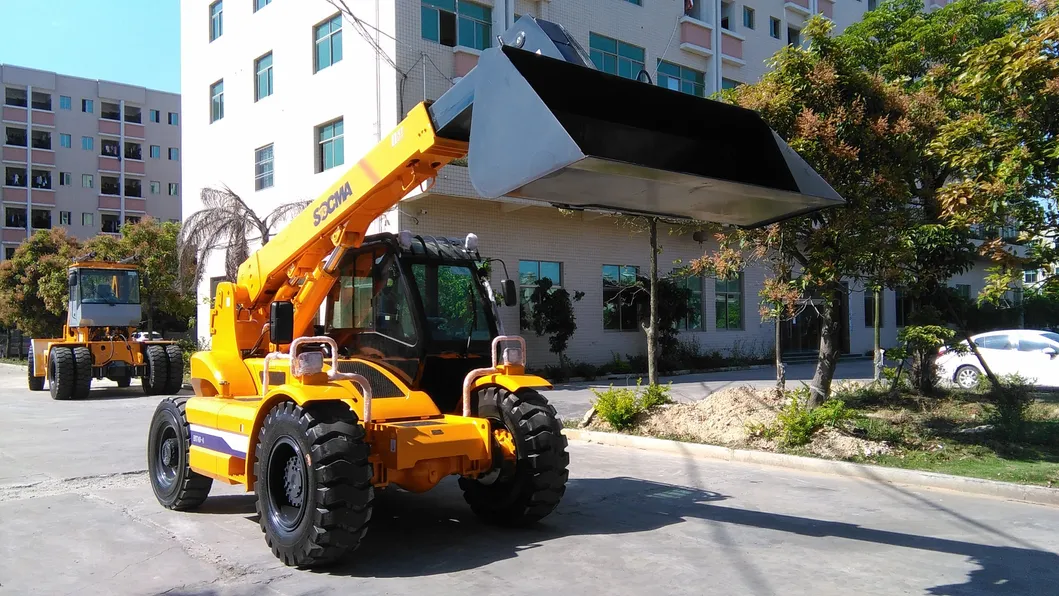

6, a range ofoptions including such accessories as the bucket, lifting hook, and boom, etc.are available to customers

7, offers betterperformance than a general fork truck in terms of the handling height andcross-country ability

Items			Unit	Deviation allowed	HNT35-4	HNT40-4	HNT50H	HNT50-2
Basic parameter	Rated load		kg	-	3500	4000	5000	5000
	Load center		mm	-	500	500	500	500
	Load capacity @ max. Forward reach		kg	-	1550	1800	2000	1500
	Basic boom max. Lifting height		mm	±1.5%	4850	4850	5300	4500
	Max. Lifting height		mm	±1.5%	7000	7000	8800	7300
	Max. Horizontal reach		mm	±1.5%	3350	3350	5470	5700
	Min. Horizontal reach		mm	±1.5%	930	930	1270	1500
	Min. Ground clearance		mm	±1.5%	400	400	310	310
	Min. Turning radius (outer tyre center)		mm	≤105%	6200	6200	6800	6800
	Angle	Boom frame upward angle	°	±1.0	60	60	60	43
	Angle	Boom frame downward angle	°	±1.0	-11	-11	-12	-14
	Operating weight		kg	±5%	9000	9440	13000	13000
Overall dimension	Length (with fork)		mm	±2%	5730	5730	5900	6288
	Width		mm	±2%	2390	2390	2350	2300
	Height		mm	±2%	2485	2485	2655	2715
	Wheel tread		mm	±1%	1870	1870	1638 /1845	1638 /1845
	Wheel base		mm	±1%	2700	2700	2988	2988
Rated power / Rated turning speed			kW/rpm	-	60/2000	60/2000	74/2200	74/2200
Driving system	Max. Travelling speed (unloaded)		km/h	±10%	30	30	25	25
Driving system	Gradeability		%	-	≥30%	≥30%	≥20%	≥20%
Tyre	Front (2 pc)		-	-	16/70-24	16/70-24	11.00-20	11.00-20
Tyre	Rear (2 pc)		-	-	10.00-20-16	10.00 -20-16	9.00-20	9.00-20
Engine	Dongfeng Cummins		-	National 2	4BTA3.9-C80II	4BTA3.9-C80II	4BTA3.9-C100II	4BTA3.9-C100II
Engine	Dongfeng Cummins		-	National 3	QSB3.9-C80	QSB3.9-C80	QSB3.9-C100	QSB3.9-C100
