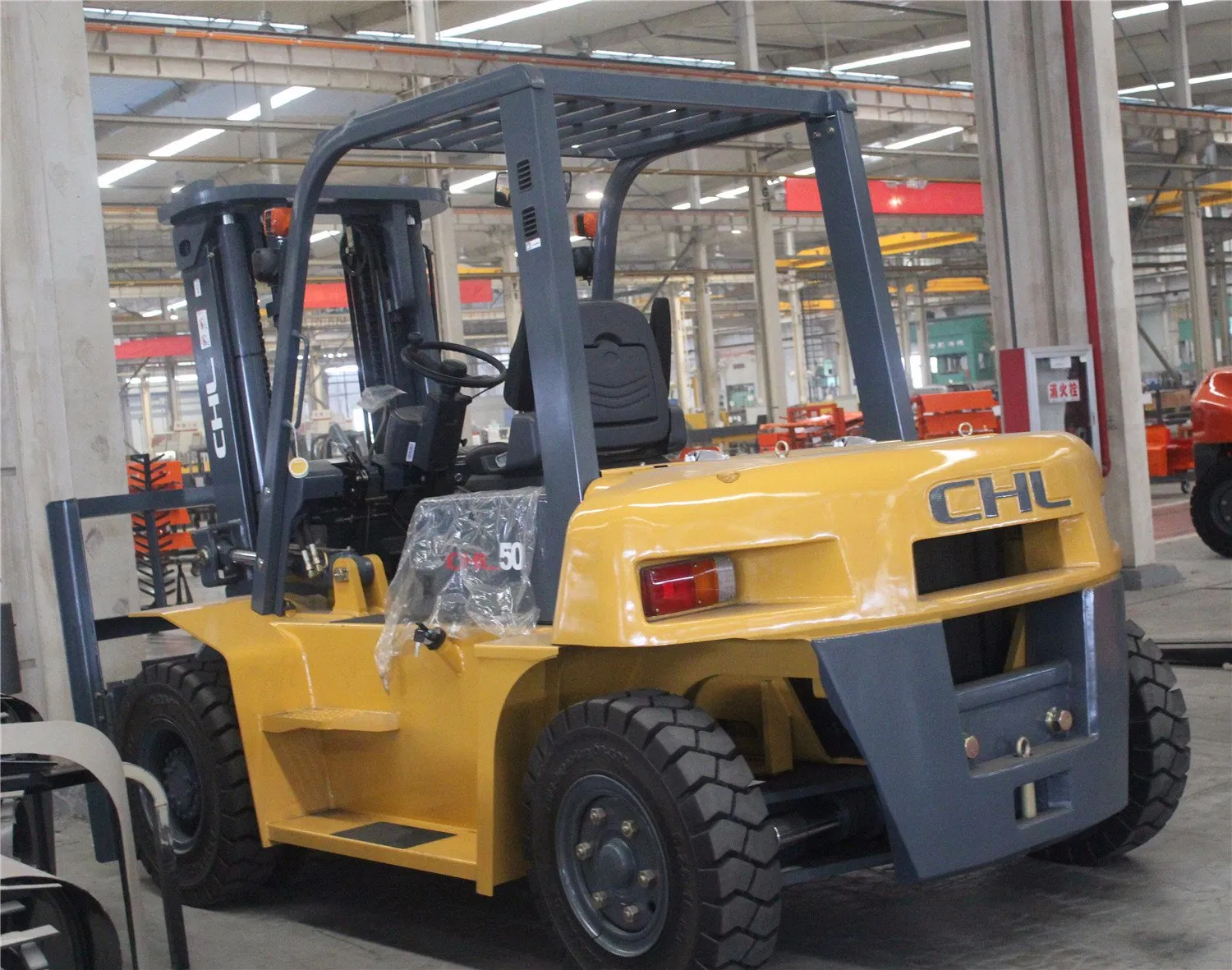

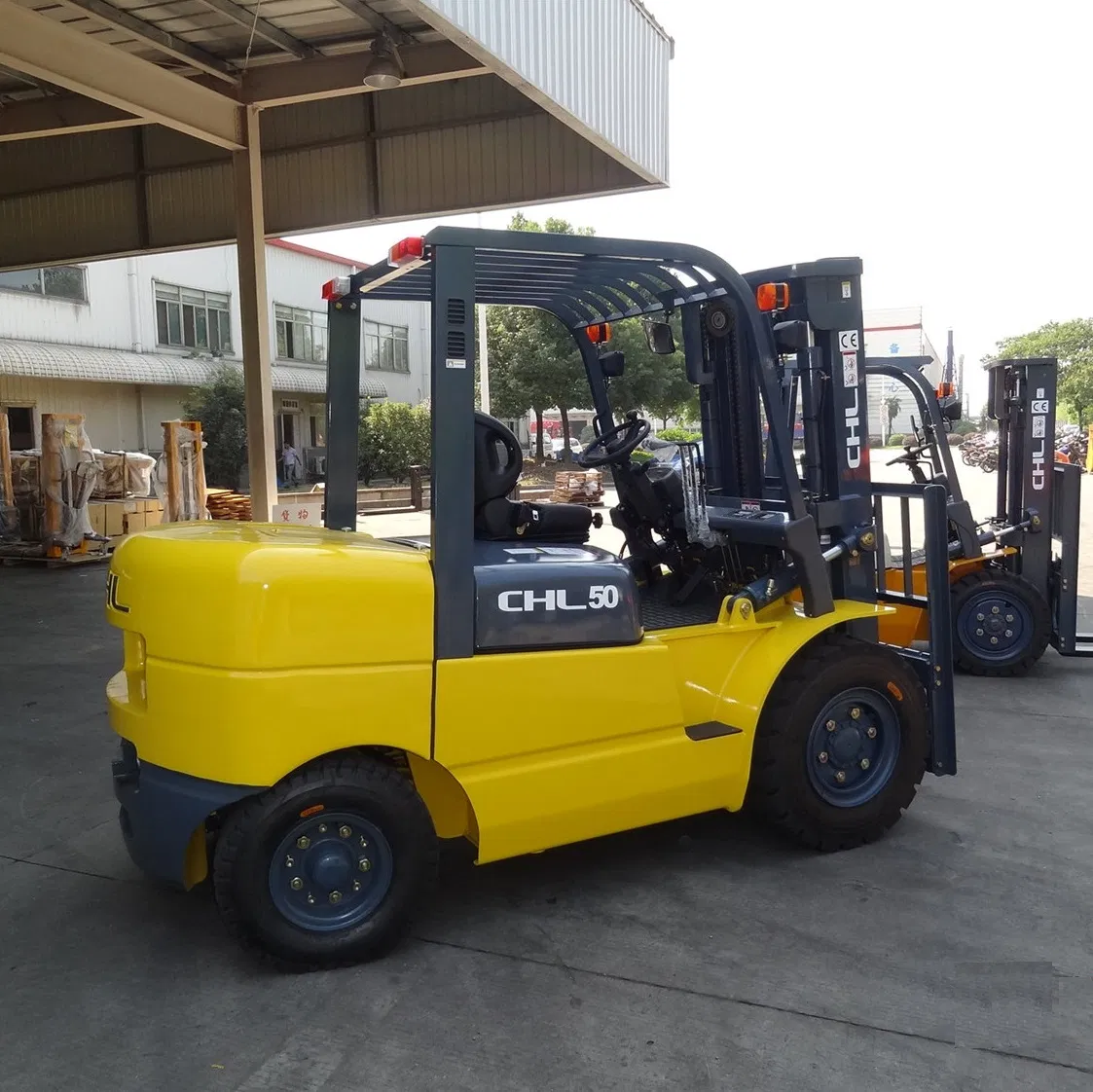

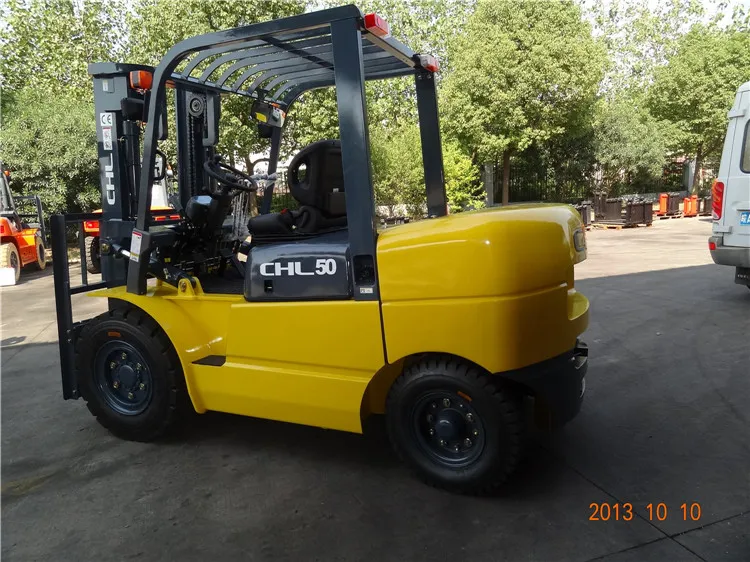

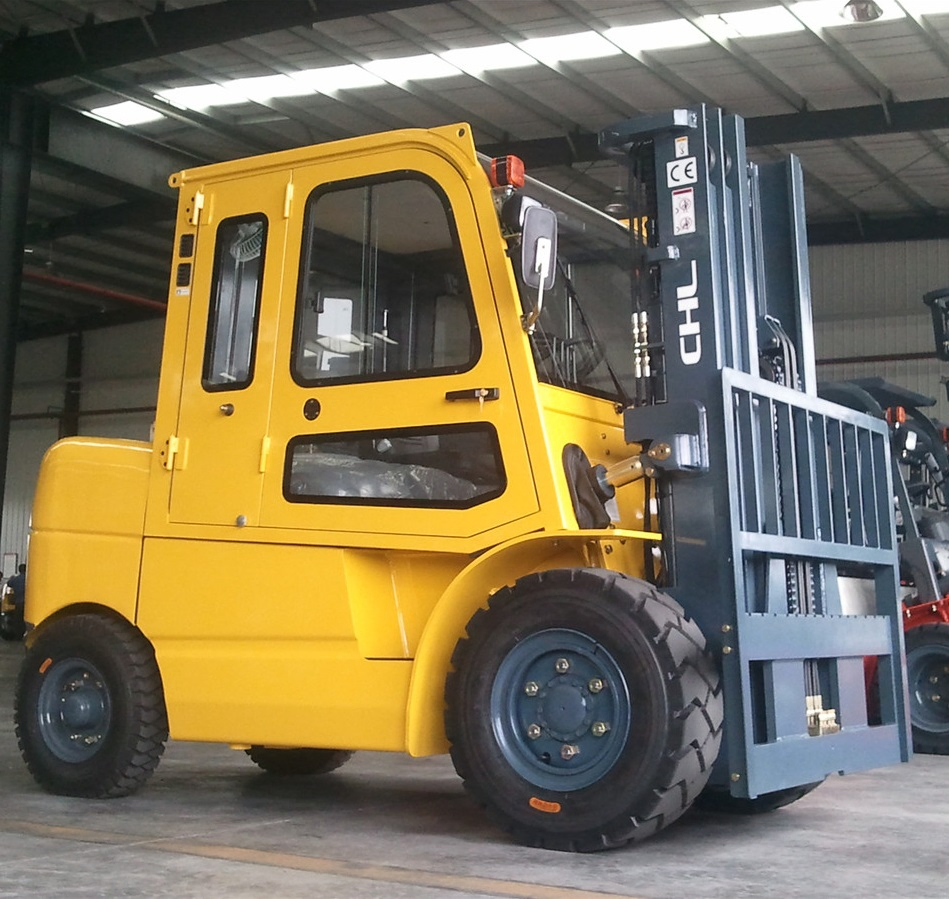

5000kg 5 Tonne 5t 5 Ton Diesel Forklift with Mitsubishi Engine
We HELI Group (Anhui HELI Co., Ltd) was founded in 1958, for the last 57 years, we only specialize in manufacturing and selling forklifts. From 1991, we has been No.1 in China for 26 years; from 2013, we rank No.8 in the world. We have 8000+ employees and 800 technician engineers, we make and sell f......
Send Inquiry
Product Description
We HELI Group (Anhui HELI Co., Ltd) was founded in 1958, for the last 57 years, we only specialize in manufacturing and selling forklifts. From 1991, we has been No.1 in China for 26 years; from 2013, we rank No.8 in the world. We have 8000+ employees and 800 technician engineers, we make and sell forklifts 86000 units each year. We have established mature dealership in more than 150 countries and regions.
We supply forklift with:
High-level Quality (largest forklift manufacturer)
Competitive Price, LOW Price (largest forklift exporter)
Best After-sale Service (sell to 150 countries and regions)
Standard Configuration of our 5 Ton Diesel Forklift
1. Japan Genuine Engine or China Engine
2. Advanced HELI Hydraulic Automatic Transmission
3. Electric-hydraulic Directional Control Valve
4. Duplex Mast Lifting Height 3000mm
5. Pneumatic Tyres
6. Fork Length 1070mm
7. Comfortable Seat with Armrest and Safe-belt, etc.
Optional Equipments
1.China Xinchai Engine
2.Lifting Height 3m-7m
3.Full-free Duplex or Triplex Mast
4.Side Shifter, Solid Tyres, Suspension Seat
5.Driver's Cabin, Customized Color, etc.
Quality Advantage
For our 5000kg 5 tonne 5t 5 ton diesel forklift with mitsubishi engine:
1. Original Japan Engine (ISUZU, Mitsubishi, Nissan), or China Engine
Many different engine for your option.
2. We use Japan Germany Transmission
All key parts are imported from Japan and Germany.
Others all use China made transmission. All gears are made in China.
3.We use Japan Hydraulic System (gear pump, cylinder, high-pressure oil pipe)
Others all use normal China made pump pipes.
4.We use New Larger Aluminium Radiator,
Better performance even in extreme temperature and environment.
Others still use traditional copper radiator, it always has leak problem.
5.We use Reliable & Flexible Casting Steering System
Now global top forklift brands all use casting steering system, while other China brands still use traditional welding axle. Casting type is stronger, and low maintenance cost than welding axle.
LOW PRICE, sell to 150 countries
High-level Quality (the largest forklift manufacturer in China)
We have toppest forklift engineers team in China, with the biggest forklift R&D base.
All spare parts our forklift use must standard at least two technical tests, to make sure reliability.
LOW Price (mass production)
Every year we make and sell more than 86000 units forklift to China and world.
We are the largest forklift manufacturer, mass production largely lower our pruduction cost.
So our price of forklift is lower, but high level quality.
The largest forklift exporter, Selling to more than 150 countries and regions
As the largest forklift exporter, we have sold our forklifts to more than150 countries and regions, every year we export 16000+ unit to the world market.
Reliable After-sale Service
We HELI Group only choose long cooperation suppliers, this largely avoid the risk of breakdown in parts supply chain.
With years' development, we have established mature dealership and service shop in more than 150 countries and regions. It's very easy to buy our spare parts and get maintenance cost in your local. While other brand can't do this.
The price of our forklifts are low, we also will save more maintenance cost for you in the future.
Company Introduction
We HELI Group (Anhui HELI Co., Ltd) was founded in 1958, for the last 57 years, we only specialize in manufacturing and selling forklifts.
From 1991, we has been No.1 in China for 26 years; from 2013 to now, we rank No.8 in the world.
We have 8000+ employees and 800 technician engineers, we make and sell 86000 units forklift each year.
In China, we have the largest forklift R&D base, and the largest forklift testing center.
We have high cooperation with global famous R&D team and office in Italy, Japan, Germany, American, etc.
We have established mature dealership in more than 150 countries and regions.
We supply high level quality forklift with low price.
We supply full range Forklift Trucks
Diesel Forklift: 1.5 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton, 7.5 ton, 8 ton, 10 ton
Gasoline/Lpg Forklift: 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton
Electric Forklift: 1 ton, 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton
Heavy Duty Forklift: 12ton, 13ton, 14ton, 15ton, 16ton, 18ton, 20ton, 25ton, 32ton, 46ton
Electric Stacker, Electric Pallet Truck
Full-electric Stacker: Loading Capacity 1000kg, 1200kg, 1400kg, 1600kg, 2000kg
Electric Pallet Truck: Loading Capacity 1500kg, 2000kg, 2800kg, 3000kg, 3500kg.
Which one do you need? Send inquiry now!
For more information about our 5000kg 5 tonne 5t 5 ton diesel forklift with mitsubishi engine, Contact Us Now!
We supply forklift with:
High-level Quality (largest forklift manufacturer)
Competitive Price, LOW Price (largest forklift exporter)
Best After-sale Service (sell to 150 countries and regions)
Standard Configuration of our 5 Ton Diesel Forklift
1. Japan Genuine Engine or China Engine
2. Advanced HELI Hydraulic Automatic Transmission
3. Electric-hydraulic Directional Control Valve
4. Duplex Mast Lifting Height 3000mm
5. Pneumatic Tyres
6. Fork Length 1070mm
7. Comfortable Seat with Armrest and Safe-belt, etc.
Optional Equipments
1.China Xinchai Engine
2.Lifting Height 3m-7m
3.Full-free Duplex or Triplex Mast
4.Side Shifter, Solid Tyres, Suspension Seat
5.Driver's Cabin, Customized Color, etc.
| General | Manufacturer | 5000Kg 5 Tonne 5T 5 Ton Diesel Forklift With Mitsubishi Engine | |||
| Model | CPCD40-M2C | CPCD45-M2C | CPCD50-M2C | ||
| Power unit | Diesel | ||||
| Rated Capacity | kg | 4000 | 4500 | 5000 | |
| Load Center | mm | 500 | 500 | 500 | |
| Size | Overall max.lifting height(with backrest) | mm | 4250 | 4250 | 4250 |
| Standard Lifting height | 3000 | 3000 | 3000 | ||
| Height mast retracted(upright) | mm | 2275 | 2275 | 2275 | |
| Overall height(overhead guard) | mm | 2270 | 2270 | 2270 | |
| Overall length(with forks/without forks) | mm | 4145/3075 | 4165/3095 | 4209/3139 | |
| Overall width | mm | 1480 | 1480 | 1480 | |
| Outside turning radius | mm | 2720 | 2740 | 2780 | |
| Inside turning radius | mm | 220 | 220 | 220 | |
| Min.intersecting aisle | mm | 2480 | 2500 | 2550 | |
| Tilting angles(forward/backward) | 6°/12° | 6°/12° | 6°/12° | ||
| Fork dimensions(axbxc) | mm | 1070*150*50 | 1070*150*50 | 1070*150*50 | |
| Service Mass | kg | 6400 | 6700 | 7000 | |
| Performance | Max.Traveling speeds(with/without load) | km/h | 25/26 | 25/26 | 25/26 |
| Lifting Speeds(with/without load) | mm/s | 460/520 | 460/520 | 460/520 | |
| Lowering Speeds(with/without load) | mm/s | <600/>300 | <600/>300 | <600/>300 | |
| Max. Draw-bar pull(with/without load) | kN | 22/16 | 22/16 | 22/16 | |
| Max. Gradien(with/without load) | % | 18/20 | 17/20 | 16/20 | |
| Tyres | Wheels number front/rear(x=driven) | 2X/2 | 2X/2 | 2X/2 | |
| Tyre Type | Pneumatic | ||||
| Tyre size(front) | 8.25-15-14PR | 8.25-15-14PR | 300-15-22PR | ||
| Tyre size(rear) | 7.00-12-12PR | 7.00-12-12PR | 7.00-12-12PR | ||
| Engine | Engine Model | Mitsubishi S6S | Mitsubishi S6S | Mitsubishi S6S | |
| Engine Rated Output | kW/rpm | 52/2300 | 52/2300 | 52/2300 | |
| Engine Rated Torque | Nm/rpm | 248/1700 | 248/1700 | 248/1700 | |
| Fuel Tank Capacity | L | 90 | 90 | 90 | |
Quality Advantage
For our 5000kg 5 tonne 5t 5 ton diesel forklift with mitsubishi engine:
1. Original Japan Engine (ISUZU, Mitsubishi, Nissan), or China Engine
Many different engine for your option.
2. We use Japan Germany Transmission
All key parts are imported from Japan and Germany.
Others all use China made transmission. All gears are made in China.
3.We use Japan Hydraulic System (gear pump, cylinder, high-pressure oil pipe)
Others all use normal China made pump pipes.
4.We use New Larger Aluminium Radiator,
Better performance even in extreme temperature and environment.
Others still use traditional copper radiator, it always has leak problem.
5.We use Reliable & Flexible Casting Steering System
Now global top forklift brands all use casting steering system, while other China brands still use traditional welding axle. Casting type is stronger, and low maintenance cost than welding axle.
LOW PRICE, sell to 150 countries
High-level Quality (the largest forklift manufacturer in China)
We have toppest forklift engineers team in China, with the biggest forklift R&D base.
All spare parts our forklift use must standard at least two technical tests, to make sure reliability.
LOW Price (mass production)
Every year we make and sell more than 86000 units forklift to China and world.
We are the largest forklift manufacturer, mass production largely lower our pruduction cost.
So our price of forklift is lower, but high level quality.
The largest forklift exporter, Selling to more than 150 countries and regions
As the largest forklift exporter, we have sold our forklifts to more than150 countries and regions, every year we export 16000+ unit to the world market.
Reliable After-sale Service
We HELI Group only choose long cooperation suppliers, this largely avoid the risk of breakdown in parts supply chain.
With years' development, we have established mature dealership and service shop in more than 150 countries and regions. It's very easy to buy our spare parts and get maintenance cost in your local. While other brand can't do this.
The price of our forklifts are low, we also will save more maintenance cost for you in the future.
Company Introduction
We HELI Group (Anhui HELI Co., Ltd) was founded in 1958, for the last 57 years, we only specialize in manufacturing and selling forklifts.
From 1991, we has been No.1 in China for 26 years; from 2013 to now, we rank No.8 in the world.
We have 8000+ employees and 800 technician engineers, we make and sell 86000 units forklift each year.
In China, we have the largest forklift R&D base, and the largest forklift testing center.
We have high cooperation with global famous R&D team and office in Italy, Japan, Germany, American, etc.
We have established mature dealership in more than 150 countries and regions.
We supply high level quality forklift with low price.
We supply full range Forklift Trucks
Diesel Forklift: 1.5 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton, 7.5 ton, 8 ton, 10 ton
Gasoline/Lpg Forklift: 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton
Electric Forklift: 1 ton, 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton
Heavy Duty Forklift: 12ton, 13ton, 14ton, 15ton, 16ton, 18ton, 20ton, 25ton, 32ton, 46ton
Electric Stacker, Electric Pallet Truck
Full-electric Stacker: Loading Capacity 1000kg, 1200kg, 1400kg, 1600kg, 2000kg
Electric Pallet Truck: Loading Capacity 1500kg, 2000kg, 2800kg, 3000kg, 3500kg.
Which one do you need? Send inquiry now!
For more information about our 5000kg 5 tonne 5t 5 ton diesel forklift with mitsubishi engine, Contact Us Now!
