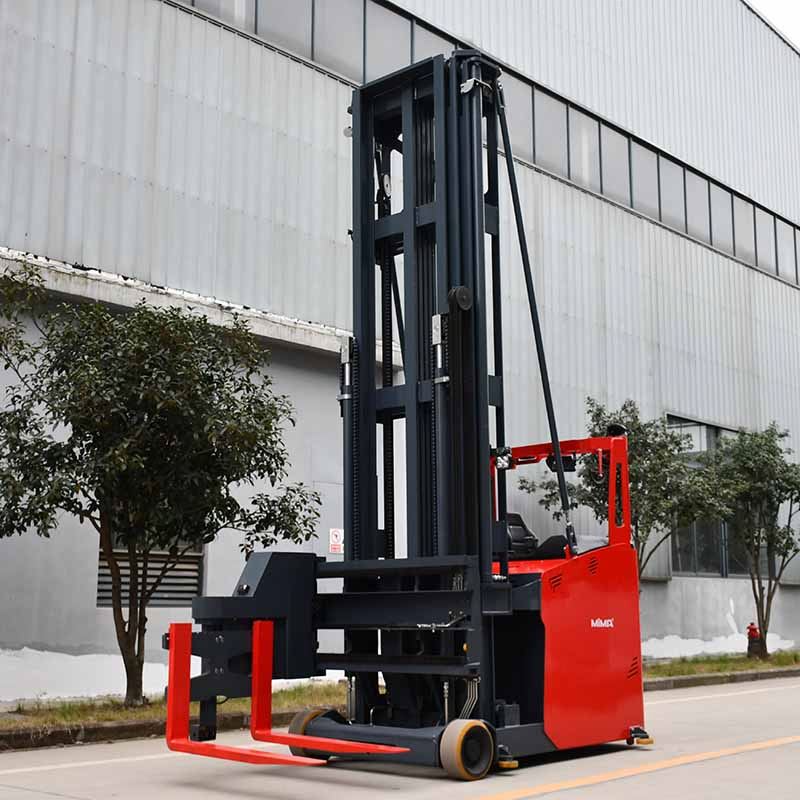

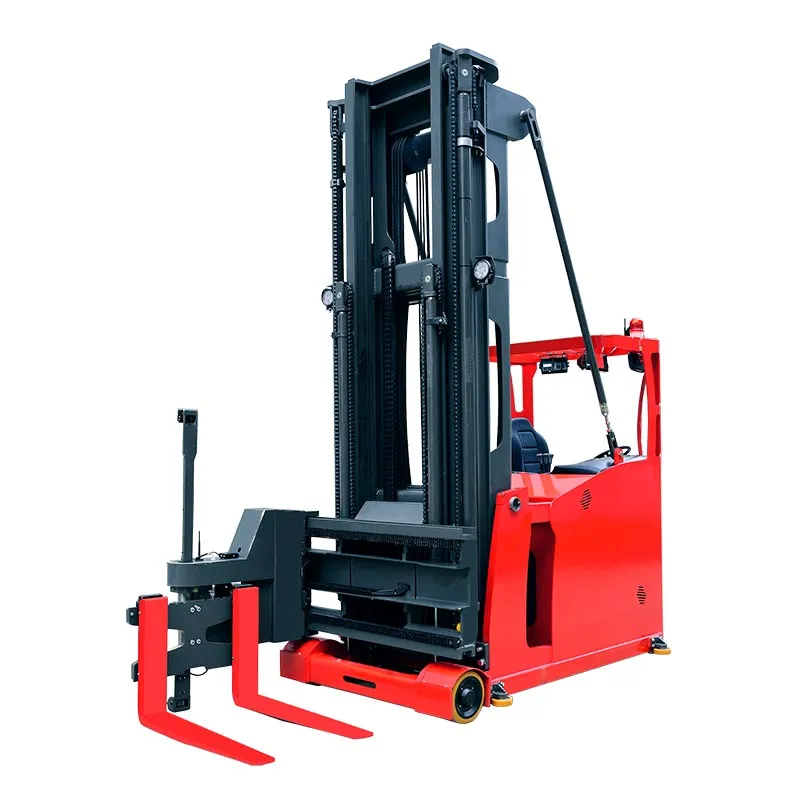

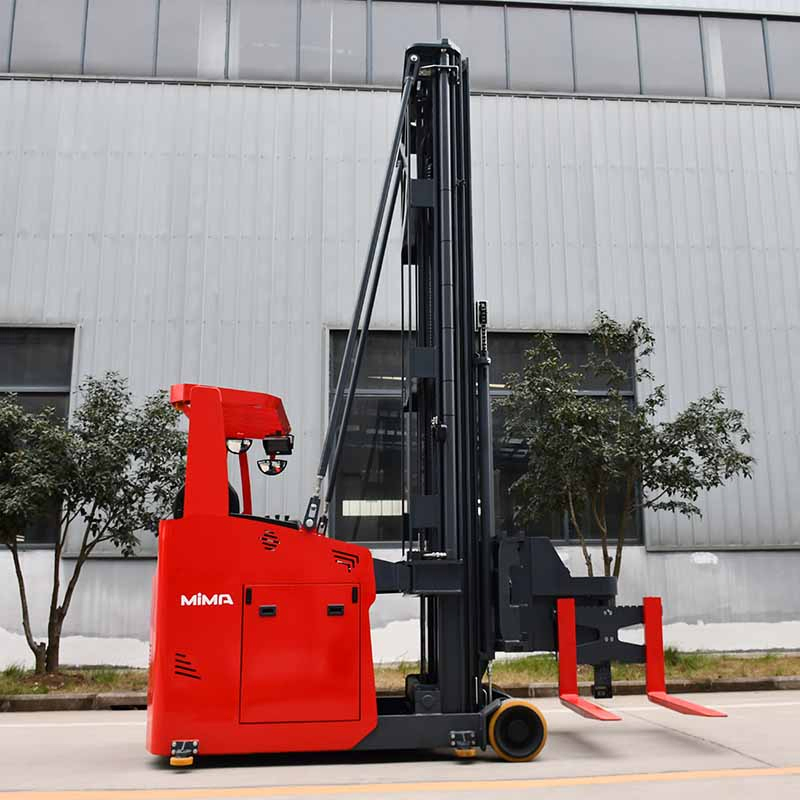

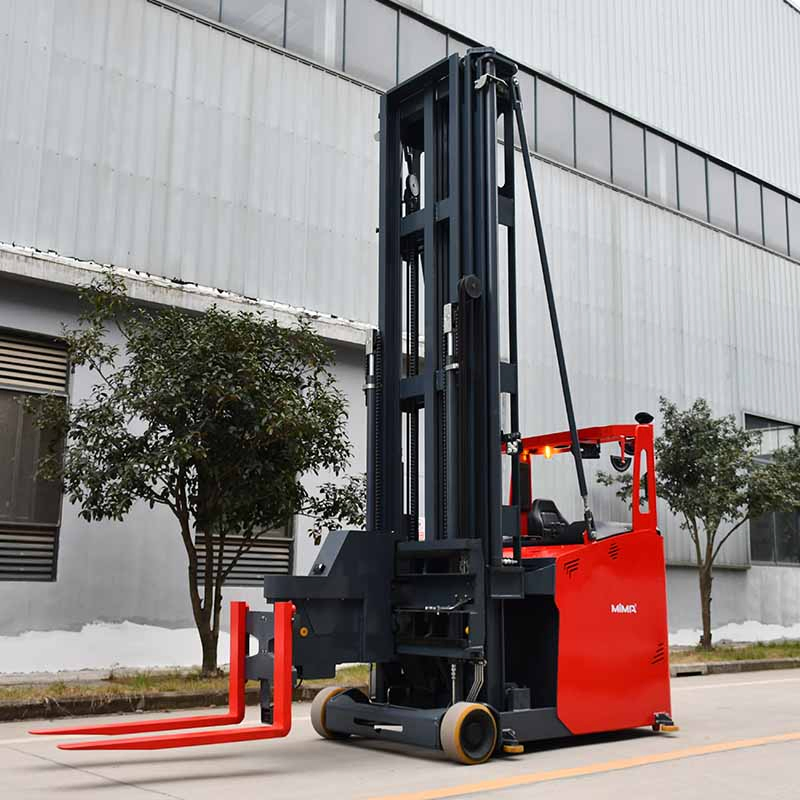

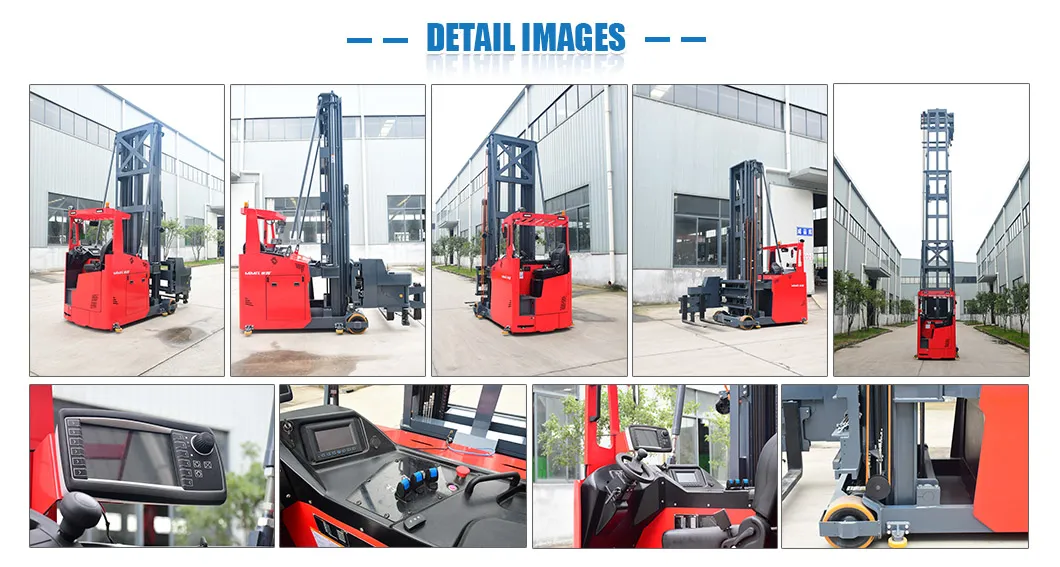

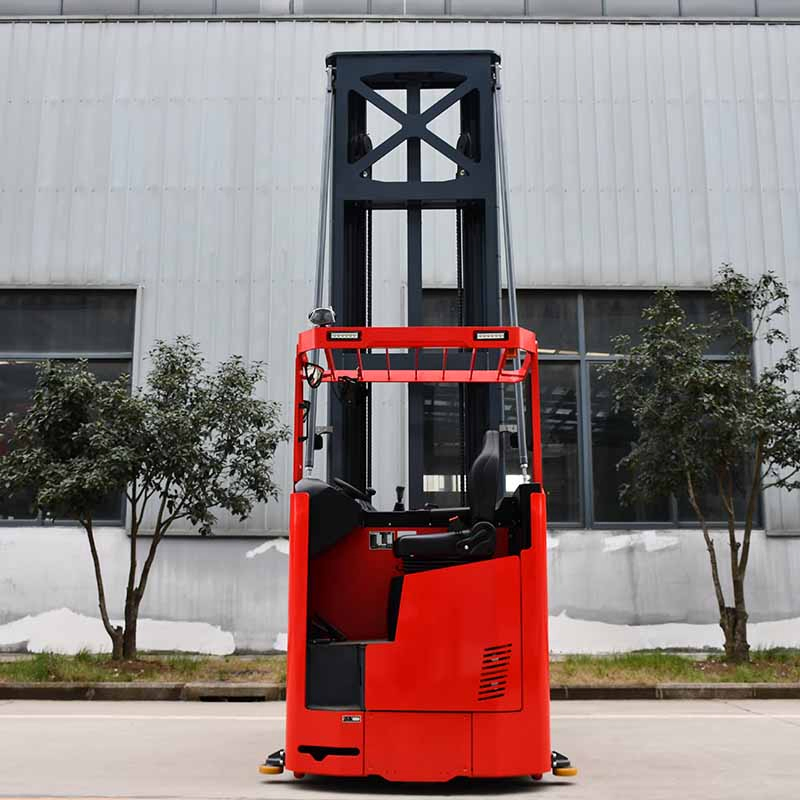

Advanced Technology Full AC System 3 Way Forklift Seated Type Turret Truck
1. Full AC system , no maintaince , high efficiency, working long time;2. Min AST 1600mm, Max.lift height 10000mm, when work at narrow aisle ,no turn direction, only use fork to stack and pick two sides goods,so improves more storages; 3. Mast makes use of German Krupp steel, good load capacity and......
Send Inquiry
Product Description
1. Full AC system , no maintaince , high efficiency, working long time;
2. Min AST 1600mm, Max.lift height 10000mm, when work at narrow aisle ,no turn direction, only use fork to stack and pick two sides goods,so improves more storages;
3. Mast makes use of German Krupp steel, good load capacity and stability, MCA15 load center 500mm-600mm, no loss capacity at 7000mm top height;
4 Turning limited speed, high level limited speed, mast buffer, slope anti slide and so on saftety function to protect driver
5. EPS, easy operate handle design and multi function meter , drive wheel meter, and easy to operate, soft cushion,reduce operator 'fatigue;
6. Use wireless camera,monitor and fork rotation to comfirm position , and stacking which are more safe;
7. Side pull battery, replacing battery and daily maintaince so easy;
8. USA white steering motor, creditable safety;
9. When lift height more than 8000mm, Pulling rod to make overall truck more steady and safe
2. Min AST 1600mm, Max.lift height 10000mm, when work at narrow aisle ,no turn direction, only use fork to stack and pick two sides goods,so improves more storages;
3. Mast makes use of German Krupp steel, good load capacity and stability, MCA15 load center 500mm-600mm, no loss capacity at 7000mm top height;
4 Turning limited speed, high level limited speed, mast buffer, slope anti slide and so on saftety function to protect driver
5. EPS, easy operate handle design and multi function meter , drive wheel meter, and easy to operate, soft cushion,reduce operator 'fatigue;
6. Use wireless camera,monitor and fork rotation to comfirm position , and stacking which are more safe;
7. Side pull battery, replacing battery and daily maintaince so easy;
8. USA white steering motor, creditable safety;
9. When lift height more than 8000mm, Pulling rod to make overall truck more steady and safe
| Description | 3 way forklift | |
| Model | MCA15 | |
| Operate type | Seated | |
| Rated capacity | kg | 1500 |
| Load center | mm | 600 |
| Wheel type | PU | |
| Mast closed height | mm | 2884 |
| Free lifting height | mm | 1734 |
| Lifting height | mm | 4500 |
| Mast extended height with load backrest | mm | 5700 |
| Overall length | mm | 3450 |
| Overall width | mm | 1550 |
| Fork size | mm | 1200/125/50 |
| Turning radius | mm | 2180 |
| Driving speed, load/unload | kw/h | 8/8 |
| Lifting speed, load/unload | mm/s | 300/300 |
| Battery voltage /capacity | V/Ah | 48/900 |
| Steering system | EPS | |
1.Are you factory or trading company?We are the factory which have been manufacture electric forklift for more than 20 years.
2.What is the delivery time?
Generally it is can delivery immediately if the goods are in stock. Or it is 15-30 days if the goods are out of stock.
3.What is the Payment?
TT(bank transfer), LC at sight or Alibaba , all will be accepted.
4.Is OEM & ODM available?
1). We can do the product according your design
2). We can provide customized solutions according your requirments.
5.Can you provide training for the customer?
Yeah. We can provide training for our customer.
6.What certification do you have?
Our company has passed ISO 9001:2008 and all of the forklift have CE certification.
7.How can I get the best price?
Price is the most concerning problem of every customer,if you want to know the price.We need to know your detailed requirements.
