Product Description

carretilla elevadora 7 toneladas standard configurations:

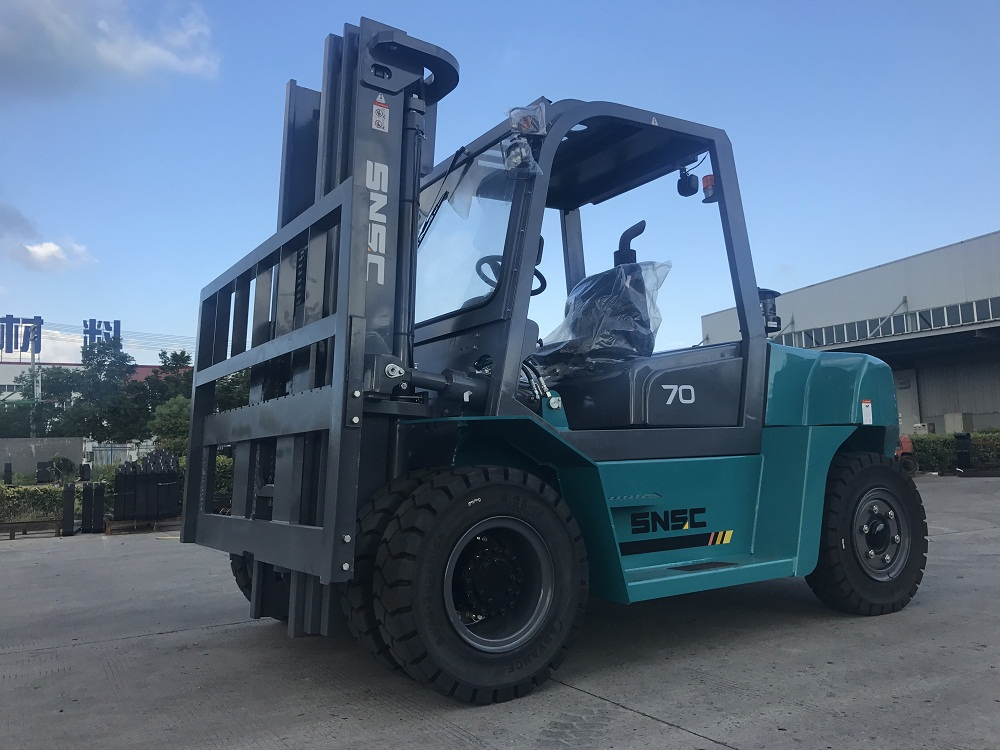

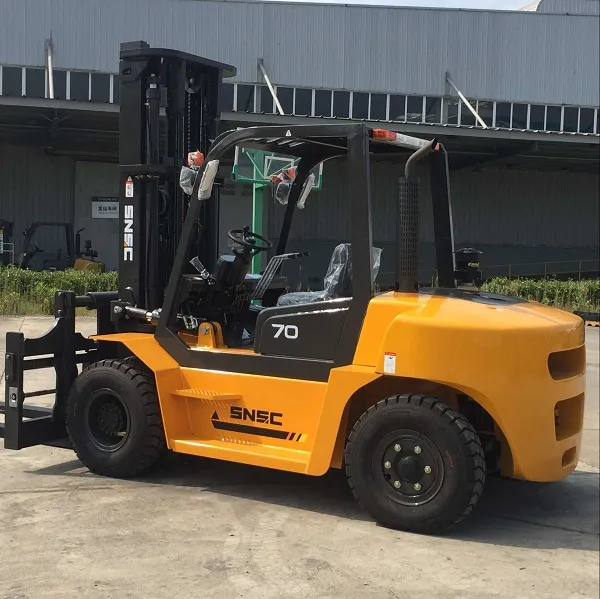

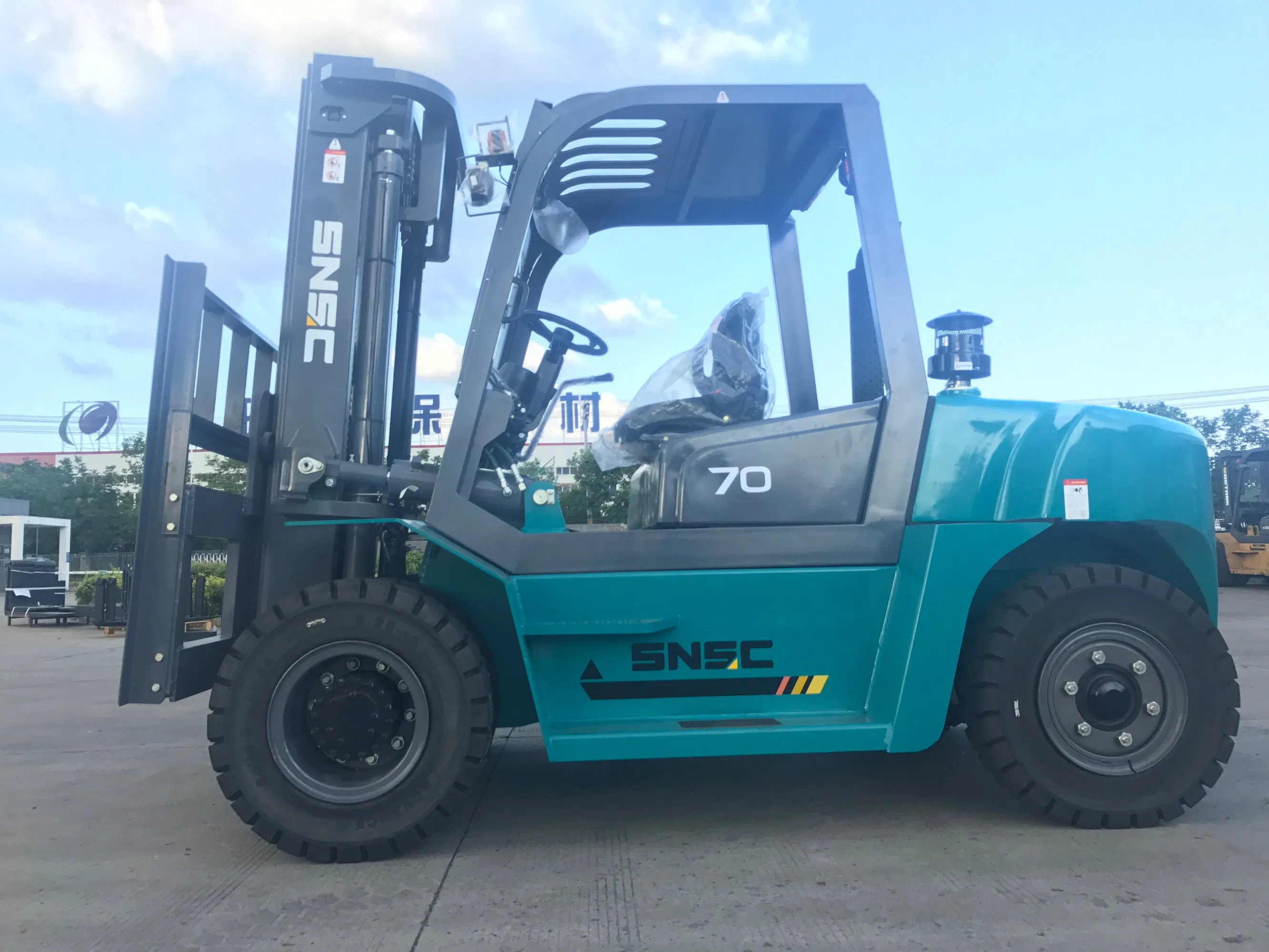

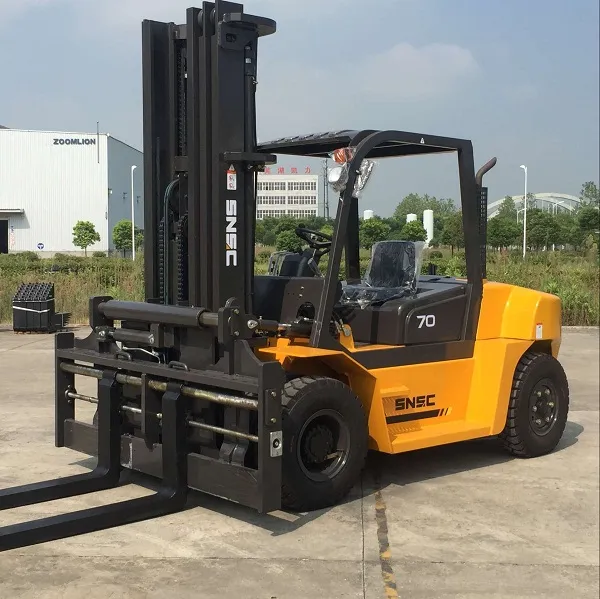

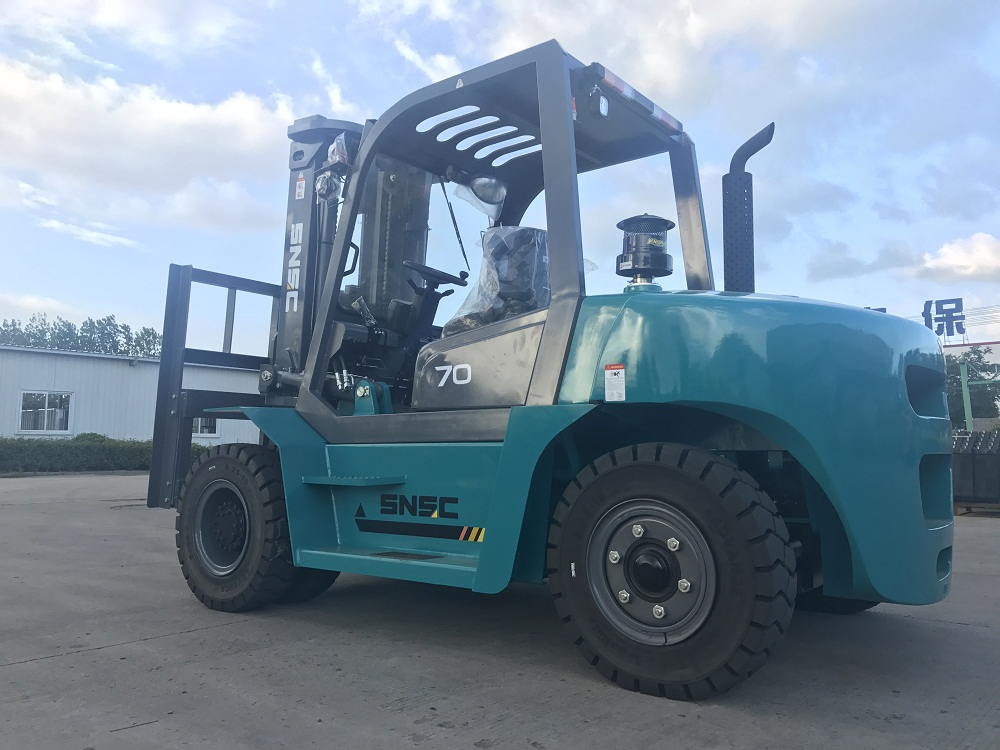

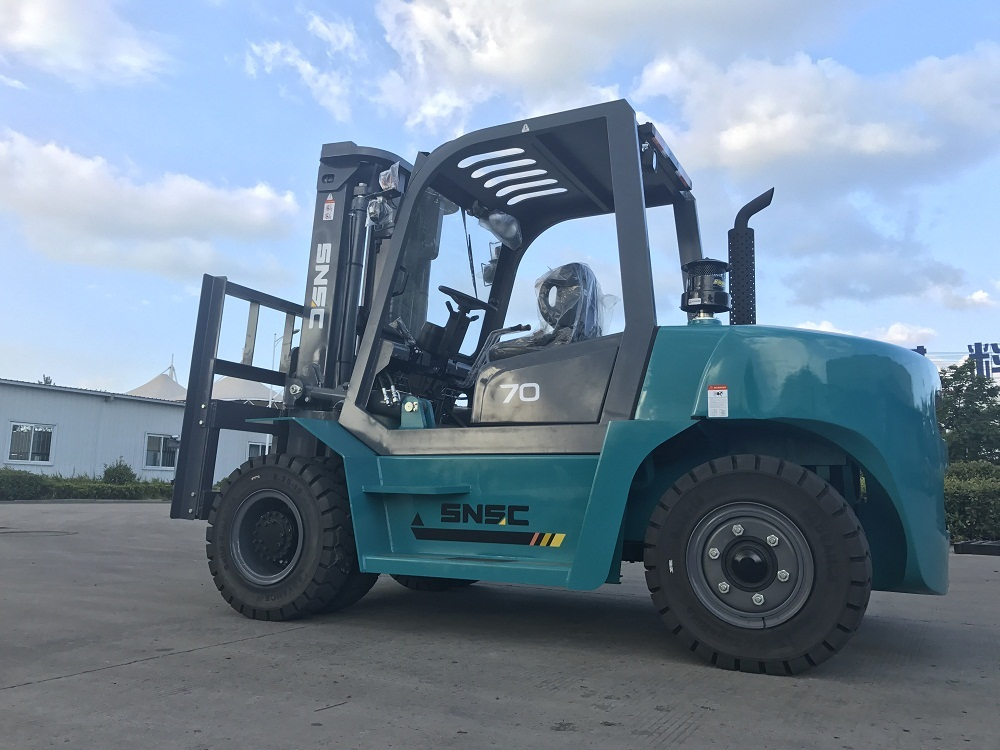

Carretilla Elevadora 7 Toneladas Forklift

AUTOMATIC electric hydraulic TRANSMISSION with TCM technology;
Japanese Shimadzu brand hydraulic pump;
DUPLEX 3m lifting mast;
Fork Length: 1220mm;
Engine model:Chinese XICHAI/Japan Isuzu 6BG1 engine;
DOUBLE FRONT TYRE;
Pneumatic tyres;
DOUBLE AIR FILTER;
high POSITION exhaust;

carretilla elevadora 7 toneladas parameters:

Model				FD70
Features	Power type			Diesel
	Rated Load		kg	7000
	Load Center		mm	600
	Lifting Height		mm	3000
	Free Lifting Height		mm	220
	Fork Size	LWT	mm	1220×150×70
	Mast Tilt Radius	Front/Rear	.	6/12
	Minimum Turning Radius		mm	3370
	Minimum Stacking Right Angle Channel Width		mm	5620
	Minimum Right Angle Channel Width		mm	3040
	Minimum Ground Clearance		mm	200
	Overhead Guard Height		mm	2460
	Front Overhang		mm	625
Performance	Max. Travelling Speed	Full load	km/h	26
	Max. Lifting Speed	Full load	mm/s	460
	Max. Traction	Full load	KW	51.4
	Max. Climbing Ability		%	20
Dimension	Overall Length	Without Fork	mm	3550
	Overall Width		mm	2235
	Max. Fork Lifting height (With Load Backrest)		mm	4380
	Mast Height		mm	2500
Chassis	Tyre	Front		8.25-15-14PR
	Tyre	Rear		8.25-15-14PR
	Wheel Base		mm	2250
	Wheel Tread	Front/Rear	mm	1470/1700
	Curb Weight	Without Load	Kg	9340
Power	Battery	Voltage/Capacity	V/Ah	(12/90)x2
	Engine	Model		CY6102BG6
		Rated Power	kw/r.p.m	81/2500
		Rated Torque	Nm/r.p.m	353/1700
		Bore*Stroke	mm	102×118
		Cylinder Amount		6
		Displacement	L	5.785
	Fuel Tank Volume		L	120
	Gears front/back			2/2
	Working Pressure		Mpa	20

Package:
Packing Details : 40HQ can hold 2 stes carretilla elevadora 7 toneladas
Delivery Details : 30 days
