Product Description

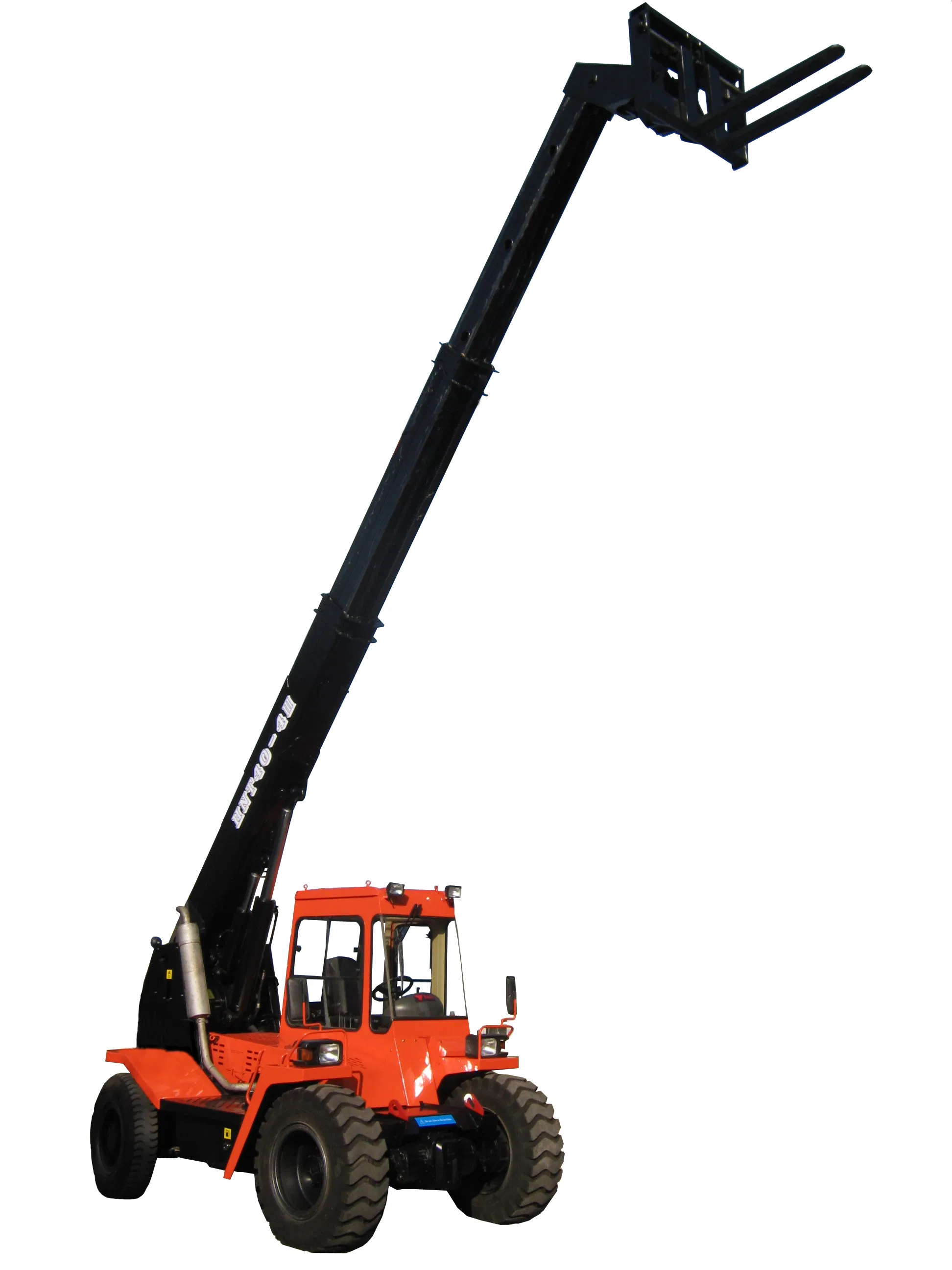

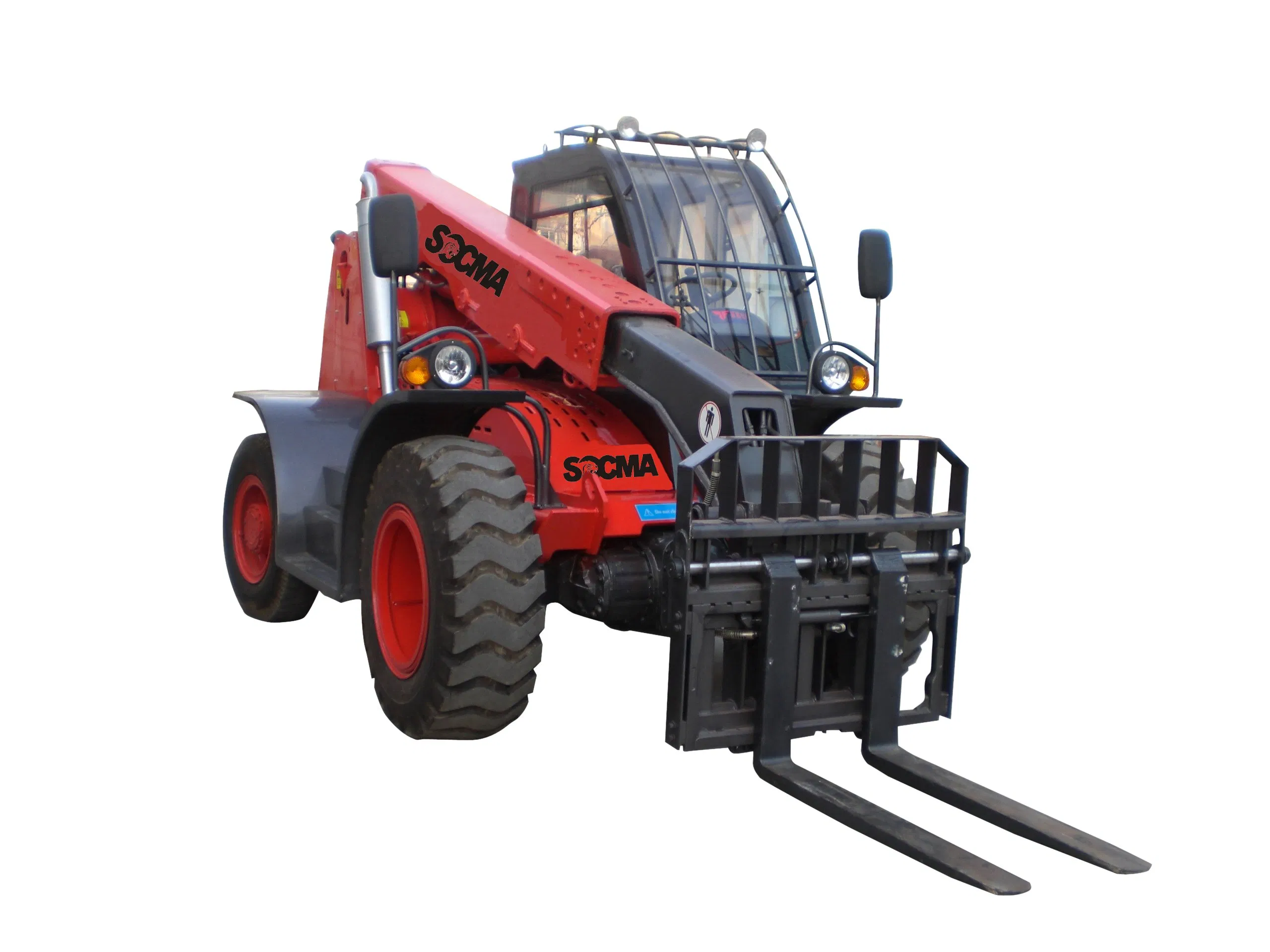

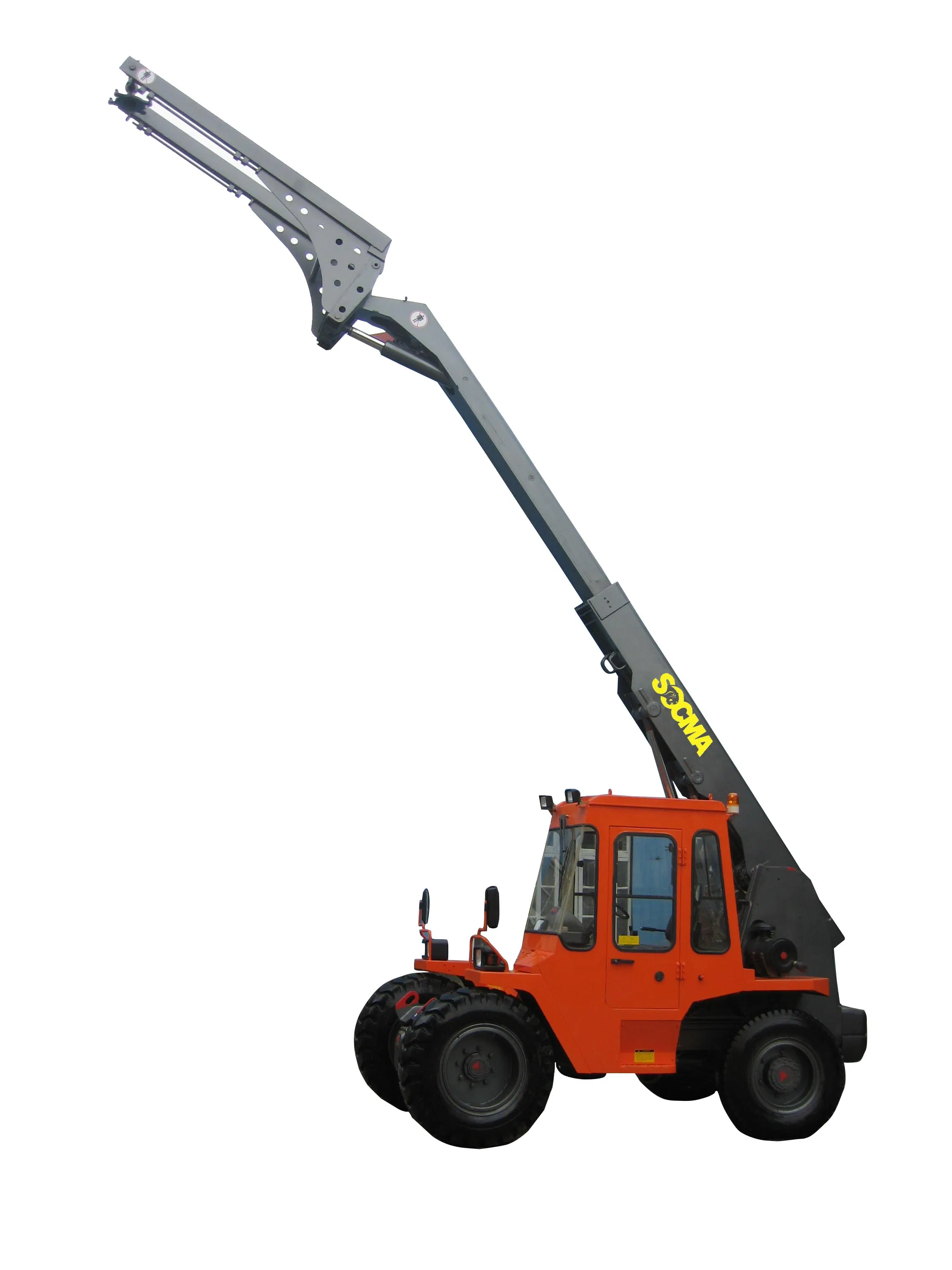

2.5 Ton 7M Height Telescopic Handlers Forklift

1, comes with four-wheeldrive and rigid suspension

2, hydraulic mechnical drive, hydraulic power steeringand hydraulic brake, rear-wheel steering

3, the two-stagequadrilateral telescopic boom serves as the working unit. A regular lift truckis equipped with a fork or a boom

4, the lift truckis applicable to the unstuffing and casing of pellatized goods in containers,as well as handling, stacking and short-distance transportation of a variety ofpackaged goods

5, suitable formany different working environments, is ideal equipment for loading andunloading, lifting, and transportation in mining, factory, architecture,building material, dock, municipal engineering industries, and more

6, a range ofoptions including such accessories as the bucket, lifting hook, and boom, etc.are available to customers

7, offers betterperformance than a general fork truck in terms of the handling height andcross-country ability

Item	Unit	HNT25-4
Rated lifting capacity		kg	2500
Lifting capacity at maximum extension		kg	1000
Max. lifting height of basic boom		mm	4300
Max. lifting height at full extension of the boom		mm	6000
Max. travel speed		km/h	28
Min. ground clearance		mm	310
Min. turning diameter (center of outer wheel)		mm	12500
Gradeability		%	30
Dead weight		kg	7100
Overall dimensions (L * W * H)	L	mm	5560
	W	mm	2270
	H	mm	2560
	Inner width of the cab	mm	740
	Tread	mm	1900
	Wheel base	mm	2520
Engine	Model		DF Cs 4BT3.9-C80
	Rated power	kw	60
	Rated speed	r/min	2000
Tyre	Front		16/70-20
Tyre	Rear		8.25-20-14
