CE Certified Semi Full Electric Self Lifting Stacker 1300mm Height Lifter Portable Forklift 500kg Self Loading Stacker Price

Product Description

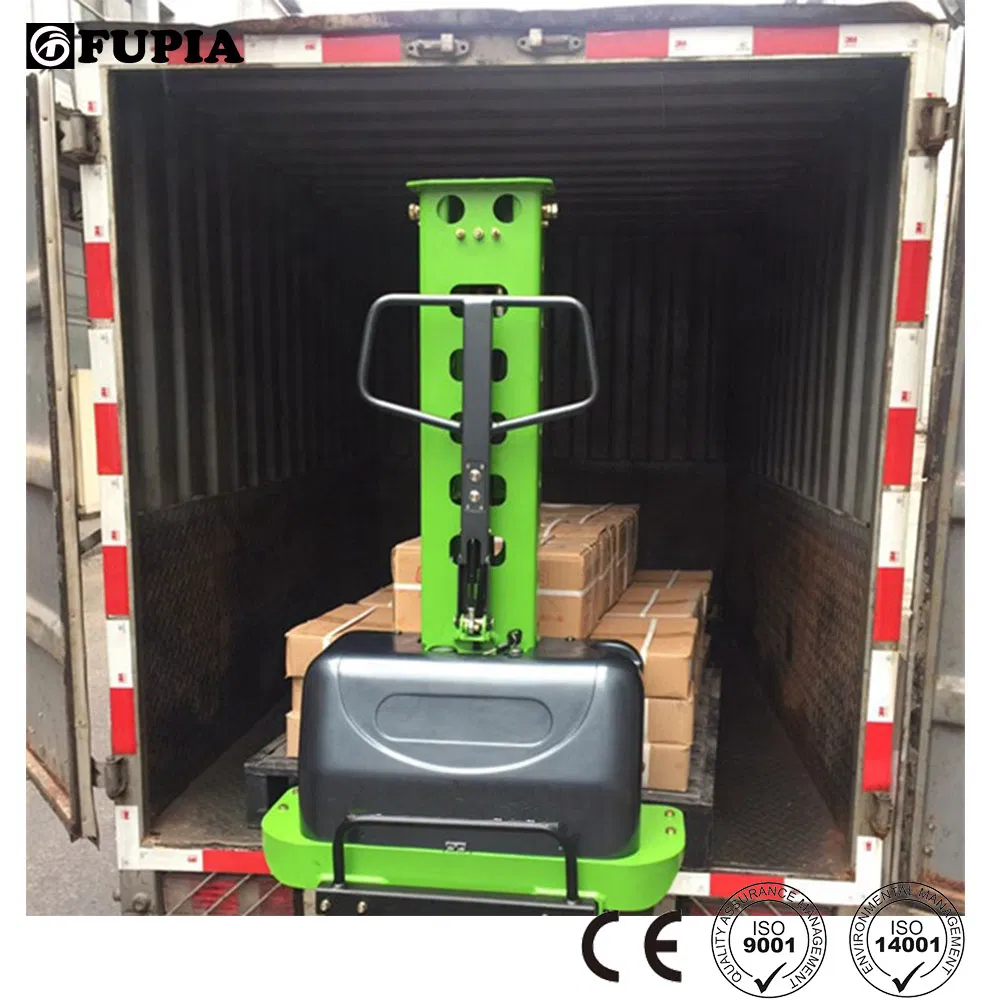

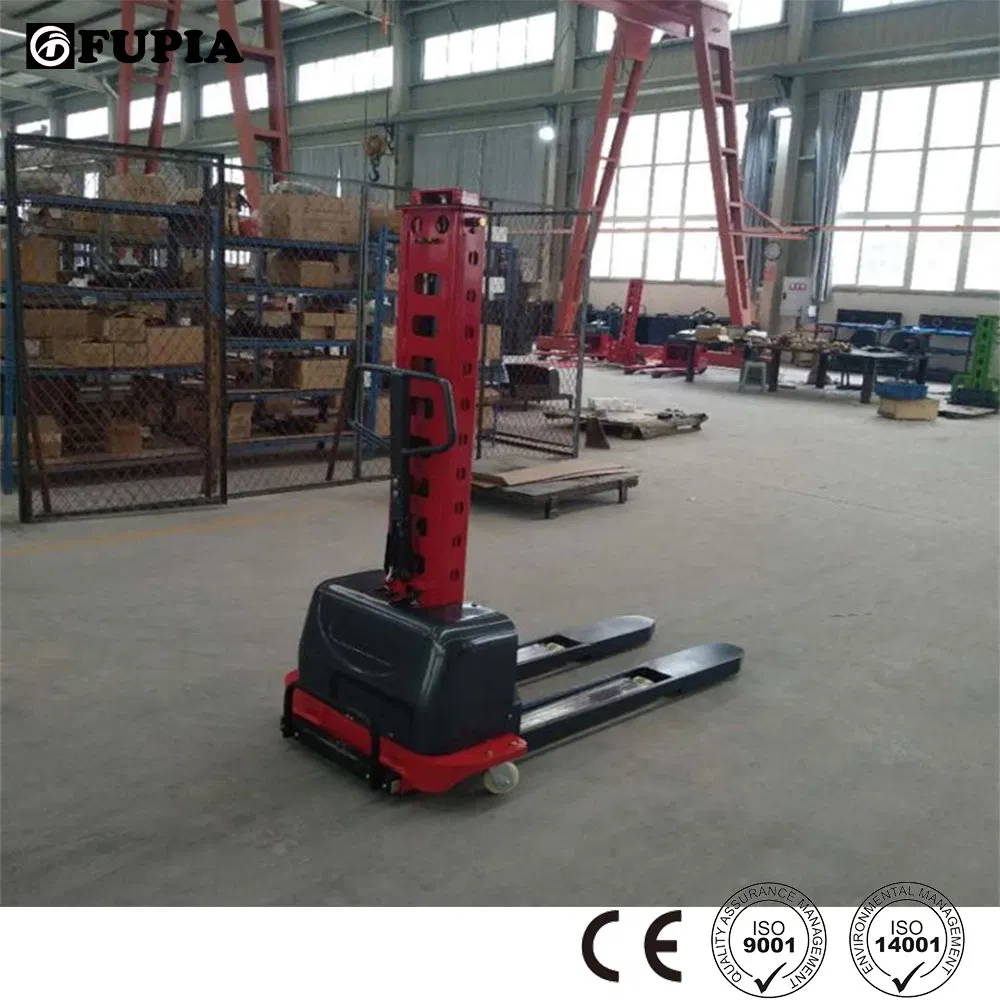

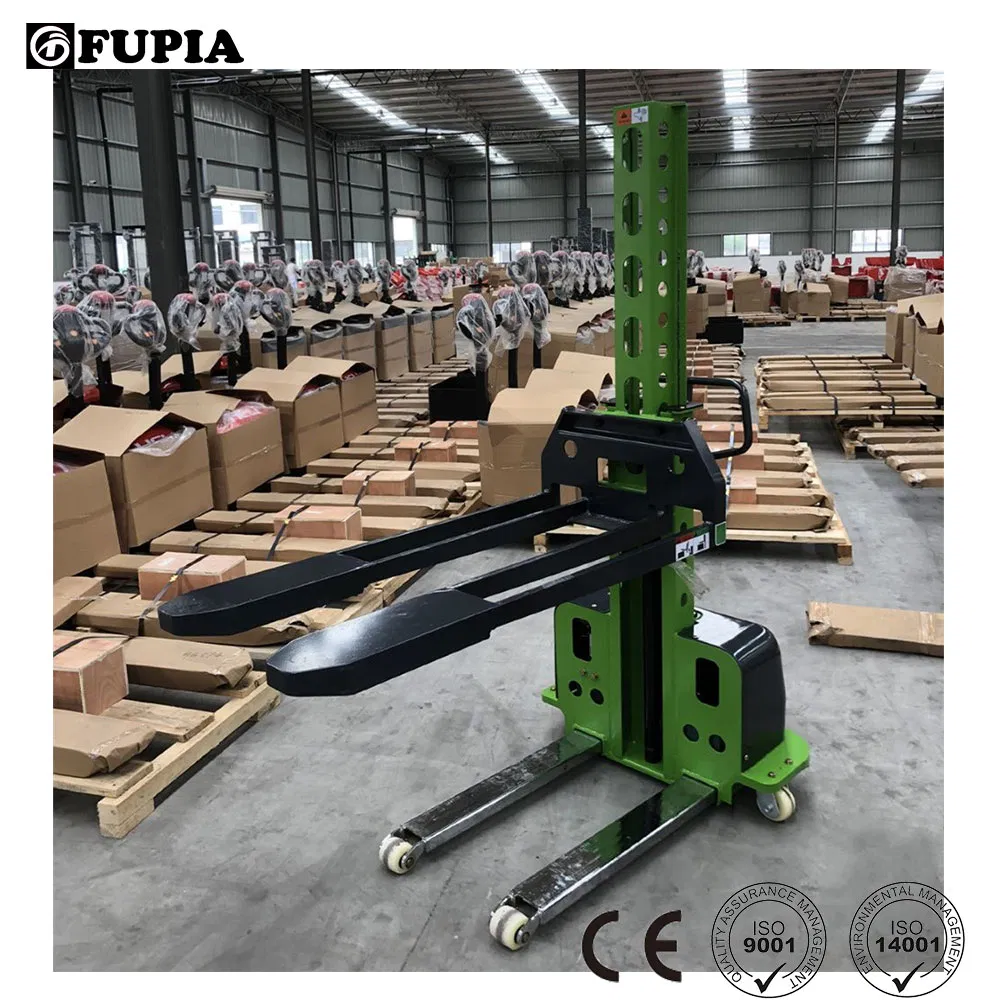

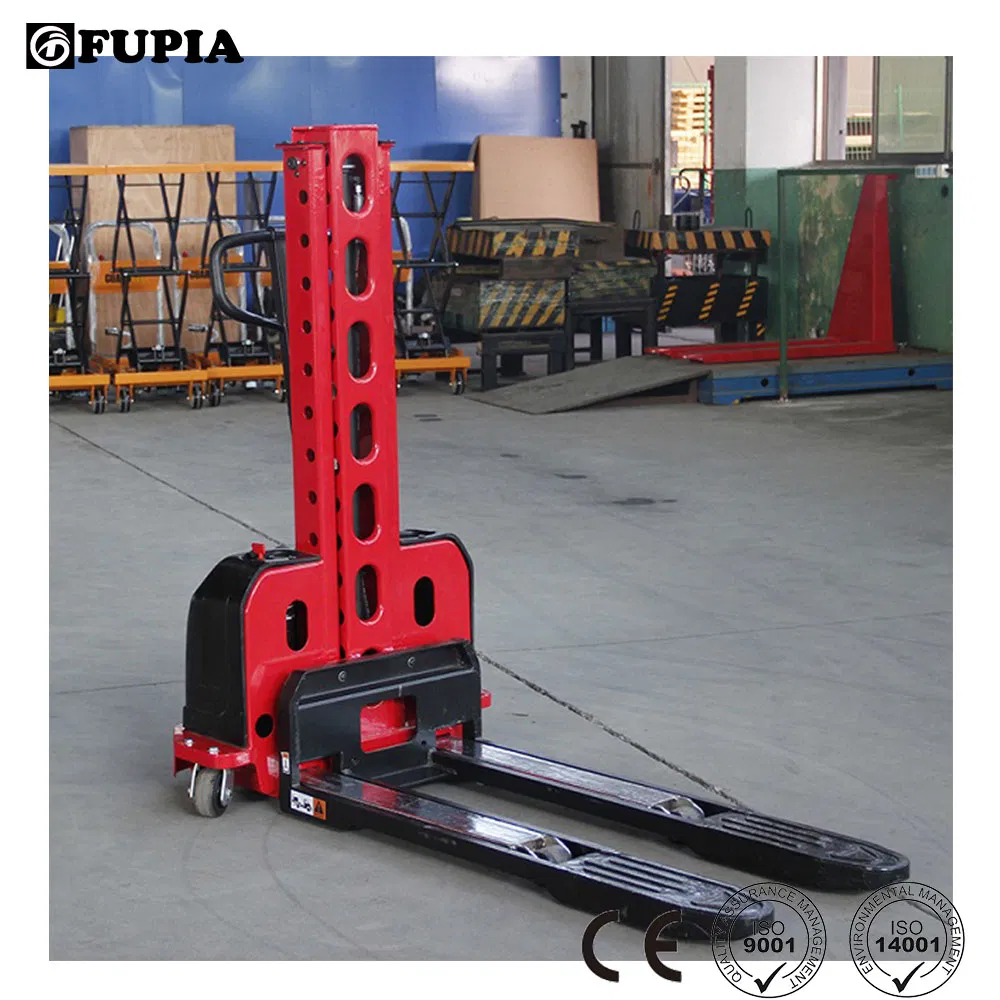

FUPIA Self Loading Stacker is an innovation and unique choice for delivery of goods thus meaning one product can replace your Tail-lift hand pallet truck, stacker, ramp and swing lift.

- Easy and convenient operation of light duty from 500kg to 1000kg, lifting height from 900mm to maximum 1600mm.
- Light weight body design with high strength alloy steel.
- The fork leg adopts the seamless moment tube,four-wheel design with high stability
- The stacker with advanced design and excellent performance, energy saving, low noise and environmental protection.
- Explosion-proof valve design making fork lift up and down more stable and reliable.
- Over discharge protection, extending battery life.

Specification		ES05	ES07	ES10
Brand		FUPIA	FUPIA	FUPIA
Rated capacity	Q(kg)	500	700	1000
Load center	C(mm)	400	400	400
Wheelbase	y(mm)	860	860	860
Front Wheel Distance	b11(mm)	380	380	380
Rear track	b10(mm)	670	670	670
Min.Fork Height	mm	90	90	90
Max.Fork Height	mm	900-1600	900-1600	1250
Height of frame(fork down)	h1(mm)	1400	1600	1700
Minimum Right Angle Channel Width	l2(mm)	1150	1150	1150
Steering Rear Wheel	mm	Φ100×50	Φ100×50	Φ100×50
Loading Wheel	mm	Φ70×60	Φ70×60	Φ70×60
Guide wheel	mm	4026/3026	4026/3026	4026/3026
Overall length	l1(mm)	1600	1600	1600
Overall width	b1(mm)	790	790	790
Fork Size	l/e/s	1150×155×60	1150×155×60	1150×155×60
Fork width	mm	535	535	535
Turning Radius	Wa(mm)	1120	1120	1120
Lifting Speed(Load/Unload)	mm/s	80/110	80/110	80/110
Descent Speed(Load/Unload)	mm/s	80/80	80/80	80/80
Lifting motor power	Kw	12V/0.8	12V/0.8	12V/0.8
Battery	V/Ah	12V/45Ah	12V/45Ah	12V/45Ah
Type of Driving		Pedestrian	Pedestrian	Pedestrian
Net weight	kg	243	250	265
