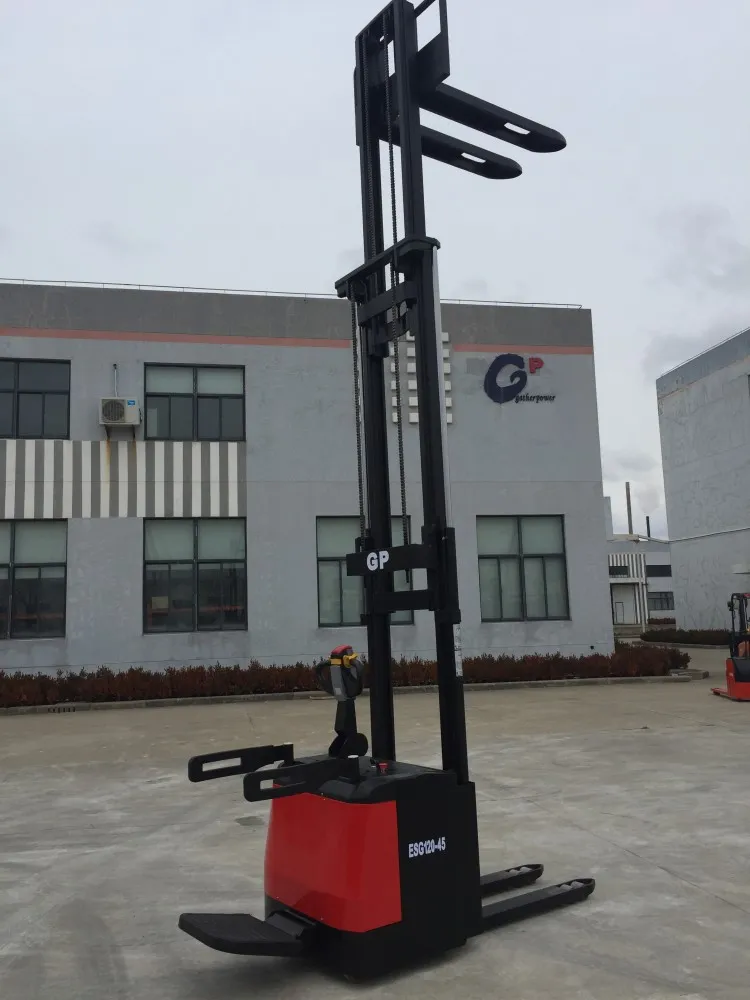

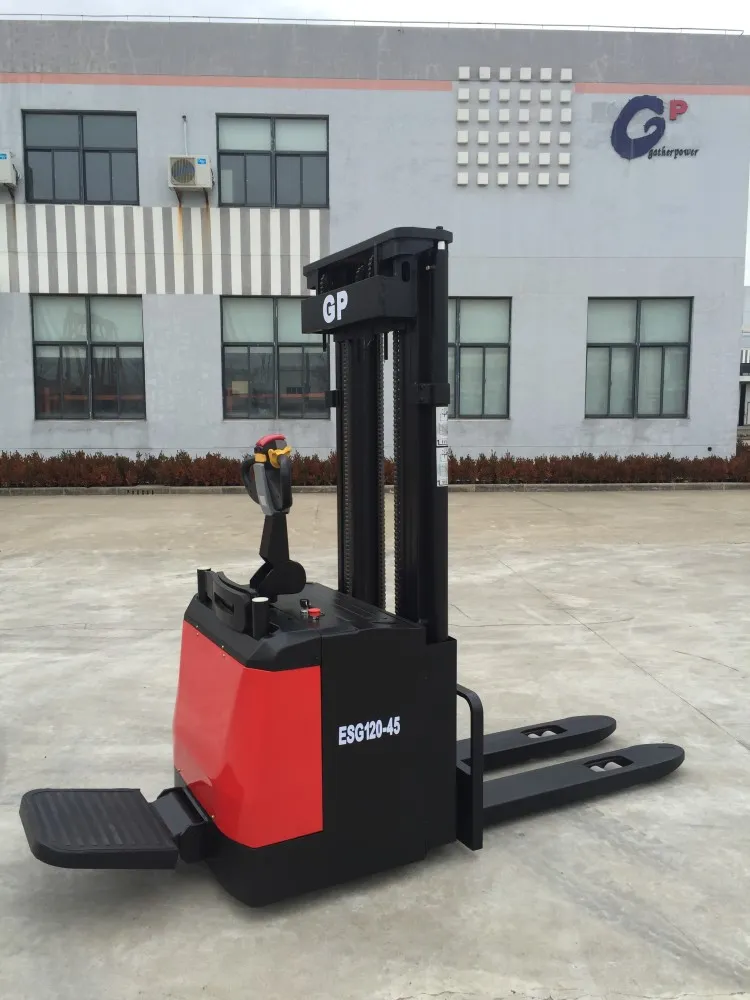

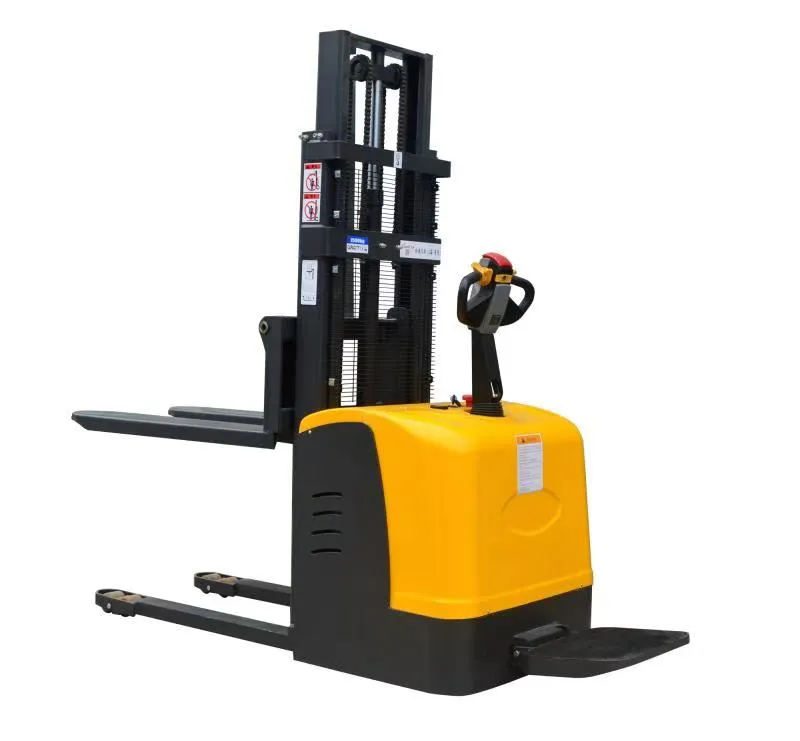

China Ce Approved Gp Forklift Truck 2t Battery Operated AC Power Electric Standard Stacker Curtis Controller Lifting Height 4000mm
Main Features of 1.0-2.0t Electric Standard Stacker1) Electonic power steering system, light and low noise2) Drive unit floating bodies with patent design3) AC driving system, no carbon bursh, maintenance free4) USA CURTIS controller, German REMA handler, Imported waterproof electrical components5) ......
Send Inquiry
Product Description
Main Features of 1.0-2.0t Electric Standard Stacker
1) Electonic power steering system, light and low noise
2) Drive unit floating bodies with patent design
3) AC driving system, no carbon bursh, maintenance free
4) USA CURTIS controller, German REMA handler, Imported waterproof electrical components
5) Integrated hydraulic and power control system, easily operation, reliable performance
6) Brake effect when handler at highest and lowest position
7) More safety with double limit switch when lift
8) Small turning radius, reliable work with lower load center
9) Emergency reversing device/emergency brake switch
10) Mast tilt function, hydraulic system self-rock function
1.0-2t Electric stacker Specifications
1) Electonic power steering system, light and low noise
2) Drive unit floating bodies with patent design
3) AC driving system, no carbon bursh, maintenance free
4) USA CURTIS controller, German REMA handler, Imported waterproof electrical components
5) Integrated hydraulic and power control system, easily operation, reliable performance
6) Brake effect when handler at highest and lowest position
7) More safety with double limit switch when lift
8) Small turning radius, reliable work with lower load center
9) Emergency reversing device/emergency brake switch
10) Mast tilt function, hydraulic system self-rock function
1.0-2t Electric stacker Specifications
| model | ESG110 | ESG118 | ESG120 | ||
| operating type | Stand on | Stand on | Stand on | ||
| power source | battery | battery | battery | ||
| load capacity | Kg | 1000 | 1800 | 2000 | |
| load center | mm | 600 | 600 | 600 | |
| wheel type | PU | PU | PU | ||
| service weight | Kg | 1040 | 1230 | 1280 | |
| Wheel dimension(driving wheel/balance wheel/bearing wheel) | mm | φ230x70/φ130x55/φ80x70 | φ230x70/φ130x55/φ80x70 | φ230x70/φ130x55/φ80x70 | |
| wheel base | mm | 1390 | 1390 | 1390 | |
| Wheel quantity(driving wheel/balance wheel/bearing wheel) | pcs | 1/2/4 | 1/2/4 | 1/2/4 | |
| Operate handle(highest/lowest) | mm | 1413/1050 | 1413/1050 | 1413/1050 | |
| Overall length (pedal away/pedal on) | mm | 1840/2260 | 1840/2260 | 1840/2260 | |
| overall width | mm | 856 | 856 | 856 | |
| Fork dimension(thickness/width/length) | mm | 60/180/1150 | 60/180/1150 | 60/180/1150 | |
| Outside width between forks | mm | 570/600/650/685 | 570/600/650/685 | 570/600/650/685 | |
| min. ground clearance | mm | 25 | 25 | 25 | |
| min.turning radius | mm | 1630 | 1630 | 1630 | |
| Min.aisle width for pallets | mm | 2180 | 2180 | 2180 | |
| Gradeability (laden/unladen) | % | 5/7 | 5/7 | 5/7 | |
| Travel speed(laden/unladen) | Km/h | 5.5/6 | 5.5/6 | 5.5/6 | |
| Lift speed(laden/unladen) | mm/s | 100/110 | 110/120 | 110/120 | |
| Lowering speed(laden/unladen) | mm/s | 110/100 | 115/105 | 115/105 | |
| Brake | Electromagnetic/Electromagnetic | Electromagnetic/Electromagnetic | Electromagnetic/Electromagnetic | ||
| drive motor(AC) | Kw | 1.5 | 1.5 | 1.5 | |
| lift motor(DC) | Kw | 2.2/3 | 3.0 | 3.0 | |
| steering motor (DC) | Kw | 0.165 | 0.165 | 0.165 | |
| battery voltage | V | 24 | 24 | 24 | |
| battery capacity | Ah | 180/210 | 240 | 280 | |
| controller | CURTIS | CURTIS | CURTIS |
