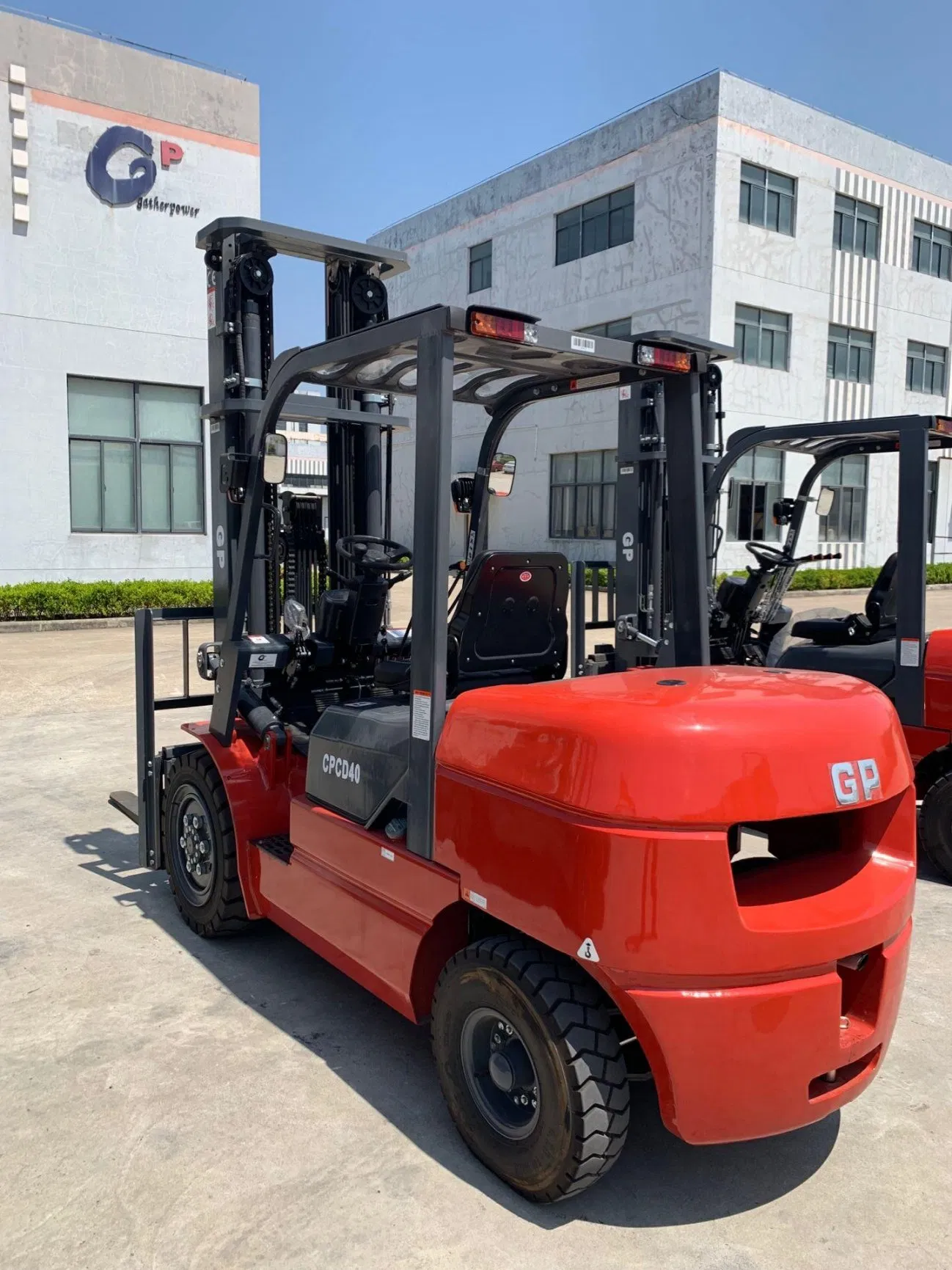

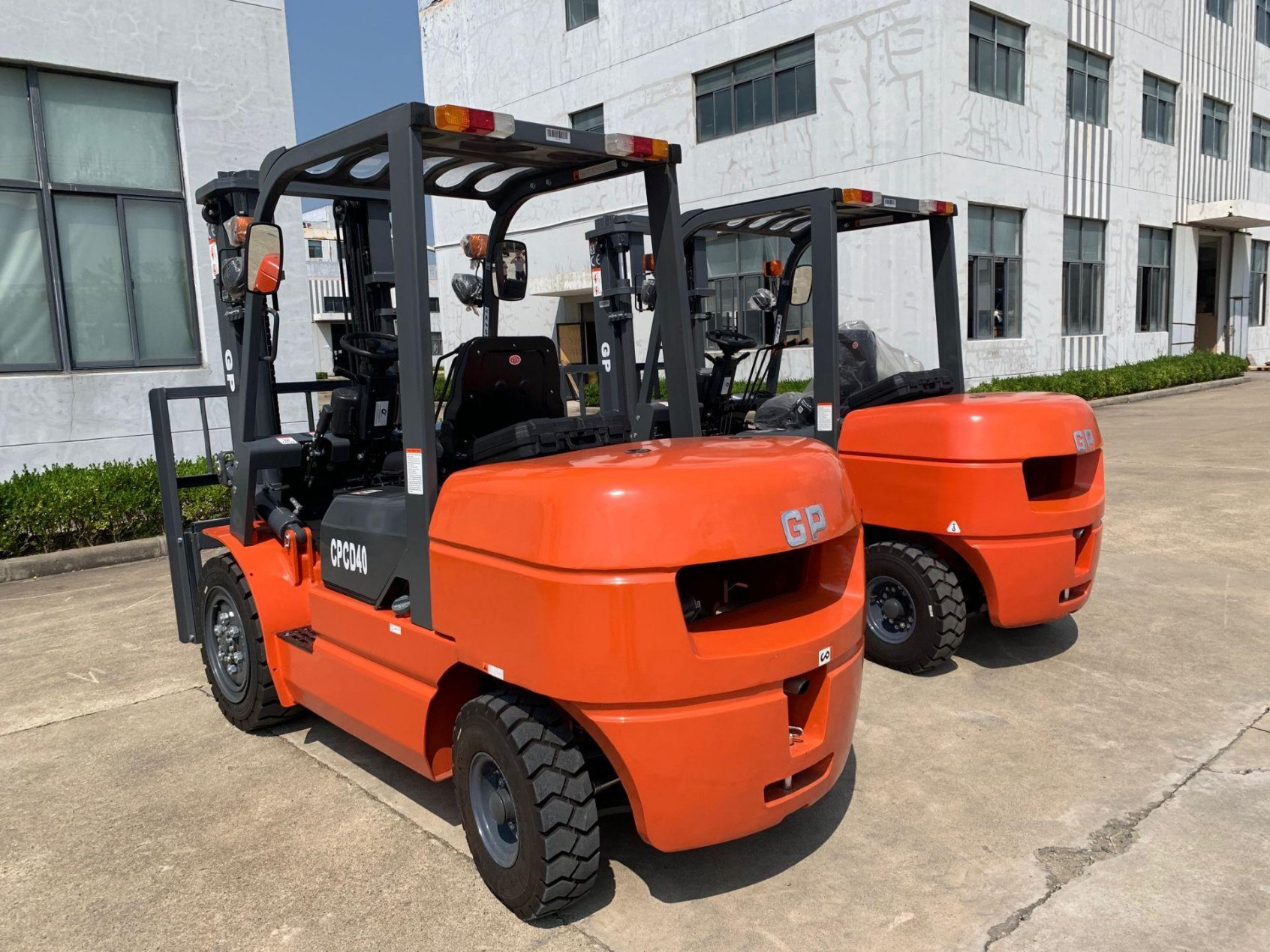

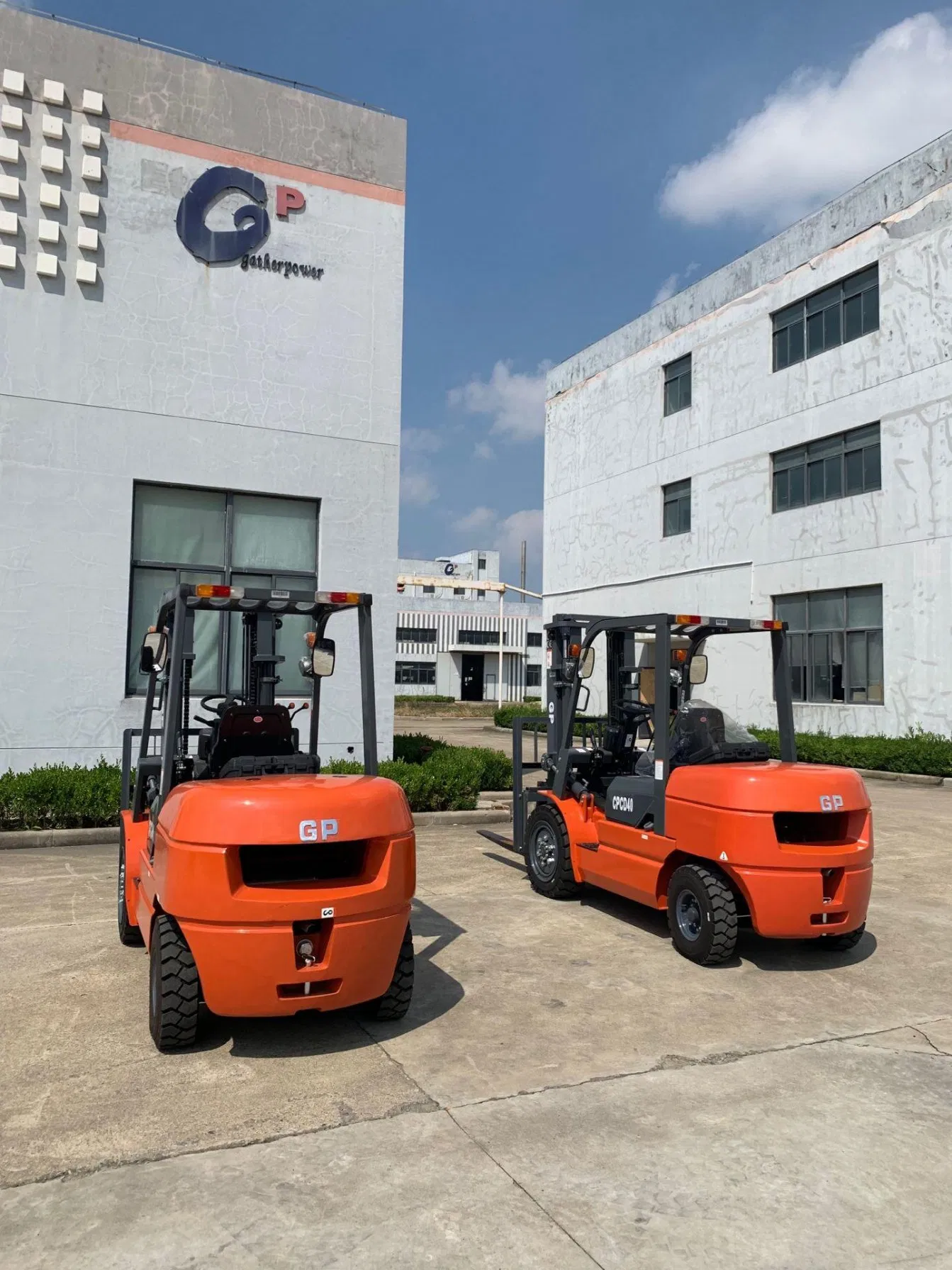

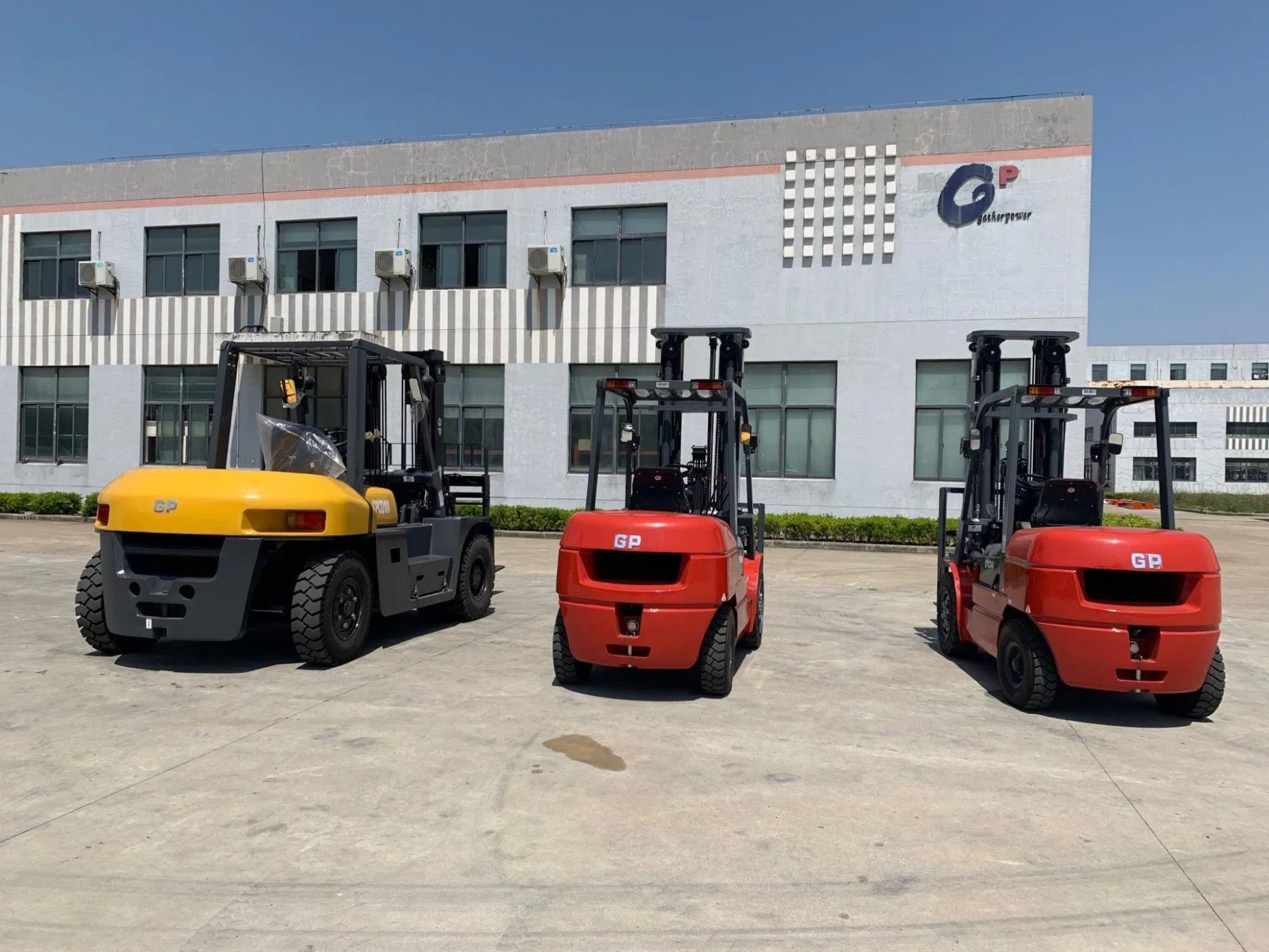

China Forklift High Quality 4ton 4.5ton 5ton Lift Height 3m 4m, 4.5m, 5m Diesel Forklift Truck (CPCD40)
Features:1.Scientific ergonomic application2. Imported hydraulic brake elements3. Easy-opened engine hood4.Suitable for working in the containerGeneral Manufacturer Shanghai GP1model CPCD40SCPCD40CPCD50CPCD50S2Load Capacity(kg) kg40004000500050003Load Center mm5004Gearbox change speed type Hydrau......
Send Inquiry
Product Description
Features:
1.Scientific ergonomic application
2. Imported hydraulic brake elements
3. Easy-opened engine hood
4.Suitable for working in the container
1.Scientific ergonomic application
2. Imported hydraulic brake elements
3. Easy-opened engine hood
4.Suitable for working in the container
| General | Manufacturer | Shanghai GP | ||||||
| 1 | model | CPCD40S | CPCD40 | CPCD50 | CPCD50S | |||
| 2 | Load Capacity(kg) | kg | 4000 | 4000 | 5000 | 5000 | ||
| 3 | Load Center | mm | 500 | |||||
| 4 | Gearbox change speed type | Hydraulic/Mechanical | ||||||
| 5 | Power Type | Diesel | ||||||
| 6 | Tire Type | Front/Rear | Pneumatic | |||||
| 7 | Wheels | Front/Rear | 2*2/2 | |||||
| Dimensions | 8 | Lift height | mm | 3000 | ||||
| 9 | Free lift height | mm | 150 | 155 | ||||
| 10 | Fork size | L*W*T | mm | 1070*140*50 | 1070*140*50 | 1070*140*50 | 1070*150*55 | |
| 11 | Mast tilt angle | Fwd/Bwd | deg | 1*6/12 | ||||
| 12 | Over Length(wtihout fork) | mm | 2935 | 3091 | 3091 | 3125 | ||
| 13 | Overall width | mm | 1410 | 1485 | ||||
| 14 | Mast height fork lowered | mm | 2235 | 2390 | ||||
| 15 | Overall height fork raised | mm | 4273 | 4275 | ||||
| 16 | Overall height (overhead guard) | mm | 2190 | 2250 | ||||
| 17 | Turning radius(outside) | mm | 2935 | 3091 | 3091 | 3125 | ||
| 18 | Load distance(centerline of front axle to front face of forks) | mm | 510 | 562 | 510 | 562 | ||
| 19 | Wheel base | mm | 1860 | 2000 | ||||
| 20 | Tread | Front | mm | 1160 | 1180 | |||
| 21 | Rear | mm | 1100 | 1190 | ||||
| 22 | Min. Under-clearance(full load/no load) | Bottom of mast | mm | 145/175 | ||||
| 23 | Bottom of frame | mm | 180/190 | |||||
| Performance | 24 | Travel speed | With load | km/h | 17 | 18 | ||
| 25 | Without load | km/h | 19.5 | 19.5 | ||||
| 26 | Lifting speed | With load | mm/sec | 470 | 430 | 400 | ||
| 27 | Without load | mm/sec | 600 | 500 | 450 | |||
| 28 | Max. Drawbar pull | With/without load | KN | >20 | >21 | |||
| 29 | ||||||||
| 30 | Max. Gradeability | With/without load | %(fan) | 20/20 | 17/18 | 15/18 | 15/18 | |
| 31 | 21/22 | 18/19 | 19/20 | 15/18 | ||||
| 32 | Max. Gradeability | % | >=15 | >=%20 | ||||
| Weight | 33 | Self weight | kg | 5380 | 6450 | 6770 | 7050 | |
| 34 | Weight distribution | Front(with load) | kg | 4730 | 5480 | 6455 | 7320 | |
| 35 | Rear(with load) | kg | 590 | 700 | 825 | 930 | ||
| 36 | Front(without load) | kg | 1520 | 1465 | 1720 | 2040 | ||
| 37 | Rear(without load) | kg | 1800 | 2215 | 2560 | 2710 | ||
| Tyre | 38 | Tyre | Front | kg | 250-15-16PR | 300-15-18PR | ||
| 39 | Rear | 7.00-12-12PR | 7.00-12-12PR | |||||
| Brake | 40 | Brake | Service | Hydraulic-Foot pedal | ||||
| 41 | Parking | Mechanical-Hand lever | ||||||
| Transmission | 42 | Battery | Voltage/Capacity | V/AH | 2-12V/80AH | |||
| 43 | Internal combusion engine | Model for option | XINCHANG/ISUZU/YANMAR/DEUTZ/KUBOTA/MITSUBISH/PERKINS | |||||
| 44 | Transmission | Type | Hydraulic | |||||
| 45 | shift(Fwd/Rvs) | 1/1(2/2) | ||||||
| 46 | Work pressure | Mpa | 17.5 | |||||
