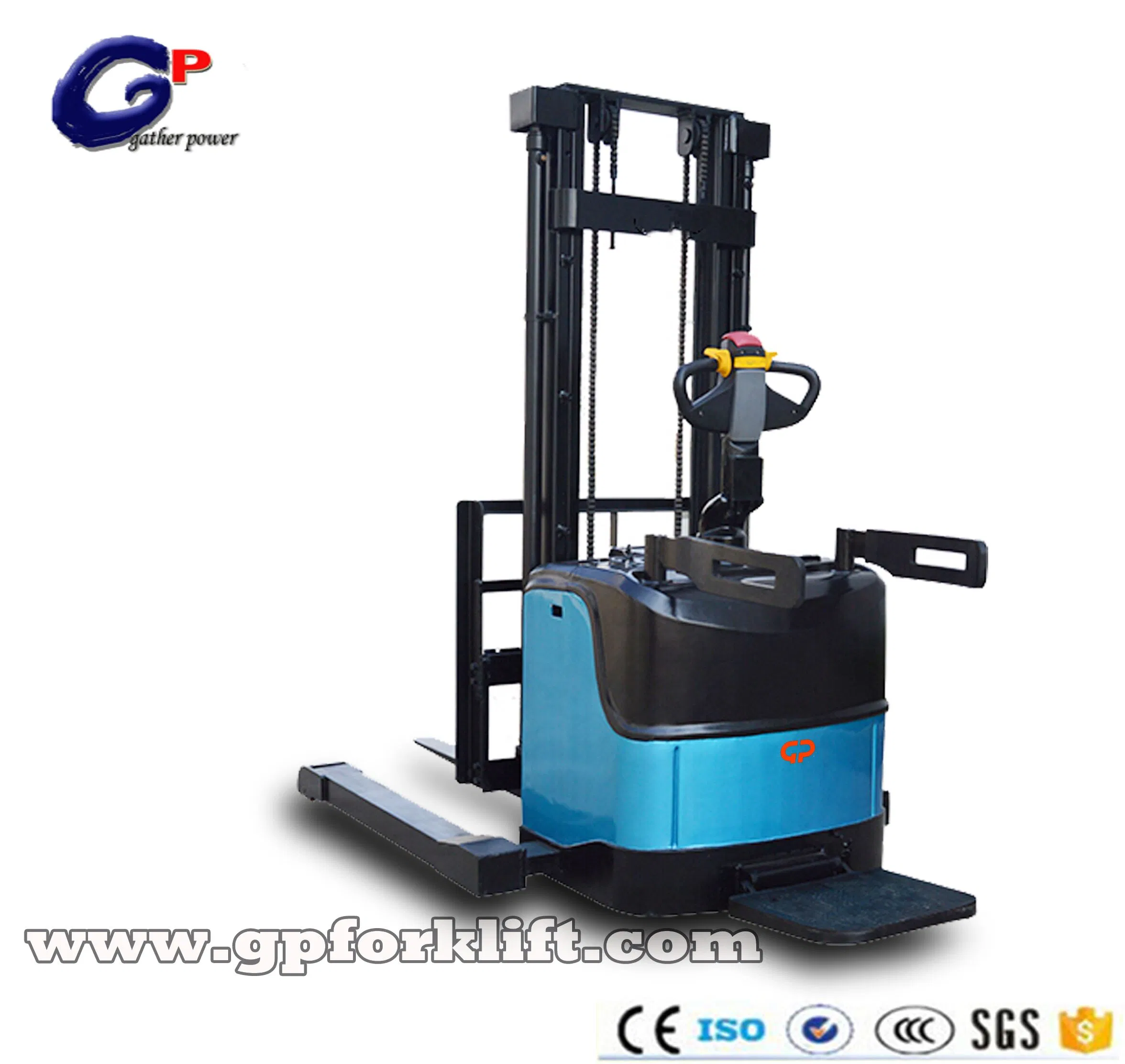

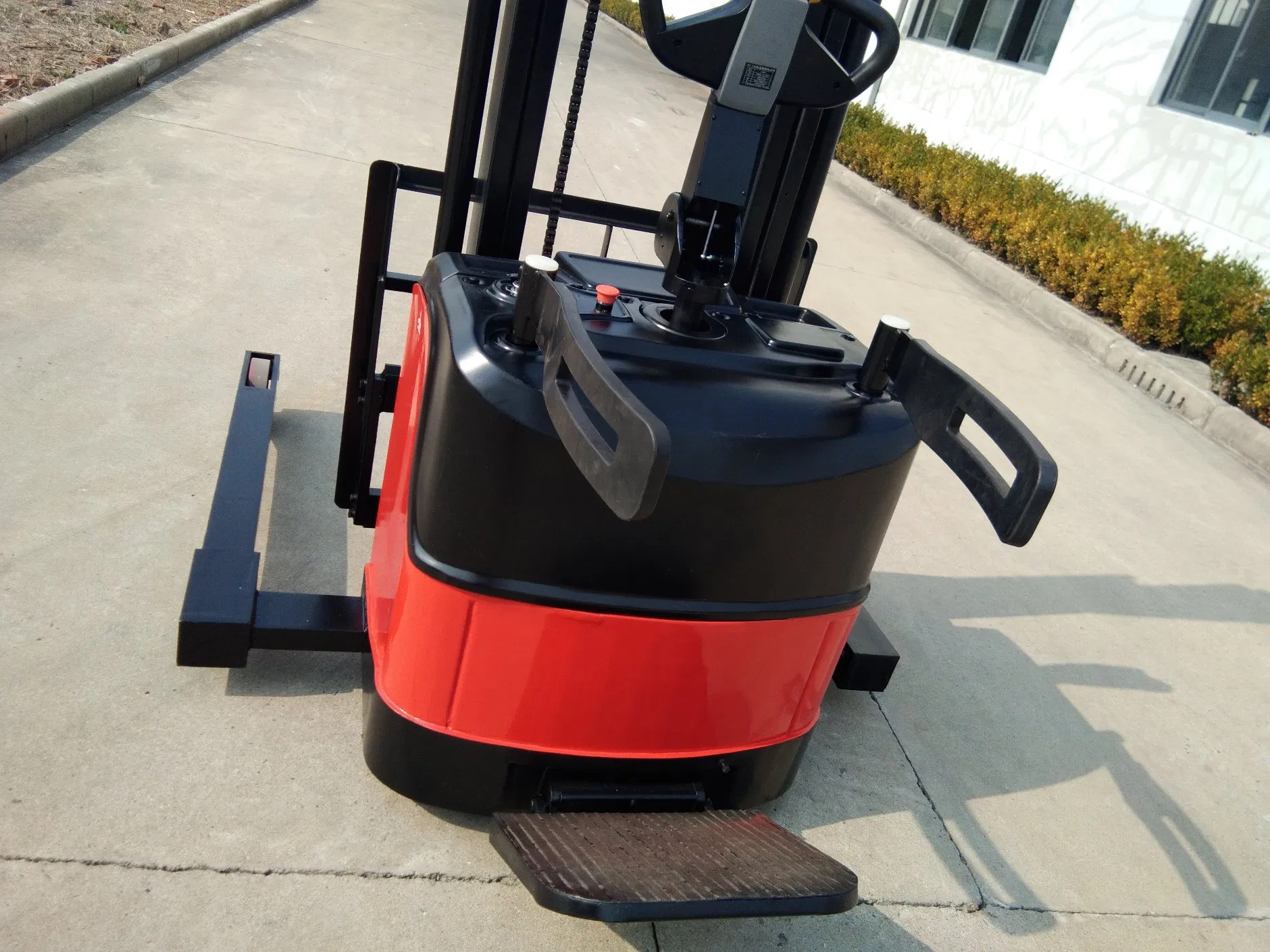

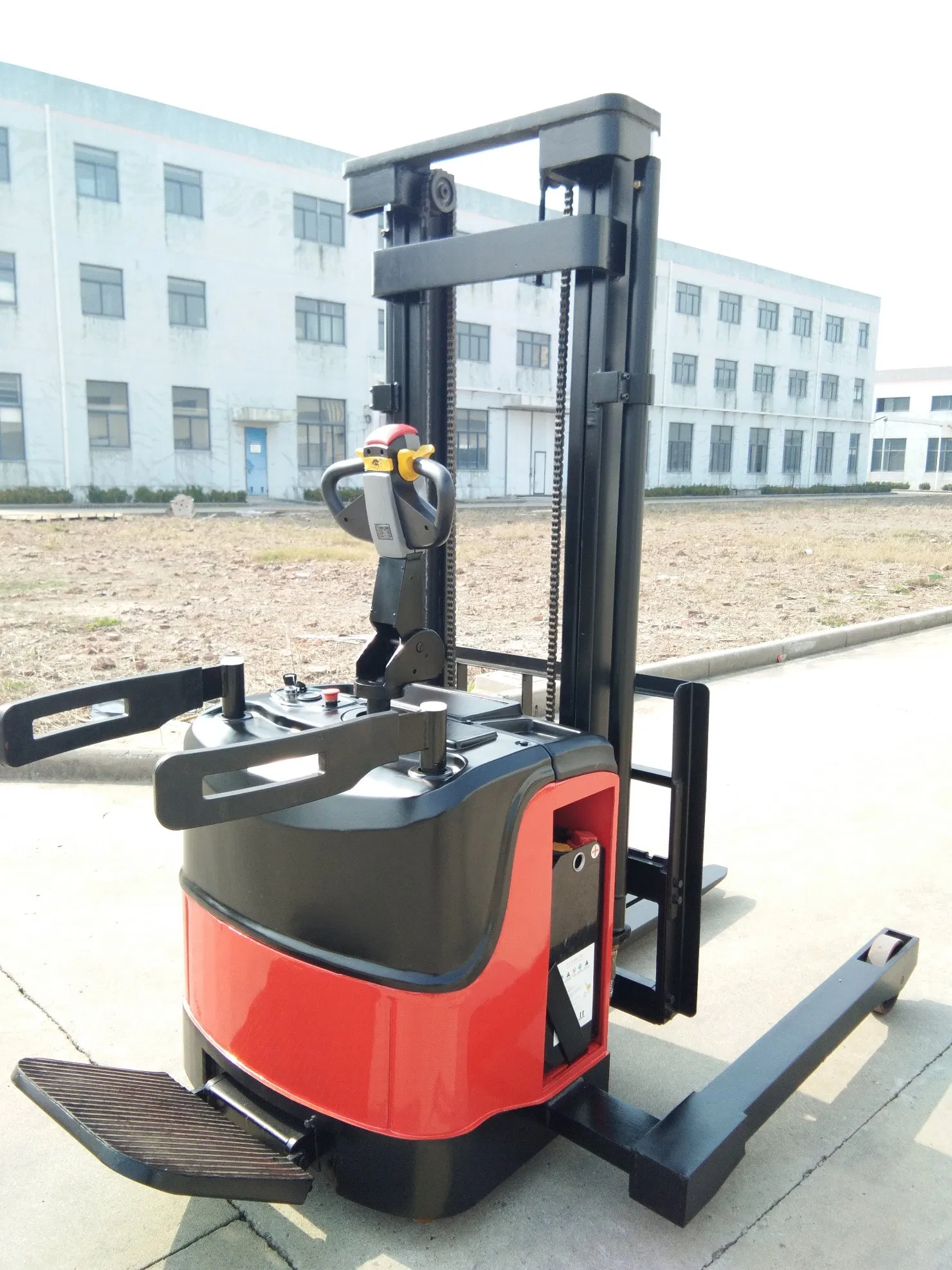

China Gp 1500kg Forklift Truck Straddle Electric Stacker Adjustavle Wide Leg Lifting Height 3000mm with Favorable Price
Main Features of 1.5-2t Electric Straddle Stacker1) Electonic power steering system, light and low noise2) Drive unit floating bodies with patent design3) AC driving system, no carbon bursh, maintenance free4) USA CURTIS controller, German REMA handler, Imported waterproof electrical components5) In......
Send Inquiry
Product Description
Main Features of 1.5-2t Electric Straddle Stacker
1) Electonic power steering system, light and low noise
2) Drive unit floating bodies with patent design
3) AC driving system, no carbon bursh, maintenance free
4) USA CURTIS controller, German REMA handler, Imported waterproof electrical components
5) Integrated hydraulic and power control system, easily operation, reliable performance
6) Brake effect when handler at highest and lowest position
7) More safety with double limit switch when lift
8) Small turning radius, reliable work with lower load center
9) Emergency reversing device/emergency brake switch
10) Mast tilt function, hydraulic system self-rock function
1.5-2t Electric stacker Specifications
1) Electonic power steering system, light and low noise
2) Drive unit floating bodies with patent design
3) AC driving system, no carbon bursh, maintenance free
4) USA CURTIS controller, German REMA handler, Imported waterproof electrical components
5) Integrated hydraulic and power control system, easily operation, reliable performance
6) Brake effect when handler at highest and lowest position
7) More safety with double limit switch when lift
8) Small turning radius, reliable work with lower load center
9) Emergency reversing device/emergency brake switch
10) Mast tilt function, hydraulic system self-rock function
1.5-2t Electric stacker Specifications
| Model | ESB112 | ESB115 | ESB118 | ESB120 | ||
| Operate type | Stand on/walkie | stand on/walkie | ||||
| Power source | battery | Battery | battery | battery | ||
| Fork lift height | mm | 3000 | 3000 | 3000 | 3000 | |
| Load capacity | kg | 1200 | 1500 | 1800 | 2000 | |
| Load canter | mm | 500 | 500 | 500 | 500 | |
| Wheel type | PU | PU | PU | PU | ||
| Service weight | kg | 1150 | 1230 | 1230 | 1330 | |
| Wheel dimension | mm | Ф230*70/Ф130*55/Ф85*100 | ||||
| Wheel base | mm | 1460 | 1460 | 1460 | 1460 | |
| Wheel quantity | pcs | 1/2/2 | 1/2/2 | 1/2/2 | 1/2/2 | |
| Operate handle | mm | 1413/1050 | 1413/1050 | 1413/1050 | 1413/1050 | |
| Overall length(pedal away/on) | mm | 1820/2240 | 1820/2240 | 1820/2240 | 1820/2240 | |
| Overall width | mm | 1170/1270/1470/1670 | 1170/1270/1470/1670 | 1170/1270/1470/1670 | 1170/1270/1470/1670 | |
| Fork dimension(thickness/length/width) | mm | 35/100/1070 | 35/100/1070 | 40/100/1070 | 40/100/1070 | |
| Outside width between forks | mm | 220-904 | 220-904 | 220-904 | 220-904 | |
| Min. ground clearance | mm | 25 | 25 | 25 | 25 | |
| Min.turning radius | mm | 1640 | 1640 | 1640 | 1640 |
| Min.aisle width for pallets | mm | 2230 | 2230 | 2230 | 2230 | |
| Mast title angle(F/R) | ° | -- | 3/6 | 3/6 | 3/6 | |
| Front overhang | mm | 175 | 175 | 175 | 175 | |
| Gradeability(laden/unladen) | % | 8/10 | 8/10 | 6/8 | 6/8 | |
| Travel speed(laden/unladen) | Km/h | 5.5/6 | 5.5/6 | 5.5/6 | 5.5/6 | |
Lift speed(laden/unladen) | mm/s | 75/110 | 75/110 | 75/110 | 75/110 | |
Lowering speed(laden/unladen) | mm/s | 200/100 | 200/100 | 200/100 | 200/100 | |
Brake type | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | ||
Drive motor(AC) | Kw | 1.5 | 1.5 | 1.5 | 1.5 | |
Lift motor(DC) | Kw | 3.0 | 3.0 | 3.0 | 3.0 | |
| Steering motor(DC) | Kw | 0.165 | 0.165 | 0.165 | 0.165 | |
Battery voltage |
| 24 | 24 | 24 | ||
Battery capacity | Ah | 180/210 | 210/270 | 240 | 210/270 | |
Controller | CURTIS | CURTIS | CURTIS | CURTIS |
