China Supplier Gp 2t Full Electric Pallet Jack Powered Pallet Truck with Lift Height 205mm with Ce/ISO China Favorable Price

Product Description

^_Advantage:

^{_{l Low noise,low energy consumption,every day only 2 kwh.}}

^{_{l USA CURTIS controller,multiple automatic protection.}}

^{_{l Small body,suitable for narrow space.}}

^{_{l Sealed batteries free of maintenance,safe operation and no pollution.}}

^{_{l Stepless speed control system.easy to operate.}}

^{_{l Automatic lifting limit,safety ,energy saving.}}

^{_{l Emergency reversing device/Emergency brake switch.}}

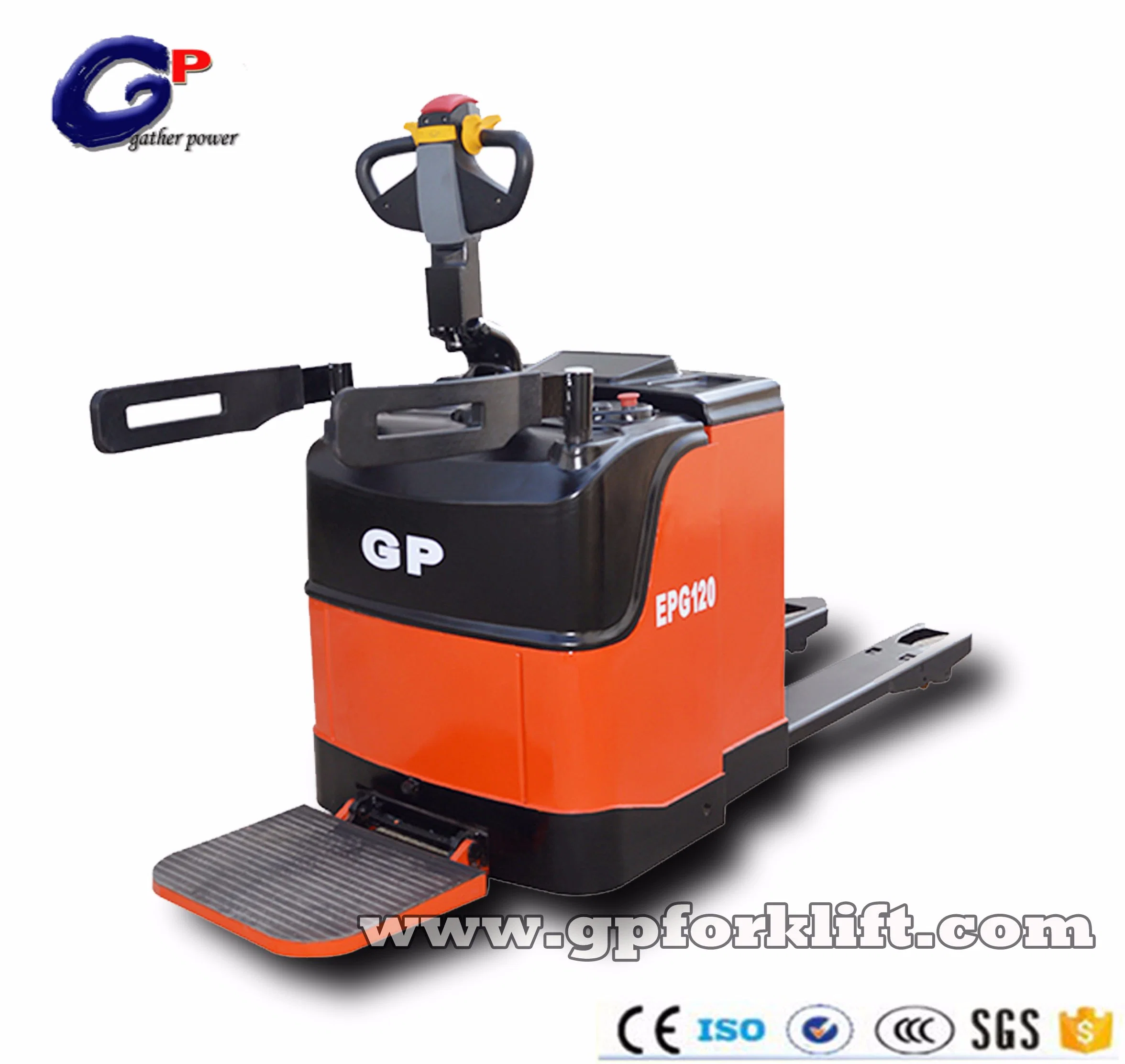

feature	Model		EPG120	EPG115
	Operating type		stand on /walkie	Stand on /walkie
	power source		battery	battery
	load capacity	Kg	2000	2500
	load center	mm	600	600
	wheel type		PU	PU
	service weight	Kg	650	720
demension	Wheels dimension (driving wheel/balance wheel/bearing wheel)	mm	φ230x85/φ130X55φ85x70	φ230x85/φ130X55φ85x70
	wheel base	mm	1310	1310
	Wheels quantity (driving wheel/balance wheel/bearing wheel)	pcs	1/2/4	1/2/4
	Operat handle (highest/lowest)	mm	1388/1045	1388/1045
	Overall length(pedal away/pedal on)	mm	1901/2321	1901/2321
	overall width	mm	770	770
	Fork dimension (length/width/thickness)	mm	50/170/1150	50/170/1150
	Outside width between forks	mm	540/600/685	540/600/685
	min.groud clearance	mm	85	85
	fork lift height	mm	205	205
performance	min.turning radius	mm	1642	1642
	Min.aisle width for pallets	mm	2320	2320
	Gradeability (laden/unladen)	%	6/8	6/8
	Travel speed(laden/unladen)	km/h	5.5/6	5.5/6
	Lift speed (laden/unladen)	mm/s	34/40	30/40
	Lowering speed (laden/unladen)	mm/s	40/30	40/30
	brake		Electromagnetic/Electromagnetic	Electromagnetic/Electromagnetic
	drive motor(AC)	Kw	1.5	1.5
	lift motor(DC)	Kw	2.2	2.2
	steering motor(DC)	Kw	0.165	0.165
	battery voltage	V	24	24
	battery weight	Ah	210	240
	controller		CURTIS	CURTIS
