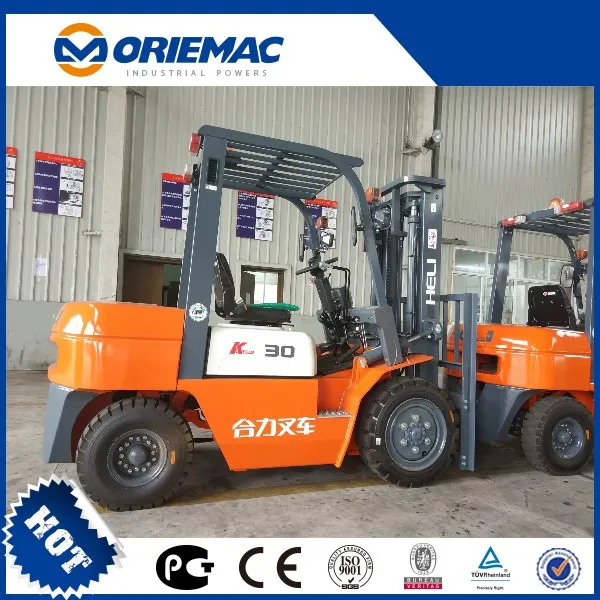

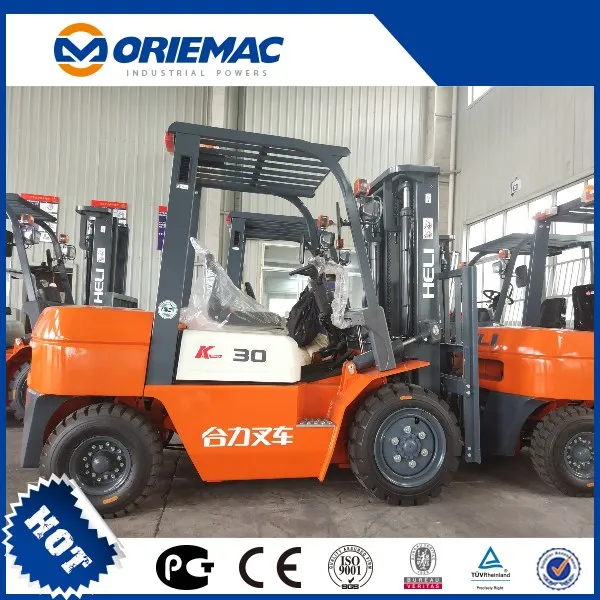

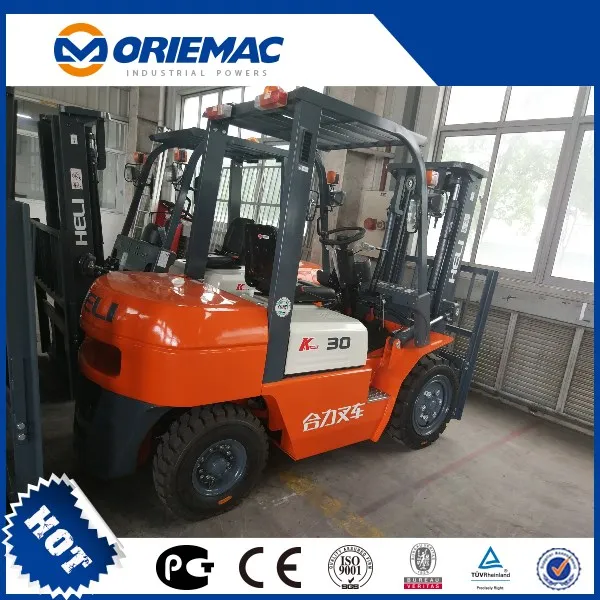

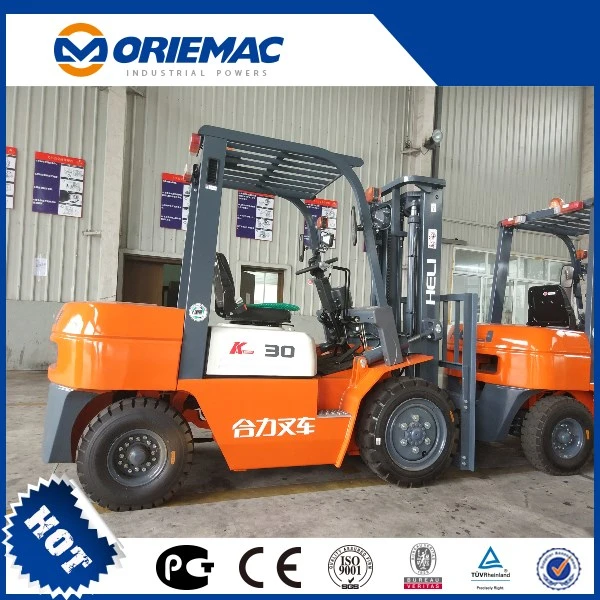

Chinese Heli Logistic Machinery Brand New Cheap 3 Ton Mini Diesel Forklift Cpcd30

Product Description

Chinese Heli Logistic Machinery Brand New Cheap 3 Ton Mini Diesel Forklift Cpcd30

Features:

Model Number: CPCD30/CPCD35

Equipped with China engine/Japanese engine,Hydraulic transmission with TCM-technology

Standard with 2-stage wide-view mast, lifting height is 3,000mm

Pneumatic tires, 1070mm forks,Safety seat,Free tool box and spare parts.

Back-up buzze, rearview mirror, full set of lights and so on.

Main technological parameters

General	1	Model				CPCD30

	2	Power type				Diesel
	3	Rated capacity			kg	3000
	4	Load center			mm	500
	5	Operator type				Seated
	6	Tyre type		Front/Rear		Pneumatic
	7	Number of wheels(X=driven))		Front/Rear		2 X /2
Dimensions	8	Lifting height			mm	3000
	9	Free lift height			mm	145
	10	Fork size		LxWxT	mm	1070x125x25

	11	Mast tilt range		F/R		6/12
	12	Overall Length(Without fork)			mm	2698
	13	Overall width			mm	1225
	14	Mast lowered height			mm	2070
	15	Mast extended height			mm	4250
	16	Overhead guard height			mm	2090
	17	Turning radius(Outside)			mm	2400
	18	Fork overhang(Wheel center to fork face)			mm	498
	19	Min.right angle stacking aisle width (Add load length and clearance)			mm	2885
	20	Wheelbase			mm	1700
	21	Tread		Front	mm	1000
	22			Rear	mm	970
	23	Ground clearance	Lowest		mm	135
	24		Wheel base center		mm	140
