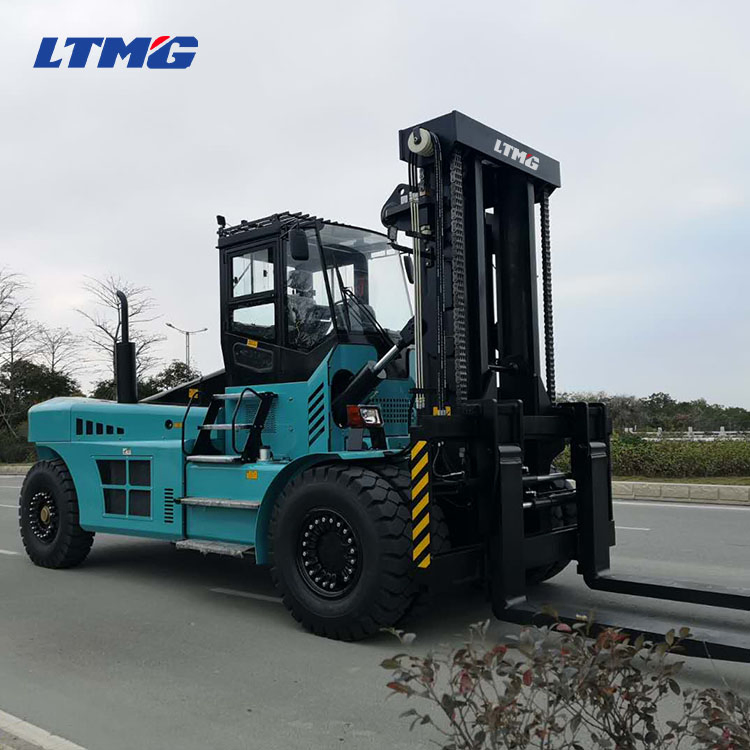

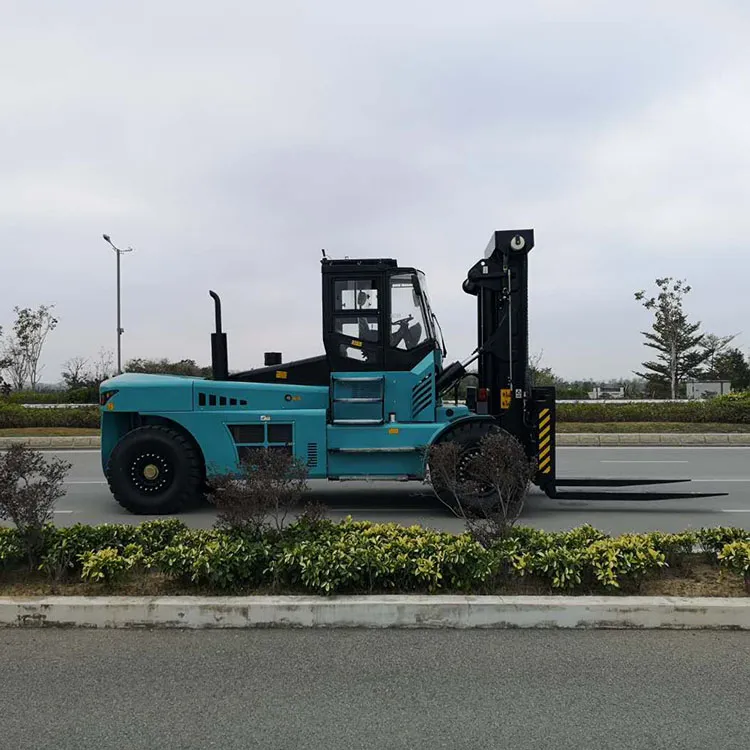

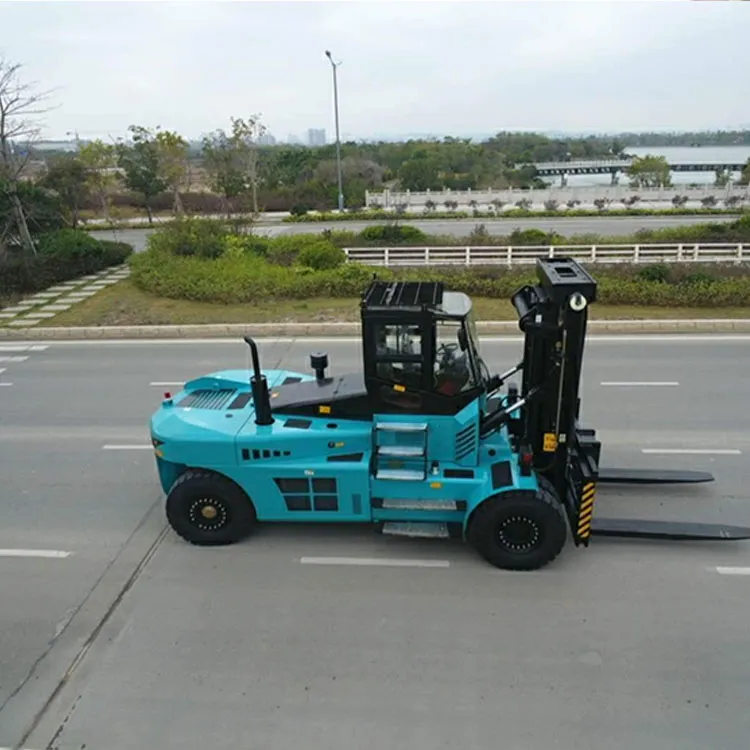

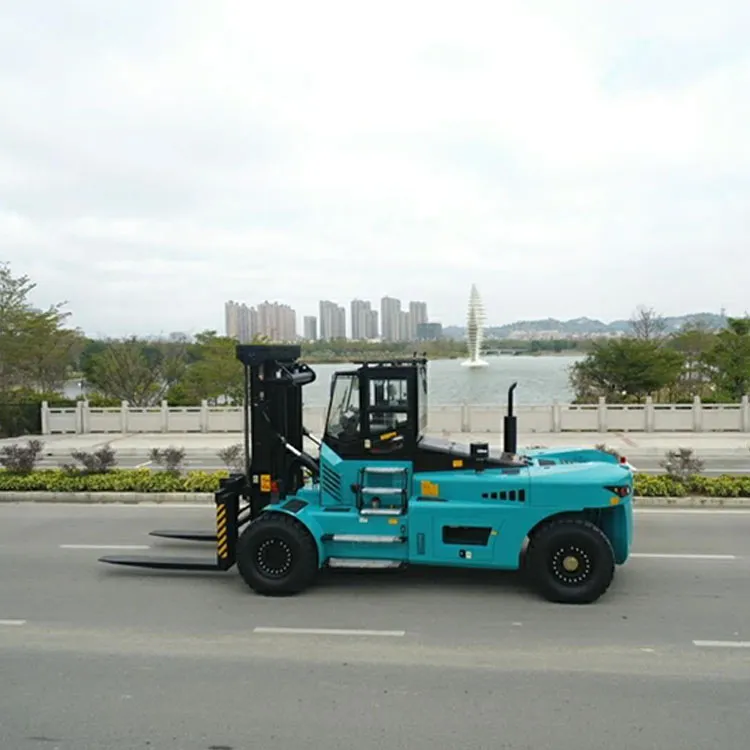

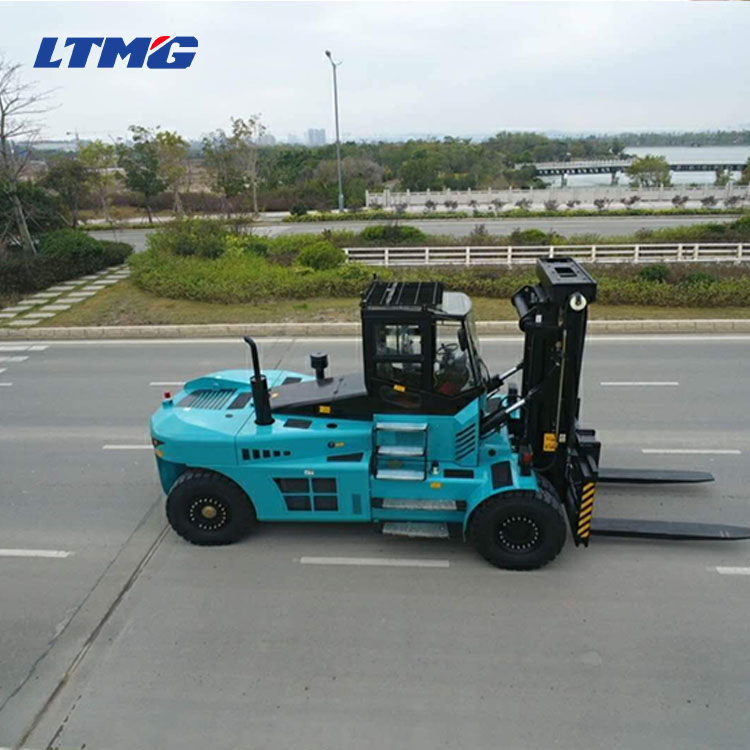

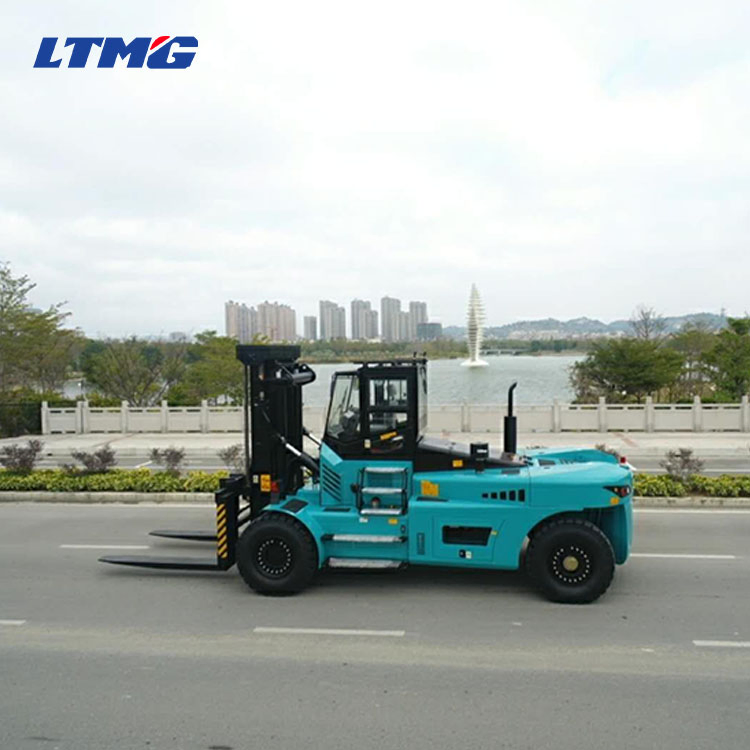

Container Forklift 33 Ton Diesel Forklift for Sale
container forklift 33 Ton diesel forklift with spare parts The specification of 33ton diesel forklift truck mm1200Lift Heightmm4000Fork SizeL×W×Tmm2550×180×150Mast Tilt AngleF/RDeg6°/12°Front Overhang (Wheel center to fork face)mm1200Ground Cle......
Send Inquiry
Product Description
The specification of 33ton diesel forklift truck
| mm | 1200 | |||
| Lift Height | mm | 4000 | ||
| Fork Size | L×W×T | mm | 2550×180×150 | |
| Mast Tilt Angle | F/R | Deg | 6°/12° | |
| Front Overhang (Wheel center to fork face) | mm | 1200 | ||
| Ground Clearance(Bottom of mast) | mm | 250 | ||
| Overall Dimension | Length to face of fork(Without fork) | mm | 9260 | |
| Overall Width | mm | 3050 | ||
| Mast Lowered Height | mm | 4000 | ||
| Overhead Guard Height | mm | 6000 | ||
| Turning Radius (outside) | mm | 6500 | ||
| Speed | Travel (Full load) | km/h | 20 | |
| Lifting(Full load) | mm/s | 300 | ||
| Max.Gradeability (No load/Full load) | % | 20 | ||
| Tire (solid tire) | Front | mm | 14 -25 | |
| Rear | mm | 14-25 | ||
| Wheelbase | mm | 4650 | ||
| Service weight | kg | 42500 | ||
| Battery | Voltage/Capacity | V/Ah | 24V/180Ah | |
| Engine | Model | TAD750VE | ||
| Manufacture | Volvo | |||
| Rated output/r.p.m. | kw | 181/2300 | ||
| Rated torque/r.p.m. | N·m | 1050/1500 | ||
| No.of Cylinder | 6 | |||
| Displacement | cc | 7150 | ||
| Fuel Tank Capacity | L | 420 | ||
| Transmission | Type | Powershift | ||
| Stage | FWD/RVS | 2/2 | ||

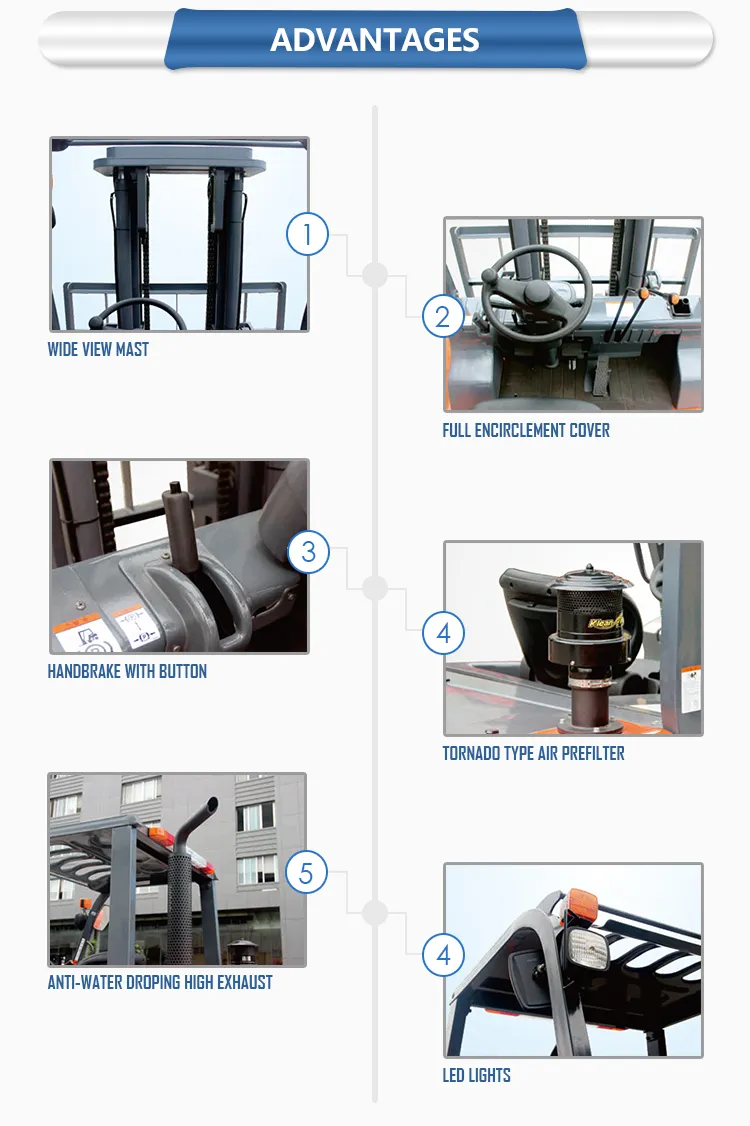

Product Features
1. Adopt Cummins, Weichai, Yuchai turbocharging engine, powerful, energy conservation, environmental protection, satisfies the requirement of high efficiency operation.
2. Use Hangchi, Sanchi planet type hydraulic power shift transmission, big traction in combined operating condition.
3. Adopt double turbine hydraulic torque converter, stepless speed change, single lever control for the speed changing, easier for operation.
4. Variable speed control valve matched with neutral starter, the machine start more secure.
5. Front axle adopt heavy duty type driving axle, enlarge size of axle housing, hub and bearing, spiral bevel gear and wheel planetary wheel deceleration increasing twist, steel structrue bridge shell support, increase the load capacity and service life.

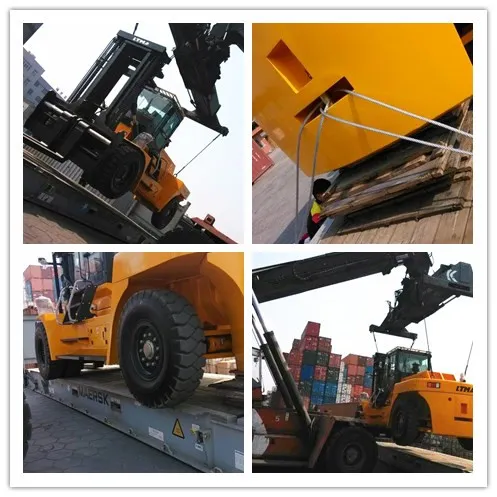

Packing & Shipping

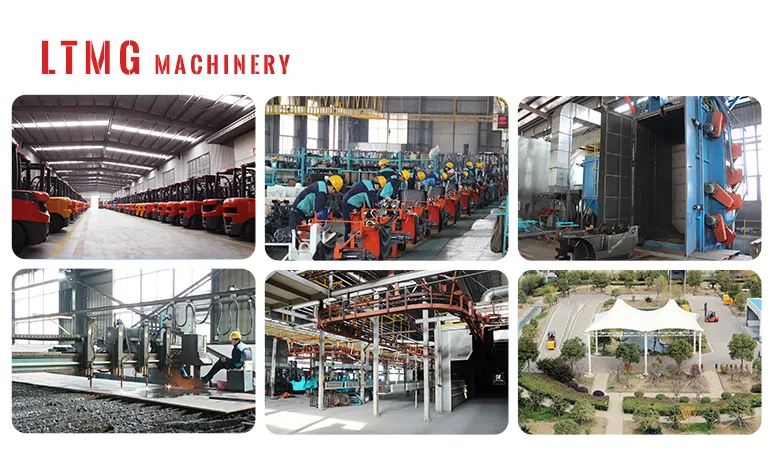

Factory Show
LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors
Customers Show/Application Show
Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.

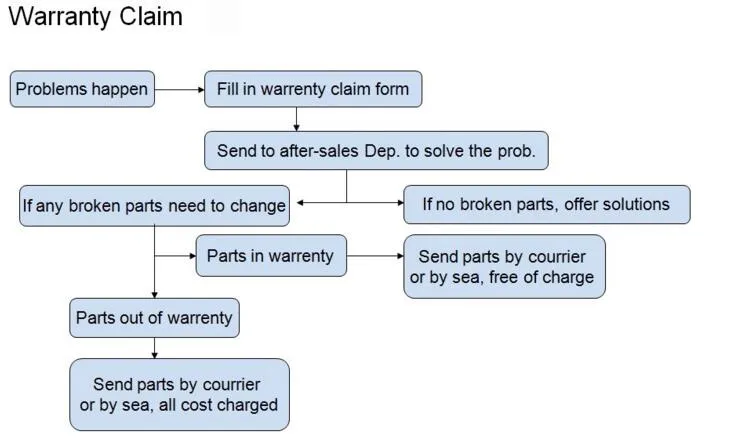

After sales service
Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
