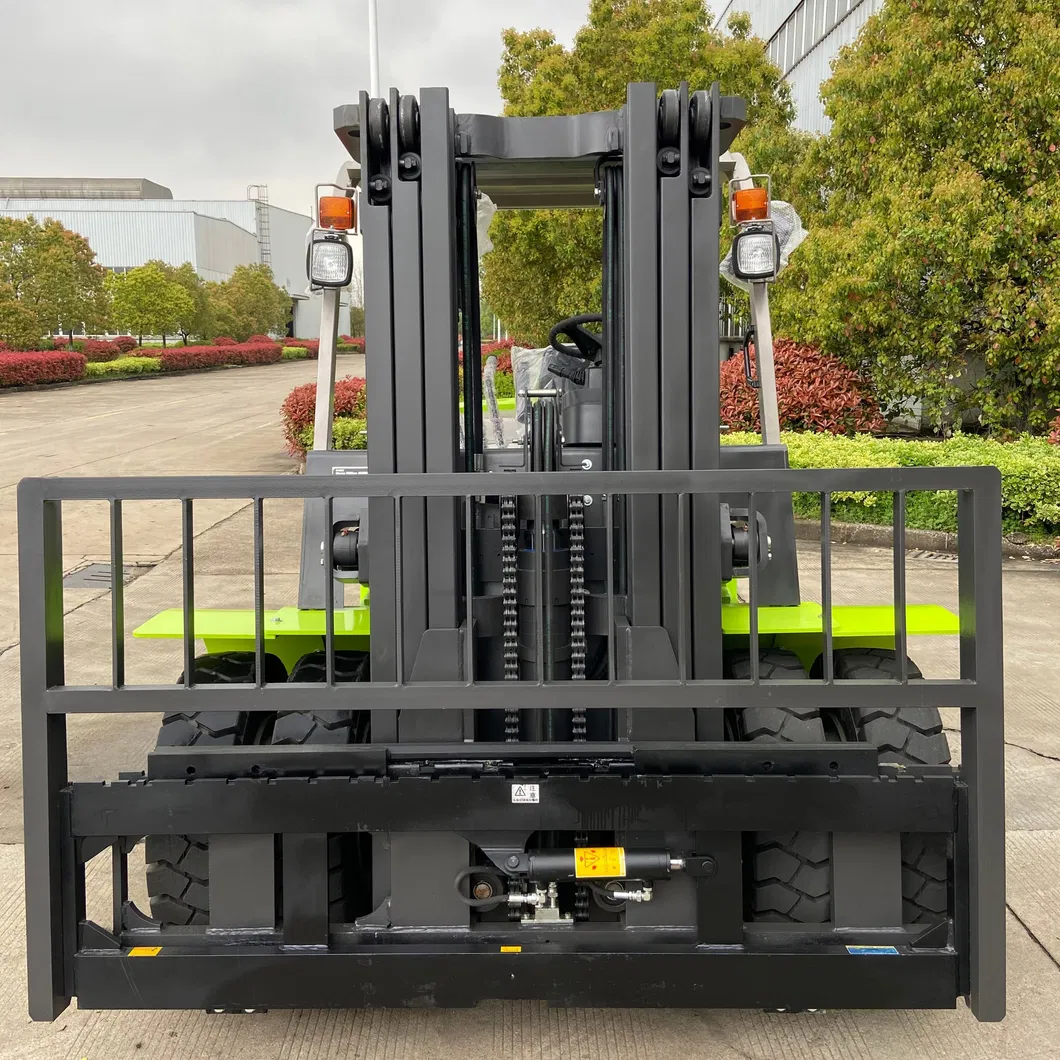

Diesel Forklift Truck From China Forklift Factory
Mini 5 ton diesel forklift machine from ChinaDetails:Japan Mitsubishi Engine;Japan SHIMADZU Hydraulic System(including pumps and valves and oil pipes);Full free 3-stage 3.9m mast;With Side ShifterElectric Hydraulic Automatic Transmission by TCM technology;Lamp protection;Triangle wide view back mirr......
Send Inquiry
Product Description

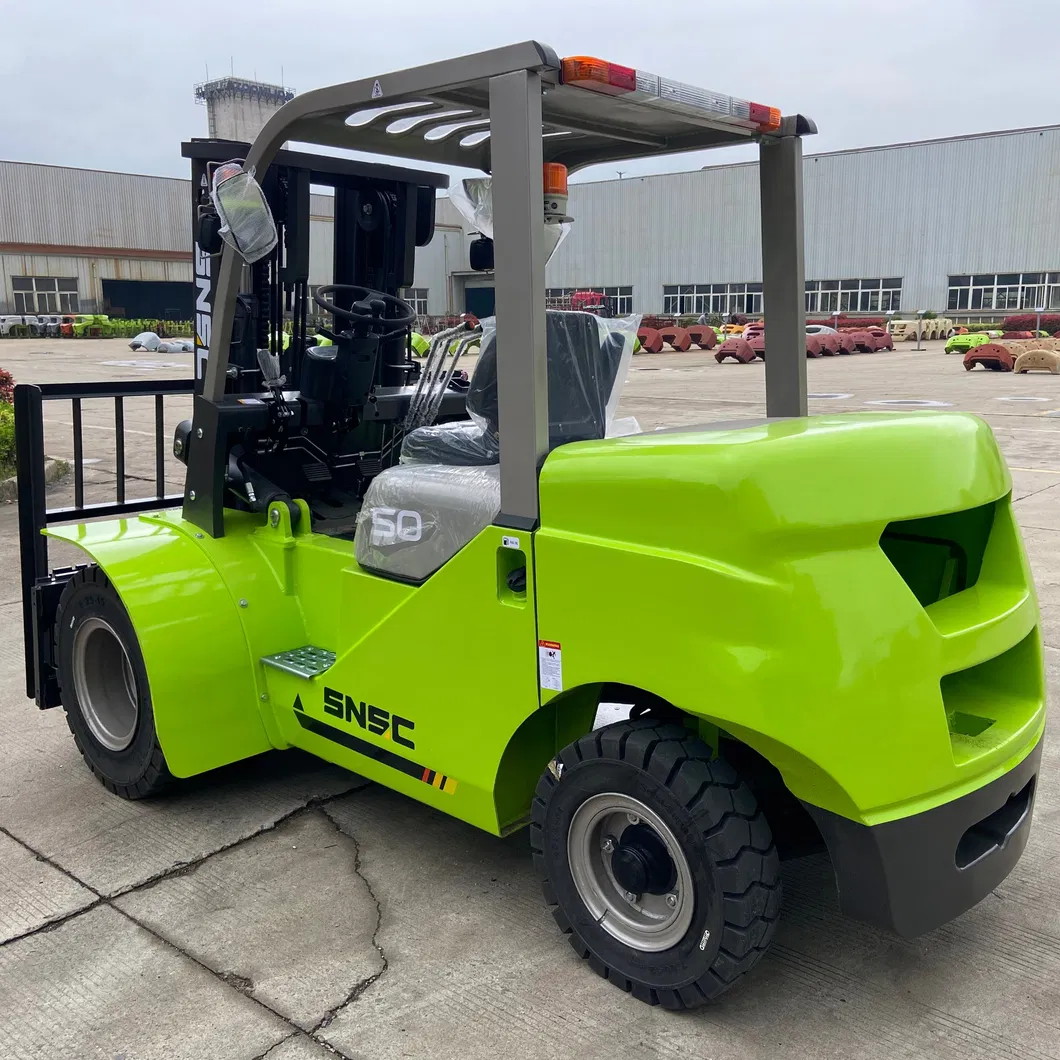

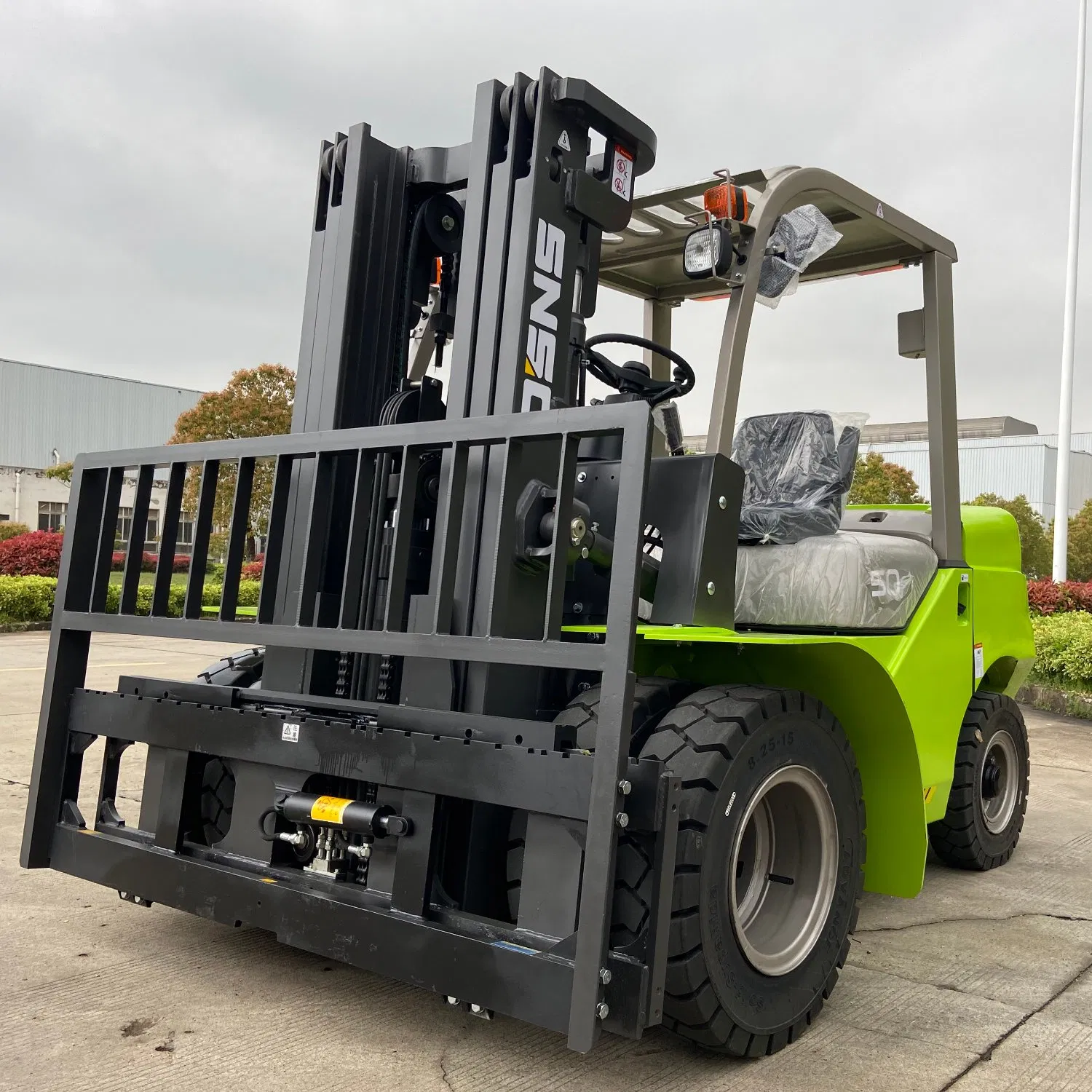

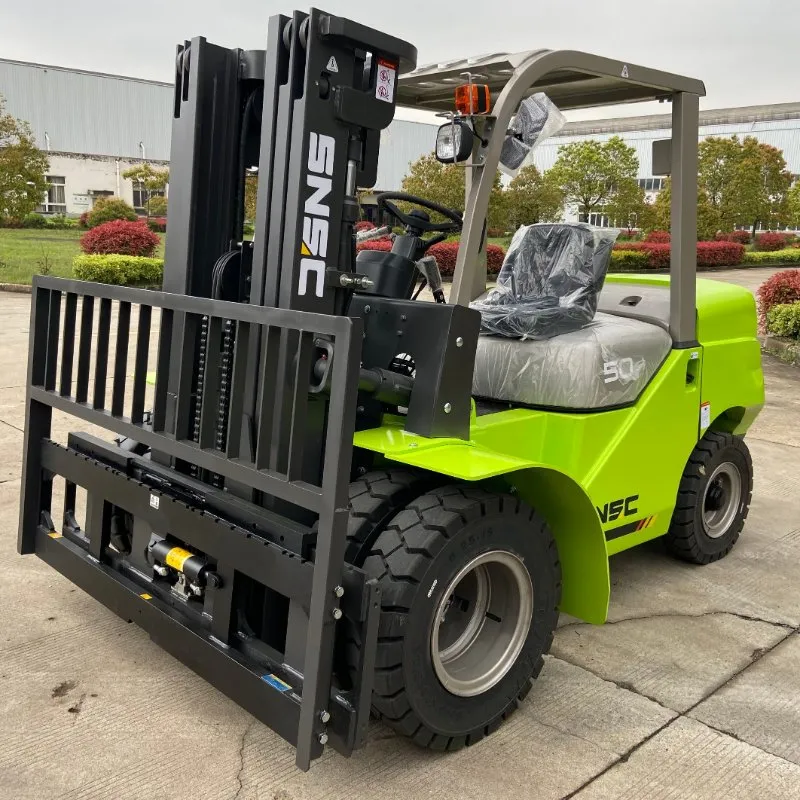

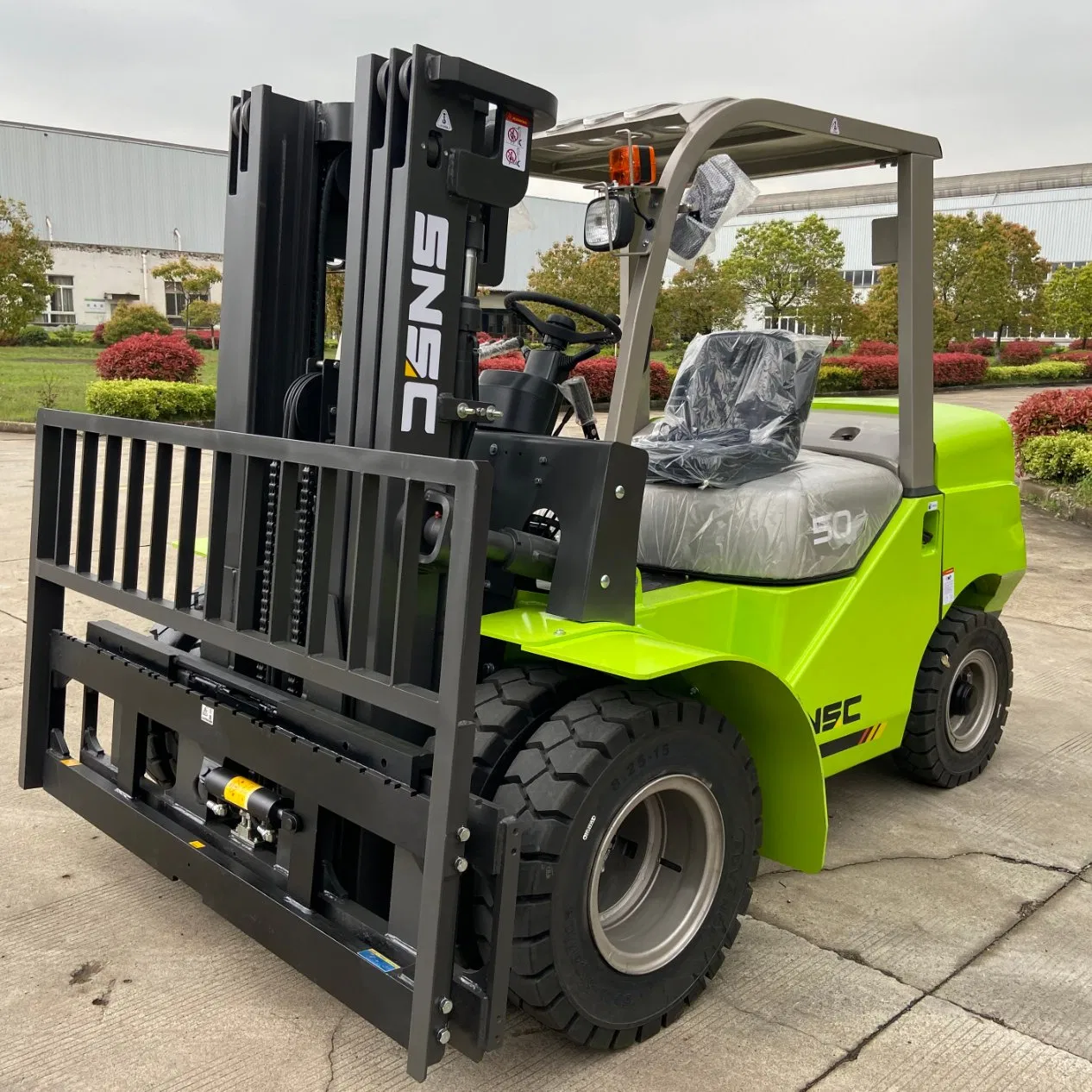

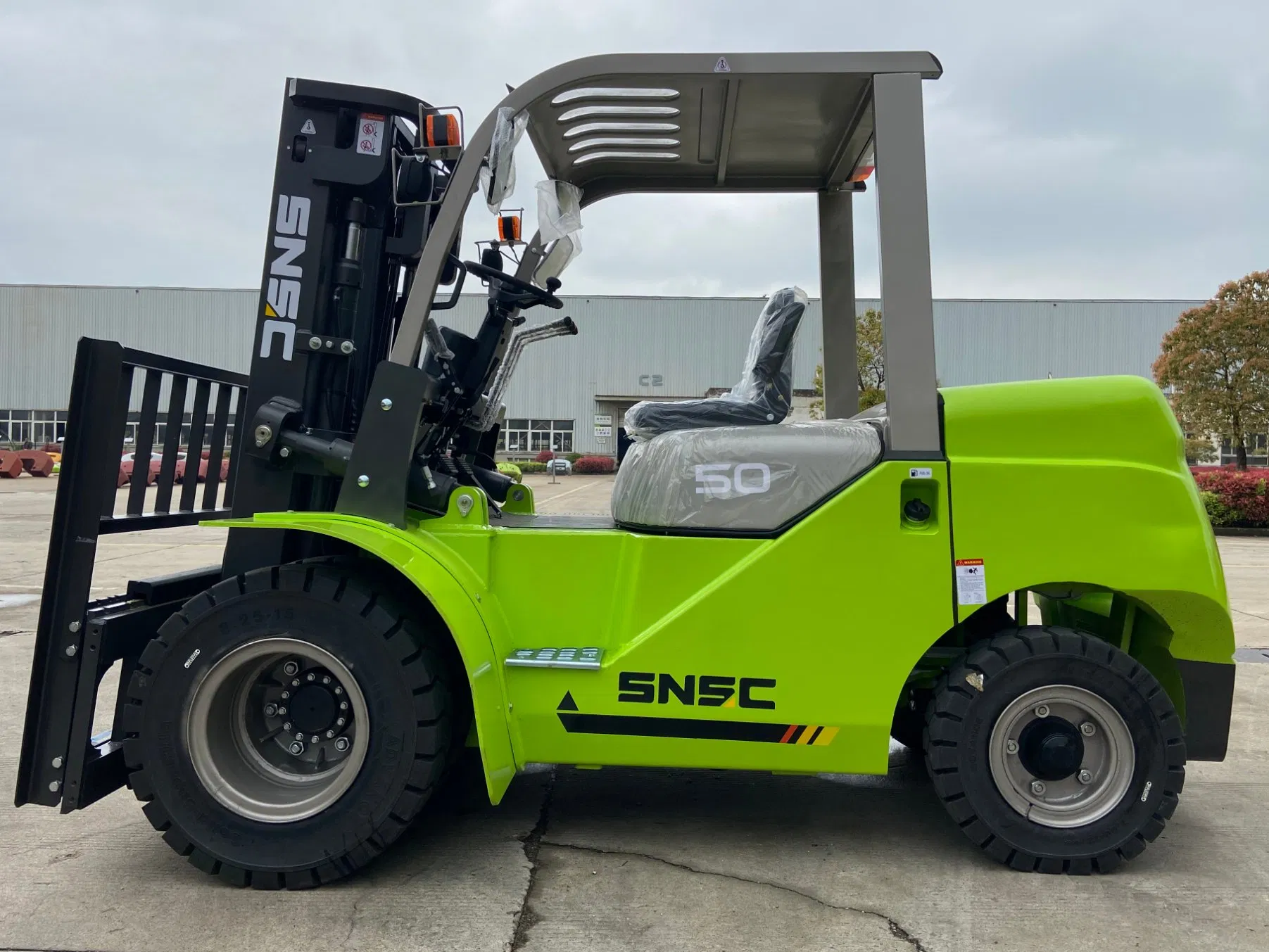

Mini 5 ton diesel forklift machine from China
Details:
Japan Mitsubishi Engine;
Japan SHIMADZU Hydraulic System(including pumps and valves and oil pipes);
Full free 3-stage 3.9m mast;
With Side Shifter
Electric Hydraulic Automatic Transmission by TCM technology;
Lamp protection;
Triangle wide view back mirror;
Waterproof overhead guard;
Backing buzzer and warning light;
Double Front Pneumatic Tires
Common Options:
Solid Tires;
3m-7m duplex or triplex full free mast;
Attachments such as paper roll clamp, block clamp, bale clamp, bucket, etc;
Fully closed cabin with heater or air conditioner;
Side shifter and fork positioner;
Fully suspension luxury seat;
Double filter;
High exhaust;
Customized color except green, red and orange.
Specifications:
| Specifications | Unit | FD50(Mini) | ||
| Features | Power type | Diesel | ||
| Rated load | kg | 5000 | ||
| Load center | mm | 500 | ||
| Lifting height | mm | 3900 | ||
| Free lifting height | mm | 145 | ||
| Fork size | L*W*T | mm | 1070*150*50 | |
| Mast tilt angle | Front/Rear | . | 6/12 | |
| Min. turning radius | mm | 2800 | ||
| Min.ground clearance | Mast | mm | 160 | |
| Overhead guard height | mm | 2350 | ||
| Front overhang | mm | 565 | ||
| Performance | Max. travelling speed | loaded | km/h | 18 |
| Max. lifting speed | loaded/empty | mm/s | 410/430 | |
| Max. traction force | loaded | KN | 22 | |
| Max. climbing ability | % | 20 | ||
| Dimension | Overall length | without fork | mm | 3100 |
| Overall width | mm | 1490 | ||
| Mast lowered height | mm | 2355 | ||
| Mast extended height | mm | 4257 | ||
| Chassis | Tyre | Front | 300-15-18PR | |
| Rear | 7.00-12-12PR | |||
| Wheel base | mm | 2000 | ||
| Wheel thread | Front/Rear | mm | 1180/1190 | |
| Weight(without load) | kg | 6600 | ||
| Powertrain | Battery | V/AH | (12/90)×2 | |

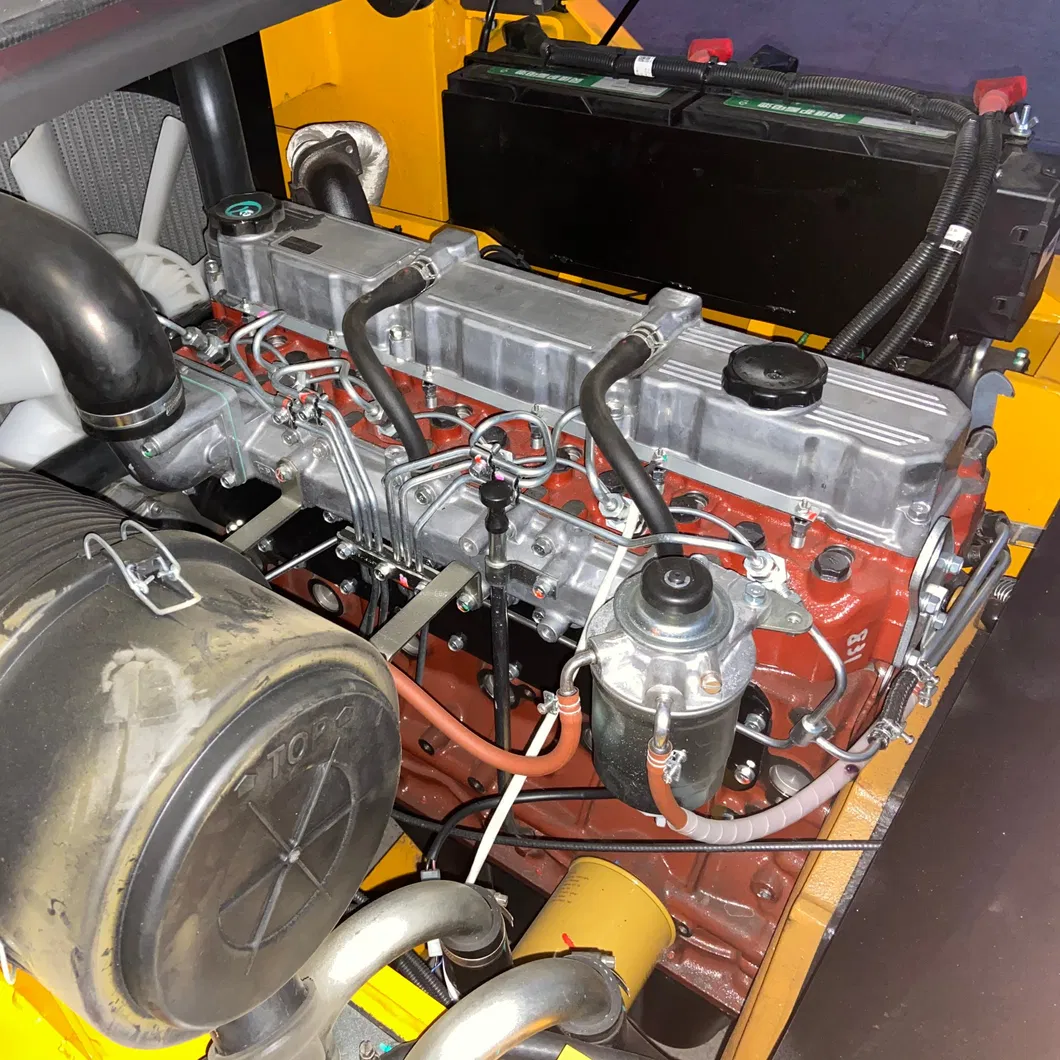

| Engine | Model | QC 4C5/Mitsubishi S6S-228 | ||
| Rated power | km/r.p.m | 60/2200 | ||
| Rated torque | Nm/r.p.m | 300/1600-1800 | ||
| No. cylinder | 4 | |||
| Bore x stroke | mm | 108×135 | ||
| Displacement | L | 4.95 | ||
| Fuel tank capacity | L | 100 | ||
| Transmission/shift | 1/1 automatic transmission | |||
| Operation pressure | Mpa | 18.5 | ||

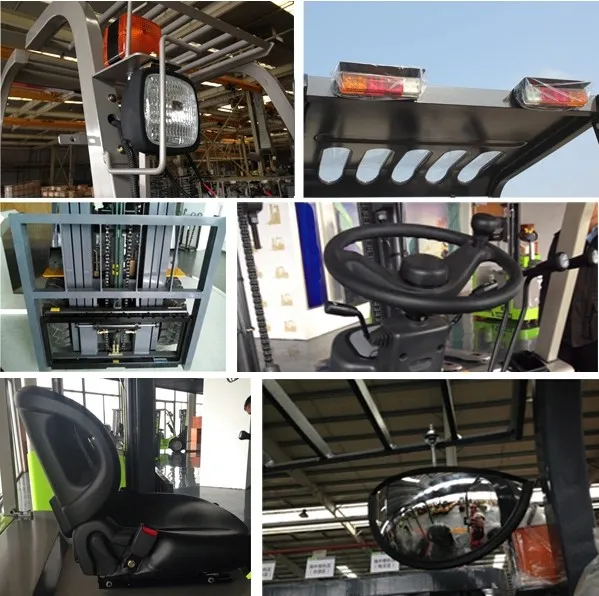

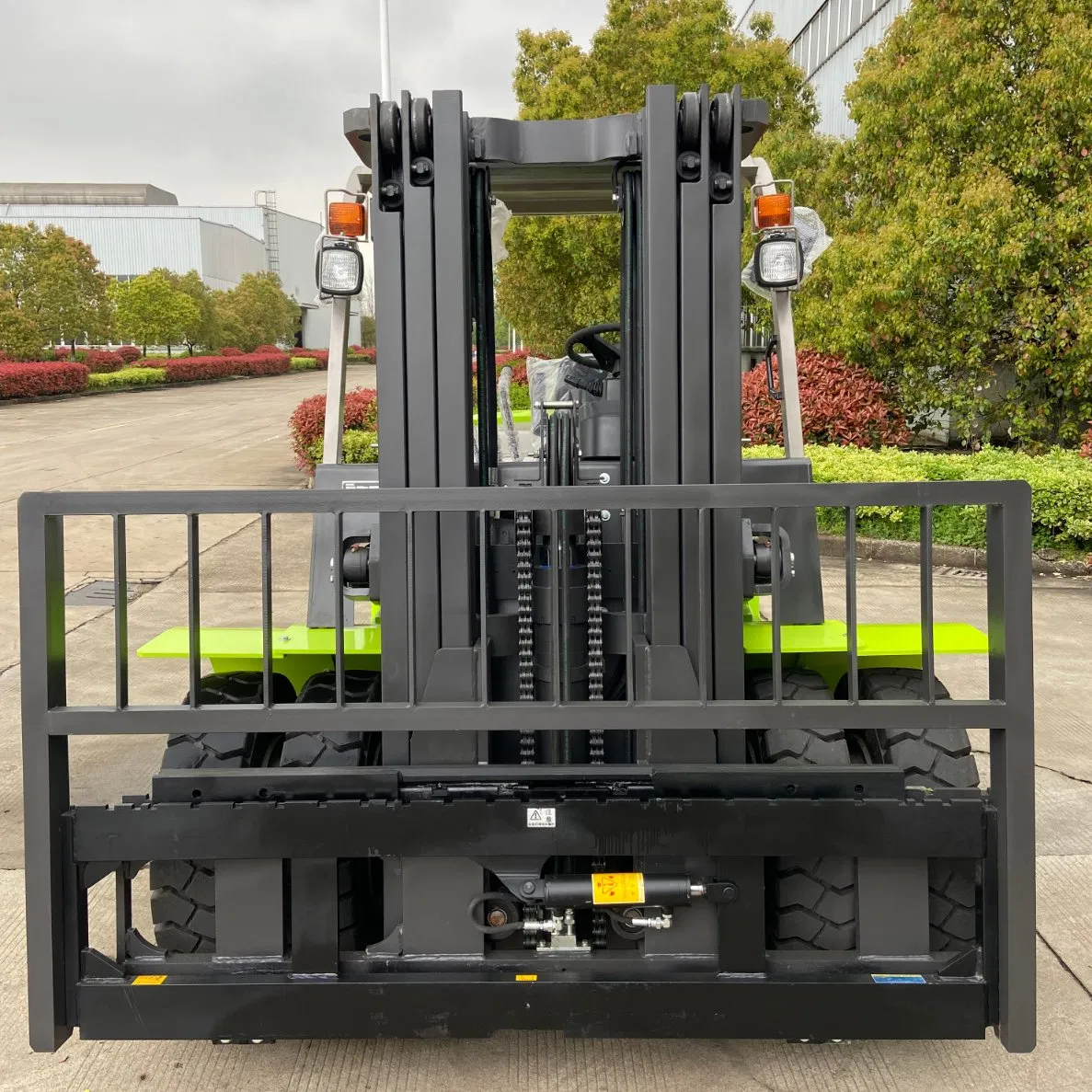

Details of Mini 5Ton Diesel Forklift FD50
5Ton Diesel Forklift Common Optionals:
Side shifter,Double front tires,Solid tire,Double air filter,Vertical exhaust,fork extension,Cab,Fork positioner, duplex/ triplex full free mast

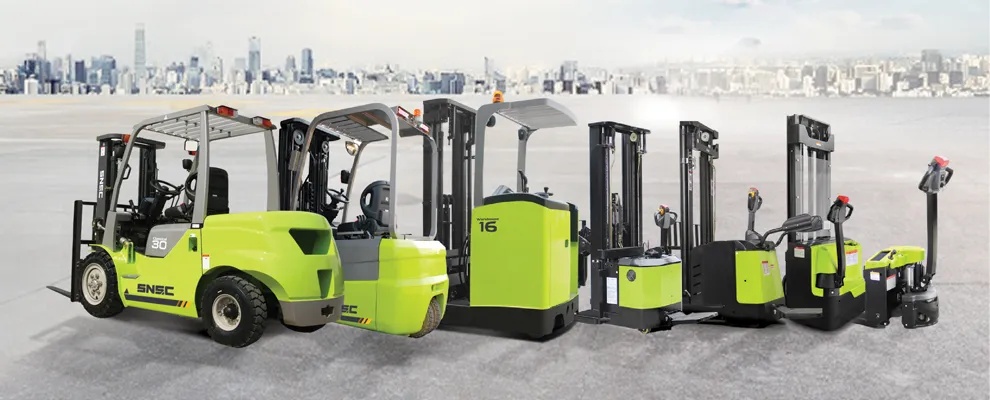

Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).
Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.
We regarde "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."
We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
