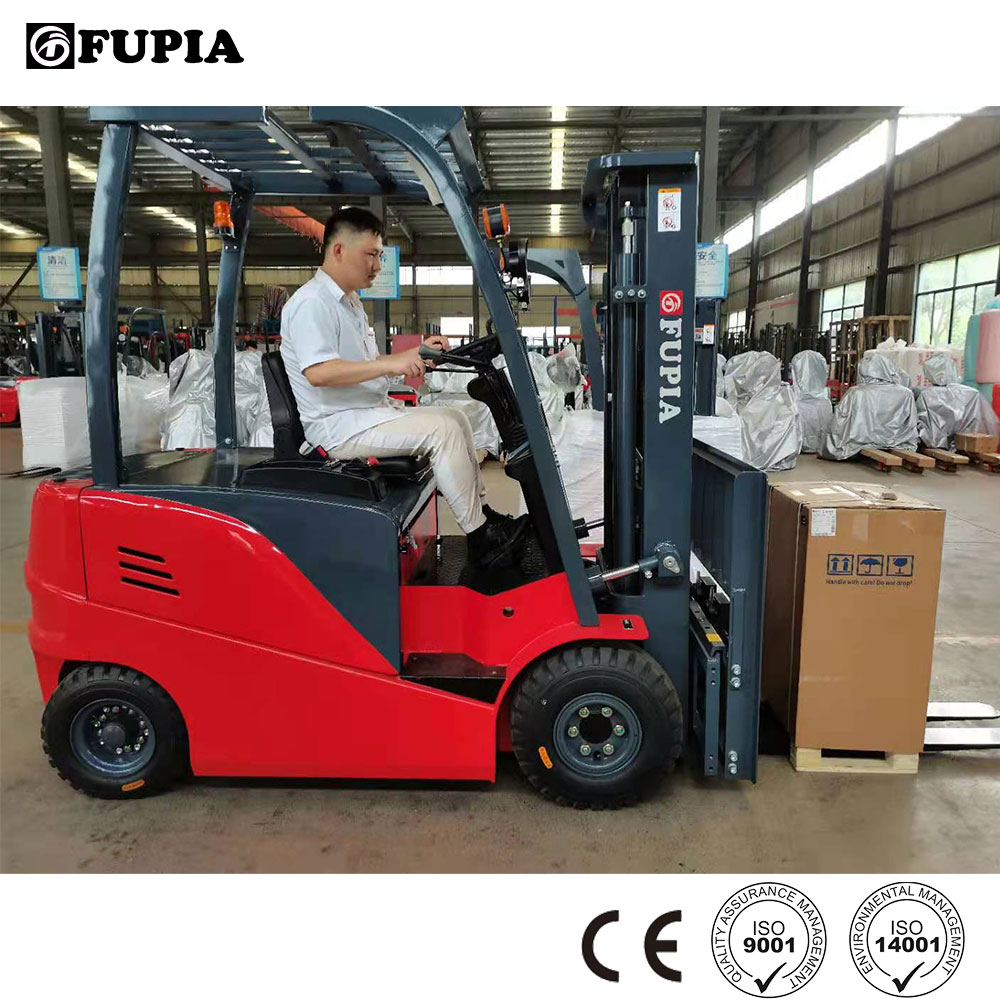

Product DescriptionFUPIA electric forklift with a strong, durable frame, powertrain and brakes, that handles demanding loads with ease. FUPIA Electric models with a zero-emissions ride that is perfect for your toughest warehousing challenges, even in the food and beverage industries. - Fully floatin......

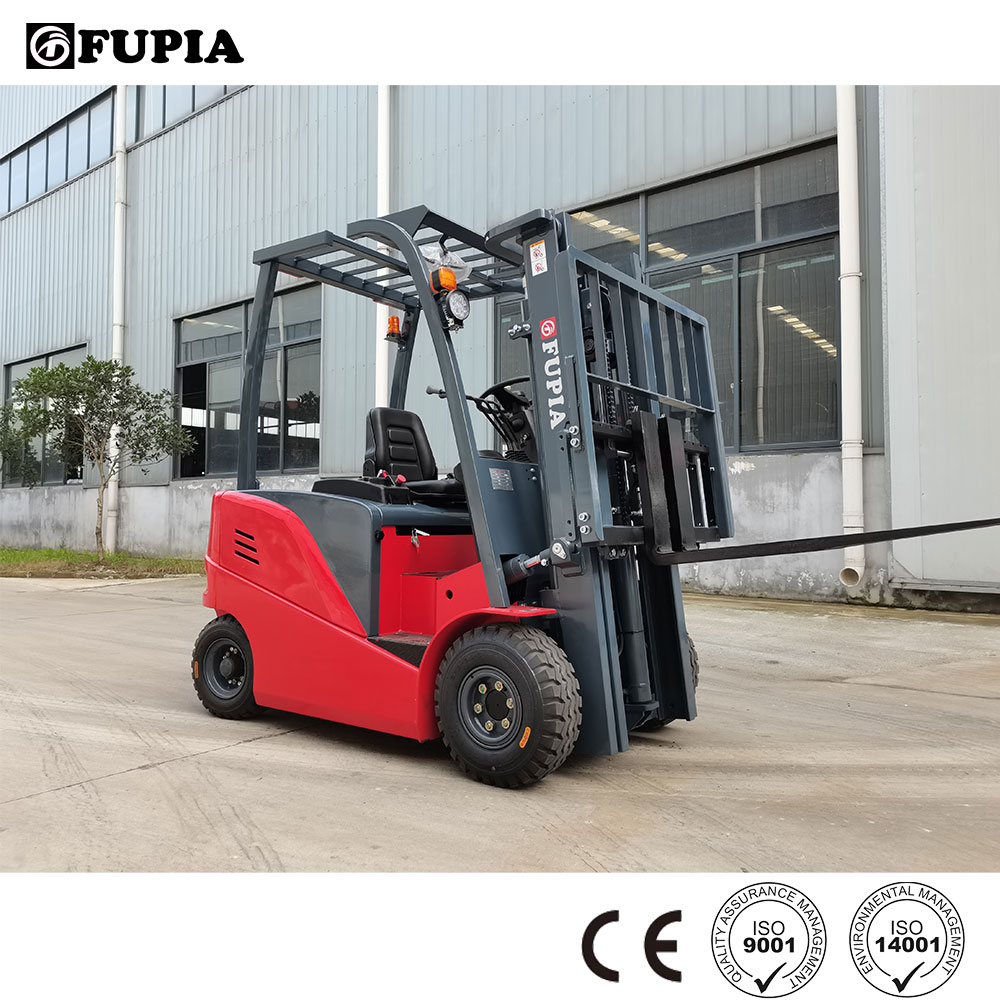

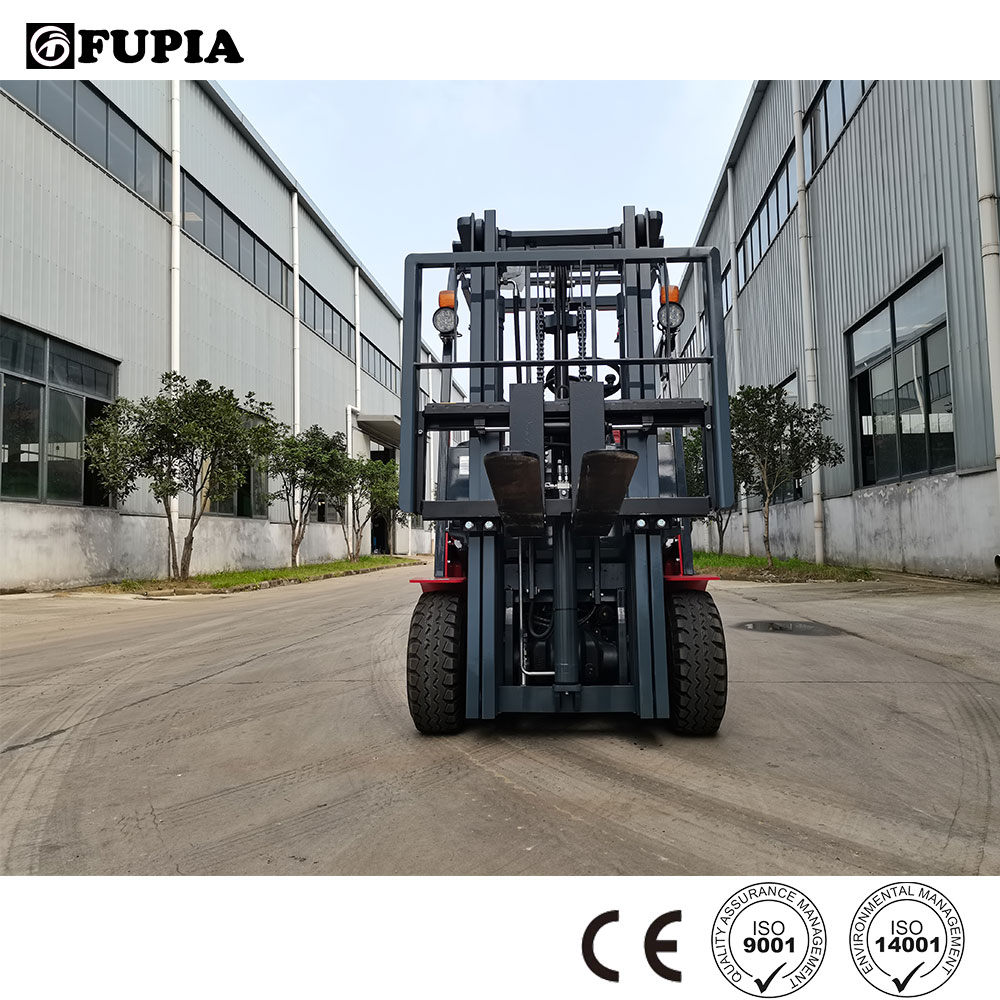

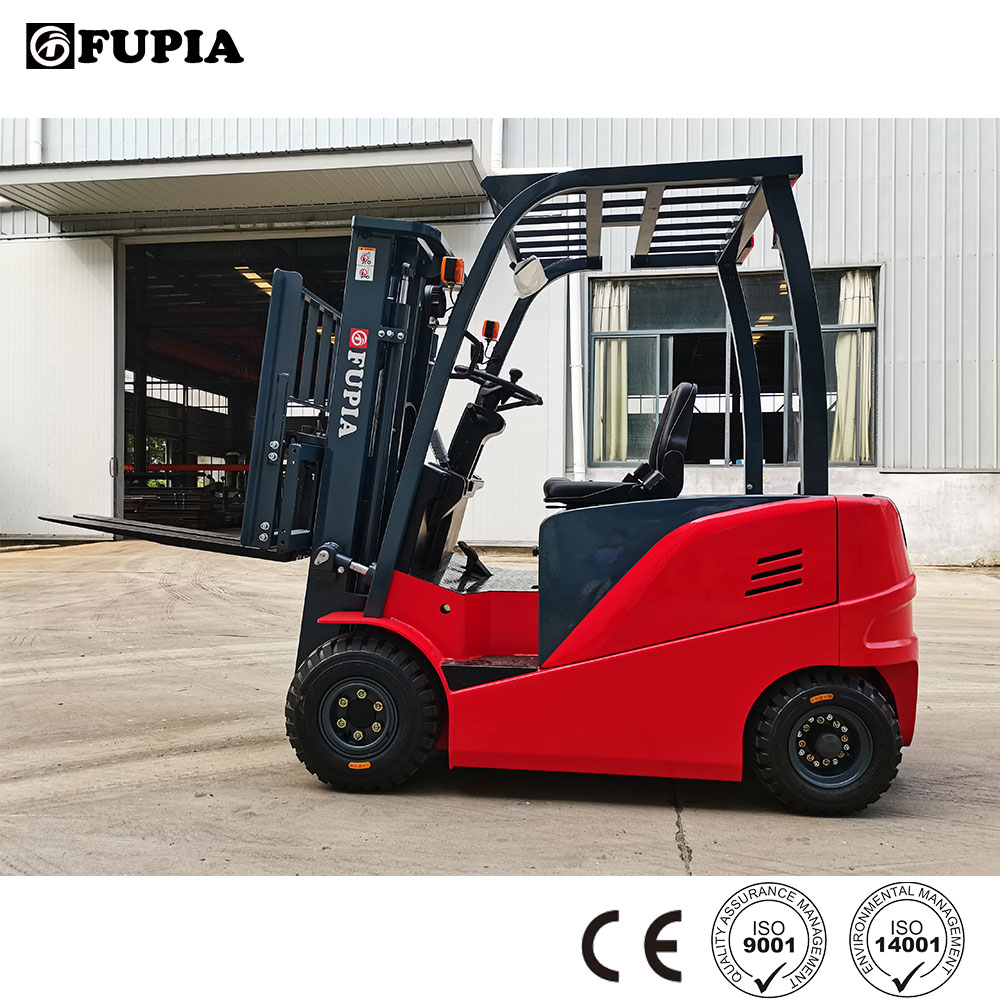

FUPIA electric forklift with a strong, durable frame, powertrain and brakes, that handles demanding loads with ease. FUPIA Electric models with a zero-emissions ride that is perfect for your toughest warehousing challenges, even in the food and beverage industries.
- Fully floating overhead guard to lower the centre of gravity, increases truck stability and residual lifting capacities.
- Robust and durable chassis with full belly guard construction that protects the engine compartment from dust, water and dirt.
- Compact design with small turning radius to give excellent manoeuvre.
- Pedal location enables the operator to pivot from accelerator to brake without lifting the foot or leg, helping to reduce fatigue throughout the entire shift.
- Adopting Italy ZAPI or USA Curtis AC controller with microprocessor control system brings high performance to the operator due to higher motor torque and energy efficiency. Full AC motors ensure enhanced performance and reliability, while Electromagnetic braking offers an advantage in performance, service and total cost of ownership by virtually eliminating brake maintenance.

| 1 | Brand | FUPIA | ||||
| 2 | Model | FB15 | FB20 | FB25 | FB30 | |
| 3 | Power Type | Battery | ||||
| 4 | Rated Load Capacity | Q(kg) | 1500 | 2000 | 2500 | 3000 |
| 5 | Load Centre | C(mm) | 500 | |||
| 6 | Rated Lift Height | H3(mm) | 3000 | |||
| 7 | Free Lift Height | H2(mm) | 135 | |||
| 8 | Fork Size (L×W×T) | mm | 1070×100*35 | 1070×100*40 | 1070×100*45 | |
| 9 | Mast Tilt Angle (F/R, α°/β°) | deg | 6°/10° | |||
| 10 | Length to Face of Fork (Without Fork) | L1(mm) | 2135 | 2340 | 2340 | 2550 |
| 11 | Overall Width | B1(mm) | 1110 | 1160 | 1160 | 1200 |
| 12 | Width of backrest | B3(mm) | 1040 | 1100 | ||
| 13 | Fork Spread | B5(mm) | 222-1000 | 250-1050 | ||
| 14 | Mast Clearance | m1(mm) | 85 | 90 | ||
| 15 | Ground Clearance | mm | 100 | |||
| 16 | Turning Radius | mm | 2000 | 2100 | 2300 | |
| 17 | Drive motor | kw | 6.8 | 9.1 | ||
| 18 | Lift motor | kw | 8.2 | 8.6 | 10 | |
| 19 | Battery | V/AH | 48/400 | 48/490 | 48/560 | 48/630 |
| 20 | Steering system | Powershift | ||||
| 21 | Service weight | KG | 2900 | 3380 | 3820 | 4370 |
