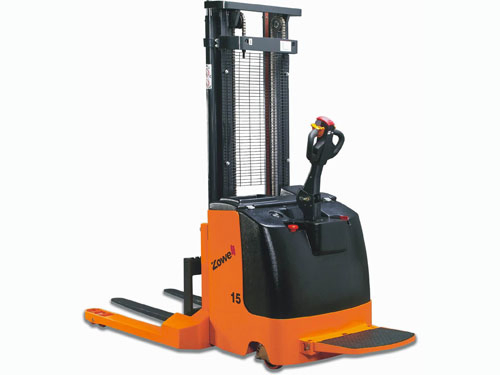

Electric Straddle Stacker XEK1525 (1.5 ton 2.5m)

Product Description

It's able to lift up closed pallet. The dimension is as follows.

ldentification	1	Product model designation		XEK15A	XEK15B
	2	Drive unit		Electric	Electric
	3	Operator type		Standing	Pedestrian
	4	Load capacity	Q kg	1500	1500
	5	Load center	C mm	600	600
	6	Load distance, centre of drive axle to fork back	X mm	490	490
	7	Wheelbase	Y mm	1340	1340
Weight	1	Truck Weight(without battery)	kg	781	761
	2	Axle loading, loaded(front/rear)	kg	911/1620	903/1607
	3	Axle loading, unloaded(front/rear)	kg	690/340	677/334
Wheel	1	Tyres		Polyurethane	Polyurethane
	2	Driven wheels size	mm	Φ 250× 80	Φ 250× 80
	3	Loaded wheels size	mm	Φ 80× 70	Φ 80× 70
	4	Balance wheels size	mm	Φ 125× 50	Φ 125× 50
	5	Wheels number, (front/rear)(x=driven wheels)		1x-2/4	1x-2/4
	6	Tread, front	mm	690	690
	7	Tread, rear		1394/1084	1394/1084
Dimensions	1	Height, mast lowered		1750	1750
	2	Free lift	h2 mm	/	/
	3	Lift height	h3 mm	2500	2500
	4	Maximum height, mast extended	h4 mm	2965	2965
	5	Forks height, lowered	h5 mm	66/40	66/40
	6	Height of tiller in drive position(max/min)	h6 mm	1350/985	1350/985
	7	Overall length	L1 mm	2070/1870	2010/1810
	8	Length to face of forks	L2 mm	925	865
	9	Inside width at the end of leg	b2 mm	1270/960	1270/960
	10	Overall width	b1 mm	1518/1208	1518/1208
	11	Fork dimensions(sheet metal) Fork dimensions(forging)	s/e/l mm	180/66/1150 100/40/950	180/66/1150 100/40/950
	12	Maximum forks width	b3 mm	580, 200-720	580, 200-720
	13	Minimum ground clearance	m mm	30	30
	14	Aisle width for pallets 800× 1200 lengthways	Ast mm	2350	2260
	15	Turning radius	Wa mm	1610	1520
Performance	1	Travel speed loaded/unloaded	km/h	5.2/6	4/5
	2	Lift speed loaded/unloaded	mm/s	90/120	90/120
	3	Lowering speed loaded/unloaded	mm/s	125/80	125/80
	4	Max gradeability loaded/unloaded	%	5/8	5/8
	5	Service brake		Electromagnetic brake	Electromagnetic brake
Electric Motor	1	Drive motor rating	kw	1.2	1.2
	2	Lift motor rating	kw	2.2	2.2
	3	Battery voltage/capacity	V/Ah	24/210(210-270)	24/210(210-270)
	4	Battery weight	kg	250	250
Others	1	Control unit type		MOSFET control	MOSFET control
Others	2	Sound level	dB(A)	< 70	< 70
