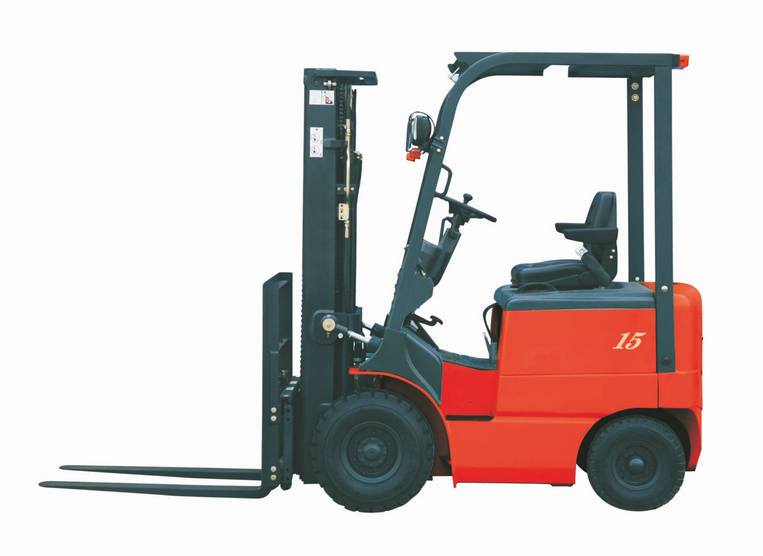

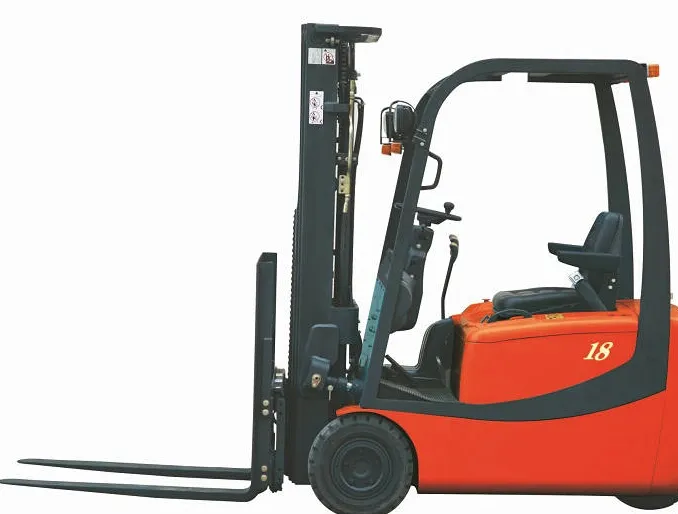

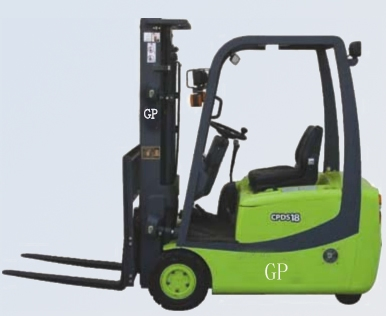

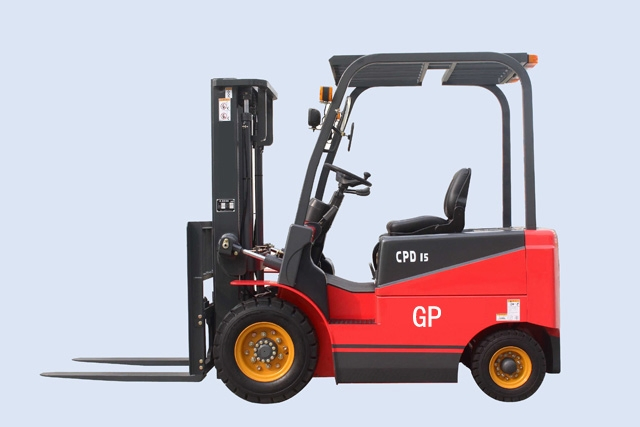

Excellent 2t Electric Battery Forklift Truck Battery Operation Electric Forklift Full AC Power, 48V/560ah, Fork Length 920mm , Solid Tire
ModelTK10A-30TK15A-30TK16-30TK18-30TK20-30Load capacity (kg)10001500160018002000Load center (mm)500500500500500Lifting height (mm)30003000300030003000Fork size(mm)920*100*35920*100*35920*100*35920*100*35920*100*35Mast tilt (forth/back)2o/5o2o/5o2o/5o2o/5o2o/5oMast height(mm)21552155215521552155Max l......
Send Inquiry
Product Description
| Model | TK10A-30 | TK15A-30 | TK16-30 | TK18-30 | TK20-30 | |
| Load capacity (kg) | 1000 | 1500 | 1600 | 1800 | 2000 | |
| Load center (mm) | 500 | 500 | 500 | 500 | 500 | |
| Lifting height (mm) | 3000 | 3000 | 3000 | 3000 | 3000 | |
| Fork size(mm) | 920*100*35 | 920*100*35 | 920*100*35 | 920*100*35 | 920*100*35 | |
| Mast tilt (forth/back) | 2o/5o | 2o/5o | 2o/5o | 2o/5o | 2o/5o | |
| Mast height(mm) | 2155 | 2155 | 2155 | 2155 | 2155 | |
| Max lift mast height (mm) | 3738 | 3738 | 3738 | 3738 | 3738 | |
| Overhead guard height(mm) | 1980 | 1965 | 1945 | 1925 | 1900 | |
| Height between the seat and the ground (mm) | 930 | 920 | 910 | 900 | 900 | |
| Overall length(include forks)mm | 2320 | 2420 | 2420 | 2520 | 2520 | |
| Overall width (mm) | 850 | 960 | 1050 | 1070 | 1200 | |
| Wheelbase (adjustable)( mm) | 869-949 | 947-1027 | 967*1137 | 1020*1295 | 1020*1295 | |
| Gap between the truck and the ground (mm) | 90 | 90 | 90 | 90 | 90 | |
| Turning radius( mm) | 1167 | 1236 | 1346 | 1456 | 1576 | |
| Steering type | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
| Driving speed(load/unload()km/h) | 6.3/8.3 | 6.0/8.0 | 5.7/7.7 | 5.4/7.4 | 5/7 | |
| Gradeability( %) | 8 | 8 | 8 | 8 | 8 | |
| Service brake | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
| Parking brake | mechanical | mechanical | mechanical | mechanical | mechanical | |
| Battery 24V | D-360 | D-420 | D-490 | D-550 | D-610 | |
| Weight(including battery)(kg) | 2278 | 2485 | 2578 | 26485 | 2778 | |
| Driving motor (kw) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | |
| Lifting motor( kw) | 3 | 3 | ||||
| Front wheel size *2pc | 305×127×203.2 | 305×140×203.2 | 305×153×203.2 | 305×170×203.2 | 305×183×203.2 | |
| Rear wheel size *1pc | 267×140 | 267×140 | 267×140 | 267×140 | 267×140 | |
- Easy to drive and simplicity are key elements you are looking for the counterbalanced trucks in the TAK series fit your needs.
3. Incline safe lock, Oil duct security trip valve
