Flt20b Gp 2.5t 3.5t 115mm 205mm Walkie Type Battery Operated Pallet Truck/Jack with CE/ISO

Feature
Model:FLT30B
Configuration No.56/68
Load capacity:3000kg
Load center:600mm
Wheel base:1435mm
Operating type:Walking
Wheels

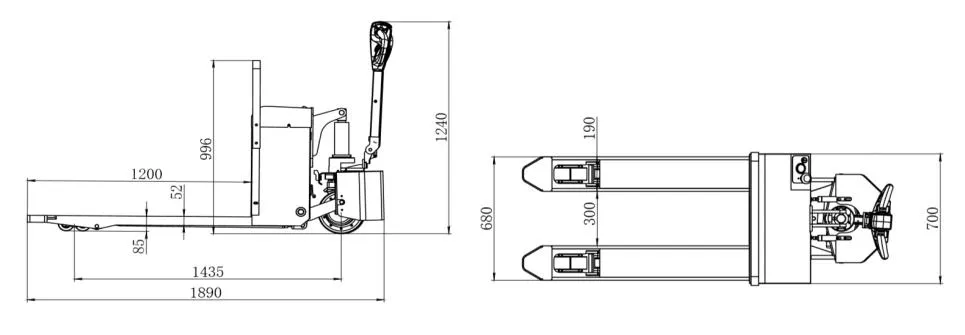

Dimension
Min.fork lowered height:85mm

Max.fork lifting height200mm
Max.lifting height:120mm
Overall fork width:680mm(customizable)
Inside width between forks:300mm(customizable)
Fork length:1200(customizable)
Fork width:190mm
Fork thickness:52mm
Overall length(With /Without handle)
Overall width:700mm
Overall height(With handle):1240mm
Overall height(Without handle):996mm
Min.Turning radius:1750mm
Min.Aisle width for pallets 800×1200:2198mm
Min.Aisle width for pallets 1000×1200:1978mm
 Performance
Travel speed,laden/unladen:5.6km/h(customizable)
Lift speed,laden/unladen:15/18mm/s
Lowering speed,laden/unladen:25/20mm/s
Gradeability,laden/unladen:14/32%
 Electrical configuration
Drive motor:AC 1.5KW
Lift motor :DC 1.0KW
Battery voltage / capacity:24V/135Ah(maintenance-free battery)(custom aluminum battery)
Weight
Battery weight :26.5kg
Service weight with battery :380kg
