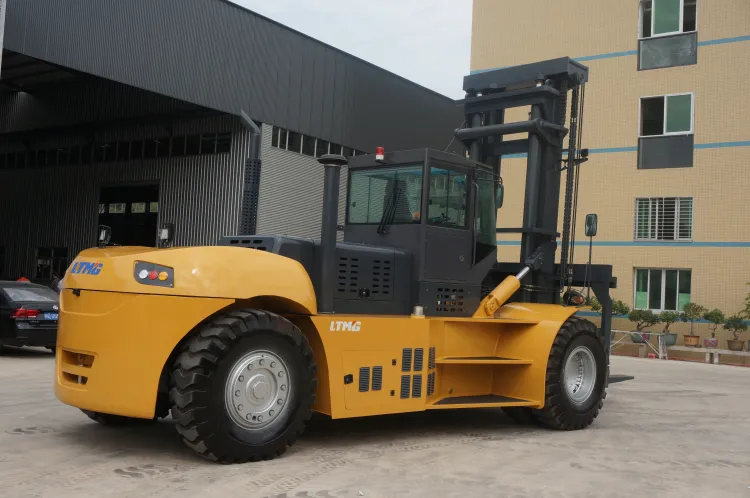

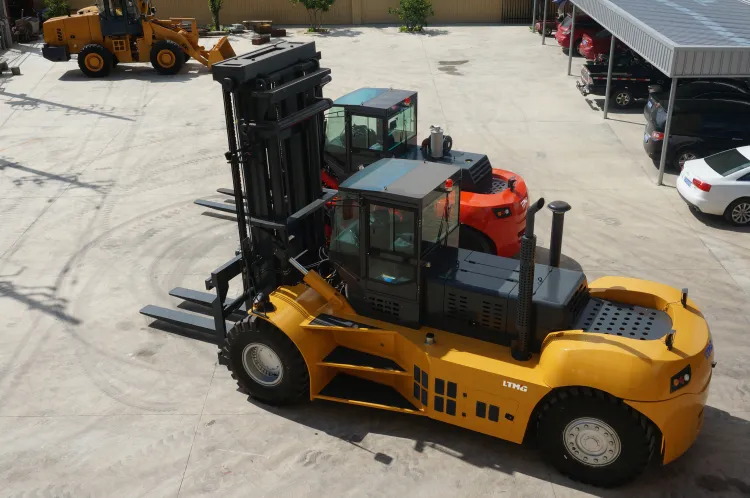

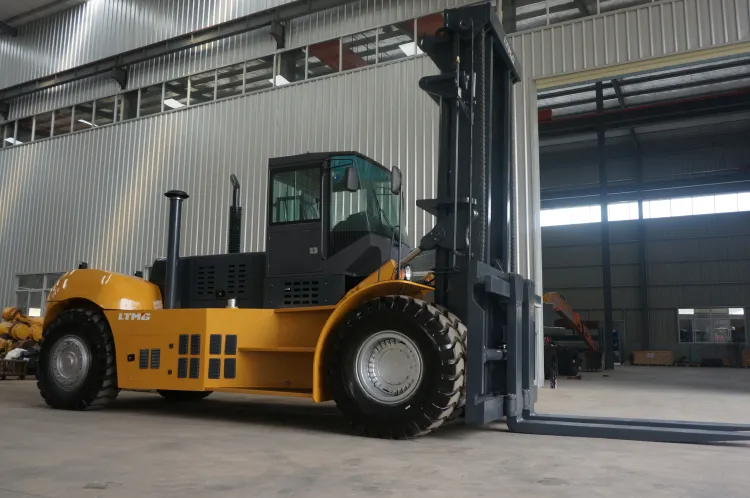

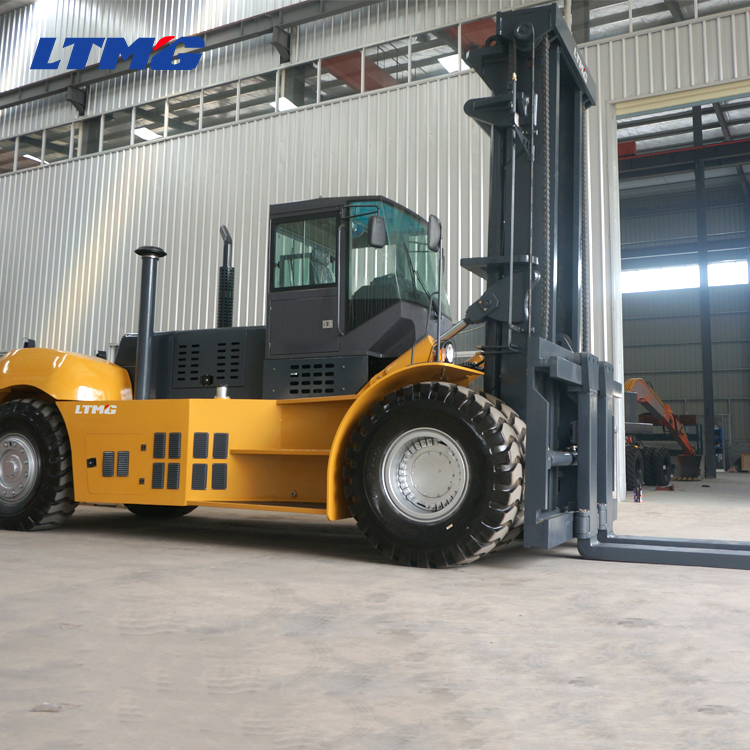

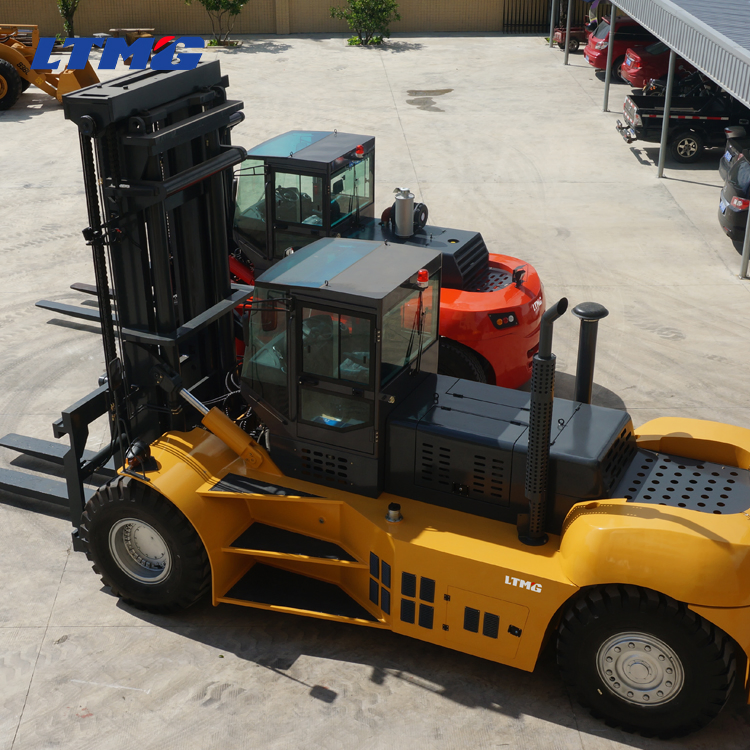

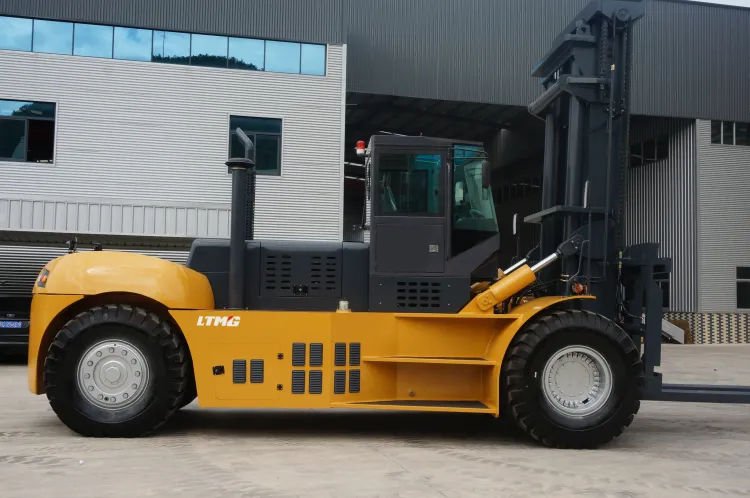

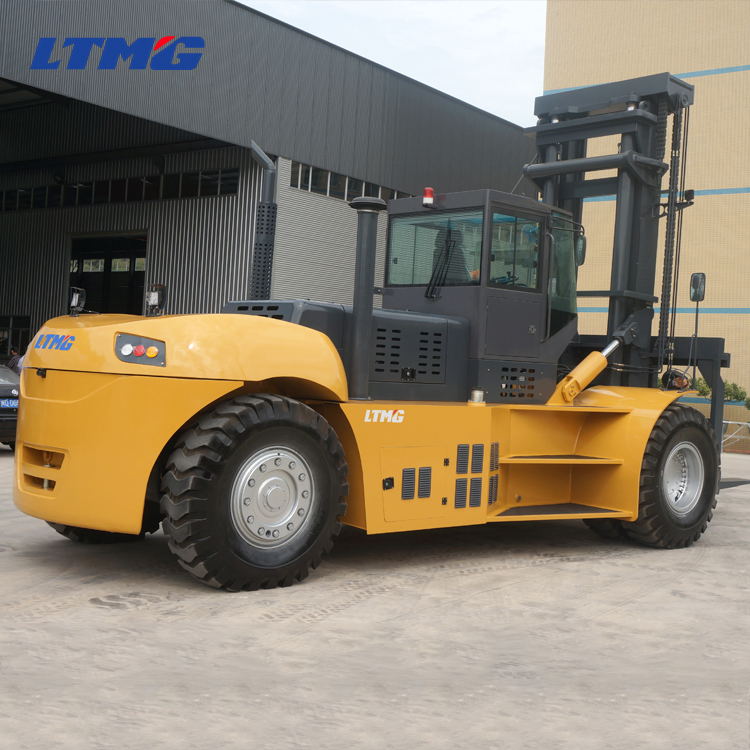

Forklift 30 Ton Chinese Container Handling Forklift 30t 32t Heavy Forklift
Product specification The specification of LTMG 30 ton heavy duty diesel forklift truckItem FD300 FeaturesRated LoadQ(Kg)30000Load Centerc(mm)1220Wheelbasey(mm)4400WeightWeightkg 38000ChassisTire Specs:Front 14.00-24Tire Specs:Rear 14.00-24Tires Qty,front/rear(X-dreve wheels) 4/2Wheel tr......
Send Inquiry
Product Description
| The specification of LTMG 30 ton heavy duty diesel forklift truck | |||
| Item | FD300 | ||
| Features | Rated Load | Q(Kg) | 30000 |
| Load Center | c(mm) | 1220 | |
| Wheelbase | y(mm) | 4400 | |
| Weight | Weight | kg | 38000 |
| Chassis | Tire Specs:Front | 14.00-24 | |
| Tire Specs:Rear | 14.00-24 | ||
| Tires Qty,front/rear(X-dreve wheels) | 4/2 | ||
| Wheel tread:Front | b3(mm) | 2220 | |
| Wheel tread:Rear | b4(mm) | 2300 | |
| Dimensions | Mast/carriage tilt angle(front/rear) | Degree(°) | 6/12 |
| Mast height(fork lowering) | h1(mm) | 3970 | |
| Mast lifting height | h2(mm) | 4000 | |
| Max.height | h3(mm) | 5940 | |
| height to head guard(height to cab) | h4(mm) | 3440 | |
| Overall height(with forks) | L3(mm) | 8950 | |
| Fork front verticaal sueface to the rear end of the vehicle | L2(mm) | 6550 | |
| Overall width | b1(mm) | 3060 | |
| Fork dimension | (mm) | 2400*320*110 | |
| Fork carriage width | b2(mm) | 3000 | |
| Mast min ground(with load) | m1(mm) | 350 | |
| Wheelbase center min ground(with load) | m2(mm) | 420 | |
| Min.turning Radius | Wa(mm) | 6160 | |
| Travel speed(with load/without load) | km/h | 24/28 | |
| Performance | Max.lifting speed(with load/without load) | mm/s | 260/280 |
| tractionn | KN | 180 | |
| gradeability(with load/without load) | % | 20/22 | |
| Driving brake | Hydraulic clamp disvc | ||
| Engine | Engine brand/model | Optional one | WeiChai Engine |
| WD10G240E | |||
| Optional two | Dongfeng cummins | ||
| Rated Output | 178(Kw) | ||
| Cylinder No | 6 | ||
| Others | Transmission gears(Front/rear) | 2/1 | |

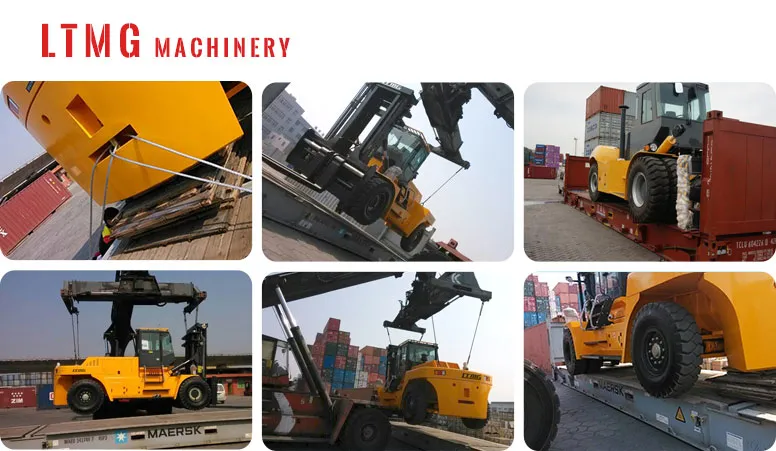

Packing &shipping

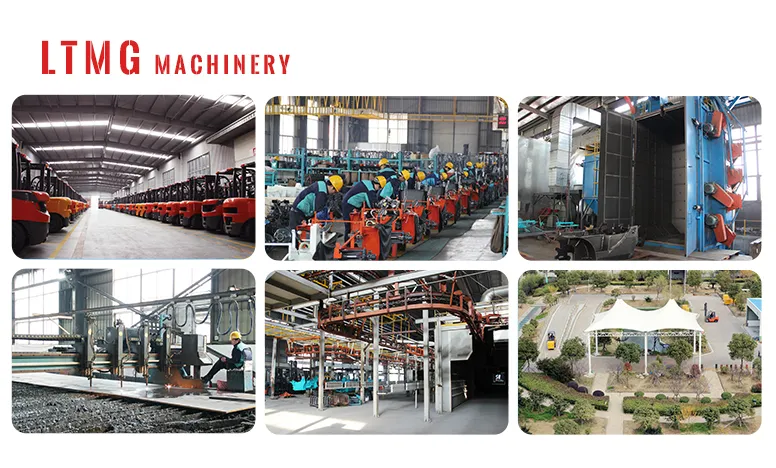

Our Factory
Exhibitions and Clients

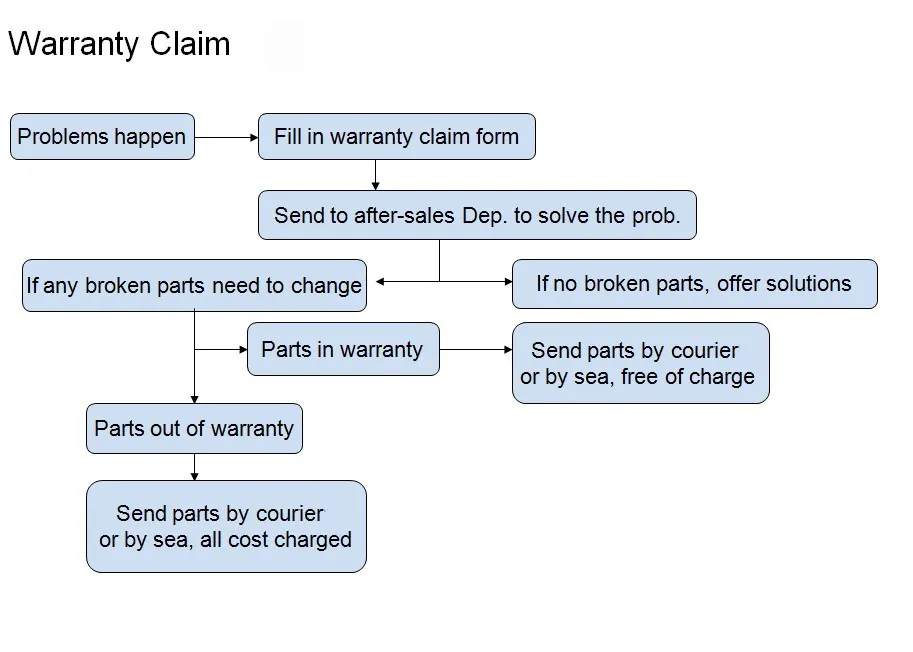

After-sale service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
FAQ
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
