Four Wheel Mini Warehouse 4000kg Diesel Forklift Truck

Product Description

Feature:
High quality
-- Reasonable layout of hose and hard pipe, reduce oil pressure loss;
-- The mature and reliable engine provides plenty of power;
-- The super large capacity aluminum tube belt radiator and optimized heat dissipation channel further improve the heat dissipation capacity of the vehicle;
-- The enhanced transmission system has stronger shock resistance and bump resistance.
High security
-- Wide vision mast provides a good front view, accurate disassembly of goods. The grille roof guard provides good upper visual field for drivers;
-- Standardized LED lamp, high brightness, long life, energy saving and environmental protection.
High comfort

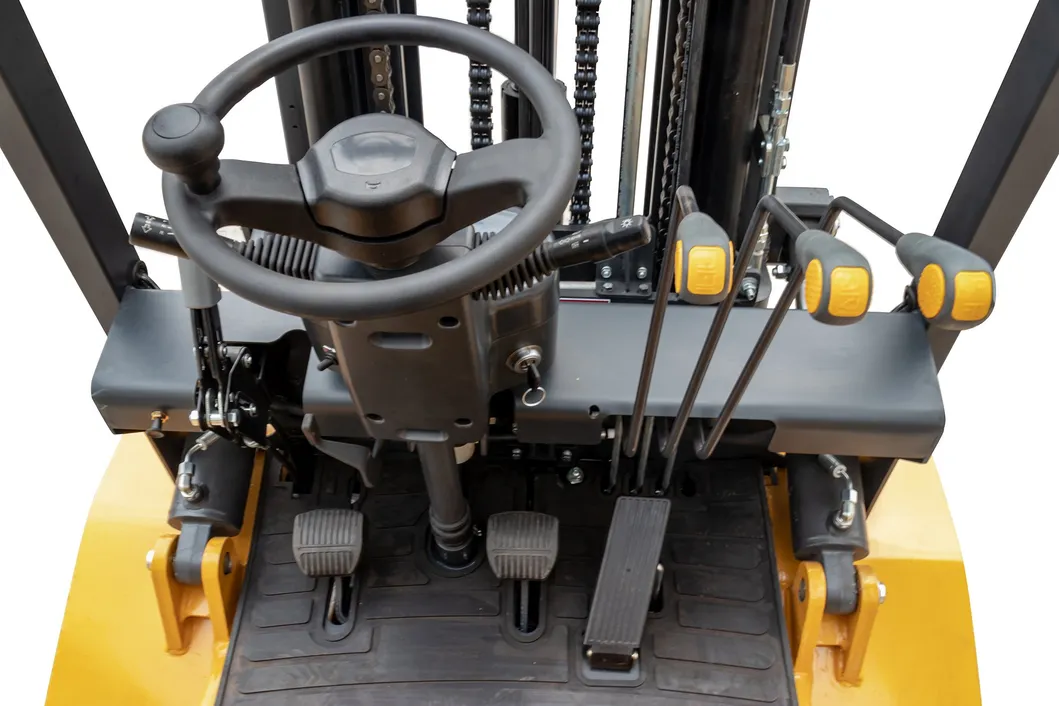

-- Standard small diameter steering wheel, light control, reduce driver fatigue;
-- The combined color instrument has strong human- -machine interaction and timely and accurately feedback the running state of vehicles;

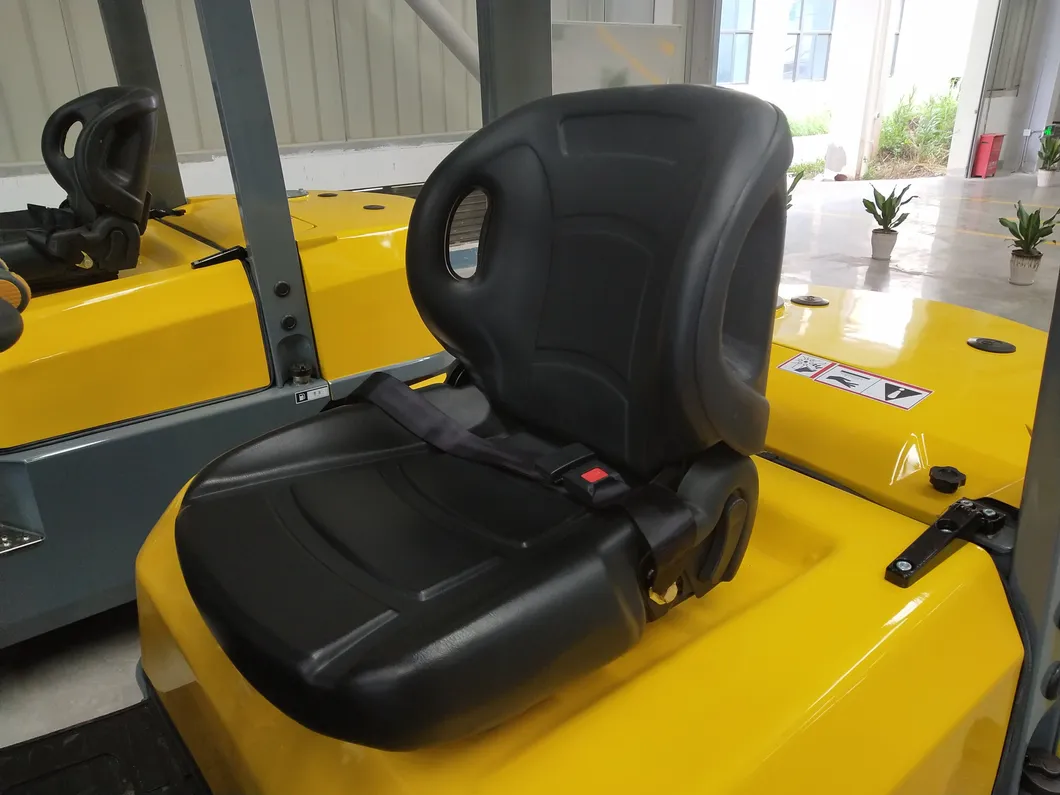

-- Spacious control space, comfortable seats, enjoy the pleasure of riding.
Rich options
-- high exhaust device, air prefilter, fireproof cap, solid tire, two stage free lift mast, three stage free lift mast, widening fork frame, fork sleeve, side shifter, paper roll clamp, bale clamp, carton clamp, block clamp, rotators, drum clamp, push-pull, etc.
Four Wheel Mini Warehouse 4000kg Diesel Forklift Truck

Four Wheel Mini Warehouse 4000kg Diesel Forklift Truck

Specification

Model			UNIT	FD40T
Specifications	Power Unit			Diesel
	Operator Type			Driver/Seat
	Transimission Box Type			Automatic Transimission

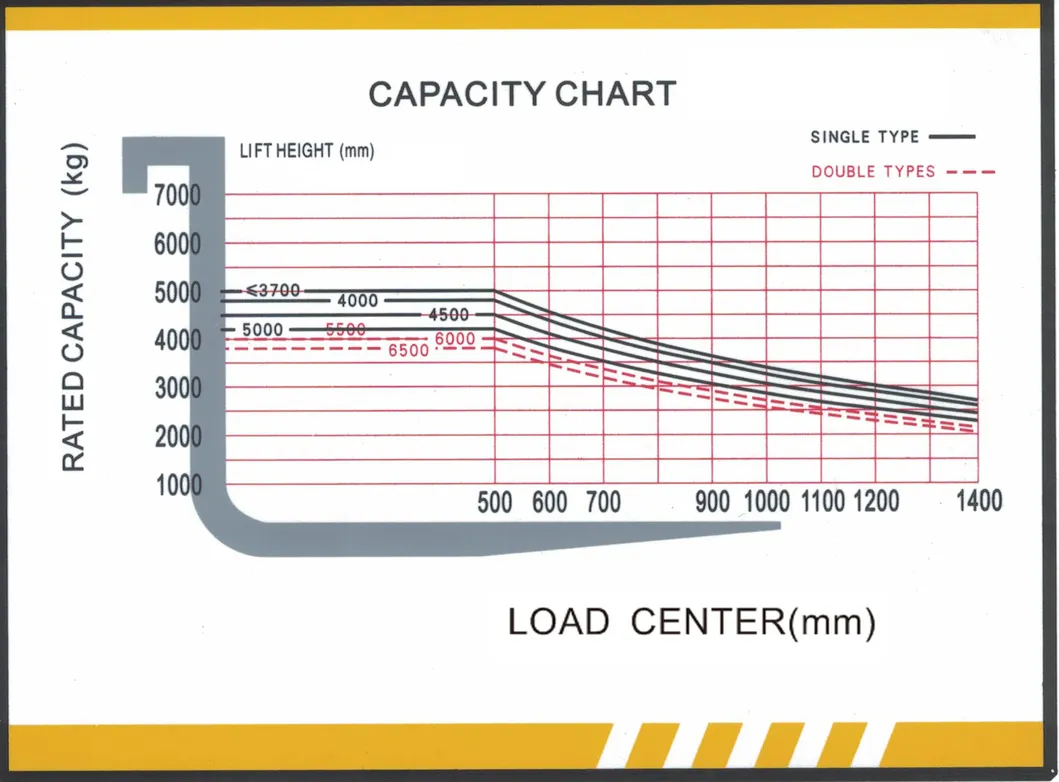

	Rated Capacity		kg	4000
	Load Center		mm	500
	Max.Lifting Height		mm	3000
	Tire Type			Pneumatic Tire
	Tire Number	Front		2
		Rear		2
	Tire Size	Front		250-15-16PR
		Rear		6.5-10-10PR
Performance	Lifting Speed	Loaded	mm/s	430
		Unloaded		480
	Lowering Speed	Loaded	mm/s	400
		Unloaded		380
	Travelling Speed	Loaded	km/h	20
		Unloaded		21
	Max.Gradeability (Loaded)		%	20
	Max.Drawbar Pull (Loaded)		kn	18
	Mast Tilting Angle (Fwd/Bwd)		deg	6/12
	Free Lifting Height		mm	150
	Turning Radius		mm	2560
Dimensions	Overall Length (with fork)		mm	3930
	Overall Width		mm	1300
	Overhead Guard Height		mm	2155
	Fork Size (LxWxT)		mm	1220×150×50
	Mast Height (Fork lowered)		mm	2140
	Battery (Voltage/Capacity)		V/Ah	12/90
	Truck Weight		kg	4900
	Fuel Tank Capacity		L	70
Engine	Brand			XINCHAI	ISUZU	MITSUBISH
	Model			C498	4JG2	S4S
	Rated Power		kw/rpm	42/2650	44.8/2450	35.3/2250
	Rated torque		n-m/rpm	174/1600	186/1800	169/1700
	Number Of Cylinder			4	4	4
	Displacement			2.8	3.06	2.49

Shipping & Packing

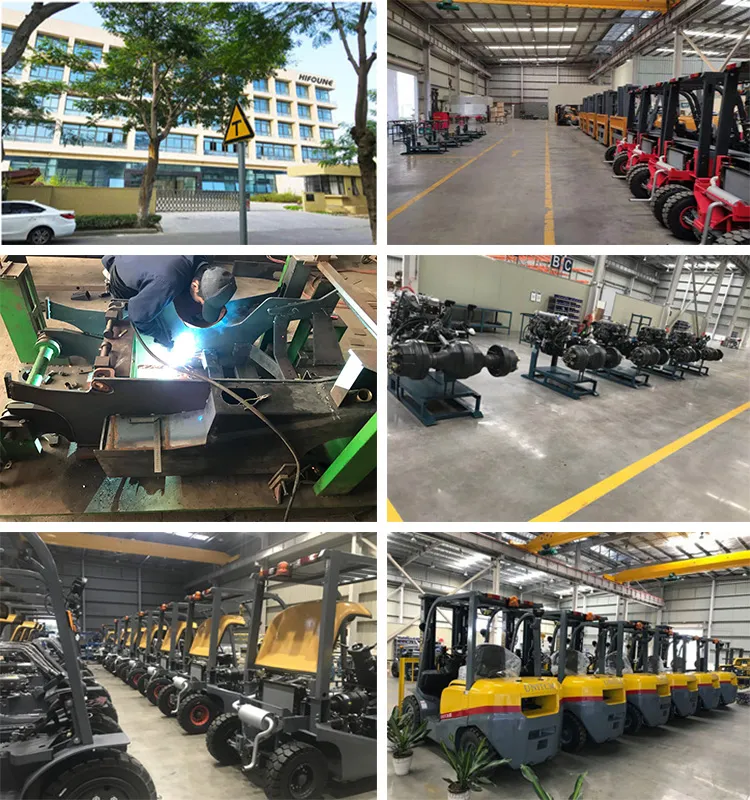

About us

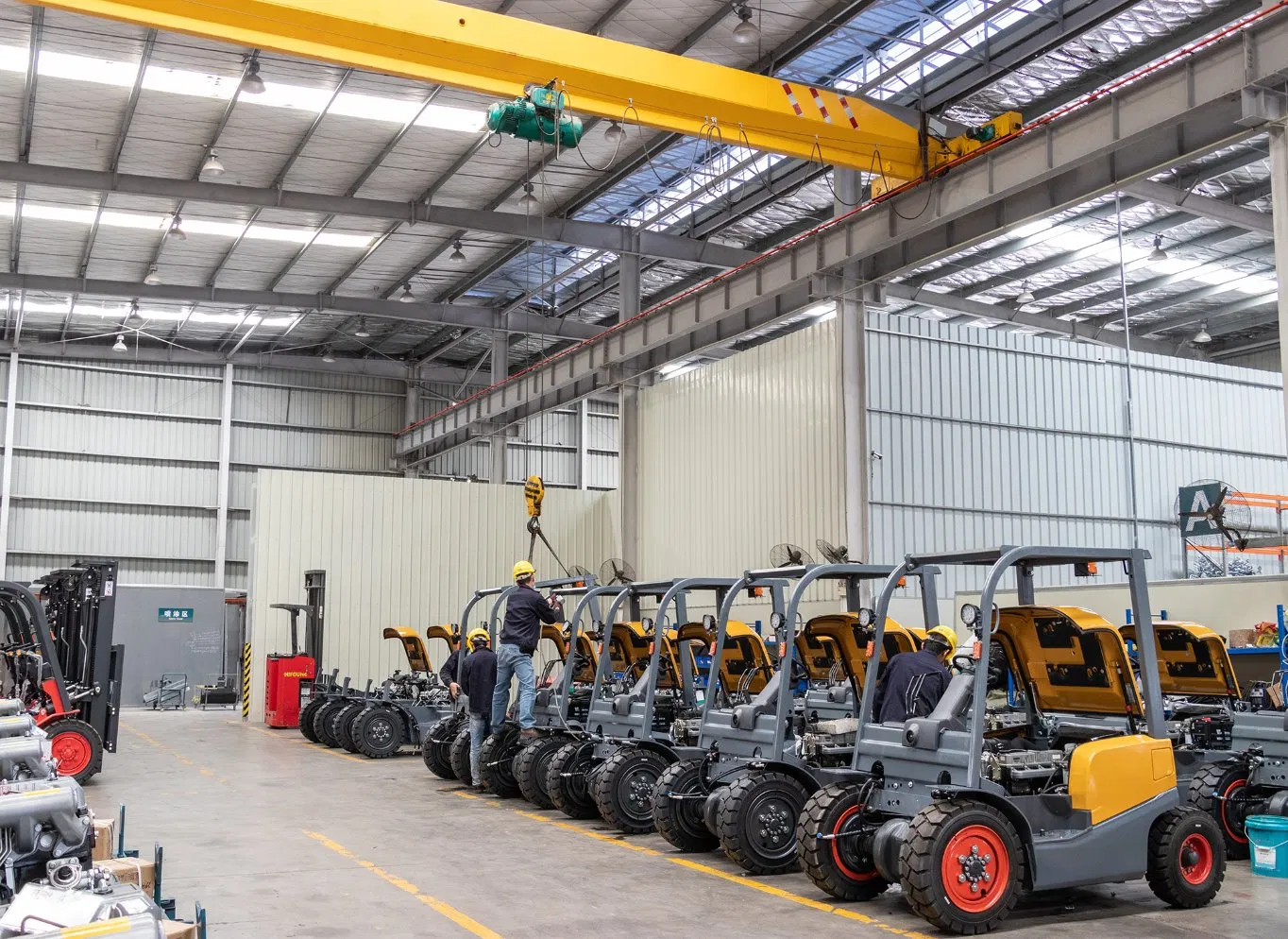

Xiamen Hifoune Machinery Co., Ltd. is located in the Xiangan industrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. Our main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipment. We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links
