Full AC System Small 2 Ton Germany Battery Electric Forklift Price with Side Shift
Full AC System Small 2 Ton Germany Battery Electric Forklift Price with Side ShiftStandard Configurations:Cast steel steering bridge is more stable and reliableHigh strength steel chassis has good driving stability and safetyWide view mast gives operator an enhanced forward visibilitySpecially desig......
Send Inquiry
Product Description
Full AC System Small 2 Ton Germany Battery Electric Forklift Price with Side Shift
Standard Configurations:
- Cast steel steering bridge is more stable and reliable
- High strength steel chassis has good driving stability and safety
- Wide view mast gives operator an enhanced forward visibility
- Specially designed solid overhead guard provides additional security for operator
- Reliable instruments offer an easy access to the working conditionsof forklift truck
- Ergonomics seat makes operation much comfortable and relieves the fatigue
- Non-slip low pedal makes operating convenient and safe
- Original imported world famous brand controller
- Advanced H-type remote drive unit, compact structure, lower gravity center, more reasonable layout and more stable driving
- Fully open hood, it can quickly remove from both side. hinge design frame side door. using of advanced design concept of battery replacement program, gives fast and convenient maintenance
- Famous SHELL brand hydraulic oil
- CE,EPA,GOST,ISO approved
| FB20/25 4-WHEEL FORKLIFT SPECIFICATION | |||||
| General | 1 | Model | FB20 | FB25 | |
| 2 | Rated Capacity | kg | 2000 | 2500 | |
| 3 | Load Centre | mm | 500 | 500 | |
| 4 | Lift Height | mm | 3000 | 3000 | |
| 5 | Fork Size (L×W×T) | mm | 1070×122×40 | 1070×122×40 | |
| 6 | Mast Tilt Angle F/R (α°/β°) | Deg | 6/12 | 6/12 | |
| Characteristic&Dimensions | 7 | Length to fork face of fork (Without fork) | mm | 2360 | 2360 |
| 8 | Overall Width | mm | 1160 | 1160 | |
| 9 | Mast Lowered Height | mm | 2070 | 2070 | |
| 10 | Mast Extended Height (With backrest) | mm | 4020 | 4020 | |
| 11 | Overhead Guard Height | mm | 2240 | 2240 | |
| 12 | Turning Radius (outside) | mm | 2075 | 2075 | |
| 13 | Front Overhang (Wheel center to fork face) | mm | 465 | 465 | |
| 14 | Tread (Front/Rear) | mm | 960/950 | 960/950 | |
| 15 | Ground Clearance (Bottom of mast) | mm | 110 | 110 | |
| 16 | Wheelbase | mm | 1510 | 1510 | |
| 17 | Fork Spread (Min./Max) | mm | 240/1020 | 240/1020 | |
| Performance | 18 | Travel Speed | km/h | 15 | 15 |
| 19 | Lifting Speed (Full load) | mm/s | 300 | 270 | |
| 20 | Max. Gradeability | % | 15 | 15 | |
| 21 | Service Weight | kg | 4170 | 4410 | |
| 22 | Front Tire×2 | 7.00-12-12PR | 7.00-12-12PR | ||
| 23 | Rear Tire×2 | 18×7-8-14PR | 18×7-8-14PR | ||
| Driven | 24 | Driven Motor | kw | 11 | 11 |
| 25 | Lift Motor | kw | 8.6 | 8.6 | |
| 26 | Battery Standard | V/Ah | 48/560 | 48/630 | |
| 27 | Controller Manufacturer | CURTIS | CURTIS | ||
| 28 | Operating Pressure for Attachment | Mpa | 17.5 | 17.5 | |

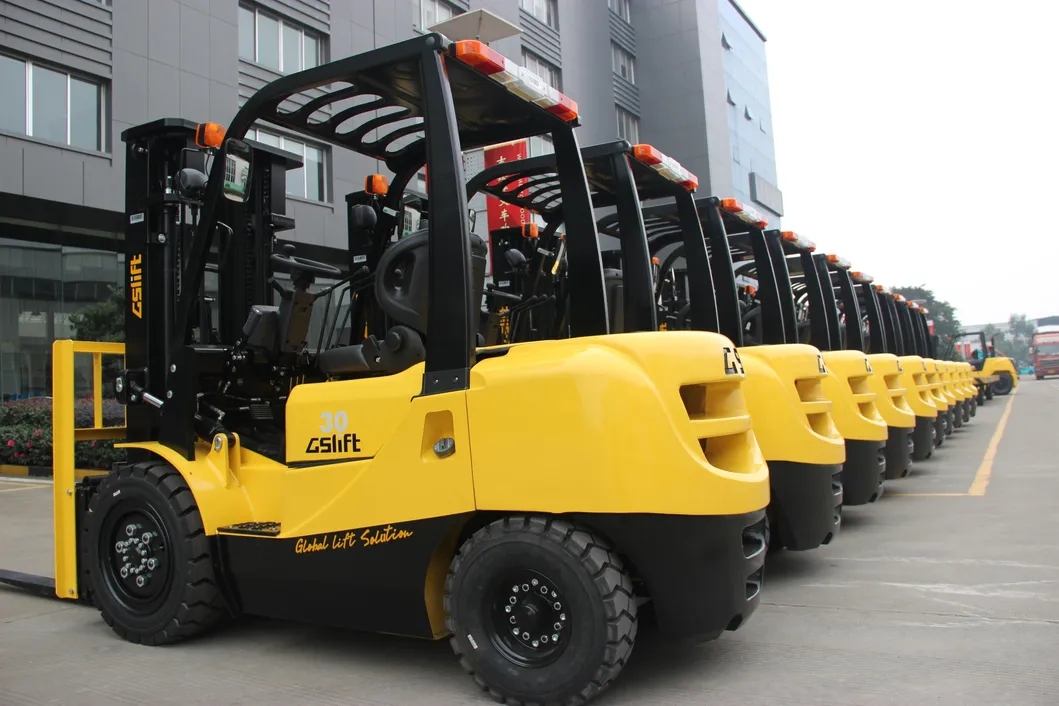

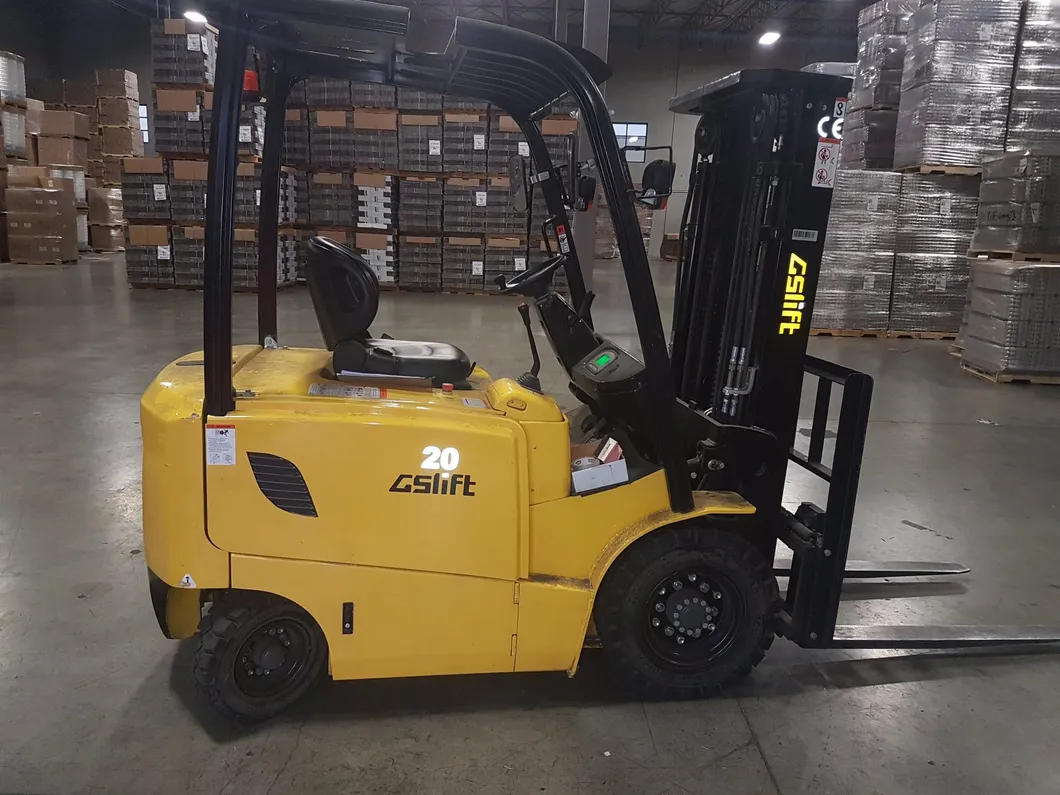

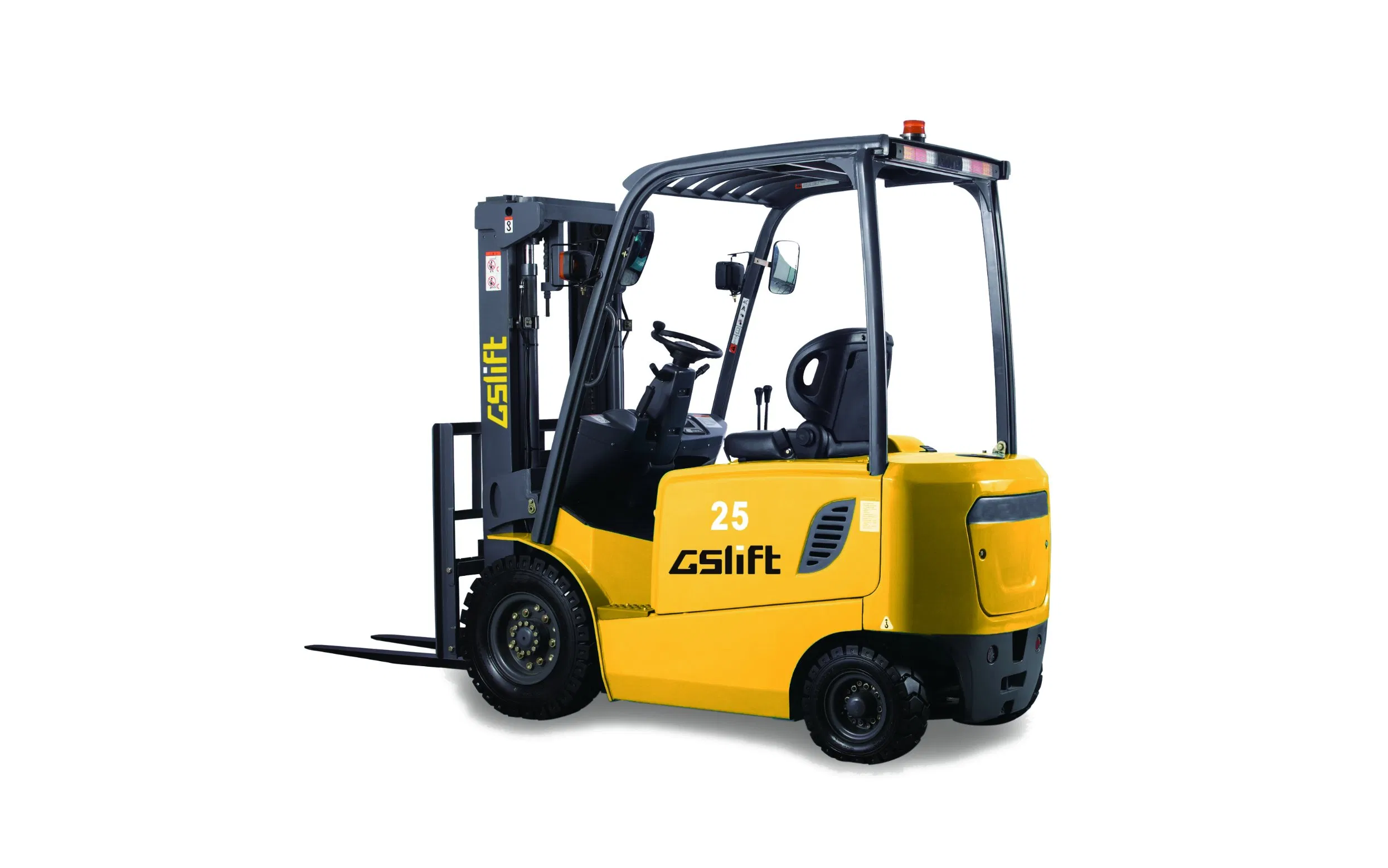

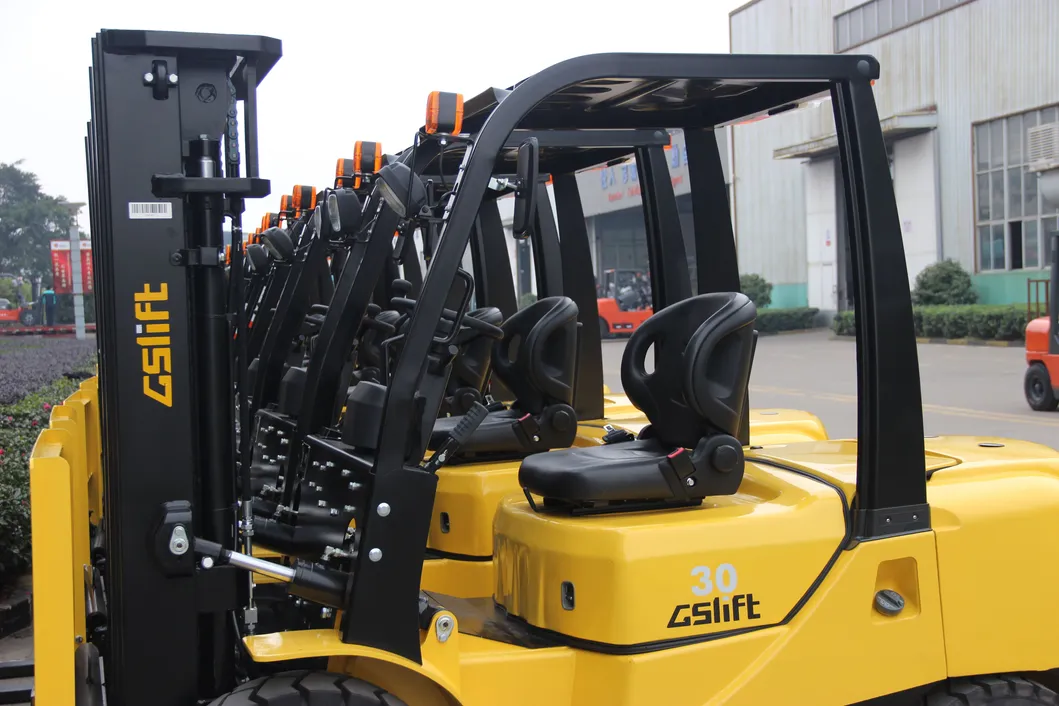

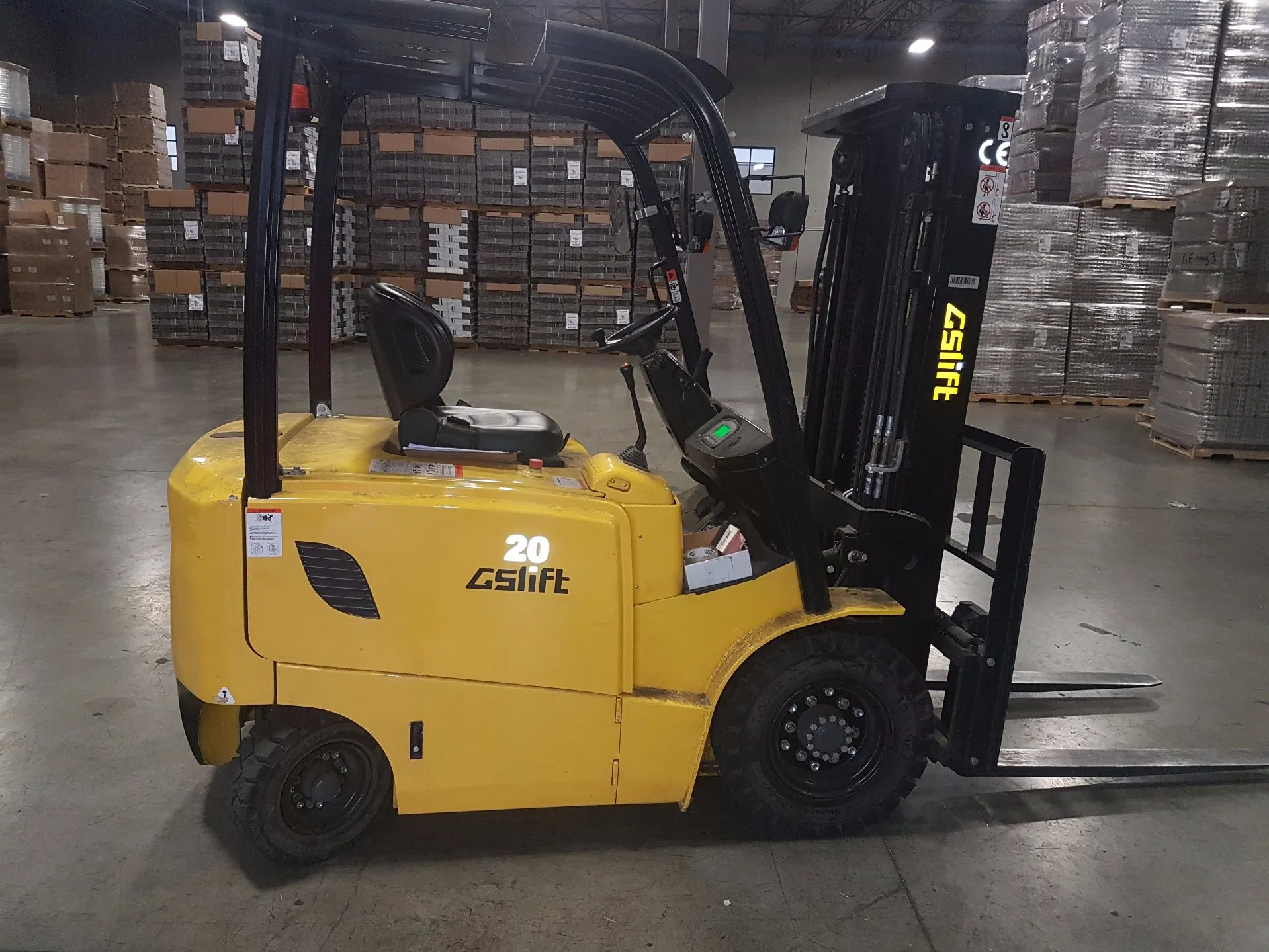

Pictures of product:

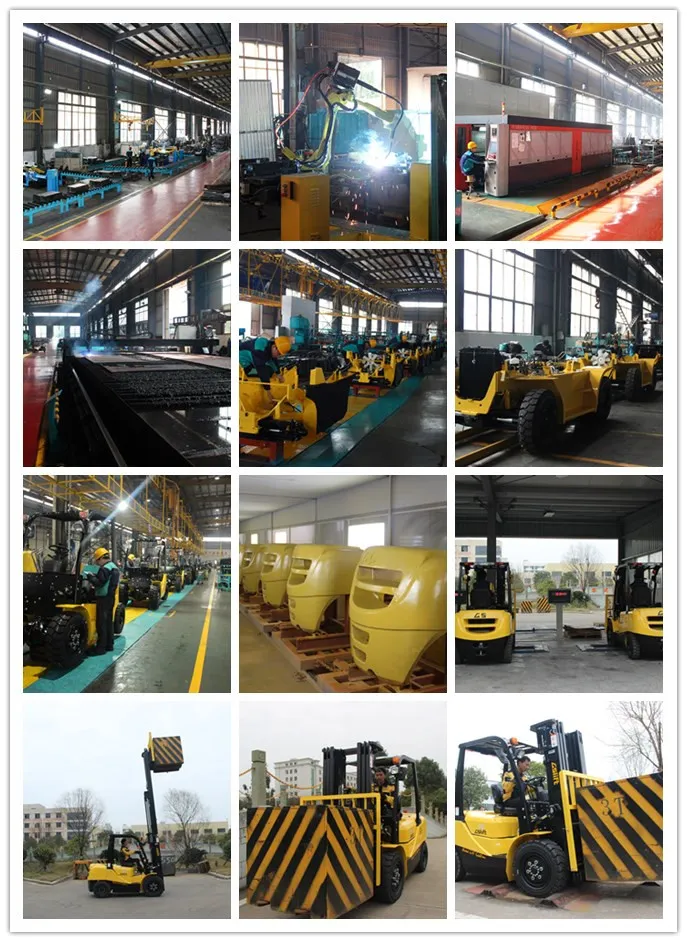

Pictures of factory:

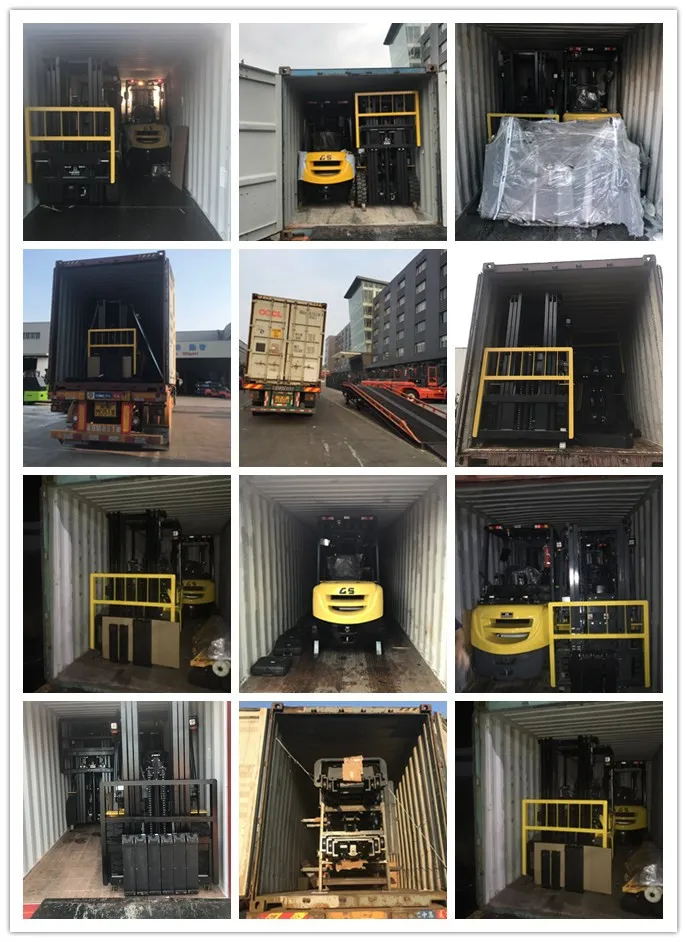

Pictures of loading containers:
Pictures of fairs:
