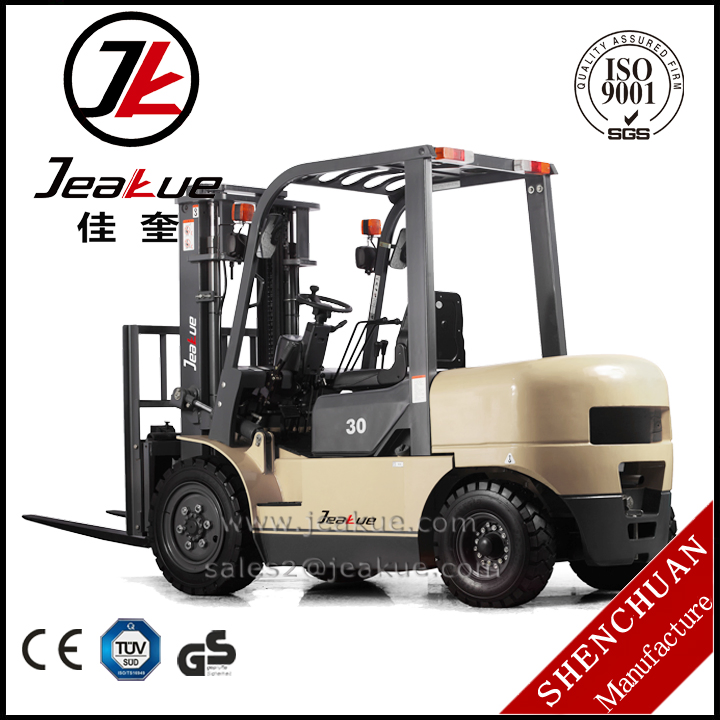

China German Easy Operating 3t-4t Diesel Forklift for Sale

Product Description

China Easy to Operate 3t-4t Diesel Forklift for Sale

Dynamical System :
The maturely disposed,powerful but economical Xinchai490,495,498BPG diesel engine and
WF491GP gasoline engine meet the demand for noise and discharge.C240,4TNE92,4TNV94L,4TNE98 diesel and K21,K25,4G64 gasoline engine are for option. As for the transmission,with TCM technology ,function is reliable./Counterbalanced Diesel Forklift

Hydraulic System:
1.Hydraulic System rationally adopts supple and stiff tubes to reduce pressure loss,accelerating the lift of mast. Hydraulic units employ the seal units imported from Japan and passing thousand of tests.
2.Heat Dissipation System:
3.Newly adopted advanced radiator improves the radiator cooling performance greatly .Advanced heat dissipation technology improves heat dissipation channel,which enhances the truck heat dissipation capability further./Counterbalanced Diesel Forklift

Electrical System:
Electric system adopts advanced wiring harness,waterproof parts and widespread multirun use to improve the circuits security and stability.Without tool,the circuit integration can be maintained just by hand.

Comfort:
adopts advanced man-machine engineering design,including the engine collocated with floating shock-mitigating device ,the elastic linked steering axle,the redirector providing low tensional moment,the semi-floating bonnet with built-in heat and sound insulation,and built-in cylinder design.All of those ensure the comfort of driving for this diesel forklit.

Clean:
The domestic engines all meet EPA emission control regulation.The imported engines come up to EU stage-3 emission control regulation,and obtain EPA accreditation.
Efficiency:
Based on the safe principle,the high lifting speed of the mast improves working efficiency .Turing radius and width of right angle stacking aisle are decreased through reducing the dimension of the whole truck,which raise the efficiency of storehouse,and enable the truck to operate in limited space.

Safe:
A throttling device is set in pipe system,so the mast won't result in failing to control even some pipes broke. By using wide vision design, the scope of the operator's vision has been greatly improved ,so as to make the operation faster and safer.

Servicing:
1.5-4.5T forklift have high degree of common use,for their spare parts can be exchanged easily,which is convenient for maintenance.

	Model		FD30	FD30	FD38	FD38	FD40	FD40
1	Rated Capacity	kg	3000	3000	3800	3800	4000	4000
2	Load Center	mm	500	500	500	500	500	500
3	Lift Height	mm	3000	3000	3000	3000	3000	3000
4	×× Fork Size (LWT)	mm	107012545	107012545	107012550	107012550	107012550	107012550
5	(/) Mast Tilt Angle(F/R)	Deg	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°
6	() Length to face of fork	mm	2770	2770	2865	2865	2890	2890
7	() Overall Width	mm	1225	1225	1225	1225	1410	1410
8	Mast Lowered Height	mm	2045	2045	2100	2100	2105	2105
9	() Mast Extended Height	mm	4150	4150	4160	4160	4180	4180
10	Overhead Guard Height	mm	2090	2090	2090	2090	2110	2110
11	Turning Radius	mm	2520	2520	2600	2600	2700	2700
12	(L1000*W1200) Min.right angle aisle width	mm	2550	2550	2630	2630	2700	2700
13	Front Overhang		475	475	480	480	500	500
14	() Ground Clearance	mm	135	135	110	110	135	135
15	Wheelbase	mm	1800	1800	1800	1800	1900	1900
16	() Travel(No load)	km/h	19	19	19	19	19	19
17	() Lifting(Full load)	mm/s	440	440	350	350	320	320
18	() Gradeability(Laden)	%	20	20	20	20	20	20
19	Service Weight	kg	4100	4100	4600	4600	5270	5270
20	Front Tire		28*9-15-12PR	28*9-15-12PR	28*9-15-12PR	28*9-15-12PR	250-15-16PR	250-15-16PR
21	Rear Tire		6.50-10-10PR	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR
22	(/) Battery(Voltage/Capacity)	V/Ah	12/80	12/80	12/80	12/80	12/80	12/80
23	Engine Model		QC490GA	CA498-06T2/01-97	QC490GA	CA498-06T2/01-97	A498BPG-520	A498BT-34
24	/ Engine Rated output/r.p.m	kw	39/2650	45/2500	39/2650	45/2500	45/2500	45/2500
25	/ Engine Rated torque/r.p.m	N . m	157/1800-2000	190/1800	157/1800-2000	190/1800	193/1800	193/1600-1800
26	Emission Standard		National StageI	National StageII	National StageI	National StageII	National StageII	EuroIII
27	* Bore*Stroke	mm	90*105	98*105	90*105	98*105	98*105	98*105
28	Displacement	cc	2670	3168	2670	3168	3170	3170
29	Fuel Tank Capacity	L	60	60	60	60	70	70
