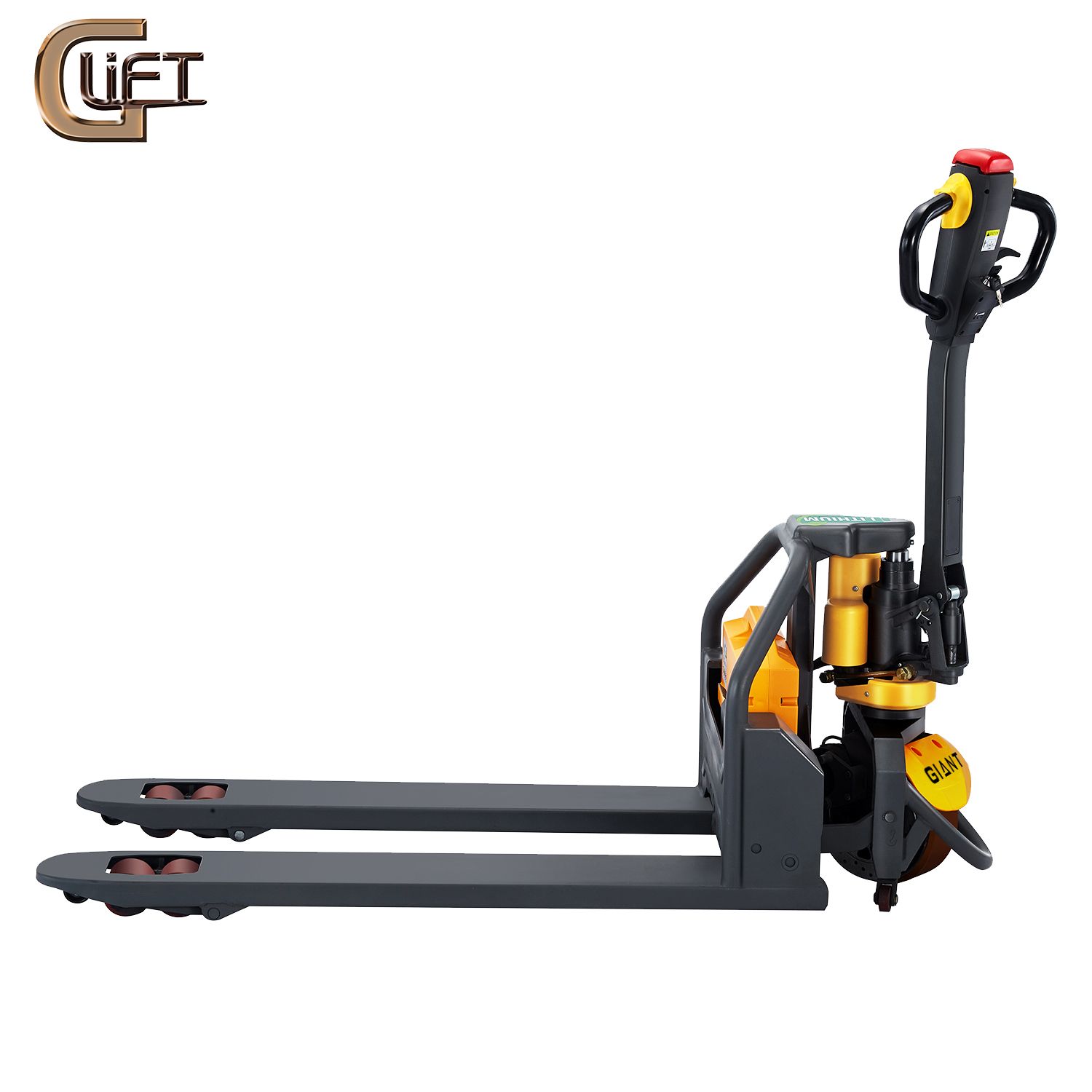

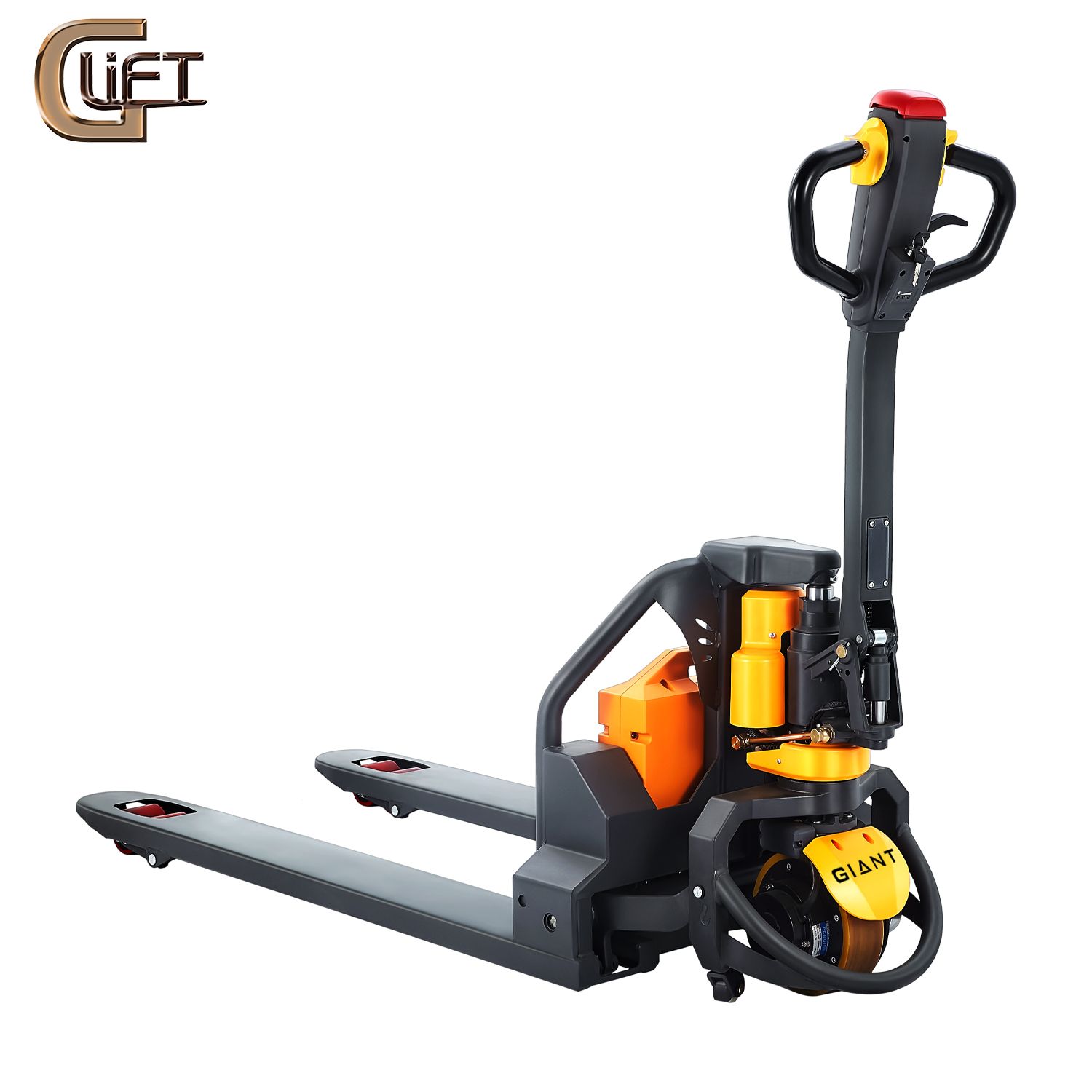

Giant Lift 1500kg 1.5 Ton Mini Walkie Lithium Powered Full Electric Pallet Truck Removable Battery (CBD15W-Lix)
Giant Lift 1500Kg Lithium Powered Full Electric Pallet Truck(CBD15W-Lix)Product DescriptionProduct Feature: 48V large capacity lithium battery, easy operating for lifting and moving pallets , Multi function controller handle with speed control and change Small and beautiful, flexible steering, easy ......
Send Inquiry
Product Description
Giant Lift 1500Kg Lithium Powered Full Electric Pallet Truck(CBD15W-Lix)Product Feature:
• 48V large capacity lithium battery, easy operating for lifting and moving pallets ,
• Multi function controller handle with speed control and change
• Small and beautiful, flexible steering, easy entering the narrow space
• Plug-in battery design, makes it easier to remove the change the battery
• Integrated rock arm, casted in single piece, intensifying the strength and structure
• Less wiring, easy service
• Quick charging time 3hours with 6hours working time
• Brushless motor of maintenance-free, high effiency
• Warranty: One year
• Lithium Battery Lifetime: At least 5 years

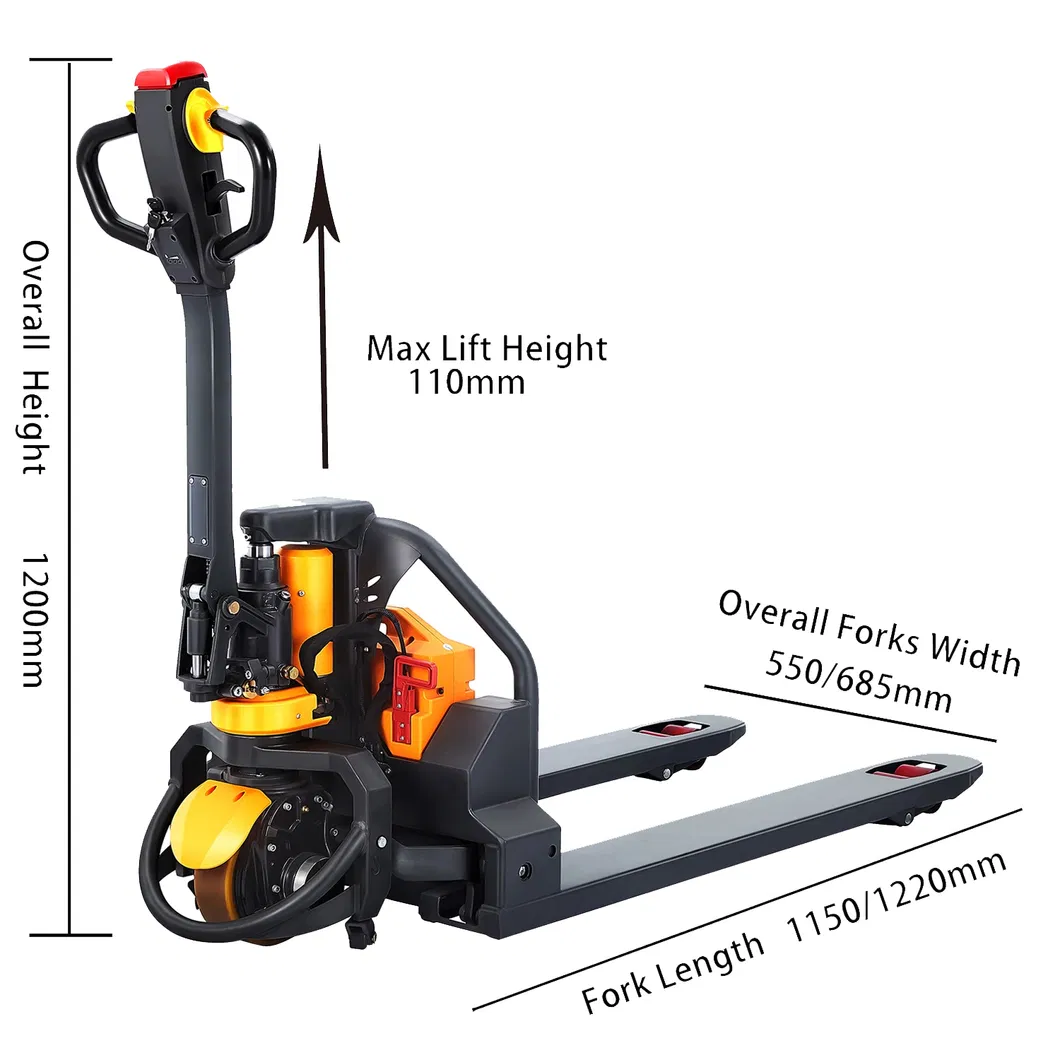

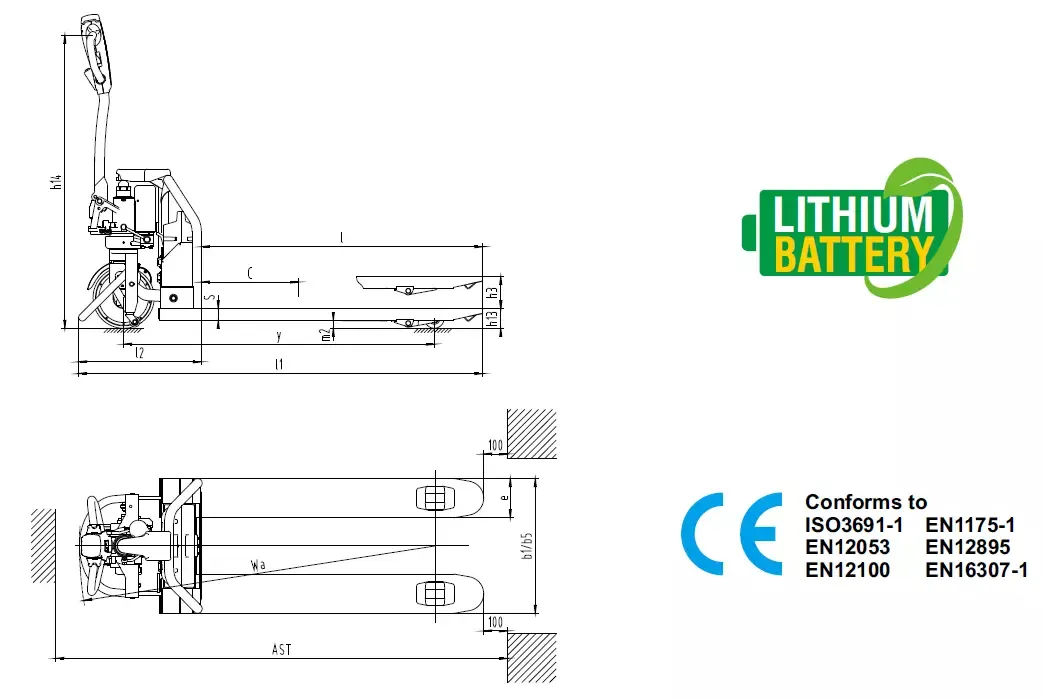

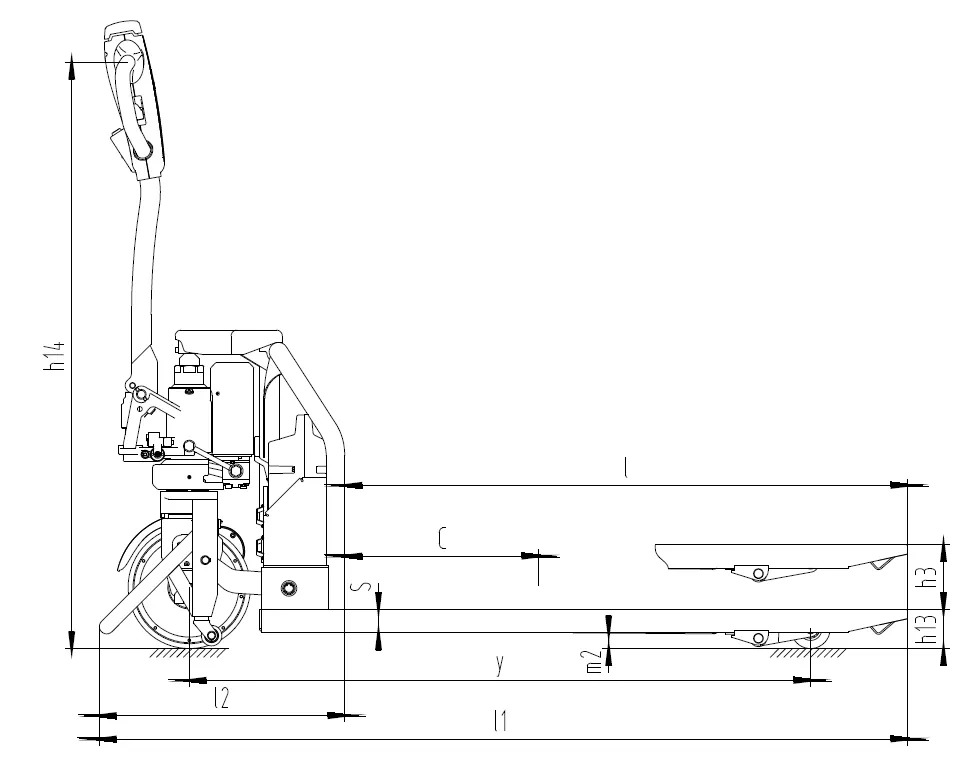

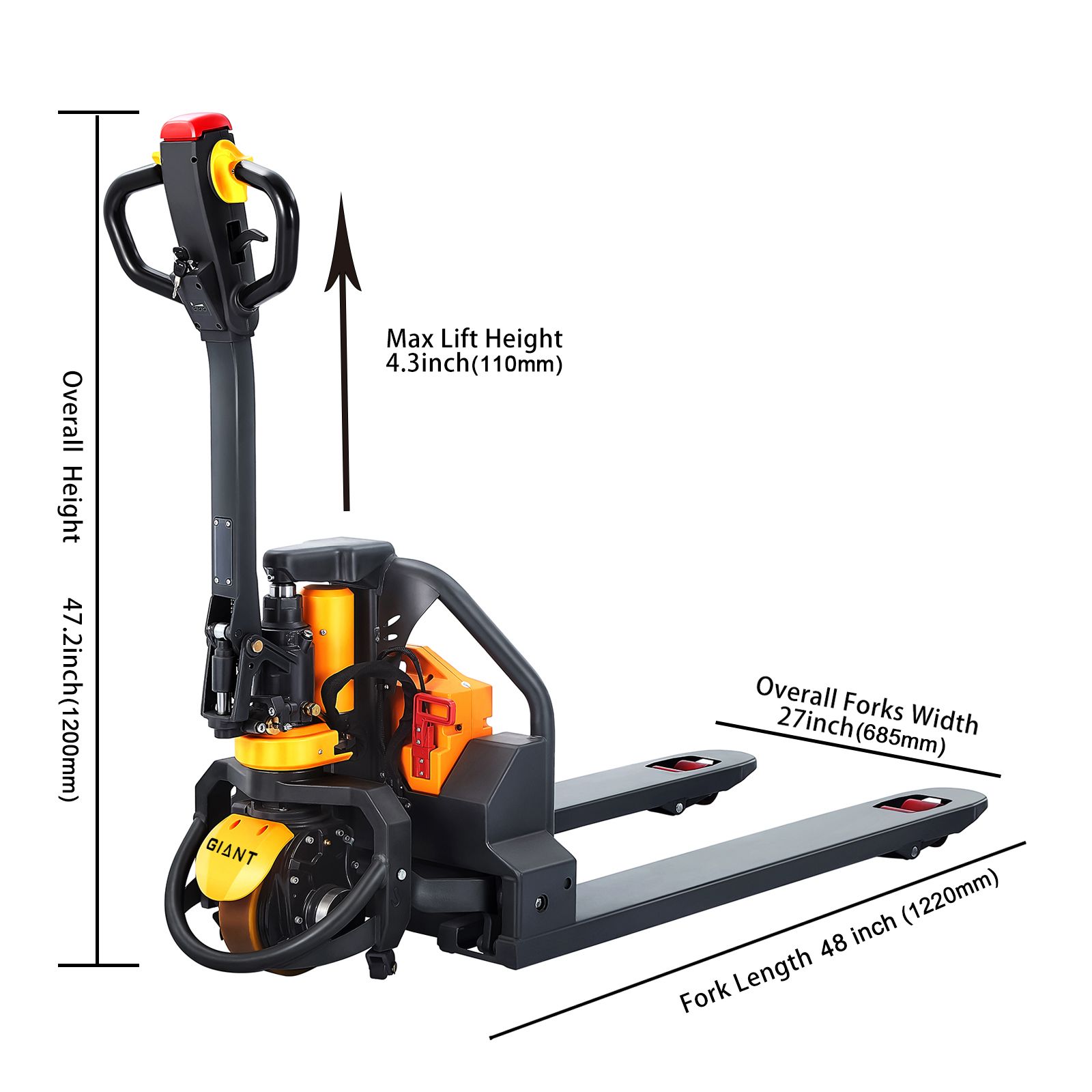

Model | CBD15W-Lix | ||
Capacity | (kg/lbs) | 1500 | 3300 |
Load centre distance | c(mm/inch) | 600 | 23.6 |
Fork height, lowered | h13(mm/inch) | 80 | 3.1 |
Max. lift height | h3(mm/inch) | 110 | 4.3 |
Height of tiller in drive position Max. | h14(mm/inch) | 635/1200 | 25/47.2 |
Overall length | l1(mm/inch) | 1623/1693 | 63.9/66.7 |
Length to face of forks | l2(mm/inch) | 473 | 18.6 |
Overall width | b1(mm/inch) | 550/685 | 21/27 |
Fork dimensions | s/e/l(mm/inch) | 45/160/1150(1220) | 1.77/6.3/45.3(48) |
Width overall forks | b5(mm/inch) | 550/685 | 21/27 |
Aisle width for pallets 1000x1200lengthways | Ast(mm/inch) | 2226/2294 | 87.6/90.3 |
Aisle width for pallets 800x1200lengthways | Ast(mm/inch) | 2095/2132 | 82.5/83.9 |
Turning radius | Wa(mm/inch) | 1424/1494 | 56.1/58.8 |
Driving speed, laden/unladen | (km/h) | 4.8/5 | 4.8/5 |
Battery Voltage, normal capacity K5 | V/Ah | 48/20 | 48/20 |
Truck weight | (kg/lbs) | 135 | 298 |
Q1: Are you a factory or a trading company?
A1:We are a combination of both, we focused on manufacturing material handling product such as lift tables, manual & electric pallet trucks and lifting platforms over 35 years, we also exporting manual & electric chain hoist, lever hoisting, lifting clamp and steel jack. We are your ideal choice for one stop purchase with our compete line of industrial lifting/moving equipment
Q2: Can Giant lift provide customized products? OEM products or ODM products?
A2: Yes, Giant lift can provide customized products according to your requirement. Both OEM and ODM are acceptable.
Q3: Can we print the LOGO on products?
A3: Yes, the OEM is available with the permission of our customers.

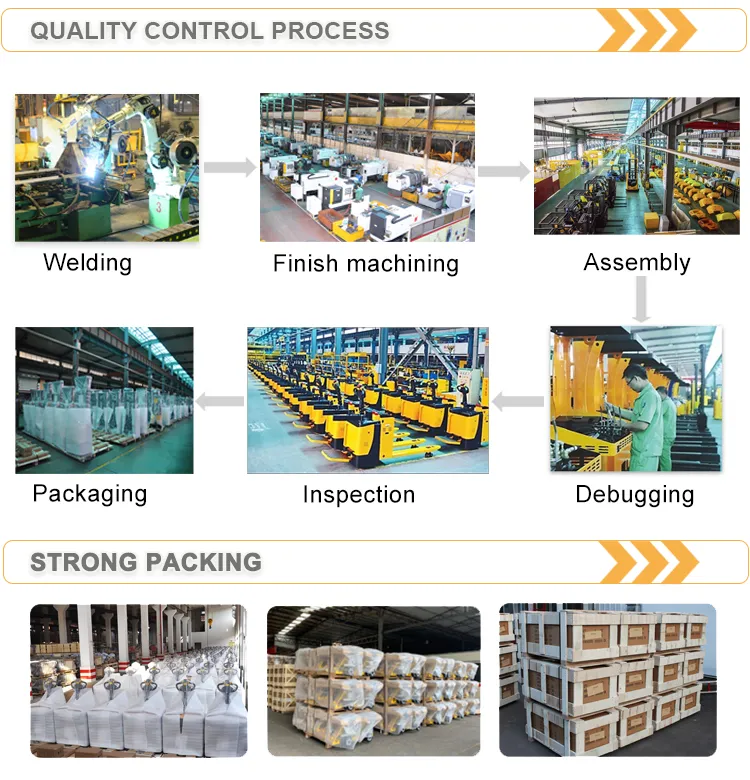

Q4: How do you control your quality?
A4: 1. We only select high-quality steel material from famous steel group
2. Standardized production process with traceable ID Card, every part can be tracked to the original records.
3. 100% finished product testing before shipping.
4. We accept third party product inspections.
5. ISO9001 Quality management system certificated factory
6. Supervised container loading process, ensures the last step security
Q5: How long is the warranty on your products?
A5: We provide 12 months warranty for all of our product, excluding wear parts such as wheels, tire or hydraulic oil
Q6: What's the lead time for production?
A6: Usually around 10-15 days after payment received, around 30 days during new year's or national holidays.
Q7: What Payment terms do you accept?
A7: T/T or L/C, if you want any other method please contact sales
Q8: What are your advantages compared to the others?
A8:
- Unique products, with customized service.
- Timely production and delivery, time is money.
- Market protection service, long term business strategy.
