Haiqin Brand Strong Telehandler ( HQ930T ) with Cummins Engine
Haiqin Brand Strong Telescopic Telehandler (HQ930T) with Cummins Engine1, Features of HQ930T Telescopic Telehandler:(1.The telescopic boom which can reach Max 6.0m ,greatly increase it's working scope.(2.The articulated structure and axle transmission design makes it powerful and has better pas......
Send Inquiry
Product Description
1, Features of HQ930T Telescopic Telehandler:
(1.The telescopic boom which can reach Max 6.0m ,greatly increase it's working scope.(2.The articulated structure and axle transmission design makes it powerful and has better pass through ability.(3.The seals, valve & joystick handle are famous oversea products which guarantee that it's a reliable long lasting machine.
(4.Adjustable spring seat and optional air conditioner makes the operating more comfortable.(5.Wide view cabin and two entrance makes the operating convenient and safe.(6.Quick coupling system, mechanic joystick and buttons makes the operating easy and convenient.(7.The rear cover can be opened as a whole part just by your hands, which makes the maintenance much more simple.
| HQ930T Telescopic Telehandler | |
| 1.0 Engine | |
| (1) Brand/Model: | Standard Yuchai YCD4J22T-115 |
| (2) Type: | In-line arrangement, water-cooled, four cylinder, turbocharged diesel engine |
| (3) Rated Power: | 85KW |
| CUMMINS engine |
| 2.0 Overall Dimensions | |
| (1) Overall Length: | 6890mm |
| (2) Overall Width: | 2200mm |
| (3) Overall Height: | 3100mm |
| (4) Bucket hinge pin Height: | 5500mm |
| (5)Telescopic stroke | 1330mm |
| (6)Extend the arm length | 3400mm |
| 6200mm |
| 4600mm |
| 3.0 Transmission System: Gearbox+Hydraulic converter + Drive shaft + Strong Hub reduction axle | |
| 4.0 Bucket: | |
| 1.5m³ |
| (2) Width: | 2200mm |
| (3) Type: | Heavy-duty bolt on teeth |
| 3000kg including bucket or attachment |
| 5.0 Operating Specifications | |
| Articulated hydraulic steering |
| Four wheel drive |
| Yes |
| Yes |
| 6.0 Brake System | |
| (1) Service Brake: | Four wheel disc brake |
| (2) Parking Brake: | Disc brake |
| 7.0 Tyre | |
| (1) Model: | 16/70-24Herringbone Tyre |
| 8.0 Wheel base: 2800mm | |
| 9.0 Track: 1750mm | |
| 10.System pressure: | 20Mpa |
| 11. Operation Weight: | 7300KG |

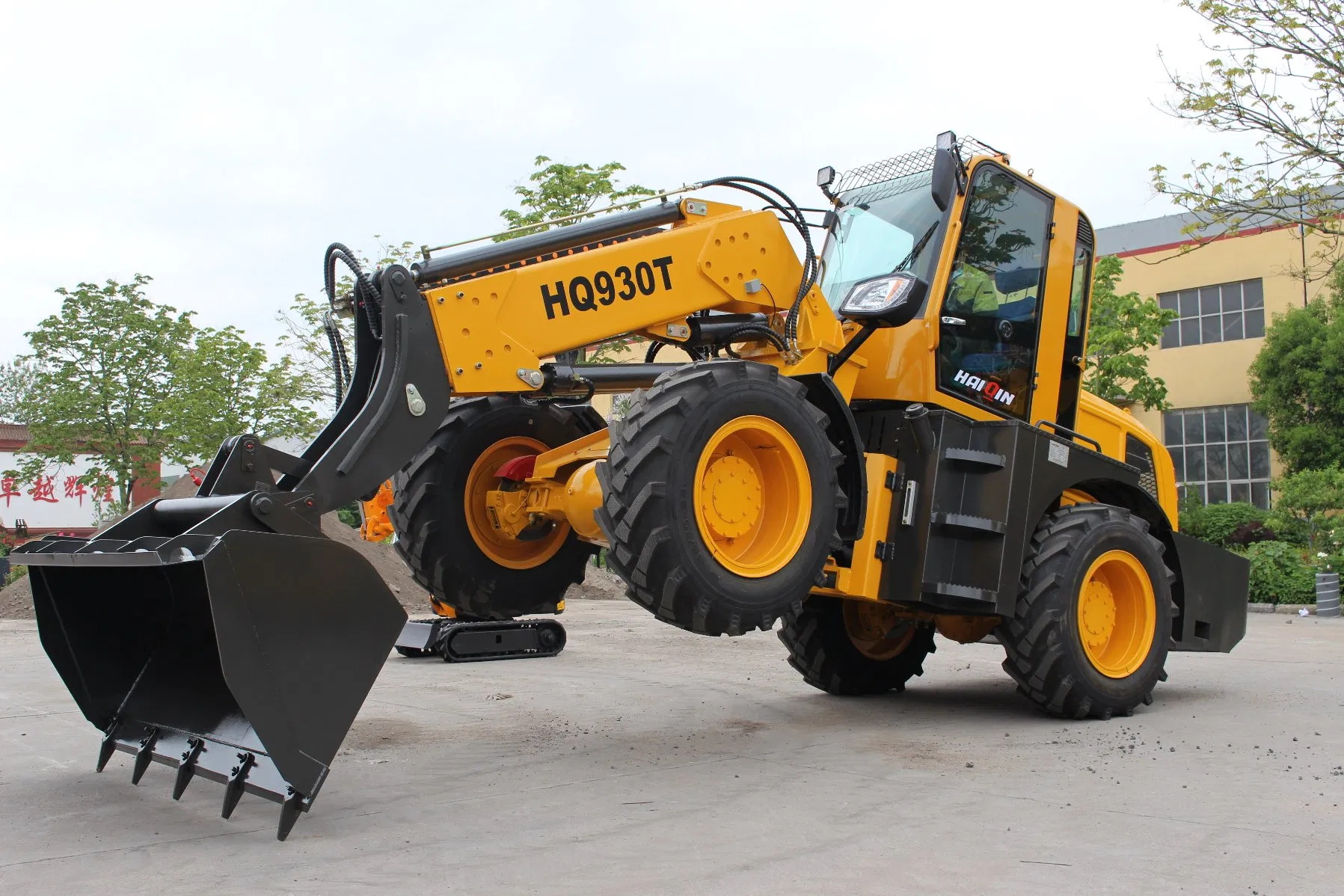

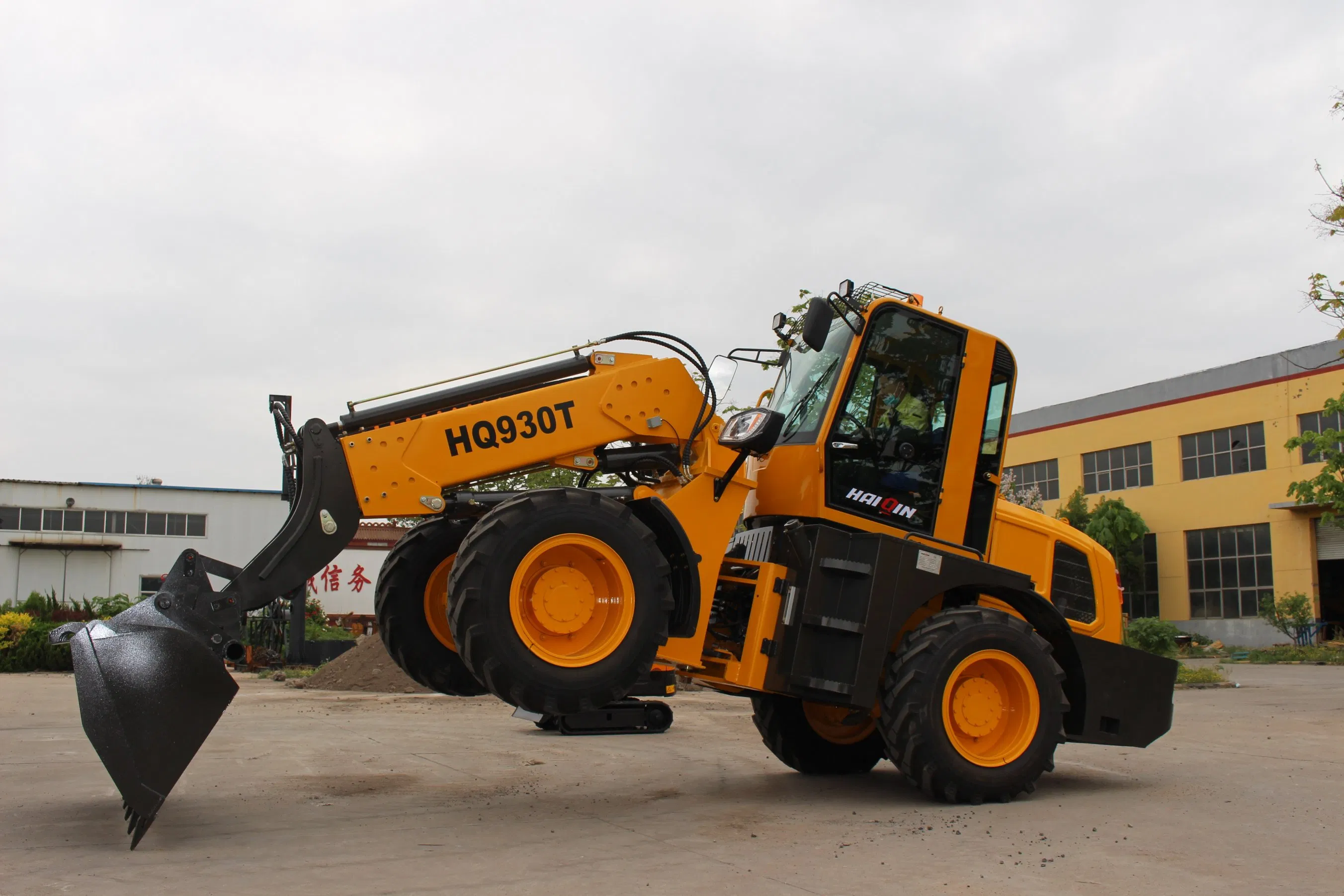

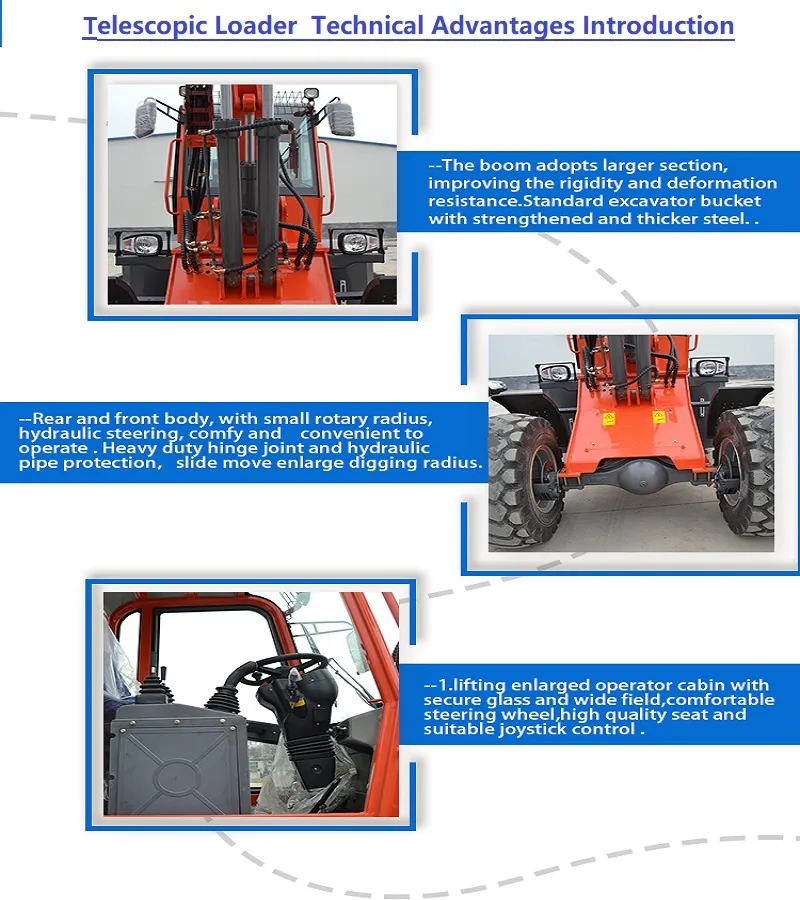

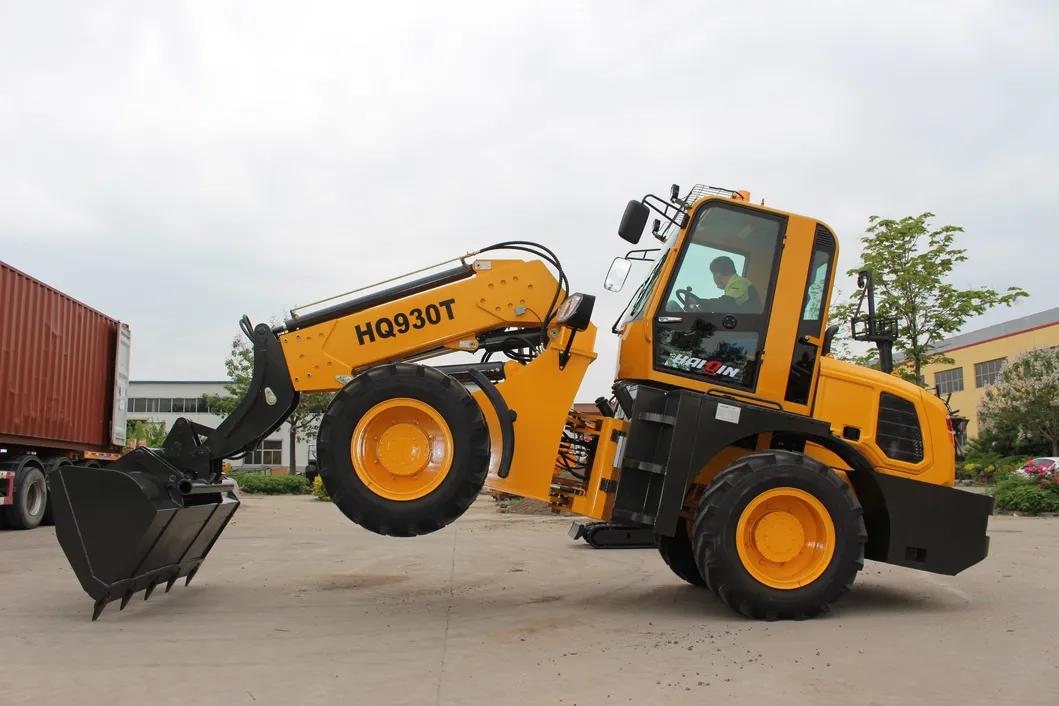

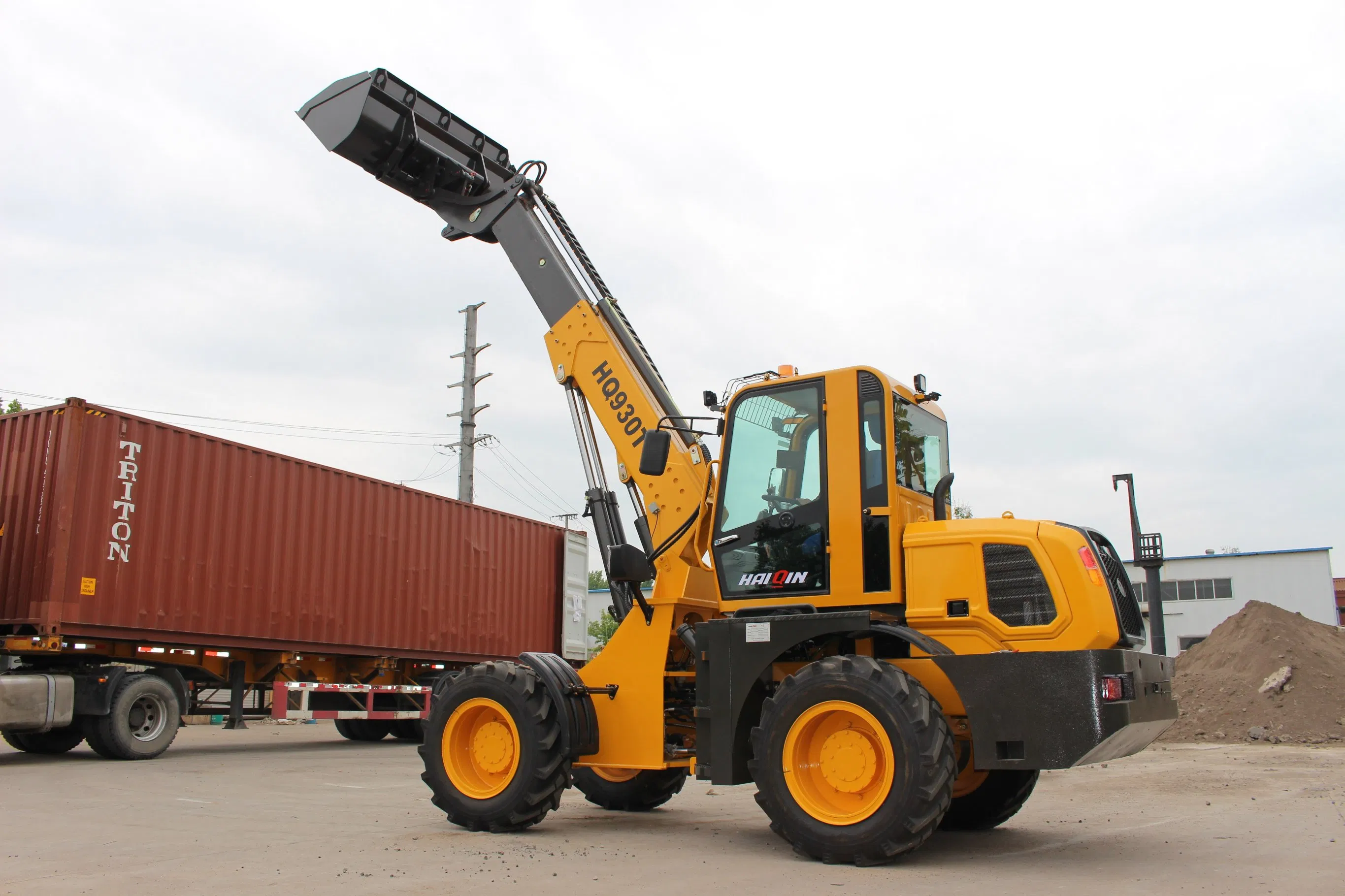

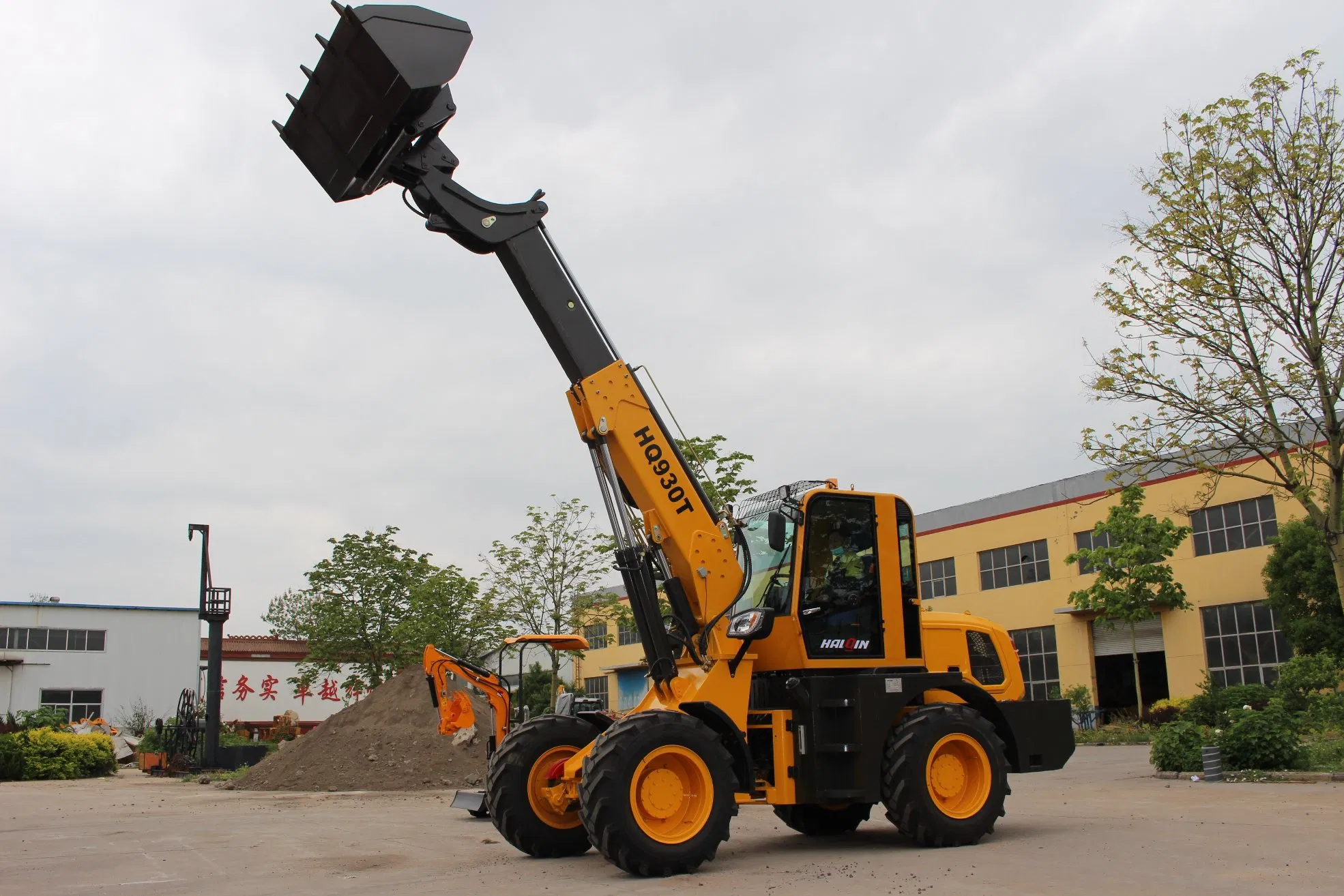

3,Details Photo of HQ930T Telescopic Telehandler:

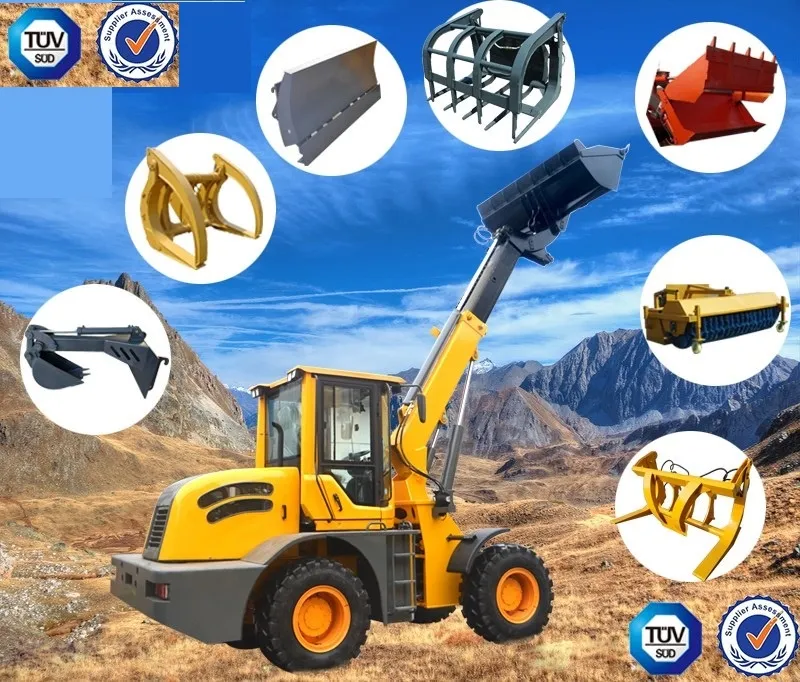

4,Optional Attachments for HQ930T Telescopic Telehandler

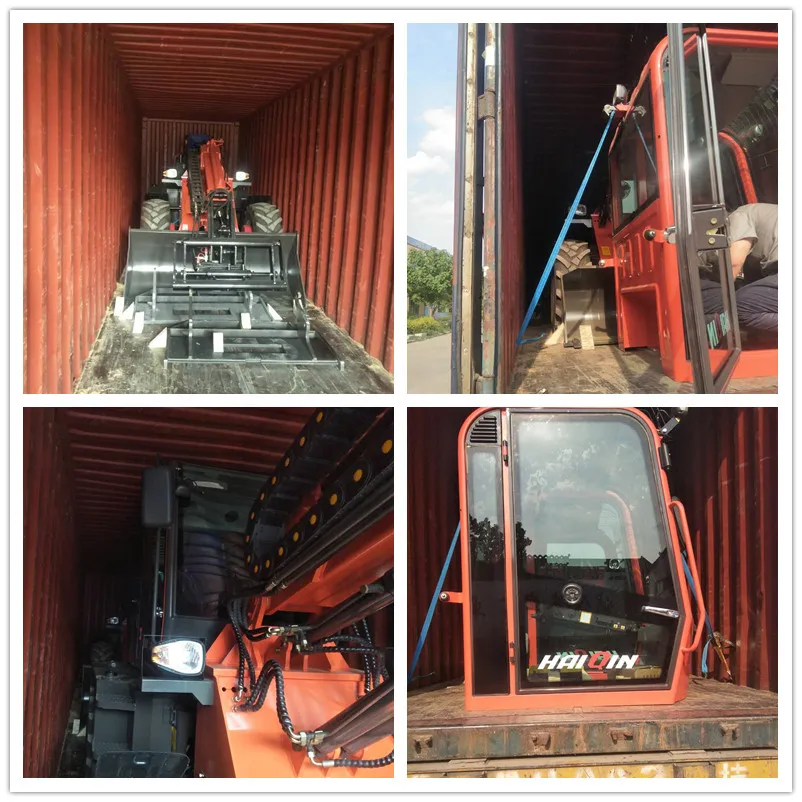

5, Professional Loading and Packing of HQ930T Telescopic Telehandler
6, Feedback from HaiQin's Customers
7,MORE PRODUCT CATEGORIES OF HAIQIN MACHINERY
8,Factory introduction of Haiqin Machinery.
9,Warranty and Service.
HAIQIN loader has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.
Choose HAIQIN, and then better after-service will be guaranteed.
