Heli China Lift Stacker Electric Forklift Cdd15 1.5ton Forklifts

Product Description

Heli China Lift Stacker Electric Forklift CDD15 1.5Ton forklifts

G series reach truck, flexible, compact in appearance,no emissions, low noise, high efficiency, especially suitable for tobacco, food, textile, electronics, printing and other industries; with the forward function, to facilitate loading and unloading of cargo, especially suitable for narrow roadway and narrow space operation.

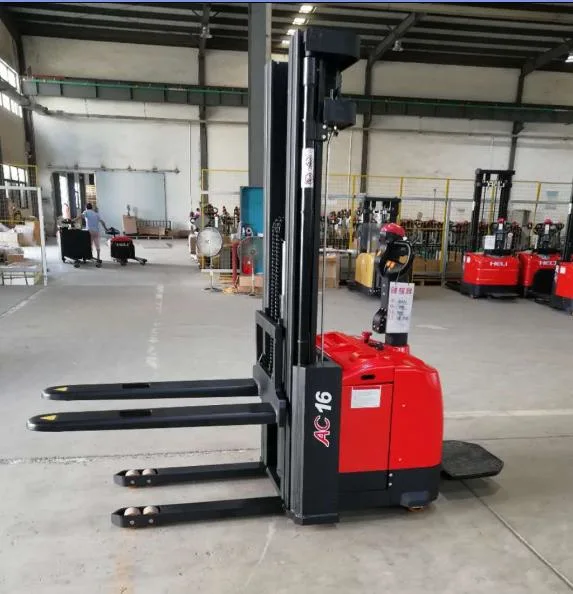

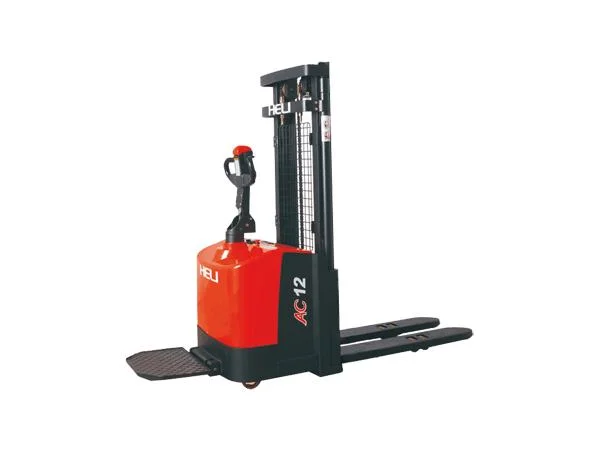

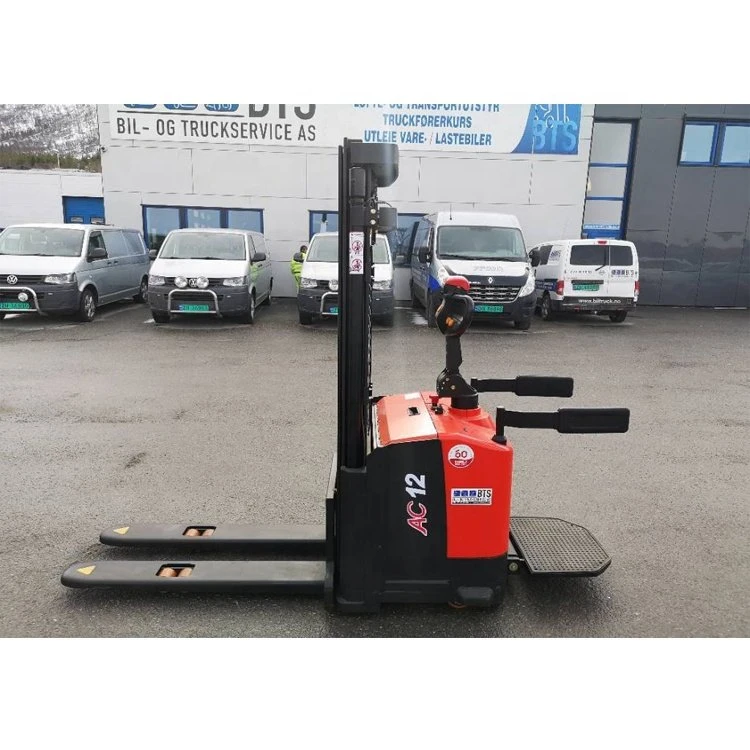

1.2-1.6T Electric Pallet Stackers
Model		CDD12		CDD16
Configuration No.		J1/J2	L-J1/J2	J1/J2	L-J1/J2
Load capacity	kg	1200		1600
Load center	mm	600
Operator type		Walking	Pedestrian	Walking	Pedestrian
Steering mode		Mechanical
Wheelbase	mm	1390		1440
Standard mast lifting height	mm	2700
Pallet fork lateral spacing	mm	560
Goods fork minimum height	mm	90
Pallet fork length * width * thickness	mm	115018065
Full length	mm	1935	2425	1985	2475
Full width	mm	800
The whole high	mm	1450
The minimum ground clearance (Pallet fork)	mm	25
The minimum bending radius	mm	1580	2045	1625	2090
Right Angle stacking the minimum channel width of the tray (1000 L*1200W)	mm	2428	2893	2473	2938
Right Angle stacking the minimum channel width of the tray (1200L*800W)	mm	2377	2842	2422	2887
Maximum speed (full/empty)	km/h	5/6
Hoisting speed (full/empty)	mm/s	110/185
Maximum gradeability (full/empty)	%	8
Battery voltage/capacity (5 hours to put battery)	V/Ah	24/210		24/280
Control mode (driving, pump)		Ac drives, dc hoisting
The total battery (reservation)	kg	1070		1150
