High Quality 2500kg Lifting Capacity Diesel Forklift for Sale
High quality 2500kg lifting capacity Diesel forklift for saleFeatures of CPCD20 2 Ton diesel forklift :Integrated central control box the reliability of electric systemErgonomical design ensures best operationEnergy-saving hydraulic system decreases fuel consumptionHigh-quality hydraulic hoses, no o......
Send Inquiry
Product Description
High quality 2500kg lifting capacity Diesel forklift for sale

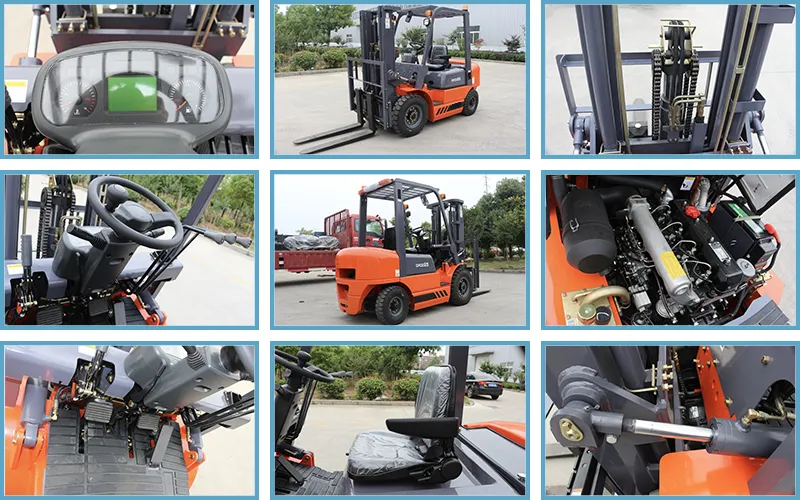

Features of CPCD20 2 Ton diesel forklift :
Integrated central control box the reliability of electric systemErgonomical design ensures best operationEnergy-saving hydraulic system decreases fuel consumptionHigh-quality hydraulic hoses, no oil leakageWide-view mast design improves the productivity and safety
2.5TON: STANDARD INSTALLMENT:

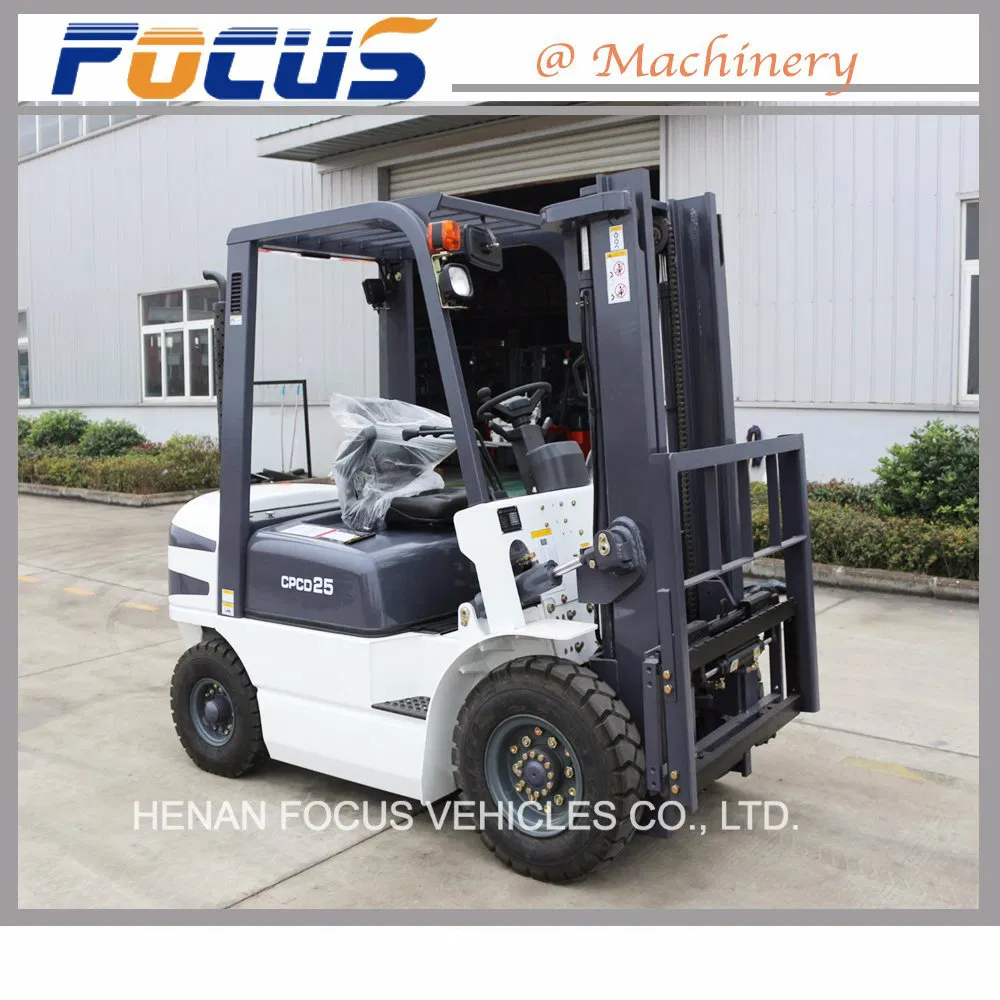

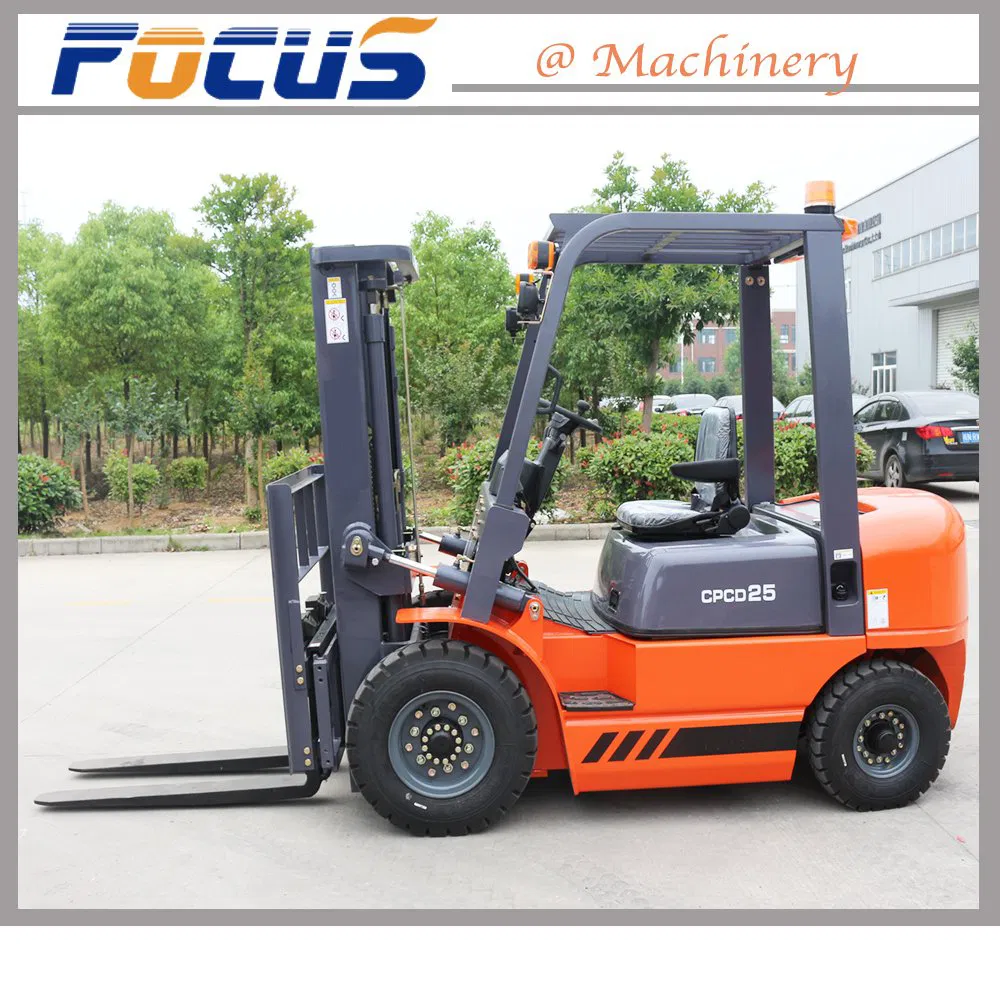

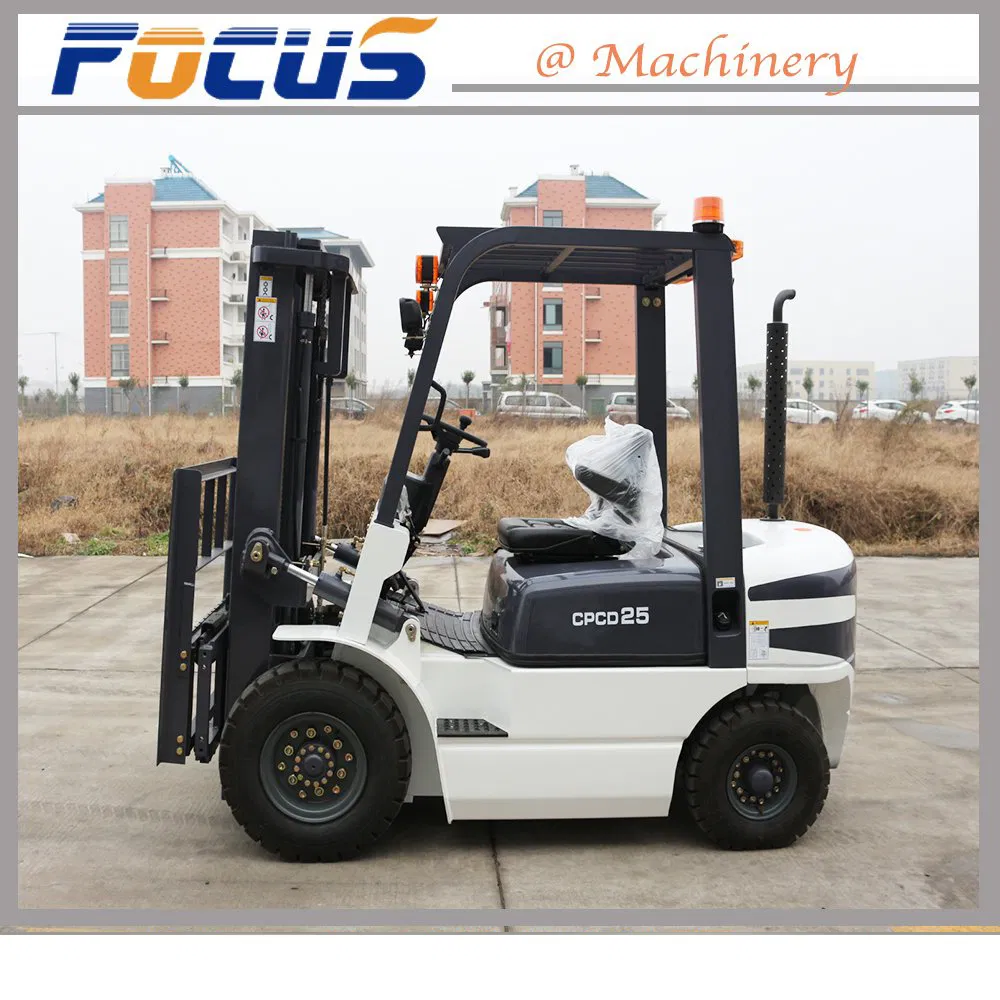

CPQYD25: Load capacity 2500kg, automatic transmission, 3m 2 stage duplex mast, China gasoline engine GQ-4Y, Electronic gear transmission,1070 mm fork, key switch, Pneumatic tyres, Safety seat, Free tool box and spare parts.
OPTION:
As a professional manufacturer of forklift, we also can offer you customized service,
The following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m Side shifter, fork positioner, longer forks, fork extension For the details of customized configurations and options, please contact with us.
About us
1.HENAN FOCUS VEHICLES Co., Ltd. is an ODM manufacturer specialized inthe development and production of streamlined engineering machinery with very consistent quality.
Featuring optimum combination of price and performance, our products mainly include wheel loaders, forklift trucks, excavators, hydraulic tipping dumpers, and their attachments parts.
Our loyal customer base spreads in North America, South America, European, Australia, Africa, etc.
2.Our core competitiveness lies in high quality and innovation. We adopt international quality management systems, and work only with world renowned suppliers like CUMMINS, ZF, YANMAR,PERKINS, KUBOTA, etc. Therefore, our machines are easy to operate and maintain.
We provide professional technical support and product training support services before sales, and offer 7*24 after-sales services and training of overseas technicians. Heracles R&Dengineers keep seeking
new ways to innovate all of our machines, which are robust and reliable and can tackle anything
at any time.
3.We would like to share with you how we deliver our promise and welcome your comments and questions. We are also exploring opportunities for cooperation with global distributors and dealers to help more customers worldwide with our machine solutions.
Our service :
1.Technical service
our mission:we deliver Sustainable financial returns by:Building Our Capabilities. Focusing on our customers,Enhancing our Service Offering
2.Customer visit
After the set service period,we will measure and analyze customers'conditions and requirements to improve Our service quality.We also provide suggestions on how to improve their business capabilities. We will invite customers to witness the developing and testing process of our new product so as to improve communications Between FOCUS and customer.
3.Parts support
Parts Support Department specializes in sales and support of genuine FOCUS parts.With an advanced ERP management system we have integrated all FOCUS exclusive dealers and stores across the world. Having a complete after-sales service system, We are able to provide rapid parts delivery.
4.Customer training
To give a better understanding of the performance,parts,operation and maintenance of FOCUS products for proper utilization And maintainance so that they are always in optimal condition and operated at the highest efficiency,FOCUS has established
A professional technical center to provide regular training for customers,agencies, and staff.
5.Service philosophy
With our 78 agencies across China,FOCUS has established a complete after-sales service network and owns a large number
Of after-sales service facilities.The after-sales service team will be able to reach any site swiftly to guarantee that the customers
Get timely on-site service and will not lose profit due to lengthy delays.
Buying Guides:
1**You please send us your enquiry;
2**We shall reply you with the quotation within 12 hours;
3**We negotiate on the configuration that you need;
4**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
5**Manufacturing process updated news → completing production;
6**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
Contact:
Sindy Chen
Mobile:+ 86 15890188201
Features of CPCD20 2 Ton diesel forklift :
Integrated central control box the reliability of electric systemErgonomical design ensures best operationEnergy-saving hydraulic system decreases fuel consumptionHigh-quality hydraulic hoses, no oil leakageWide-view mast design improves the productivity and safety
2.5TON: STANDARD INSTALLMENT:
CPQYD25: Load capacity 2500kg, automatic transmission, 3m 2 stage duplex mast, China gasoline engine GQ-4Y, Electronic gear transmission,1070 mm fork, key switch, Pneumatic tyres, Safety seat, Free tool box and spare parts.
OPTION:
As a professional manufacturer of forklift, we also can offer you customized service,
The following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m Side shifter, fork positioner, longer forks, fork extension For the details of customized configurations and options, please contact with us.
| Item | General | Basic Model | Unit | CPCD20 | CPCD25 | CPCD30 | |||
| 1 | Power type | Diesel | |||||||
| 2 | Rated capacity | kg | 2000 | 2500 | 3000 | ||||
| 3 | Load center | mm | 500 | ||||||
| 4 | Characteristic& Dimension | Lift height | mm | 3000 | |||||
| 5 | Free lift height | mm | 165 | 170 | 170 | ||||
| 6 | Fork size | L*W*T | mm | 1070*122*40 | 1070*125*50 | 1070*150*50 | |||
| 7 | Fork regulating range | Min/max | mm | 250/1100 | 260/1100 | 300/1100 | |||
| 8 | mm | ||||||||
| 9 | Mast title angle | F/R | Deg | 6/12 | |||||
| 10 | Front overhang | mm | 465 | 505 | 505 | ||||
| 11 | Rear overhang | mm | 520 | 585 | 535 | ||||
| 12 | Min.ground clearance (Bottom of mast) | mm | 120 | 140 | 150 | ||||
| 13 | |||||||||
| 14 | Overall dimensions | Length to face of fork (without fork) | mm | 2685 | 2750 | 2915 | |||
| 15 | Overall width | mm | 1150 | 1210 | 1410 | ||||
| 16 | Mast lowered height | mm | 2075 | 2150 | 2260 | ||||
| 17 | Mast extended height | mm | 4030 | 4160 | 4280 | ||||
| 18 | Overhead guard height | mm | 2070 | 2170 | 2180 | ||||
| 19 | Turning radius(outside) | mm | 2170 | 2450 | 2600 | ||||
| 20 | Min.right angle stacking aisle width(add load length and clearance) | mm | 2140 | 2160 | 2580 | ||||
| 21 | |||||||||
| 22 | |||||||||
| 23 | Performance | Speed | Travel (unladen) | Km/h | 19 | 19 | 20 | ||
| 24 | Lifting (laden) | Mm/s | 410 | 380 | 360 | ||||
| 25 | Lowering (laden) | Mm/s | 450 | 450 | 425 | ||||
| 26 | Max.drawbar pull(laden/ unladen | kn | 19/17 | 17/15 | |||||
| 27 | |||||||||
| 28 | Max.Grade ability(loden) | 20 | 18 | 18 | |||||
| 29 | |||||||||
| 30 | Chassis | Tyre | Front | 289-15-14PR | 289-15-14PR | 250-15-16PR | |||
| 31 | Rear | 6.5-10-10PR | 6.5-10-10PR | 6.5-10-10PR | |||||
| 32 | Tread | Front | mm | 970 | 1000 | 1154 | |||
| 33 | Rear | mm | 970 | 980 | 980 | ||||
| 34 | Wheelbase | mm | 1700 | 1700 | 1900 | ||||
| 35 | Fuel tank capacity | L | 70 | 70 | 80 | ||||
| 36 | Weight | Self weight | kg | 3320 | 4750 | 5100 | |||
| 37 | Battery | Voltage/Capacity | V/Ah | 12/80 | 12/90 | 12/90 | |||
| 38 | Transmission | Transmission | Manufacture | China | |||||
| 39 | Type | Powershift | |||||||
| 40 | Stage | F/R | 1/1 | ||||||
| 41 | Operating pressure(For Attachments) | Mpa | 17.5 | ||||||
About us
1.HENAN FOCUS VEHICLES Co., Ltd. is an ODM manufacturer specialized inthe development and production of streamlined engineering machinery with very consistent quality.
Featuring optimum combination of price and performance, our products mainly include wheel loaders, forklift trucks, excavators, hydraulic tipping dumpers, and their attachments parts.
Our loyal customer base spreads in North America, South America, European, Australia, Africa, etc.
2.Our core competitiveness lies in high quality and innovation. We adopt international quality management systems, and work only with world renowned suppliers like CUMMINS, ZF, YANMAR,PERKINS, KUBOTA, etc. Therefore, our machines are easy to operate and maintain.
We provide professional technical support and product training support services before sales, and offer 7*24 after-sales services and training of overseas technicians. Heracles R&Dengineers keep seeking
new ways to innovate all of our machines, which are robust and reliable and can tackle anything
at any time.
3.We would like to share with you how we deliver our promise and welcome your comments and questions. We are also exploring opportunities for cooperation with global distributors and dealers to help more customers worldwide with our machine solutions.
Our service :
1.Technical service
our mission:we deliver Sustainable financial returns by:Building Our Capabilities. Focusing on our customers,Enhancing our Service Offering
2.Customer visit
After the set service period,we will measure and analyze customers'conditions and requirements to improve Our service quality.We also provide suggestions on how to improve their business capabilities. We will invite customers to witness the developing and testing process of our new product so as to improve communications Between FOCUS and customer.
3.Parts support
Parts Support Department specializes in sales and support of genuine FOCUS parts.With an advanced ERP management system we have integrated all FOCUS exclusive dealers and stores across the world. Having a complete after-sales service system, We are able to provide rapid parts delivery.
4.Customer training
To give a better understanding of the performance,parts,operation and maintenance of FOCUS products for proper utilization And maintainance so that they are always in optimal condition and operated at the highest efficiency,FOCUS has established
A professional technical center to provide regular training for customers,agencies, and staff.
5.Service philosophy
With our 78 agencies across China,FOCUS has established a complete after-sales service network and owns a large number
Of after-sales service facilities.The after-sales service team will be able to reach any site swiftly to guarantee that the customers
Get timely on-site service and will not lose profit due to lengthy delays.
Buying Guides:
1**You please send us your enquiry;
2**We shall reply you with the quotation within 12 hours;
3**We negotiate on the configuration that you need;
4**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
5**Manufacturing process updated news → completing production;
6**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
Contact:
Sindy Chen
Mobile:+ 86 15890188201
