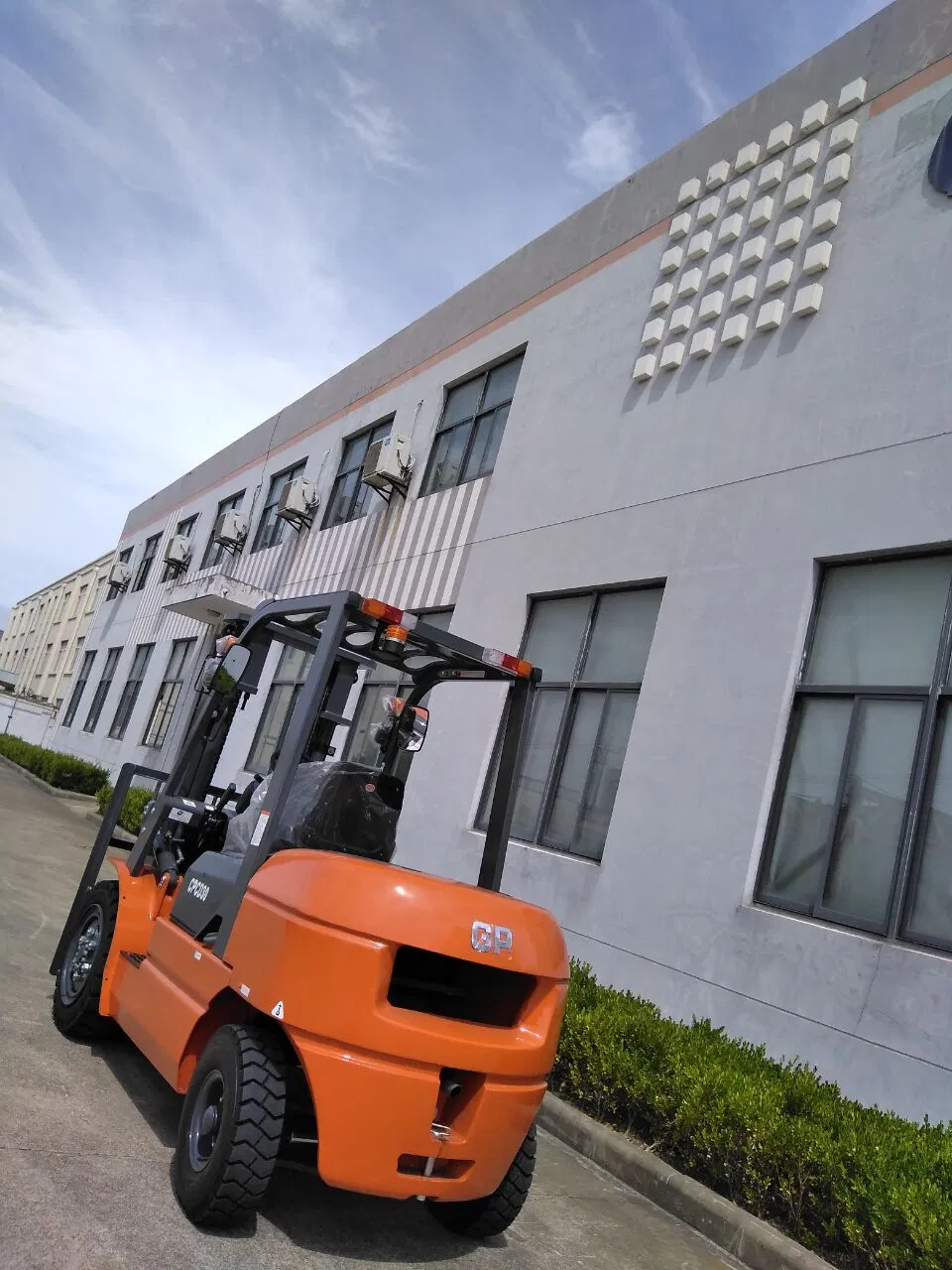

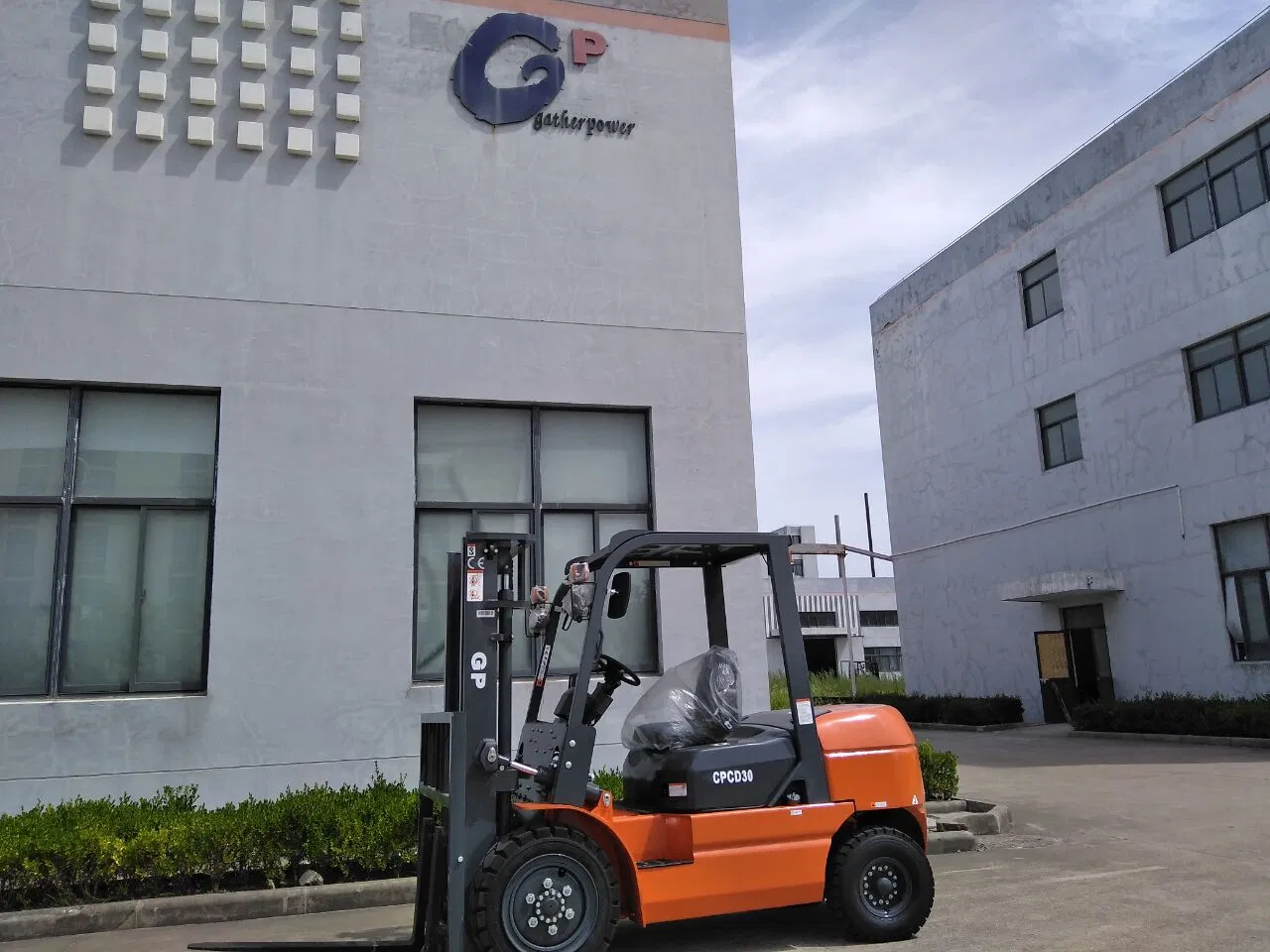

High Quality Diesel Power Truck Forklift for 2.5tons Loading Capacity with CE (CPCD30)

Product Description

Specific parameters

1. Three alternatives of engine: Imported Isuzu C240, Yanmar 4TNE92/94/98 engine, and domestic Xinchai 490/495. Economical but powerful enough

2. Transmission: With TCM technology.

3. Man-machine engineering designs, including the floating shock absorber configured on the engine, the elastic linked steering axle, the redirector providing low tensional moment, the semi-floating bonnet with built-in heat and sound insulation, ensure the comfort of driving.

4. The optional imported engines meet EU stage-III mission control regulation and obtain EPA accreditation.

General		Manufacturer				GP
	1	Model				CPCD20	CPCD25	CPCD30	CPCD35
	2	Rated capacity			kg	2000	2500	3000	3500
	3	Load center			mm	500
	4	Gearbox change speed type				Hydraulic/Mechanical
	5	Power type				Diesel
	6	Tire type		Front/ Rear		Pneumatic
	7	Wheels		Front/ Rear		2/2
Dimensions	8	Lift height			mm	3000
	9	Free lift height			mm	140		145
	10	Fork size		LWT	mm	1070x120x40	1070x120x45	1070x125x45	1070x130x45
	11	Mast tilt angle		Fwd/Bwd	deg	6/12
	12	Overall length (without fork)			mm	2510	2580	2720	2775
	13	Overall width			mm	1150		1225
	14	Mast height fork lowered			mm	2050		2080	2230
	15	Overall height fork raised			mm	4040		4272
	16	Overall height (overhead guard)			mm	2060		2090
	17	Turning radius (outside)			mm	2170	2240	2460	2540
	18	Load distance (centerline of front axle to front face of forks)			mm	484	489	494	500
	19	Travel speed (full load /no load )	(Hydraulic)		km/h	17/19		18/19
	20		Mechanical)	shift 1	km/h	8.5/9		8.8/9
	21			shift 2	km/h	18.5/19		18.5/20
	22	Wheel base			mm	1650		1700
	23	Tread		Front	mm	970		1000
	24			Rear	mm	970
	25	Min. Under-clearance (full load / no load )		Bottom of mast	mm	85/105		110/135
	26			Bottom of frame	mm	115/120		135/140
Performance	27	Speed	Travel speed	With load	km/h	17		18
	28			Without load	km/h	19.5		19.5
	29		Lifting speed	With load	mm/sec	470		430	400
	30			Without load	mm/sec	600		500	450
	31	Max. Drawbar pull		With/ without load	kg	1250/850	1250/850	1100/1000	1304/1190
	33	Max.Gradeability		With/ without load	% (fan)	20/20	17/18	15/18	15/18
Weight	34	Self weight			kg	3550	3880	4380	4750
	35	Weight distribution	With load	Front	kg	4730	5480	6455	7320
	36			Rear	kg	590	700	825	930
	37		Without load	Front	kg	1520	1465	1720	2040
	38			Rear	kg	1800	2215	2560	2710
Tyre	39	Tyre	Size	Front		7.00-12-12PR		28x9-12-12PR	28x9-15-14PR
	40			Rear		6.00-9-10PR		6.50-10-10PR
Brake	41	Brake	Service			Hydraulic-Foot pedal
	42		Parking			Mechanical-Hand lever
Transmission	43	Battery	Voltage /Capacity		V/AH	12/100
	44	Internal combustion engine	Model for option			1. XINCHANG ; 2. ISUZU ;3. YANMAR; 4. DEUTZ
	45	Transmission	Type			Hydraulic/Mechanical
	46		shift (Fwd/Rvs)			1/1 (2/2)
	47	Work pressure			Mpa	17.5
