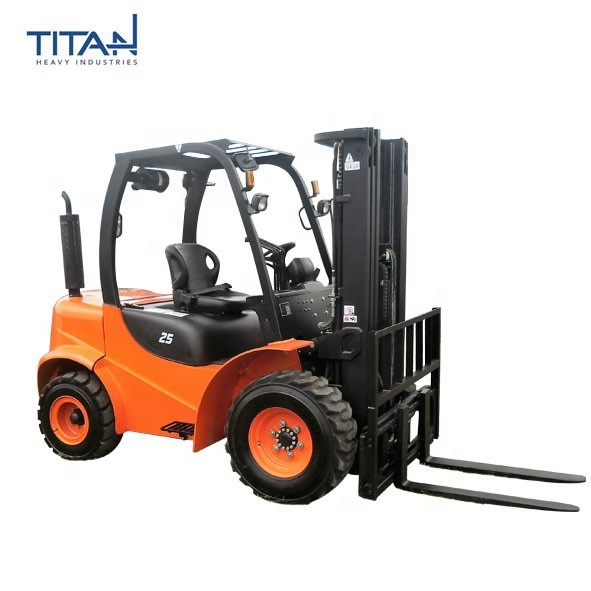

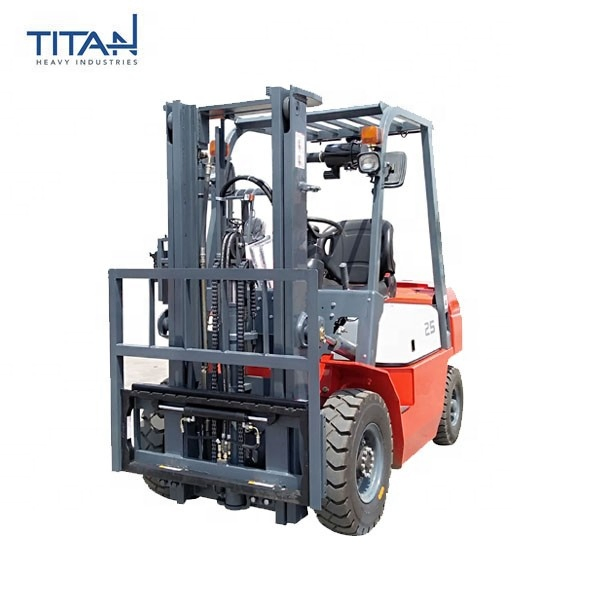

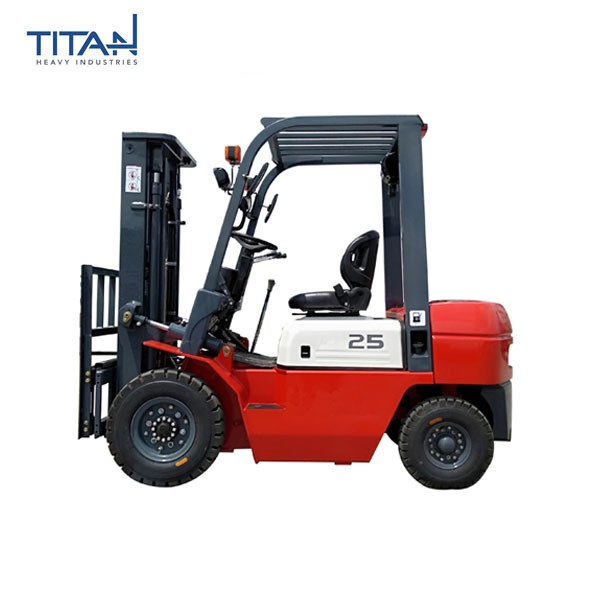

Hot Selling Titanhi Diesel Forklift The Driving Axle Is Conbined In Cast Steel Structure

Product Description

Hot Selling Titanhi Diesel Forklift The Driving Axle Is Conbined In Cast Steel Structure

1) Wide view forklift mast, it is suitable for hard and rugged terrain working condition.
2) It is tires are big patterm, wideth tires, It is specialized designed for hard , terrain road and way.
3) Working condition of cross-country road is rugged, obstacles in the way.
4) The driving axle is conbined in Cast steel structure, it get more stength and reliable.

MODEL					TLC20	TL25	TL30	TL35
1	Characteristics	Fuel type			diesel	diesel	diesel	diesel
2		Load capacity		kg	2000	2500	3000	3500
3		Load center		mm	500	500	500	500
4		Lift height		mm	3000	3000	3000	3000
5		Full free lift height		mm	100	100	100	100
6		Fork dimension		mm	1070×122×40	1070×122×40	1070×125×45	1070×125×45
7		Mast tilting angle		deg	6/12	6/12	6/12	6/12
8		Min.turning radius		mm	2190	2240	2400	2450
9		Groud clearance		mm	120	120	135	135
10		Overhead guard height		mm	2160	2160	2165	2165
11		Front overhang		mm	450	450	490	490
12	Performance	Max travel speed		km/h	19	19	20	20
13		Max lift speed		mm/s	500	500	480	480
14		Max.traction power		kw	17	18	20	22
15		Max. gradeability		%	20	20	20	20
16	Dimensions	Total length with fork		mm	3600	3650	3770	3820
17		Total length without fork		mm	2530	2580	2700	2750
18		Total width		mm	1160	1160	1225	1225
19		Mast extended height		mm	4220	4220	4265	4265
20		Mast lowered height		mm	2060	2060	2060	2060
21	Chassis	Tyres Front			7.00-12-12PR	7.00-12-12PR	28x9-15-12PR	28x9-15-12PR
22		Type Rear			6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR
23		Wheelbase		mm	1600	1600	1700	1700
24		Tread		mm	970/970	970/970	1000/970	1000/970
25		Service weight		kg	3530	3880	4350	4600
26	Drive	Battery		V/Ah	12/80	12/80	12/80	12/80
27		Motor	Model		Xinchai 4D27G31	Xinchai 4D27G31	Xinchai 4D27G31	Xinchai 4D27G31
28			Rated output	kw/r.p.m	36.8/2500	36.8/2500	36.8/2500	36.8/2500
29			Rated torque	Nm/r.p.m	157/1800	157/1800	157/1800	157/1800
30			Cylinders		90×105	90×105	90×105	90×105
31			Displacement	L	4	4	4	4
32		Fuel tank capacity		L	2.67	2.67	2.67	2.67
33		Transmission			Hydraulic

Main Specification

--China Xinchai 490 engine 42KW.
--Automatic transmission.
--2-stage 3000mm mast.
--Side shifter.
--1070mm fork.
--Pneumatic tire.

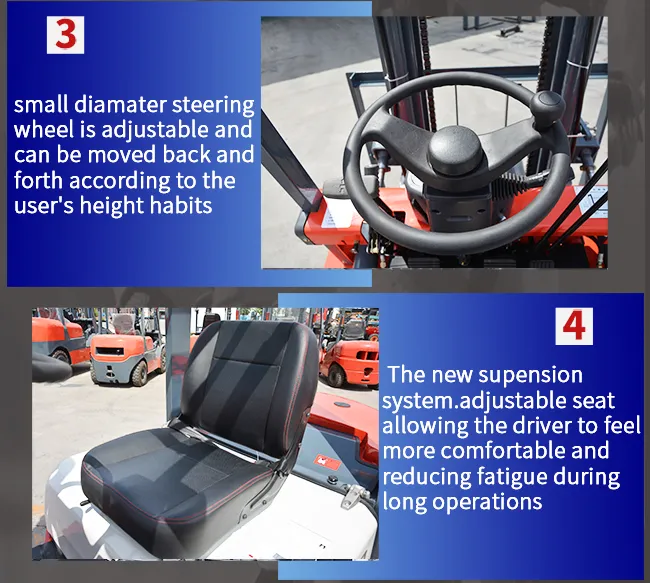

--Top-grade seat.
--Warning and AR light.
--Special-radiator for top hot area.

Certifications
All the machine with CE ISO SGS certificate.

Hot Selling Titanhi Diesel Forklift The Driving Axle Is Conbined In Cast Steel Structure

Packaging Details
TITAN Transport packaging team helps our customer to transport their machine in safe and secure way without any damage. Close to Qingdao port, we have the natural advantage to deliver your cargo safe, on time with competitive freight cost.

Hot Selling Titanhi Diesel Forklift The Driving Axle Is Conbined In Cast Steel Structure

OUR SERVICE
Our trained Professional service team offers high quality in-time service in a very friendly way.
For a good customer experience, the content of pre -sales includes the recommendation on the right products basis on condition. All you have to do is to inform us your needs.
For After-sales, to minimize the downtime, we offer air delivery for the spare parts which are within guarantee within 3 working days. We have professional technician to support trouble clearing and maintenance.

Pre-Sales Service
(1) Inquiry and consulting support.
(2)Sample testing support.
(3)View our Factory.

One year guarantee for whole machine main parts.
24 hours technical support by email.
User manual and details videos or CD if you requested For each forklift

After-Sales Service
(1)Training how to instal the machine, training how to use the machine.
(2)Engineers available to service machinery overseas.

About Us
Our company Weihai Titan Heavy Machinery ,We are a professional wheel loader and excavator factory in China,owns more than 11 years experiences on producing and exporting wheel loader.We are actively trying to develop agents all over the world, looking forward to cooperating with you.
