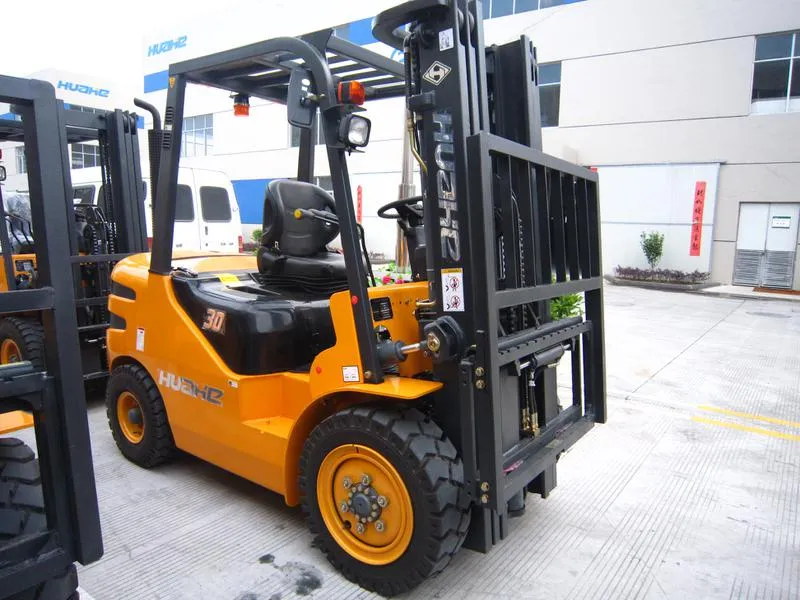

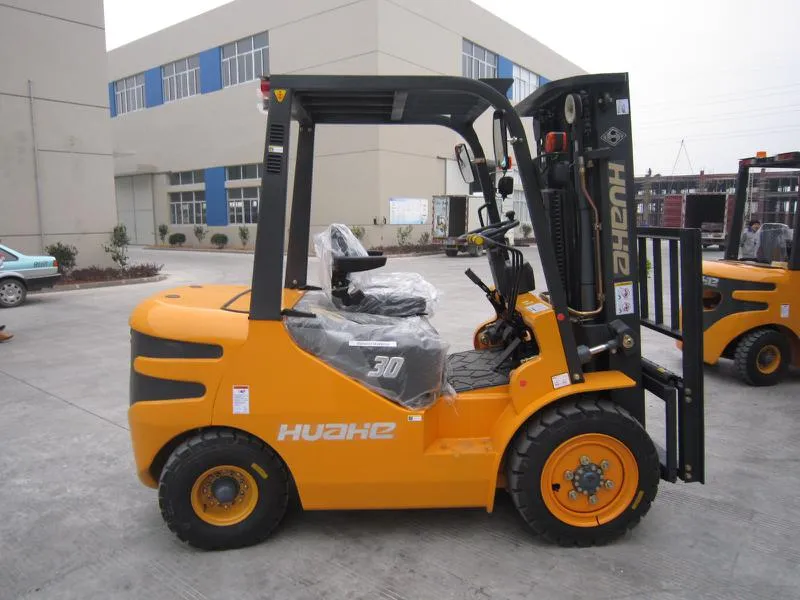

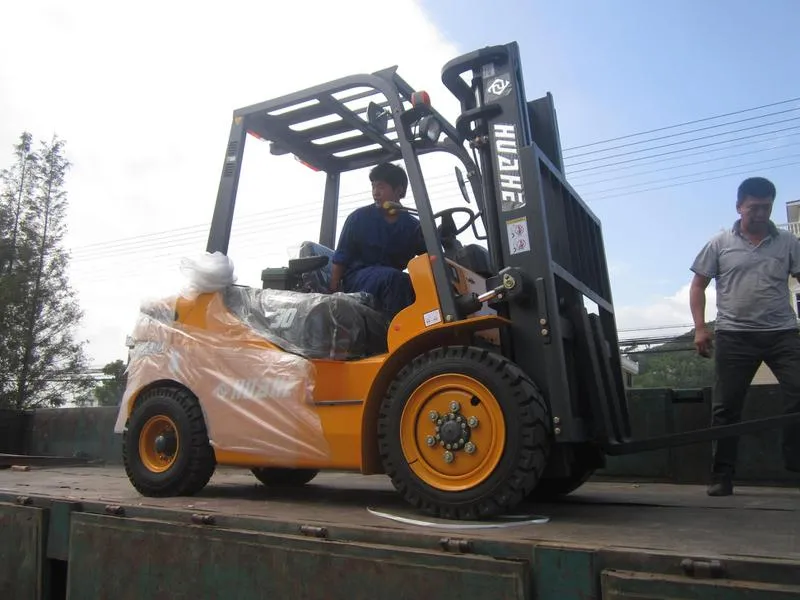

Huahe 4.5m 3t Diesel Forklift with Xinchai Engine (HH30)
Huahe 4.5m 3t Diesel Forklift with Xinchai Engine (HH30)Product Description Model HH20 (Z)HH25 (Z)HH30 (Z)HH35 (Z)Power typeDiesel/ Gasoline/LPGDiesel/ Gasoline/LPGDiesel/ Gasoline/LPGDiesel/ Gasoline/LPGRated capacity2000250030003500Load center500500500500Lift height3000300030003000Free lift hei......
Send Inquiry
Product Description
Huahe 4.5m 3t Diesel Forklift with Xinchai Engine (HH30)
| Model | HH20 (Z) | HH25 (Z) | HH30 (Z) | HH35 (Z) | ||
| Power type | Diesel/ Gasoline/LPG | Diesel/ Gasoline/LPG | Diesel/ Gasoline/LPG | Diesel/ Gasoline/LPG | ||
| Rated capacity | 2000 | 2500 | 3000 | 3500 | ||
| Load center | 500 | 500 | 500 | 500 | ||
| Lift height | 3000 | 3000 | 3000 | 3000 | ||
| Free lift height | 130 | 130 | 130 | 130 | ||
| Fork size(L*W*T) | 1070×120×40 | 1070×120×40 | 1070×125×45 | 1070×125×45 | ||
| Fork outside spread(Min./Max.) | 300/1200 | 300/1200 | 300/1200 | 300/1200 | ||
| Mast tilt range(F/R) | 6/12 | 6/12 | 6/12 | 6/12 | ||
| Front overhang | 482 | 482 | 490 | 490 | ||
| Overall dimensions | Length to face of fork | Without of fork | 2480 | 2630 | 2680 | 2730 |
| With fork | 2480 | 2630 | 2680 | 2730 | ||
| Wheel width | 1150 | 1150 | 1225 | 1225 | ||
| Mast lowered height | 2095 | 2095 | 2095 | 2095 | ||
| Mast extended height | 4050 | 4050 | 4180 | 4180 | ||
| Overhead guard height | 2120 | 2120 | 2120 | 2120 | ||
| Turning radius | 2320 | 2380 | 2460 | 2510 | ||
| Min. right angle aisle width | 1910 | 2000 | 2105 | 2200 | ||
| Travel speed (unload/full load) | 20/18.5 | 20/18.5 | 20/18.5 | 20/18.5 | ||
| Lift speed (unload/ full load) | 510/450 | 480 | 480 | 480 | ||
| Max. gradeability | 20 | 20 | 20 | 20 | ||
| Tires | Front | 7.00-12-12PR | 7.00-12-12PR | 28×9-15-12PR | 28×9-15-12PR | |
| Rear | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | ||
| Tread | Front | 970 | 970 | 1000 | 1000 | |
| Rear | 970 | 970 | 970 | 970 | ||
| Wheelbase | 1650 | 1650 | 1700 | 1700 | ||
| Min. ground clearance (unload/ full load) | Mast | 152/132 | 152/132 | 152/132 | 152/132 | |
| Frame | 158/138 | 158/138 | 158/138 | 158/138 | ||
| Battery | 12/90 | 12/90 | 12/90 | 12/90 | ||
| Engine | Model | K21 | K21 | K25 | K25 | |
| Rated output | 31.2/2250 | 31.2/2250 | 37.4/2300 | 37.4/2300 | ||
| Rated torque | 143.7/1800 | 143.7/1800 | 171.2/1600 | 171.2/1600 | ||
| Displacement | 2065 | 2065 | 2488 | 2488 | ||
| No. of cylinder | 4 | 4 | 4 | 4 | ||
| Bore×stroke | ||||||
| Transmission | Model | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
| Shift (FWD/RVS) | 1/1 | 1/1 | 1/1 | 1/1 | ||
| Operating pressure | 17.5 | 17.5 | 17.5 | 17.5 | ||
